CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 14.9375"
Grinding Diameter, Minimum 0"
Grinding Diameter, Maximum 14"
Distance Between Centers, Nominal 36"
Grinding Wheel Diameter, Standard 14"
Grinding Wheel Width, Standard 1.5"
Grinding Wheel Hole Diameter 5"
Table Swivel Taper Toward Wheelhead 4.5" TPF
Table Swivel Taper Away Wheelhead 1.250" TPF
Headstock Swivel Angle Toward Wheelhead 90-DEGREES
Headstock Swivel Angle Away Wheelhead 30-DEGREES

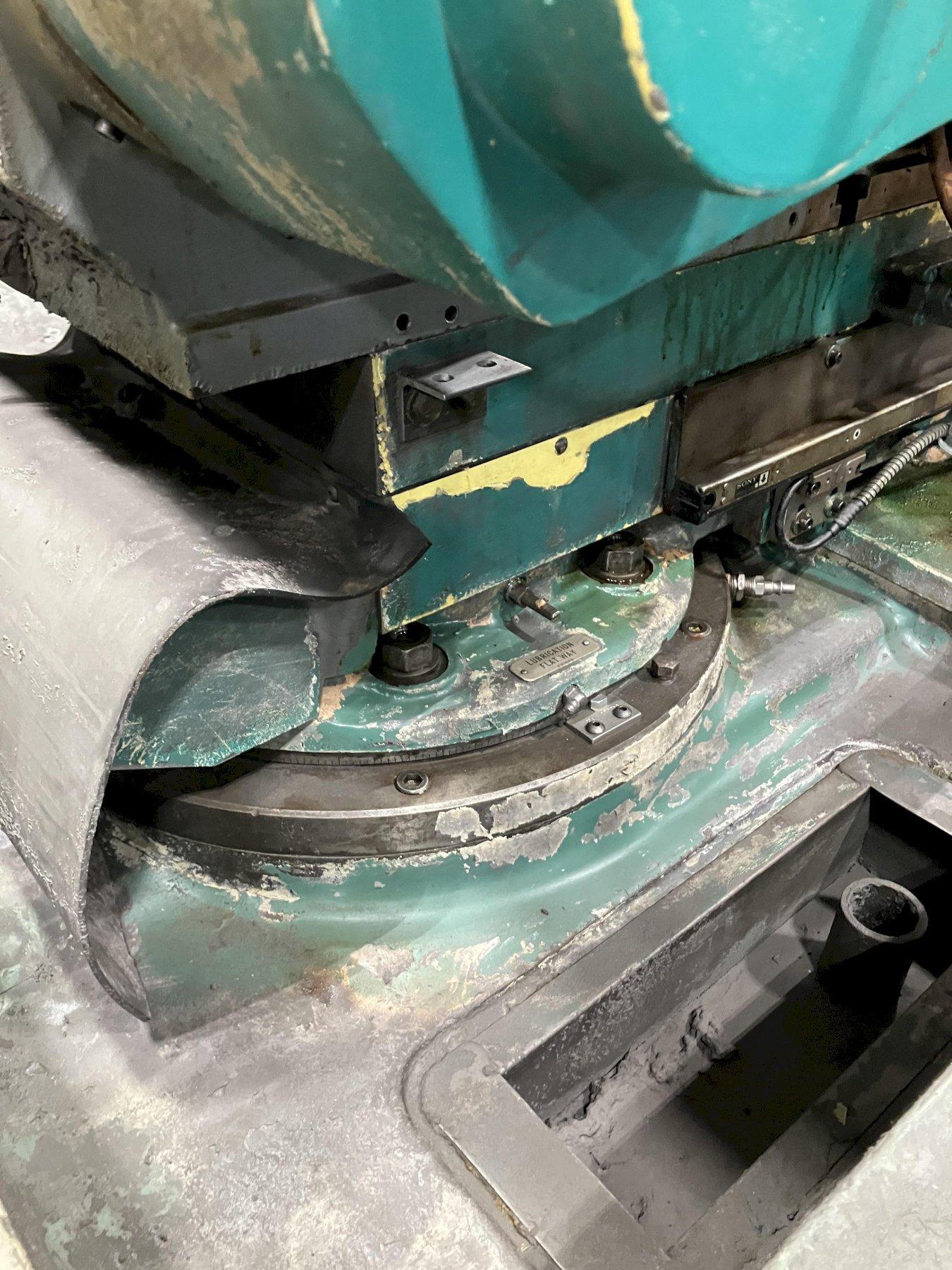

Lower Grinding Wheelhead Swivel Range 90-DEGREES
Upper Grinding Wheelhead Swivel Range 30-DEGREES
Workhead And Tailstock Center Tapers #9 B&S
Workhead Spindle Speeds, Range 50 TO 500 RPM
Table Longitudinal Feeds, Infinite 3 TO 240 IPM
Grinding Wheelhead Spindle Motor 3 HP
Workhead Motor, Horsepower 1 HP
EQUIPPED WITH:
Swing-Down Internal Grinding Attachment
Hydraulic Pickfeed Attachment
1 HP Variable Speed Workhead
Coolant System (Built-In)
Floor Space Required, L x D 12'9" X 5'6"
