SPECIFICATIONS:
SWING OVER BED AND CARRIAGE WINGS ... 26"
SWING OVER CROSS SLIDE ............. 18-1/4"
DISTANCE BETWEEN CENTERS ............ 144"
SPINDLE NOSE FLANGED ................ 15"
HOLE THRU SPINDLE ................... 9"
WIDTH OF BED ........................ 17"
SPINDLE SPEED RANGE (12) ............ 6 – 400 RPM
FEED RANGE (48) ..................... 0.0036" - .205" IPR
THREADING RANGE ENGLISH (48) ........ 2 – 112 TPI
TAILSTOCK SPINDLE TRAVEL ............ 7-1/2”
TAILSTOCK SPINDLE DIAMETER .......... 3-1/8”
TAILSTOCK SPINDLE TAPER ............. #5 MORSE
APPROX. WEIGHT ..................... 10,500 LBS
APPROX. DIMENSIONS .................. 220”L X 60”W X 56”H
EQUIPPED WITH:

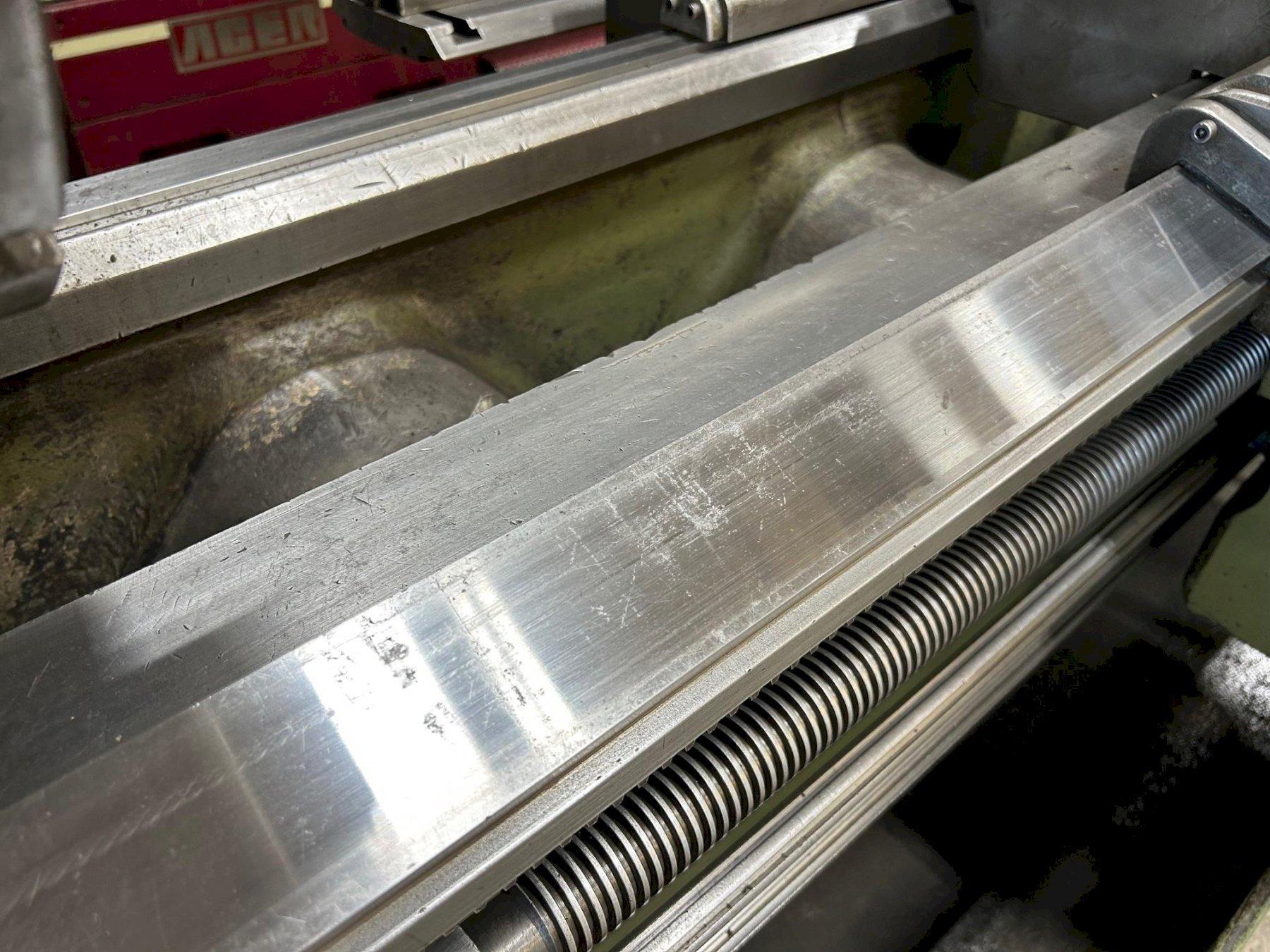

HARDENED AND GROUND BEDWAYS
TAPER TURNING ATTACHMENT

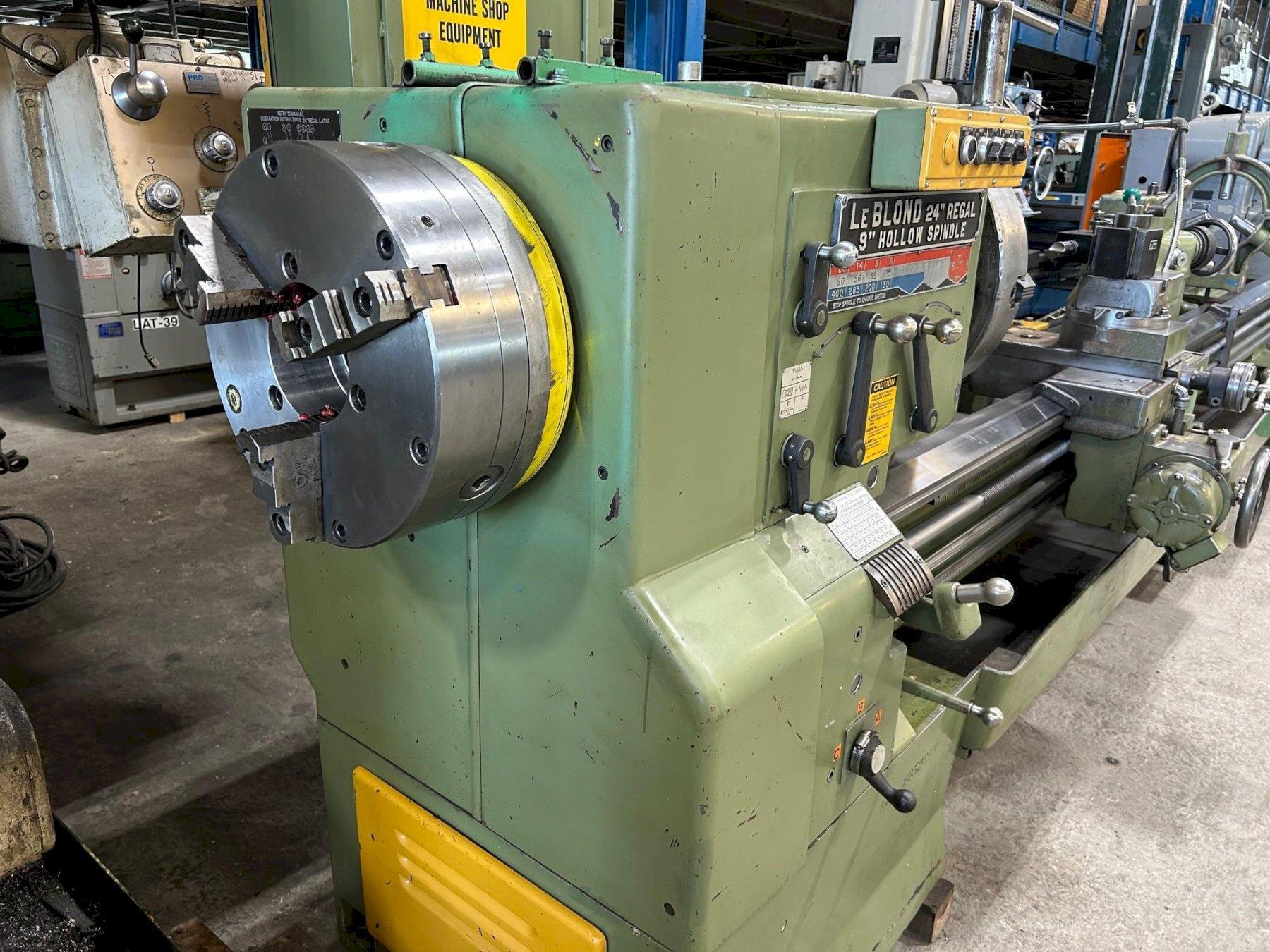

20" DIAMETER 3-JAW CHUCK
16" DIAMETER 3-JAW CHUCK WITH 9" HOLE THRU

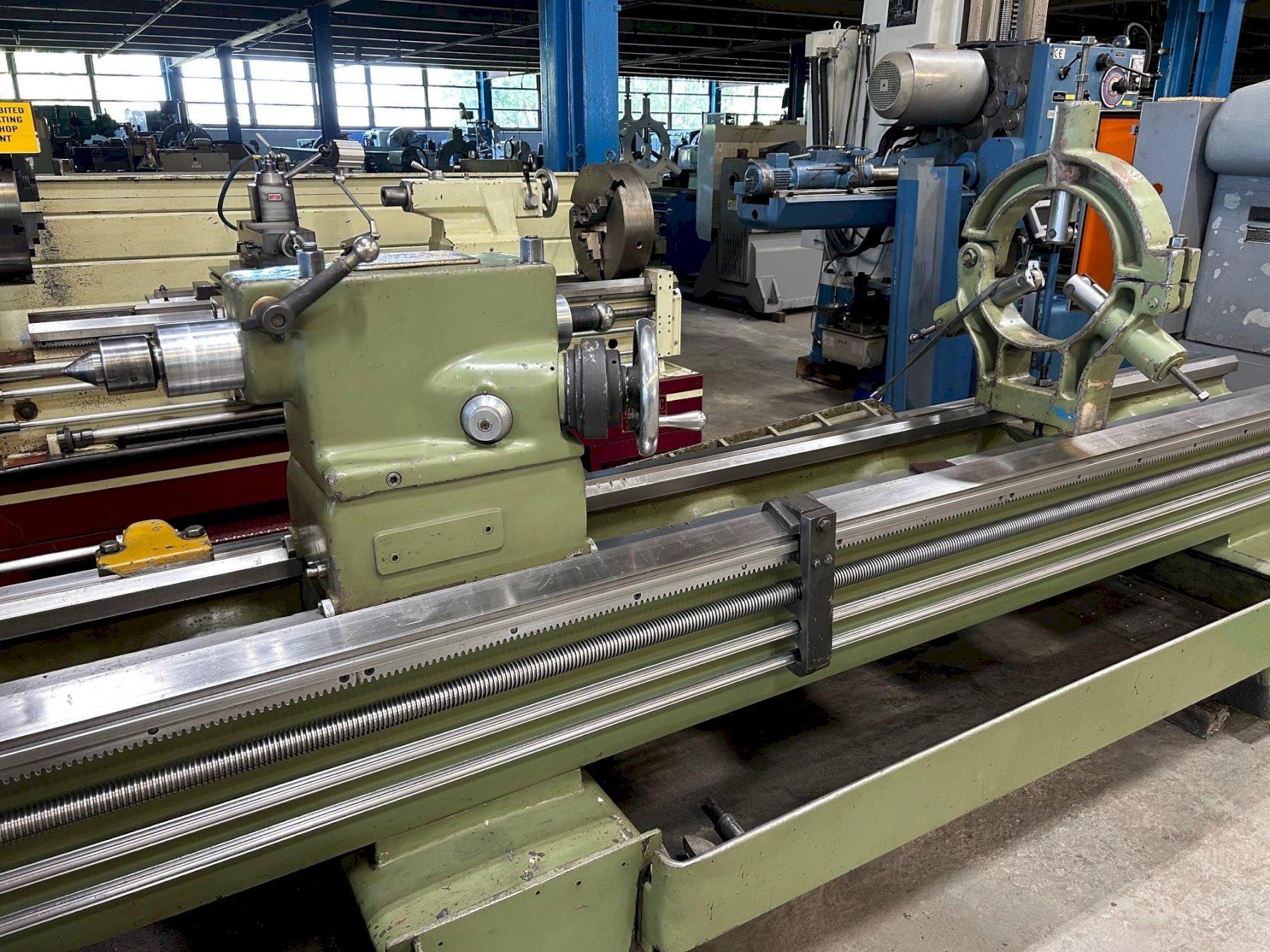

ROLLER TYPE STEADY REST

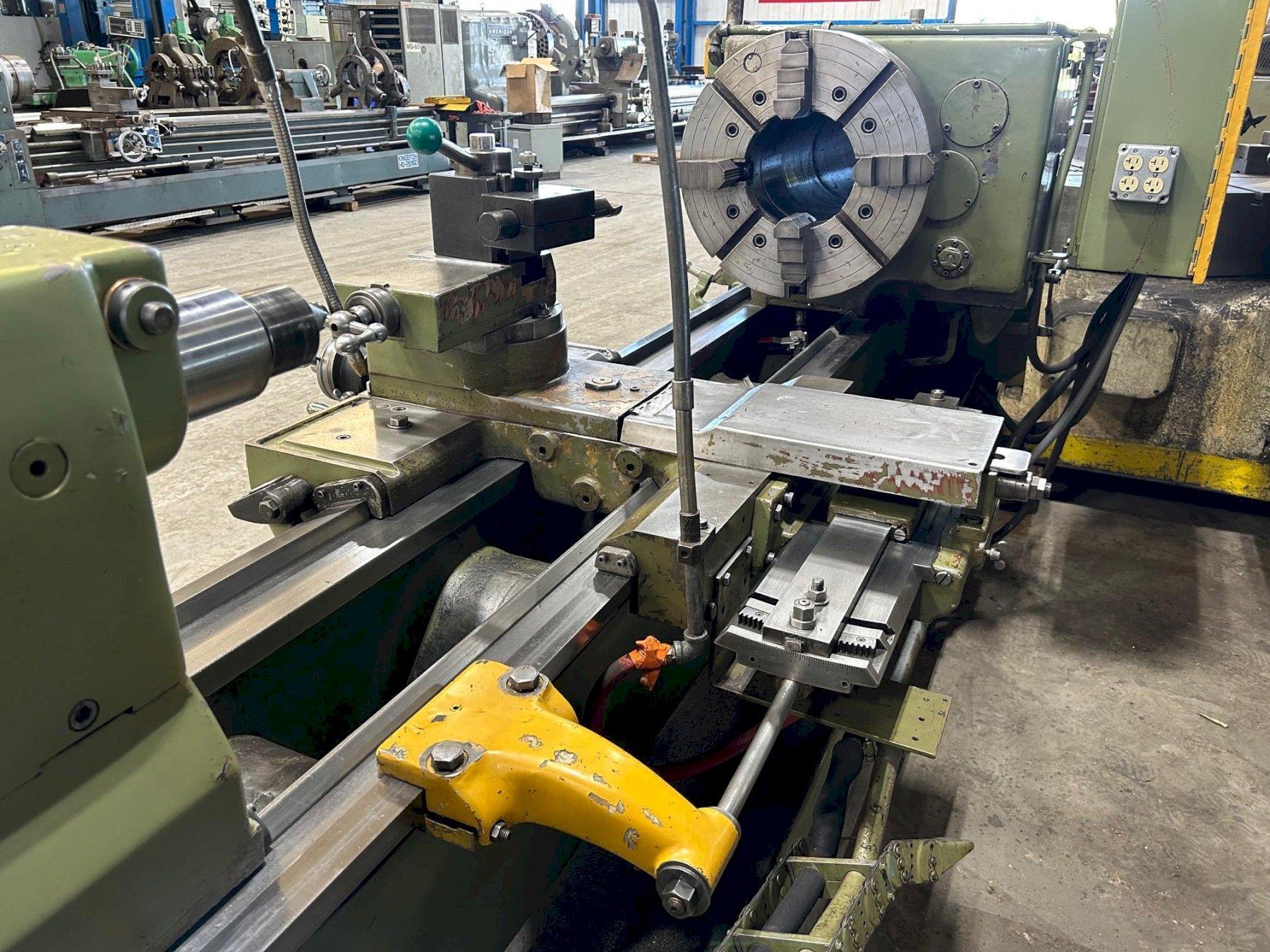

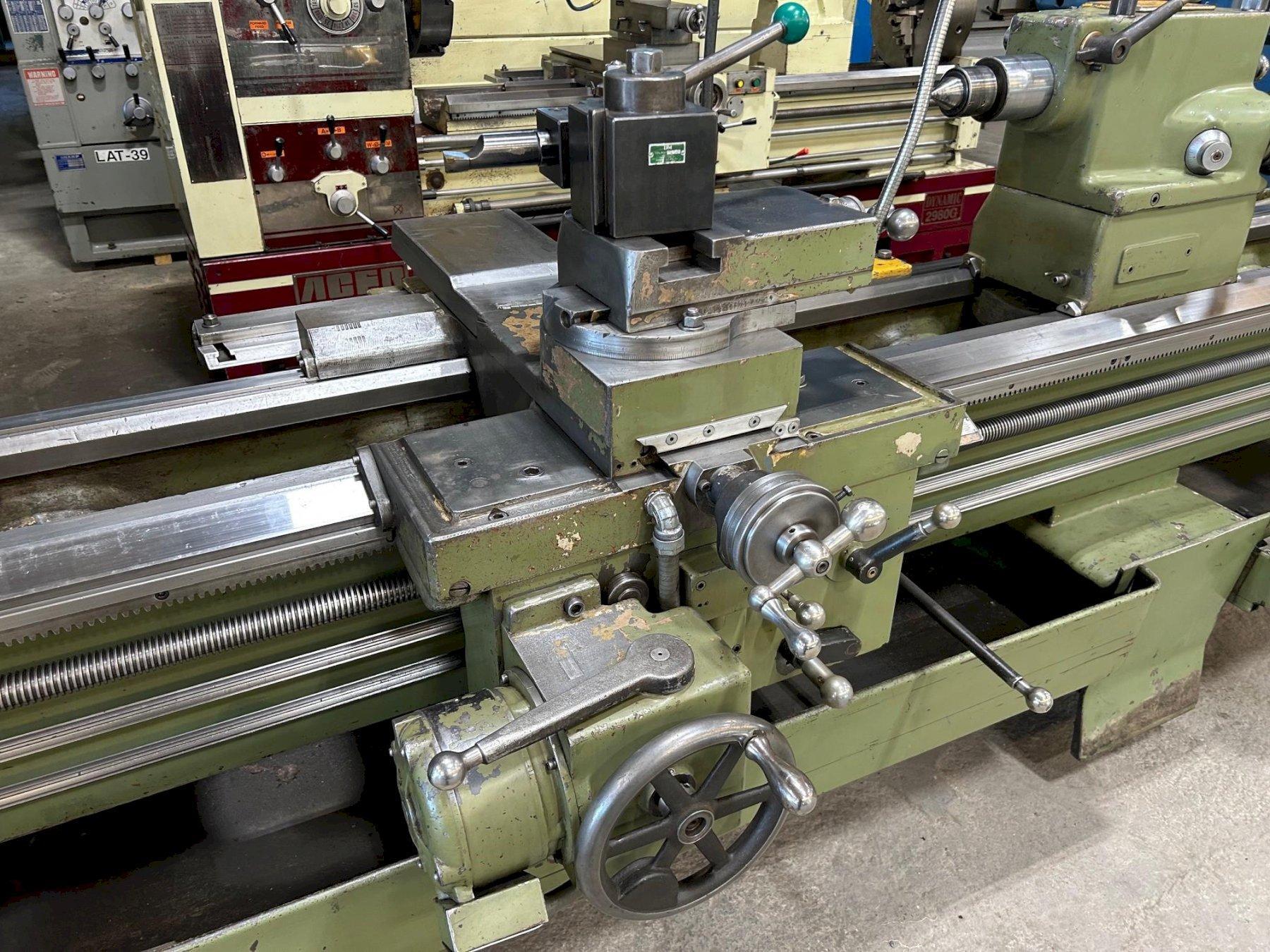

QUICK CHANGE TOOLPOST
THREAD DIAL INDICATOR
15 HORSE POWER MAIN MOTOR
