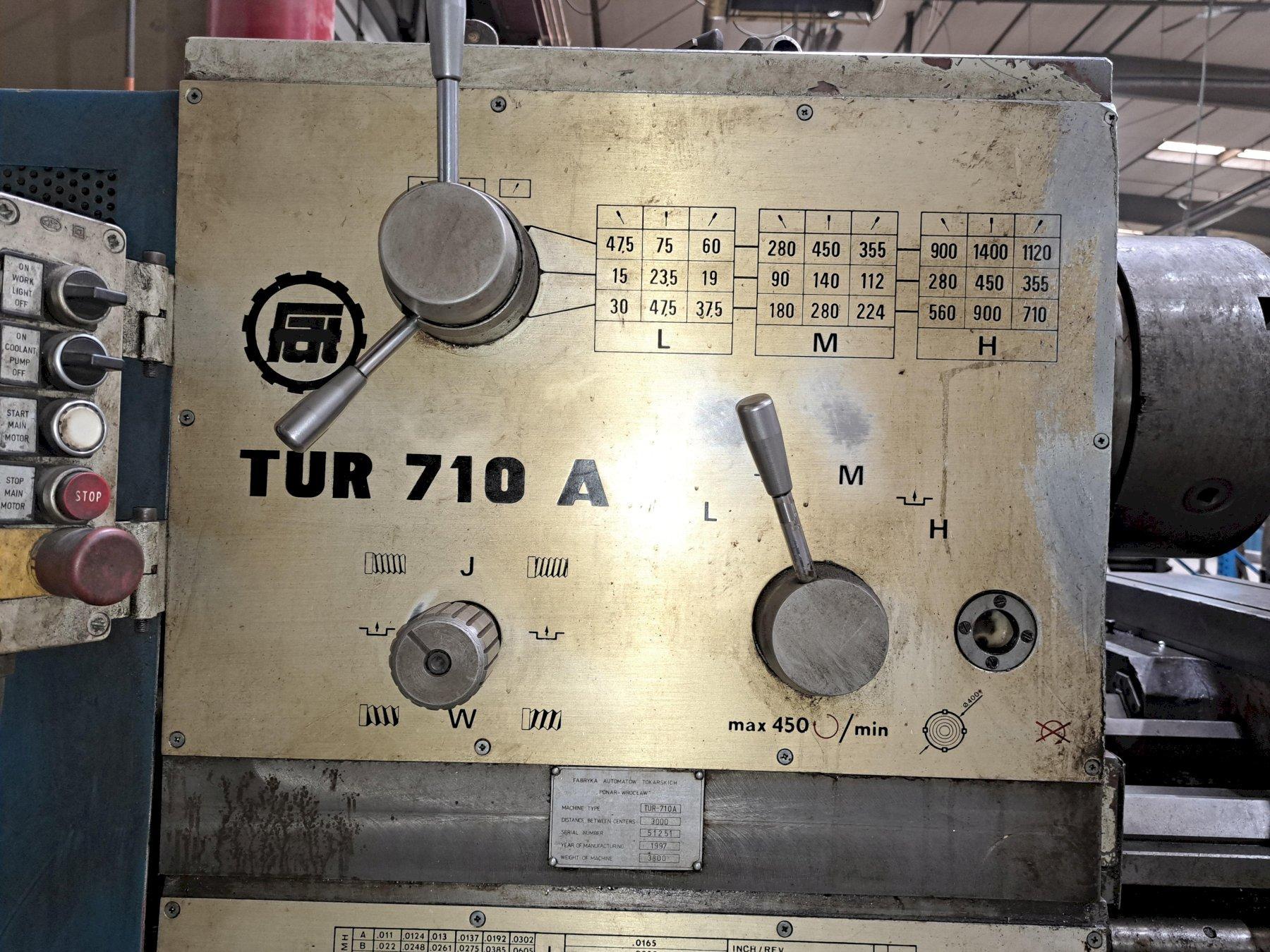

28"X157" TOOLMEX Model TUR:710/A
model...................................................TUR-710A
year......................................................1997
swing over ways...................................28 1/2"
swing over cross slide..........................21 1/2"
distance between centers....................118"
diameter of quill on tail stock................3 1/2"
travel of tail stock..................................8"
spindle bore...........................................5 1/2"
spindle speeds......................................(27) 15 to 1400
longitudinal feeds.................................(42) .002 to .121 IPR
cross feeds...........................................(42) .001 to .060 IPR
threads english.....................................(42) 1 to TPI
threads metric......................................(42) 1 to 88 mm per revolution
chuck....................................................20" 4 jaw

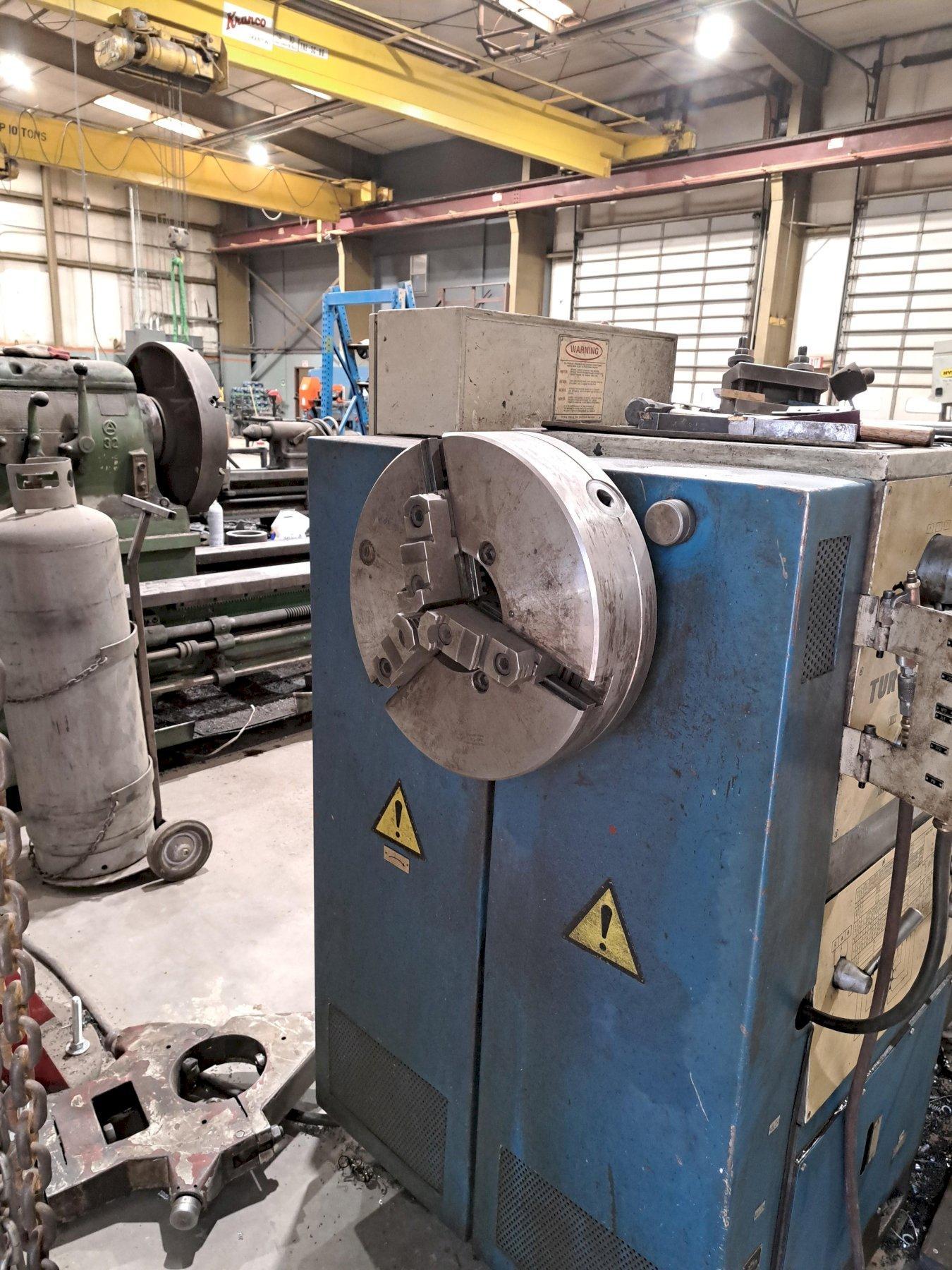

back chuck ...........................................16" 3 jaw
taper attachment...................................yes
rapid traverse........................................4 way
travel dial ..............................................yes
steady rest.............................................yes
coolant with chip pan.............................yes
motor.....................................................20 H.P.
RPM......................................................1735
power....................................................230/460 3phase
