• X-Axis: 82.7"
• Y-Axis: 63.0"
• Z-Axis: 30.0"
• Table Size: 86.6" x 55.1"
• Table Load Capacity: 8,818 Lbs
• Distance Between Columns: 66.9"
• Spindle Motor: 35/30 HP
• Spindle Speed Range: 10 - 6,000 RPM
• Spindle Taper: BT 50
• Distance Spindle Nose to Table Top: 9.4" - 39.4"
• Rapid Traverse Rate (XY / Z): 787.4 / 393.7 IPM
• Cutting Feed Rate: 0.4 - 590.6 IPM
• Positioning Accuracy: +/- 0.0001"
• Tool Magazine Capacity: 32 ATC
• Electrics: 220 Volts
• Floor Space Requirement (Length): 299.2"
• Floor Space Requirement (W x H): 192.9" x 140.6"
• Machine Weight: 40,785 Lbs

Equipped With:

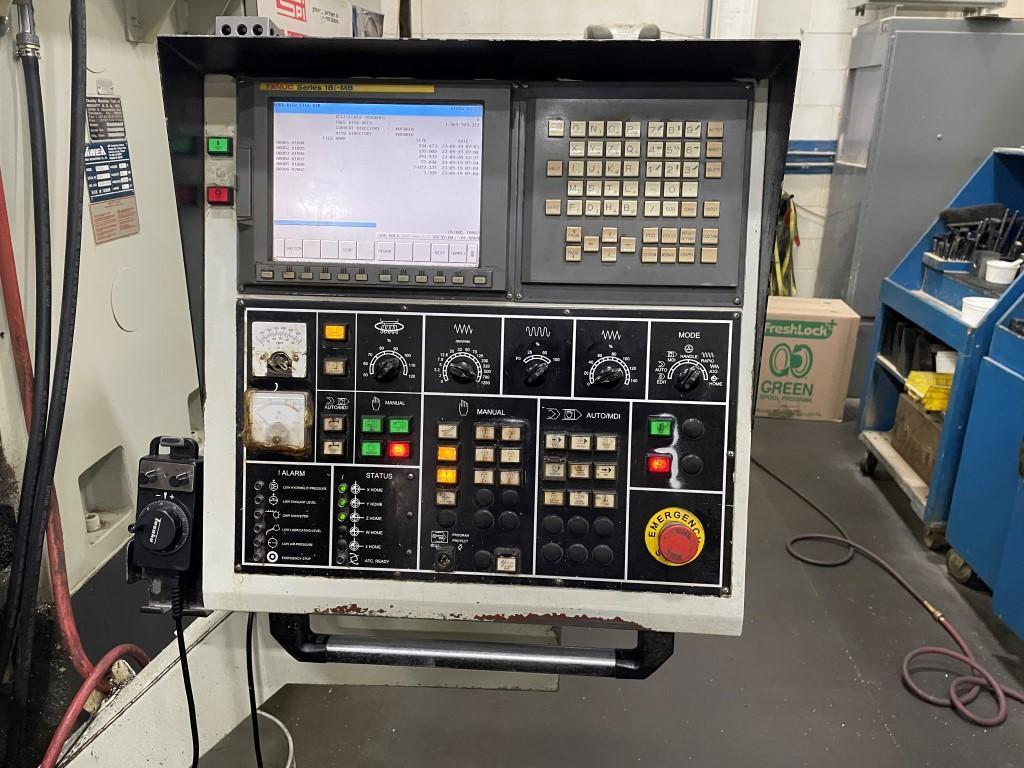

• Fanuc 18iMB CNC

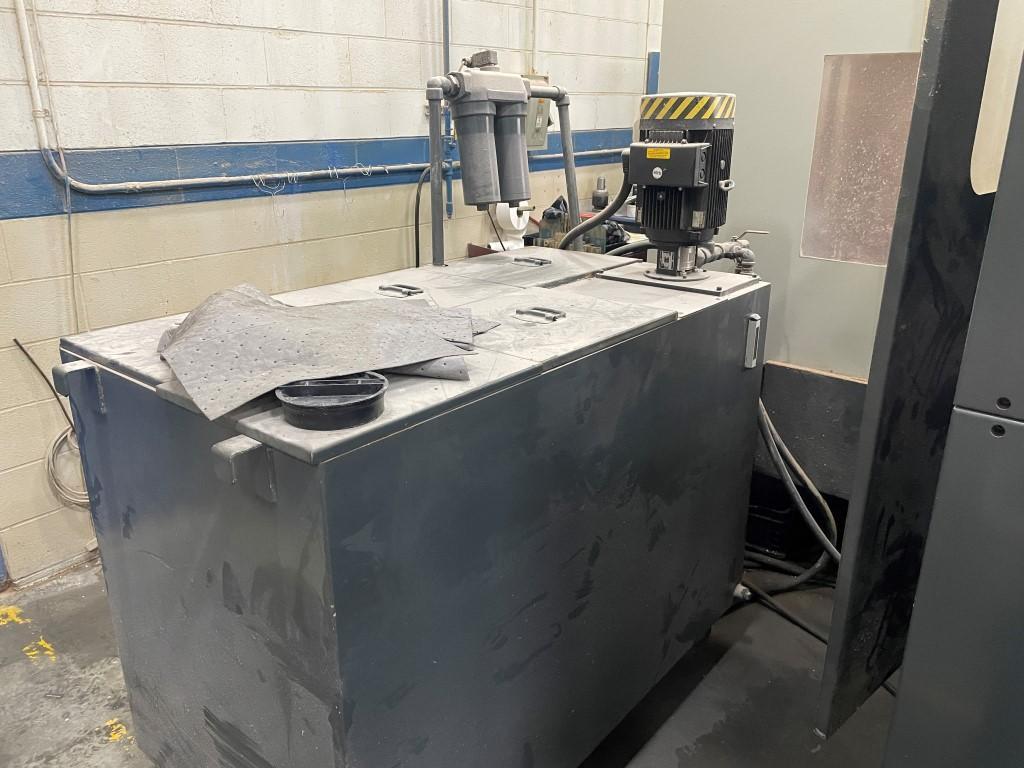

• Coolant Through Spindle
