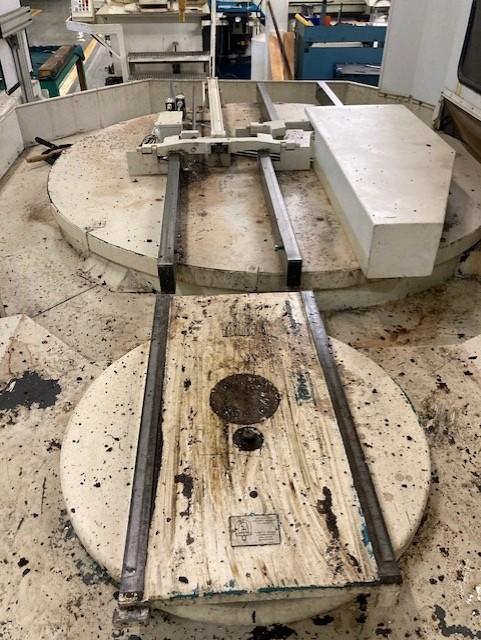

Pallet Size: 31.5″ x 31.5″- 800mm X-Axis (Longitudinal,Column): 40″ Y-Axis ( Vertical): 40″ Z-Axis (Cross): 42″ Feed Rates For X,Y and Z Axis: 0-150 IPM Rapid Traverse Rates for X,Y,and Z Axis: 400 IPM Automatic Tool Change Time: 13 Seconds (Metal to Metal) Maximum Tool Weight: 60 Pounds Programmable Index Positons: 360,000 (.001 Degree) Spindle Speeds: 20-4000 RPM Spindle Taper: Cat #50

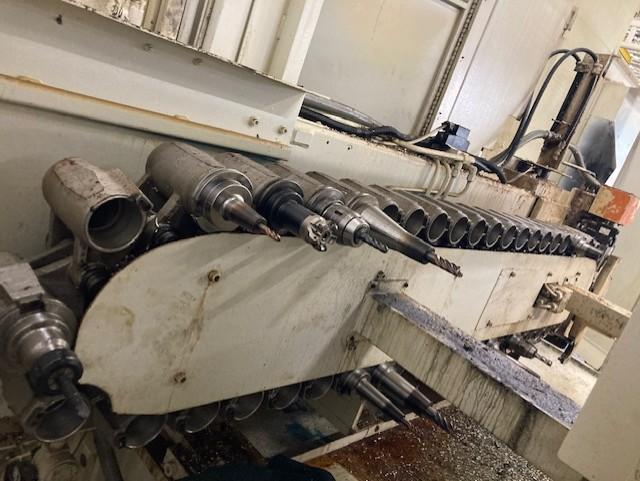

Tool Changer: 45 Position ATC

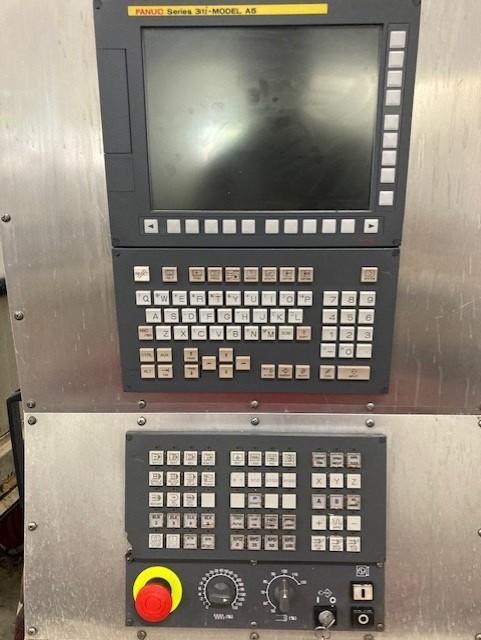

Equipped With: -Fanuc Control Upgrade -Coolant Thru Spindle
