Equipped With
NEW 2014
HEIDENAIN TNC530 CNC CONVERSATIONAL CONTROL

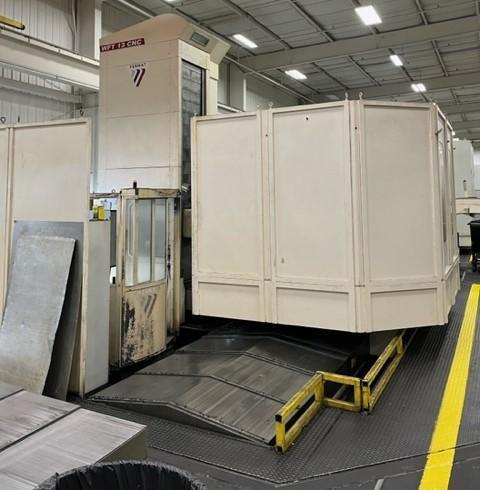

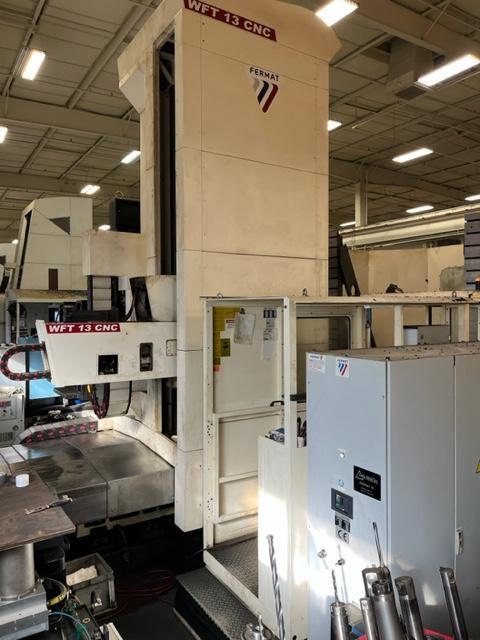

T-TYPE CONSTRUCTION, INFEEDING COLUMN
94.4" X 78.74" BUILT-IN ROTARY TABLE

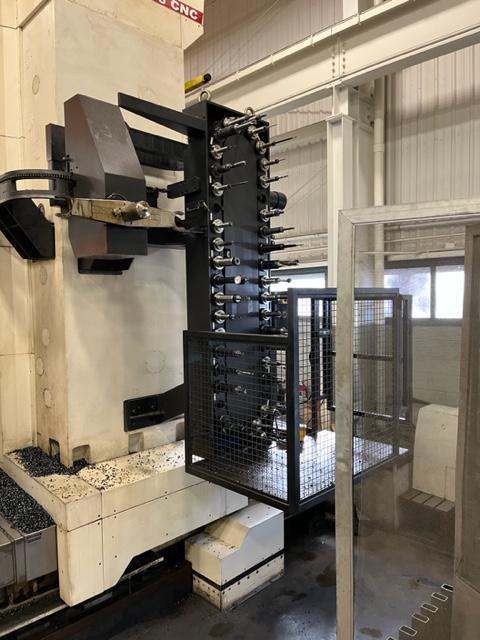

40 POSITION AUTOMATIC TOOL CHANGER
COOLANT THRU SPINDLE
CAPACITY:

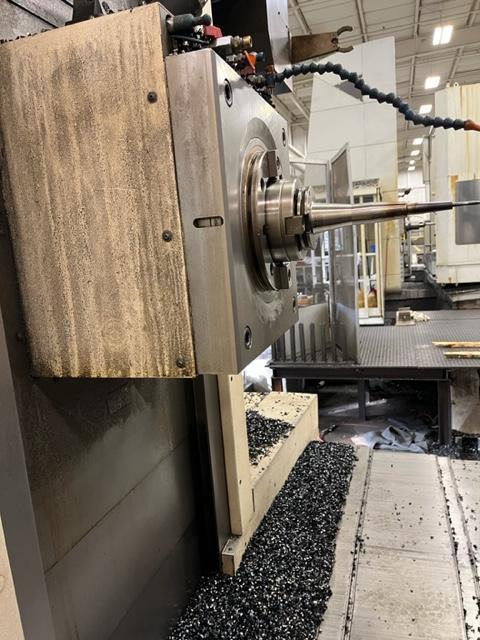

SPINDLE DIAMETER 5.12"
SPINDLE TAPER CAT #50
CROSS TRAVEL, X-AXIS 157.48"
VERTICAL HEAD TRAVEL, Y-AXIS 98.42"
COLUMN LONGITUDINAL TRAVEL, W-AXIS 66.9"
SPINDLE TRAVEL, W-AXIS 28.74
SPINDLE SPEEDS, 2-SPEED 3000 RPM
BUILT-IN ROTARY TABLE, B-AXIS 98.42" X 78.74"
TABLE WEIGHT CAPACITY 80,000 LBS.
ROTARY TABLE, FULL B-AXIS, 0.001 DEG.
APPROXIMATE MACHINE WEIGHT 105,600 LBS.
INSPECT IN PLANT UNDER POWER
