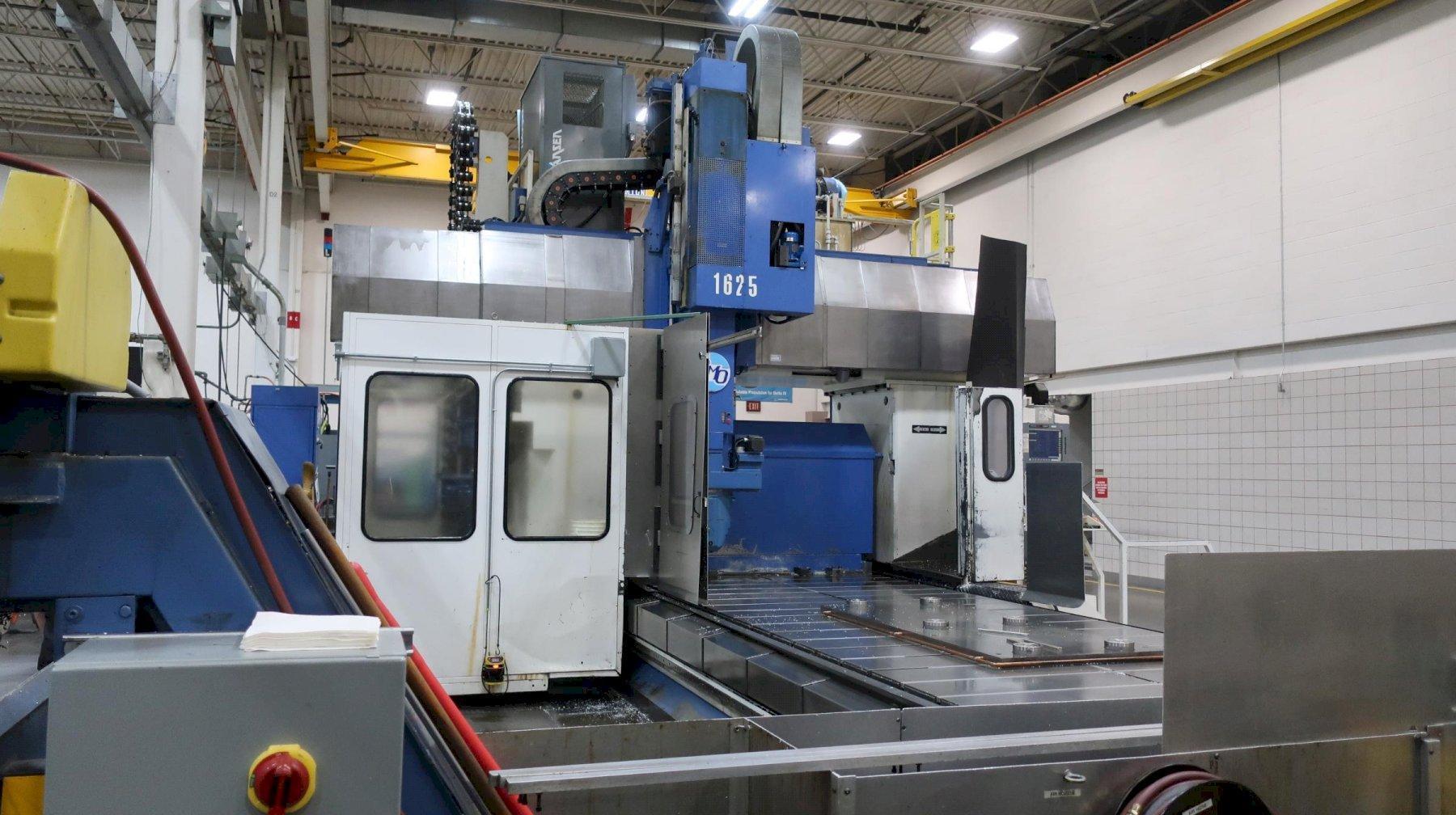

Equipped With
Number of Axes: 5 Axes
Type of CNC Control: Fidia C20 CNC Control Retrofit in 2008
CNC Control: yes
Table Size: 83.27" x 236"
X: 236 inches
Y: 110.23 inches
Z: 49.21 inches
Max. Cutting Height: 62.99"
Effective Width Between Colums: 94.5"
Spindle Speeds, 3-Range: 10-3200 RPM

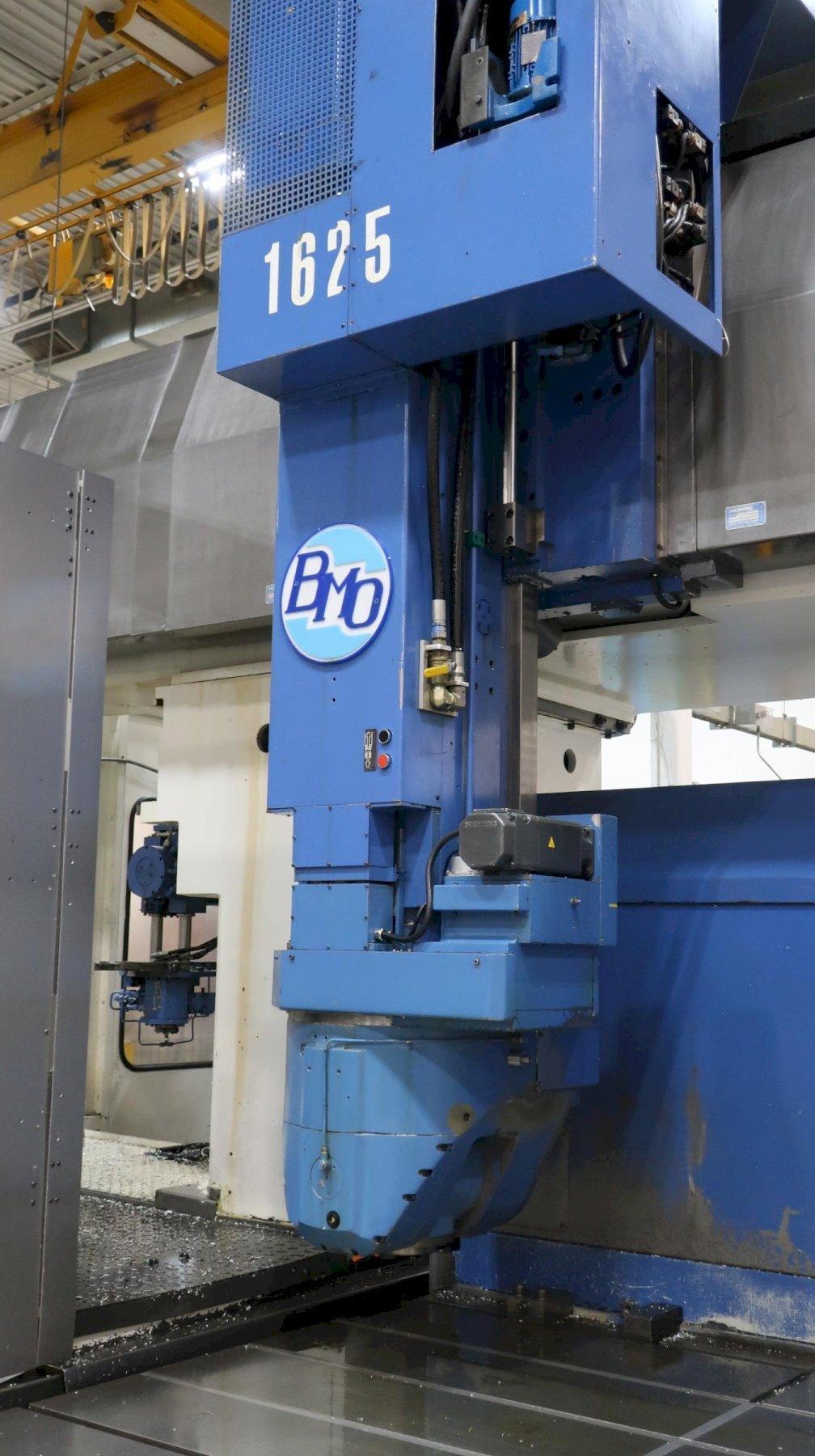

Main Milling Head on Ram: Hard Steel Cartridge - 3 Speed Ranges - Equipped with an accessory holder plate with auto clamping: Indexing 2.5 degrees
Spindle Taper: #50 ISO
A-Axis Spindle Head Tilt: +/-95 Degrees
B-Axis Spindle Head Swivel: 360 Degrees
A-Station AAC: yes
Automatic Head Changer: yes
Automatic Attachment Changer (ACC):: Yes - 3 Heads
Right Angle Head: 10 - 3200 RPM, 2.5 degree indexing
DRC12 Head Attachment (double stepless rotation): 10 - 5000 RPM, (Double stepless rotation)
Multiplying spindle extension Head: 10 - 8,000 RPM, Ratio: 2/1, 2.5 degrees indexing
# ATC: 72
Machine Height: 267"
Machine Foot Print, L x W: 382" x 251"
Spindle Drive Motor: 42.9 HP (32 KW)
FIDIA C20 CNC Control Retrofit in 2008
72-Station Automatic Tool Changer
Steel Spindle Unit, FA 310 AC
3-Station Spindle head Changer - automatic
DRC 12 Double Rotation Stepless Rotation -
Right Angle Head
Straight Head with Speed Increaser (8,000 RPM)
Manuals / Documentation
NOTE: Machine had complete Re-Control in 2008 with FIDIA C20 CNC CONTROLS.
