SPECIFICATIONS
SPINDLE DIAMETER  4″
SPINDLE TAPER  5 MT
SPINDLE SPEEDS:   10-1300 RPM
SPINDLE LONGITUDINAL TRAVEL: Manual & Power   26½”
SPINDLE HEIGHT Center of Spindle to top of Table  63″
FEED RANGES  (18) Spindle, Standard  0.005 – 0.250 IPM
(18) Spindle, High  0.002 – 0.116 IPM
(18) Range of Milling Feeds to Headstock, Saddle &
Table Movement  0.5 – 25 IPM

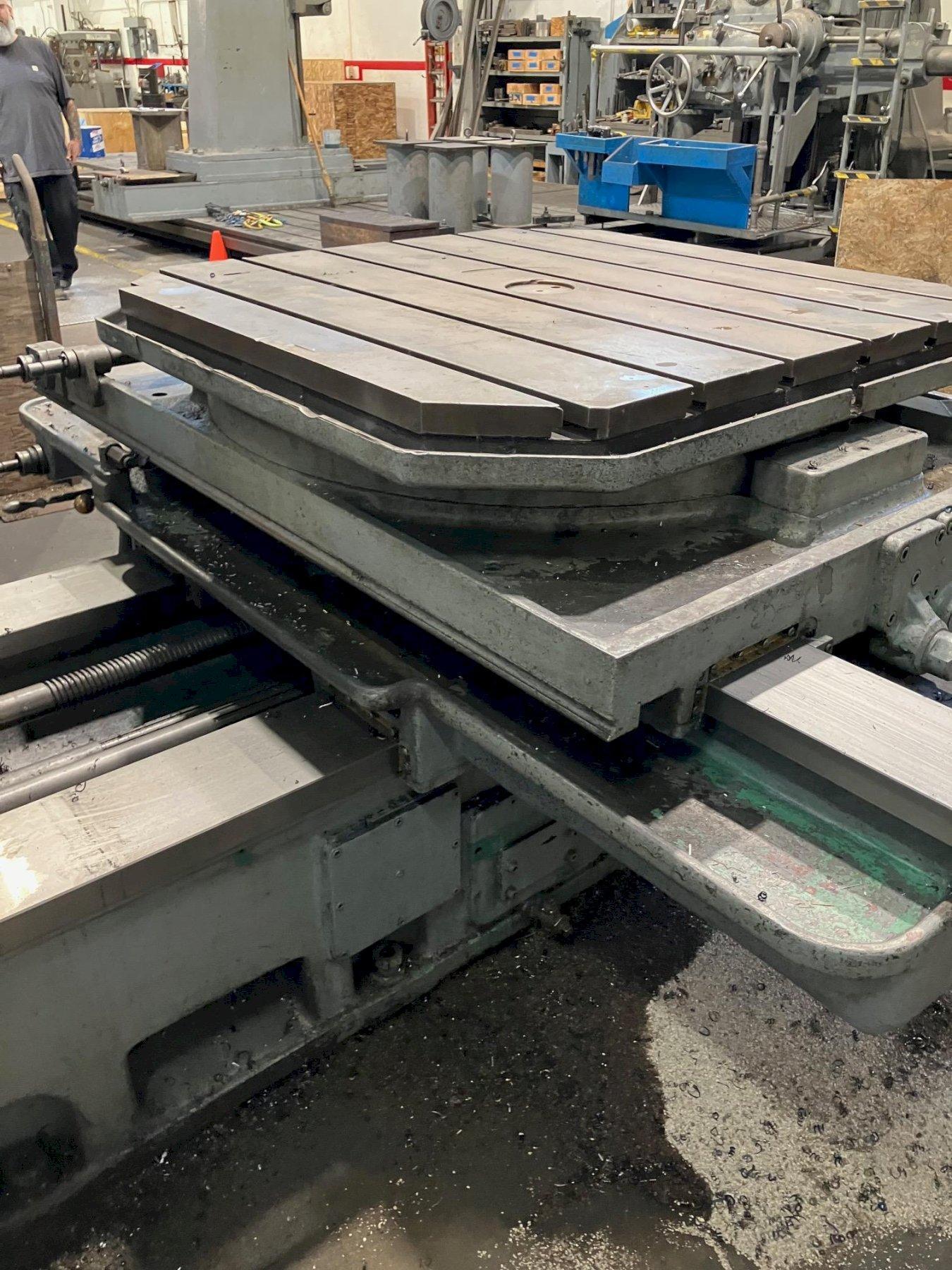

TABLE: (7) T-Slotted
Working Surface 36″ x 74″
Longitudinal Travel  53½”
Cross Travel 60″

EQUIPPED WITH:

Rapid Traverse of Table, Saddle and Headstock.
CONTROL:  Start/Stop Buttons. Spindle Direction Switches
DRIVE:  Wired 440 volts, 3 phase
20 Hp. 220/440 volts
COMPLETE FACTORY SAFETY GUARDS

Dimensions 184” F-B x 80” L-R
Approximate Weight 27,000 lbs.
