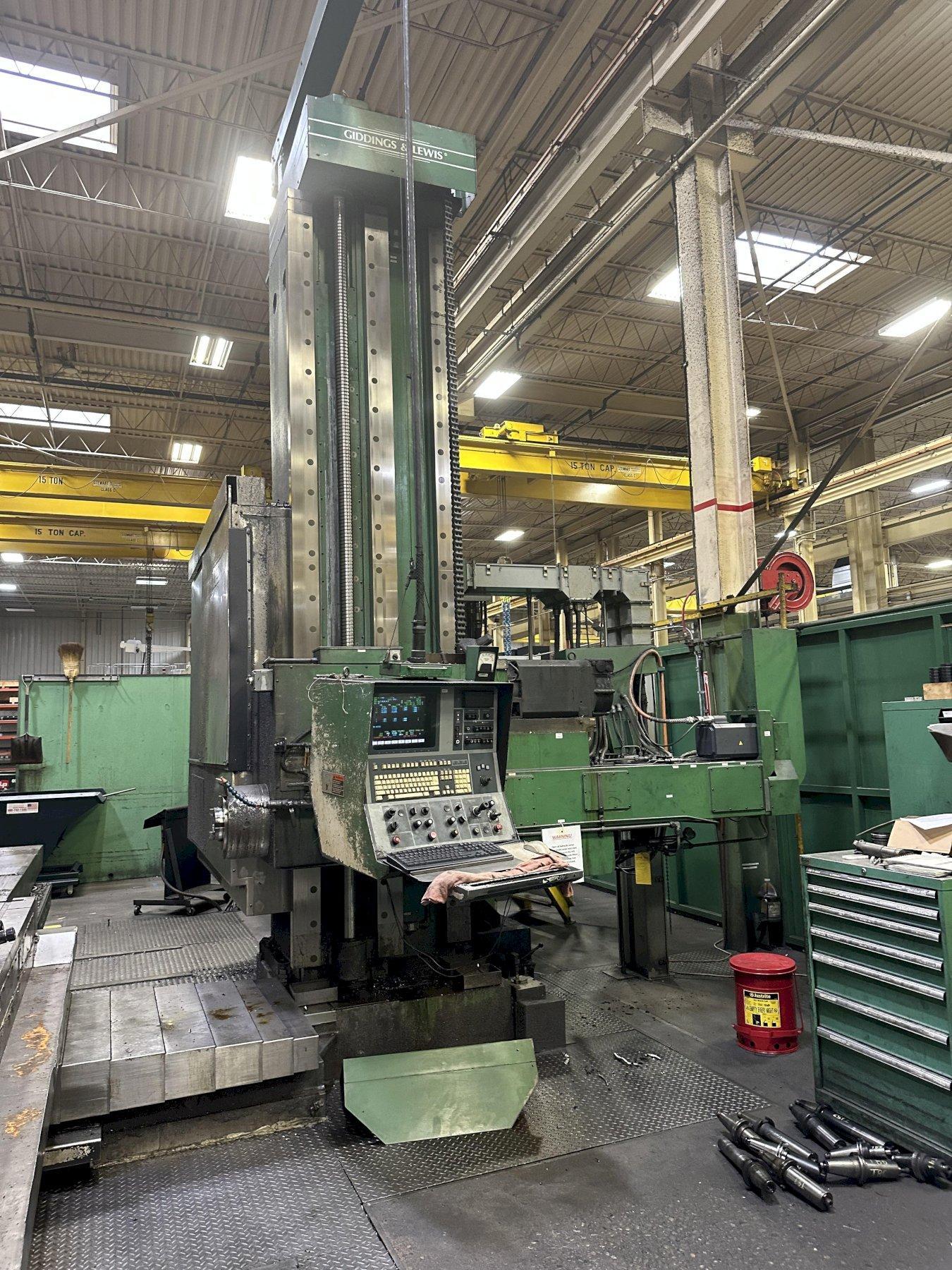

NEW-2000
CAPACITY:

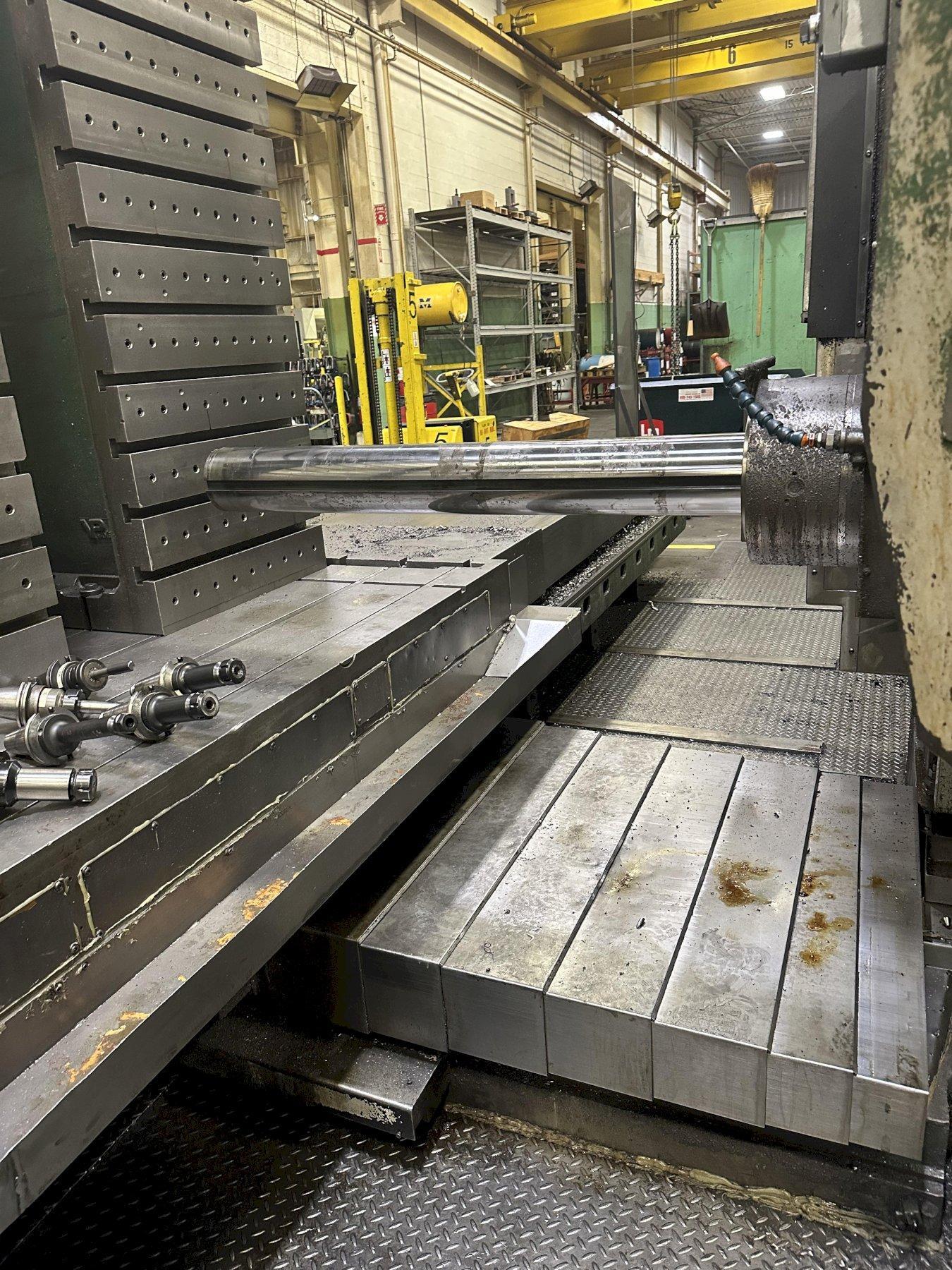

SPINDLE DIAMETER..................................... 6"

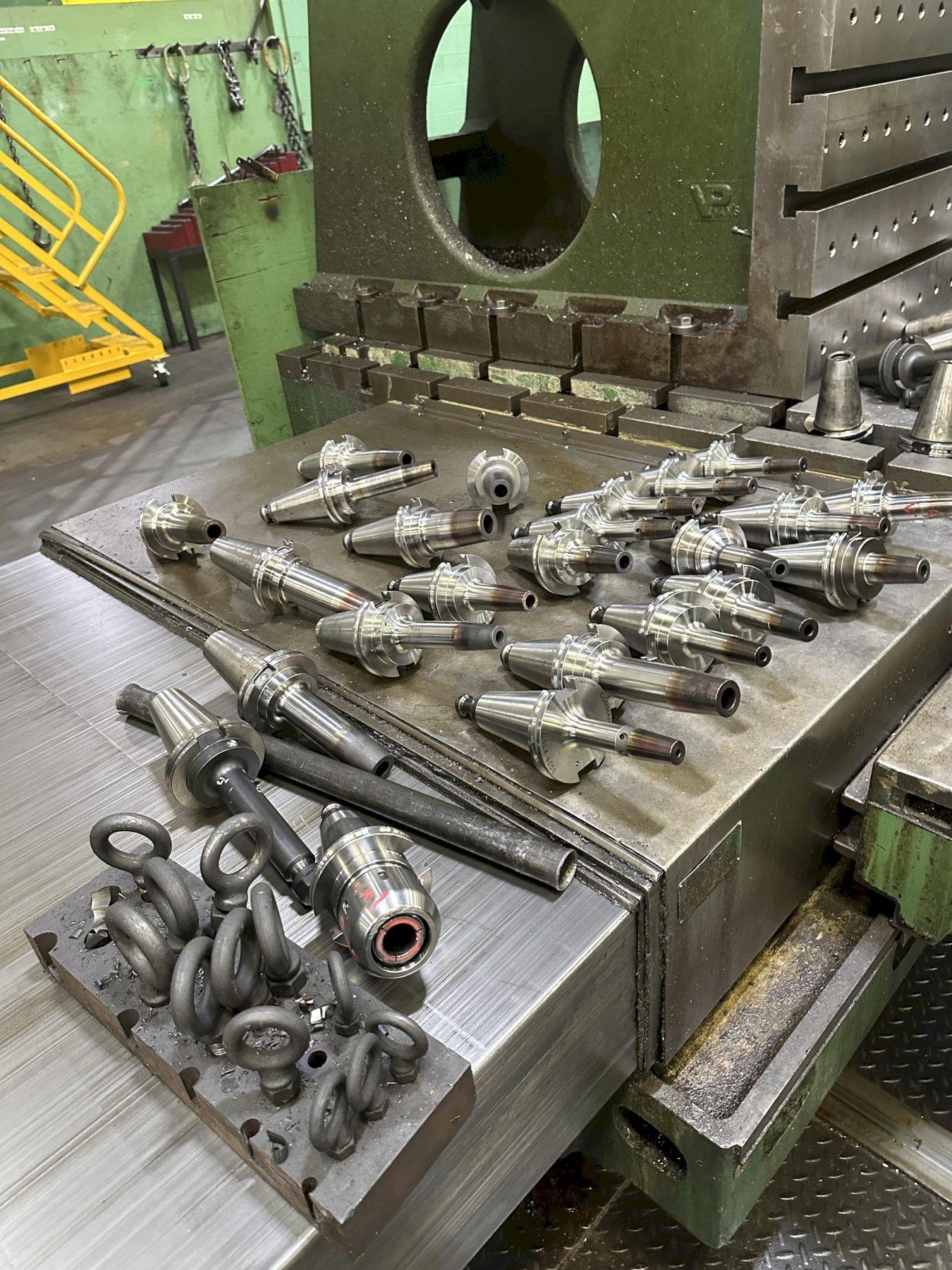

SPINDLE TAPER.............................................. #50
VERTICAL HEAD TRAVEL, Y-AXIS.............120"
TABLE CROSS TRAVEL, X-AXIS..................144"
SPINDLE TRAVEL, Z-AXIS............................. 48"
LONGITUDINAL TRAVEL, W-AXIS...............38"
SPINDLE SPEEDS............................................. 12-3500 RPM

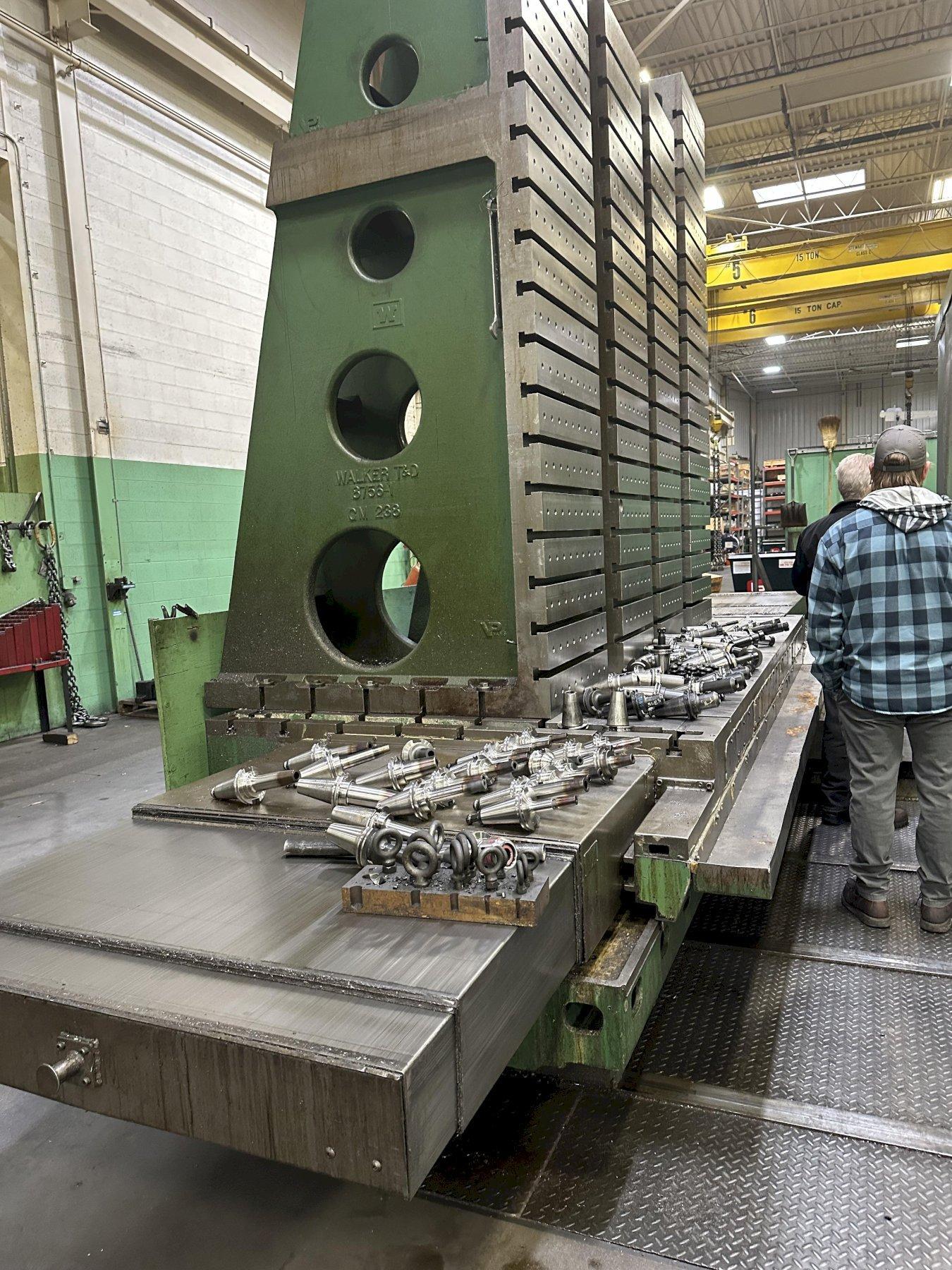

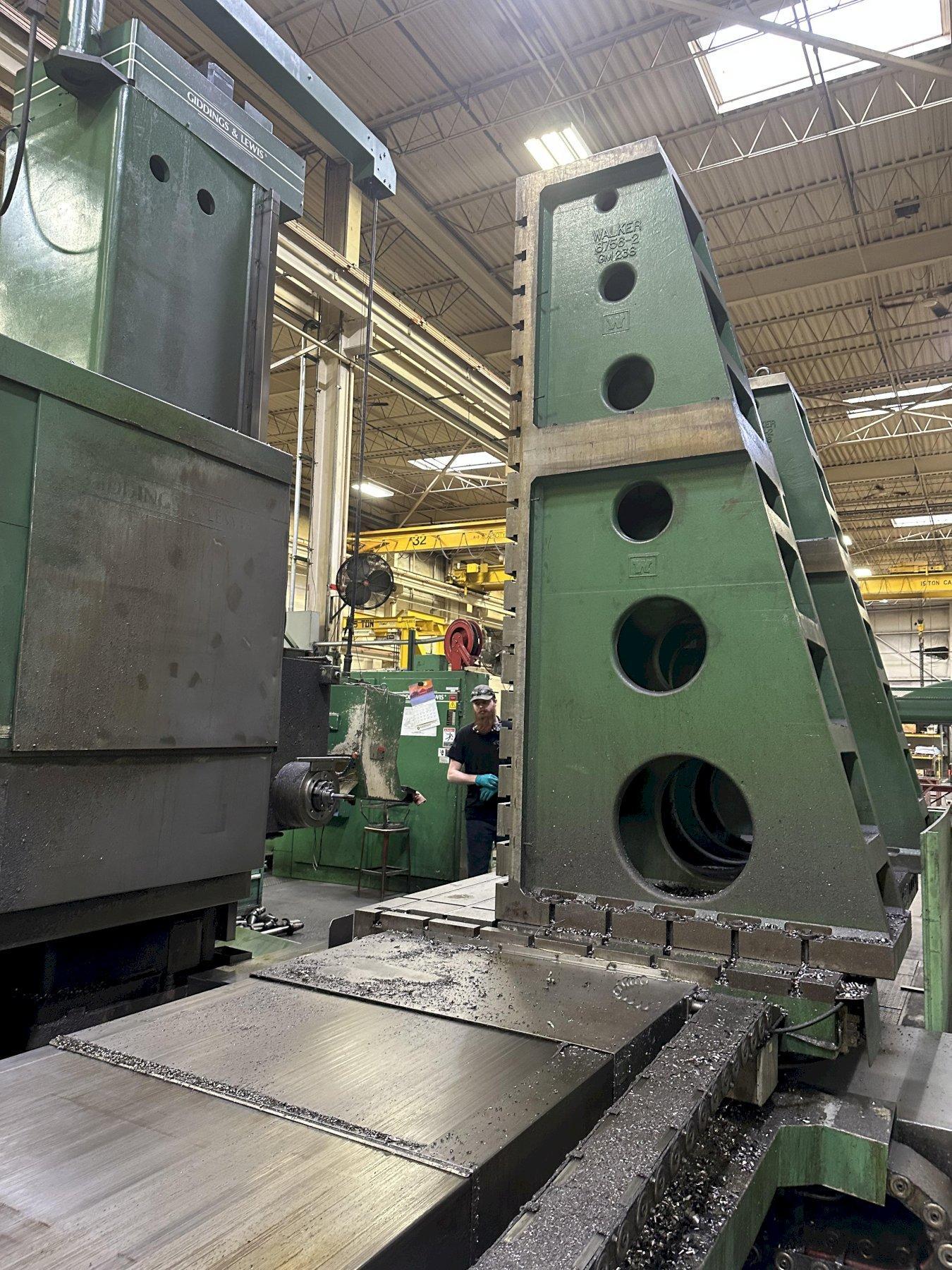

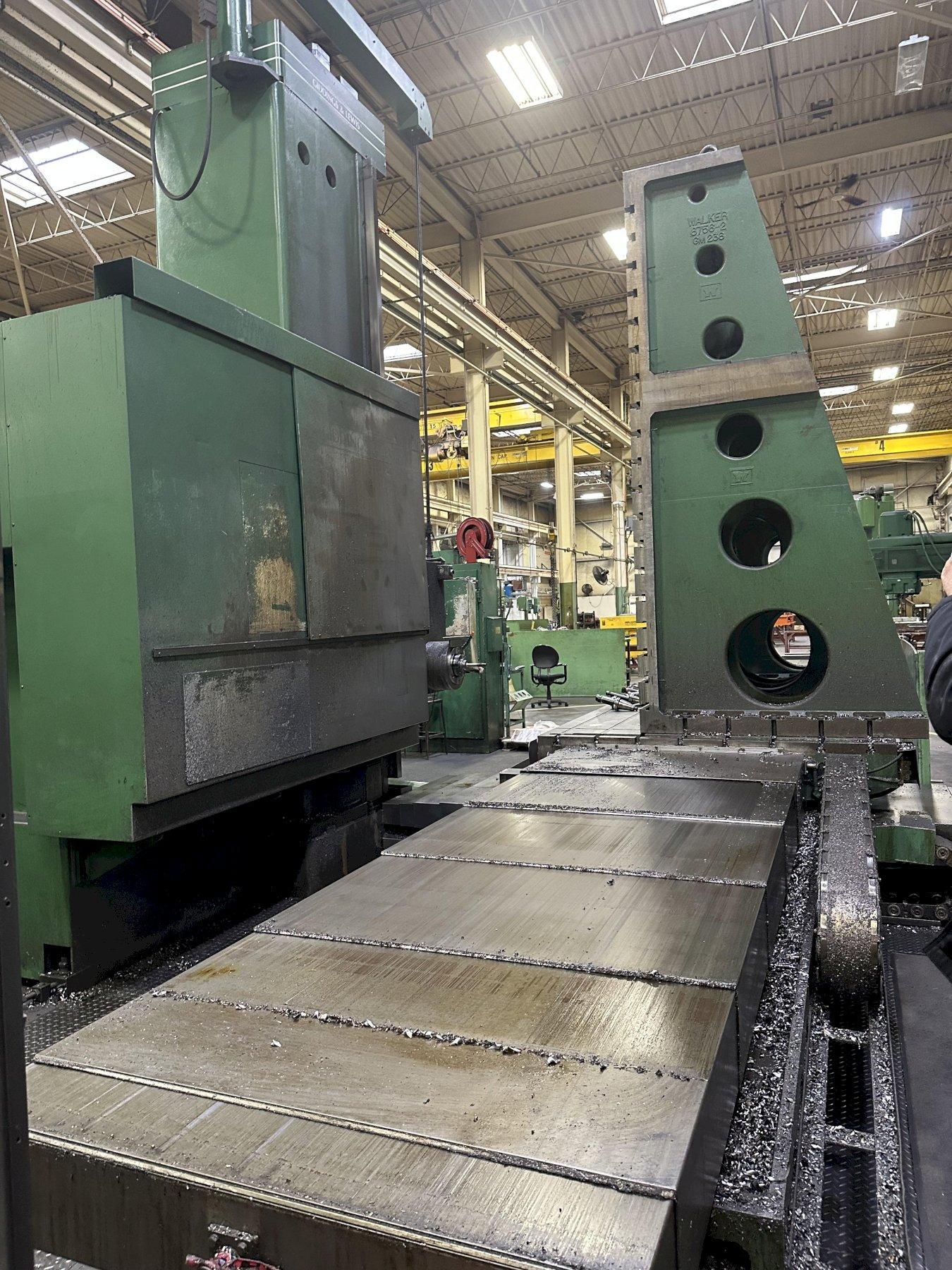

TABLE SIZE......................................................... 60" X 144"
TABLE CAPACITY.............................................. 70,000 LBS
RAPID TRAVERSE RATE, Y & X AXIS.......... 450 IPM
RAPID TRAVERSE RATE, W & Z AXIS......... 300 IPM
FEEDS, X,Y,Z,W AXES........................................ 1 TO 150 IPM
SPINDLE MOTOR............................................... 60 HP
EQUIPPED WITH:

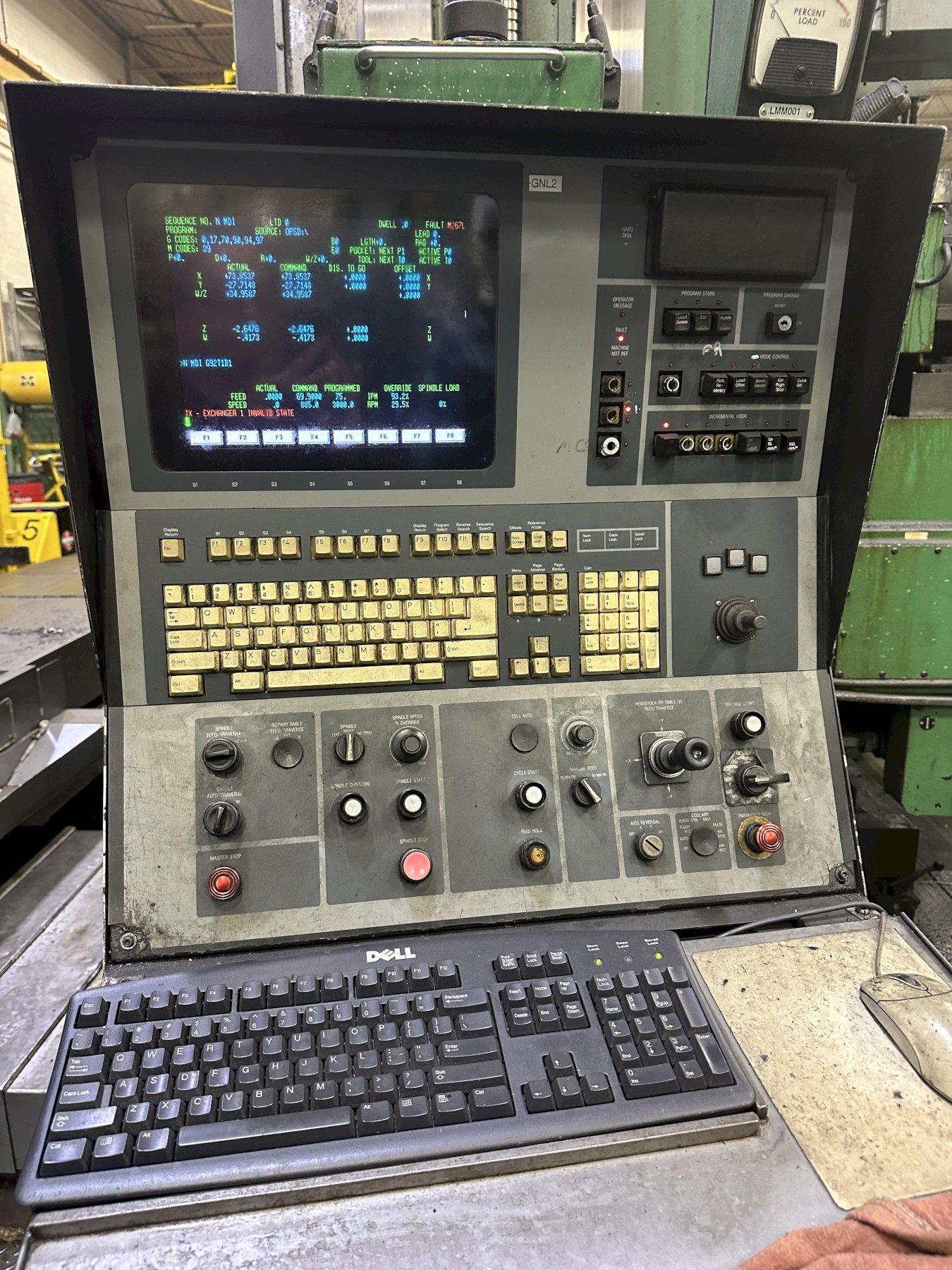

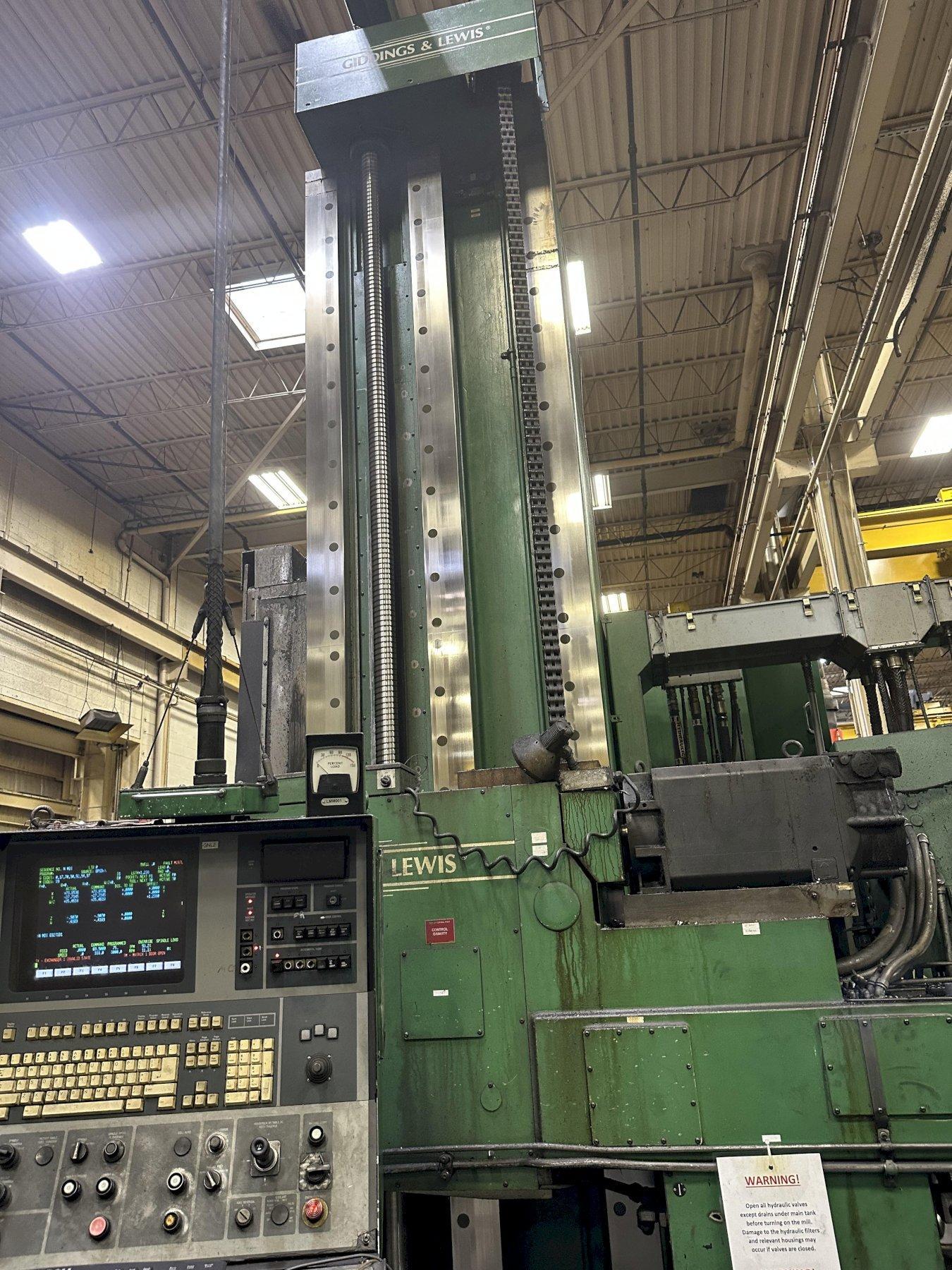

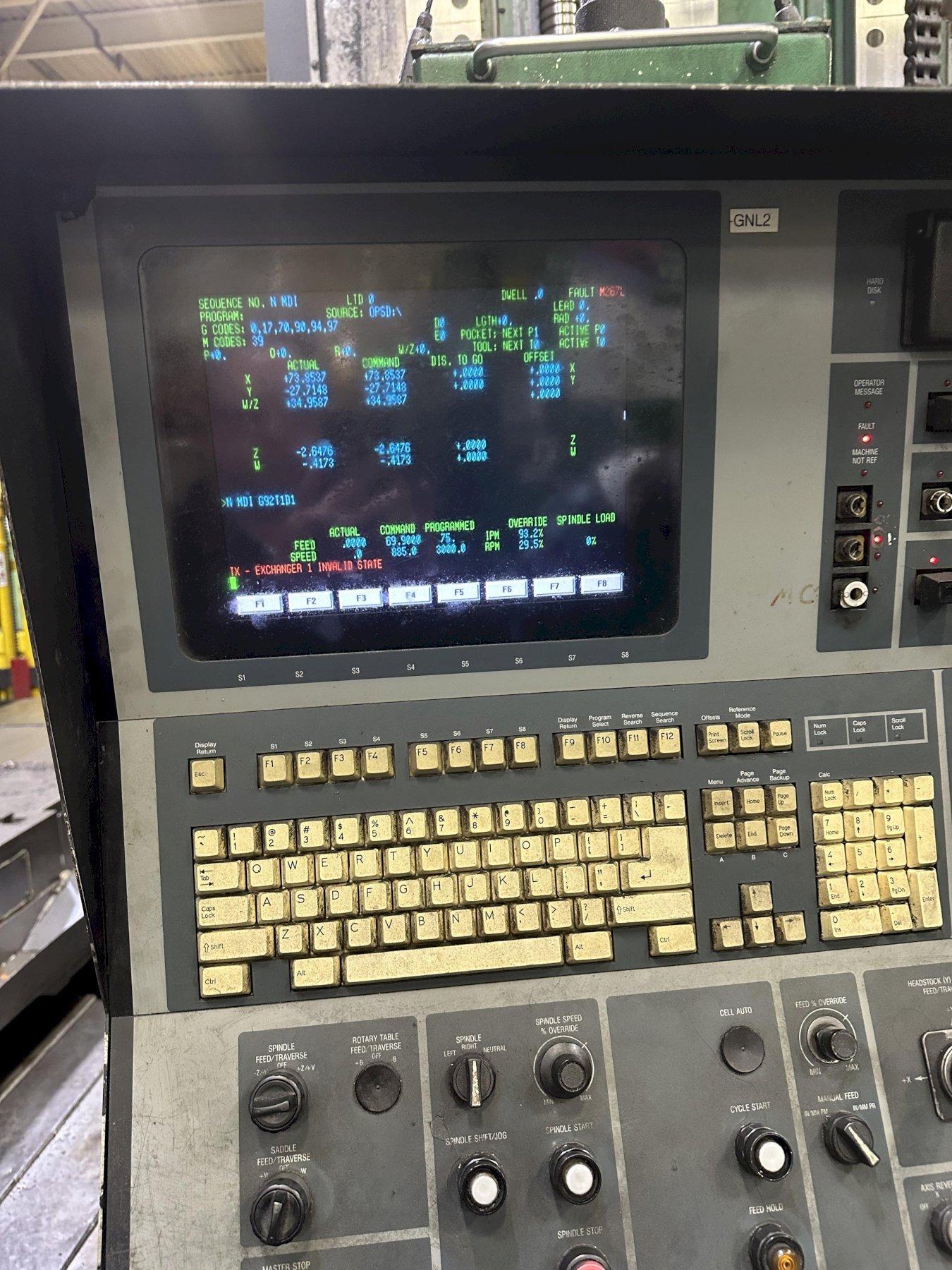

GIDDINGS & LEWIS NUMERIPTH 8000 Control

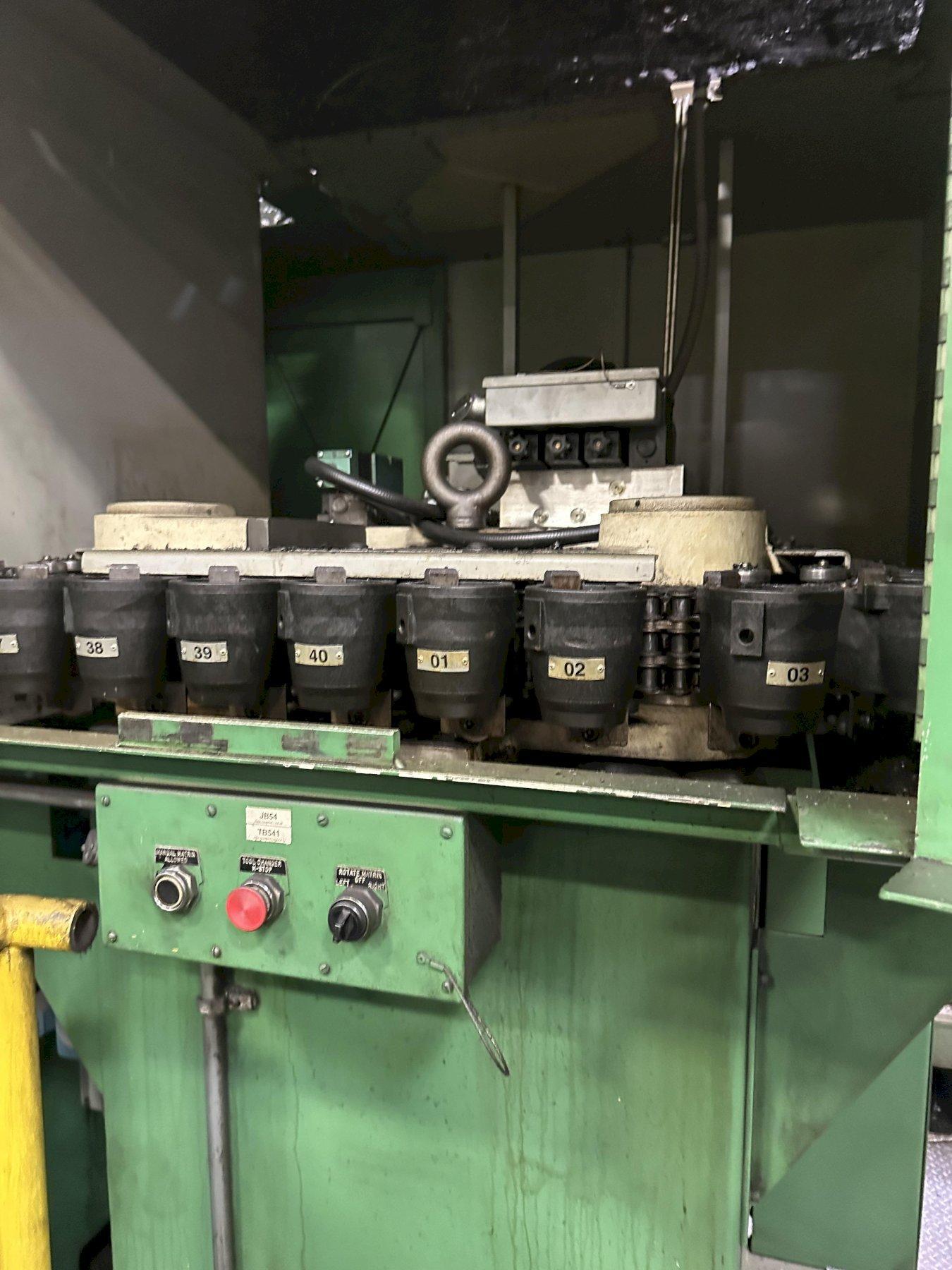

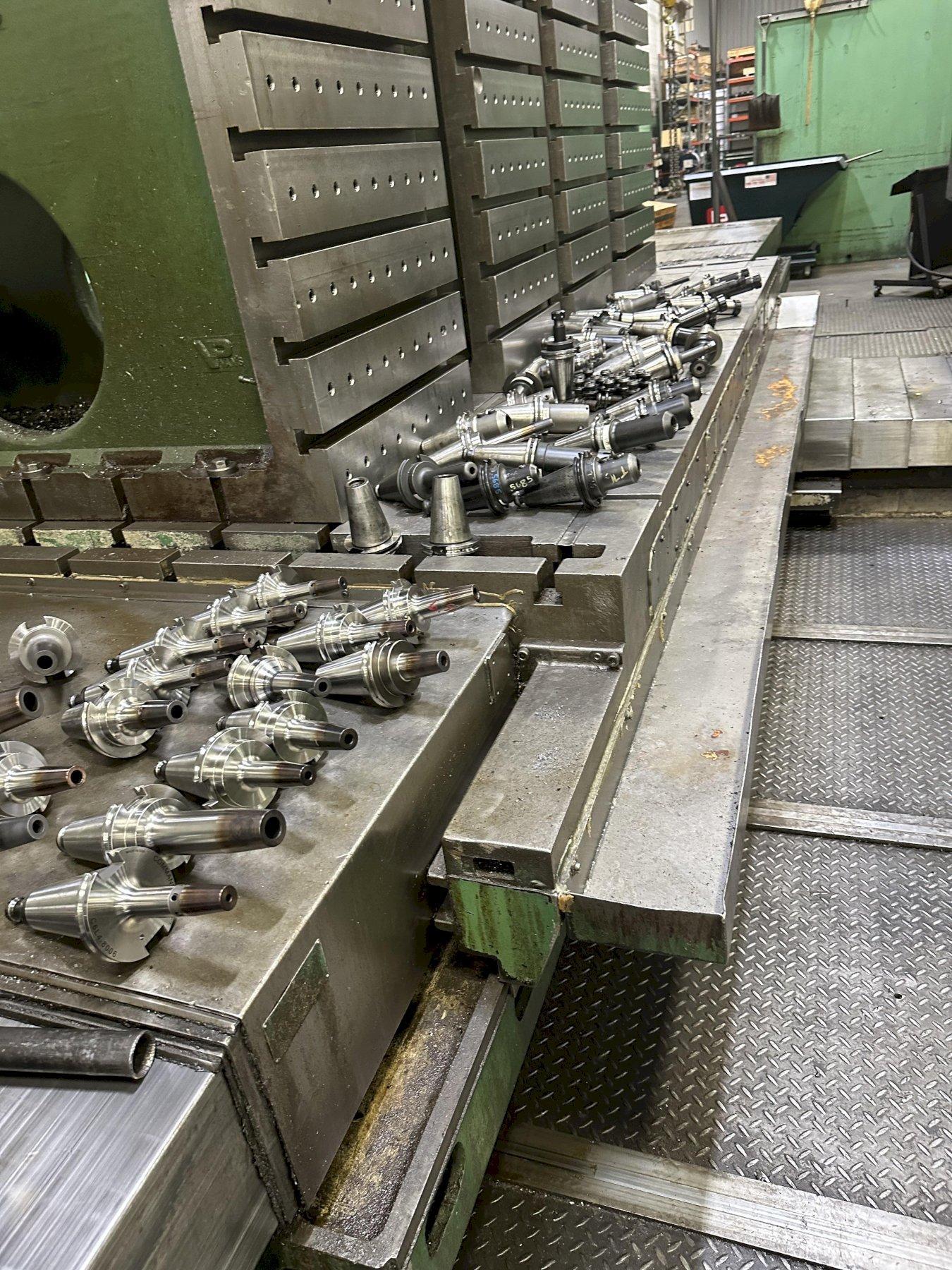

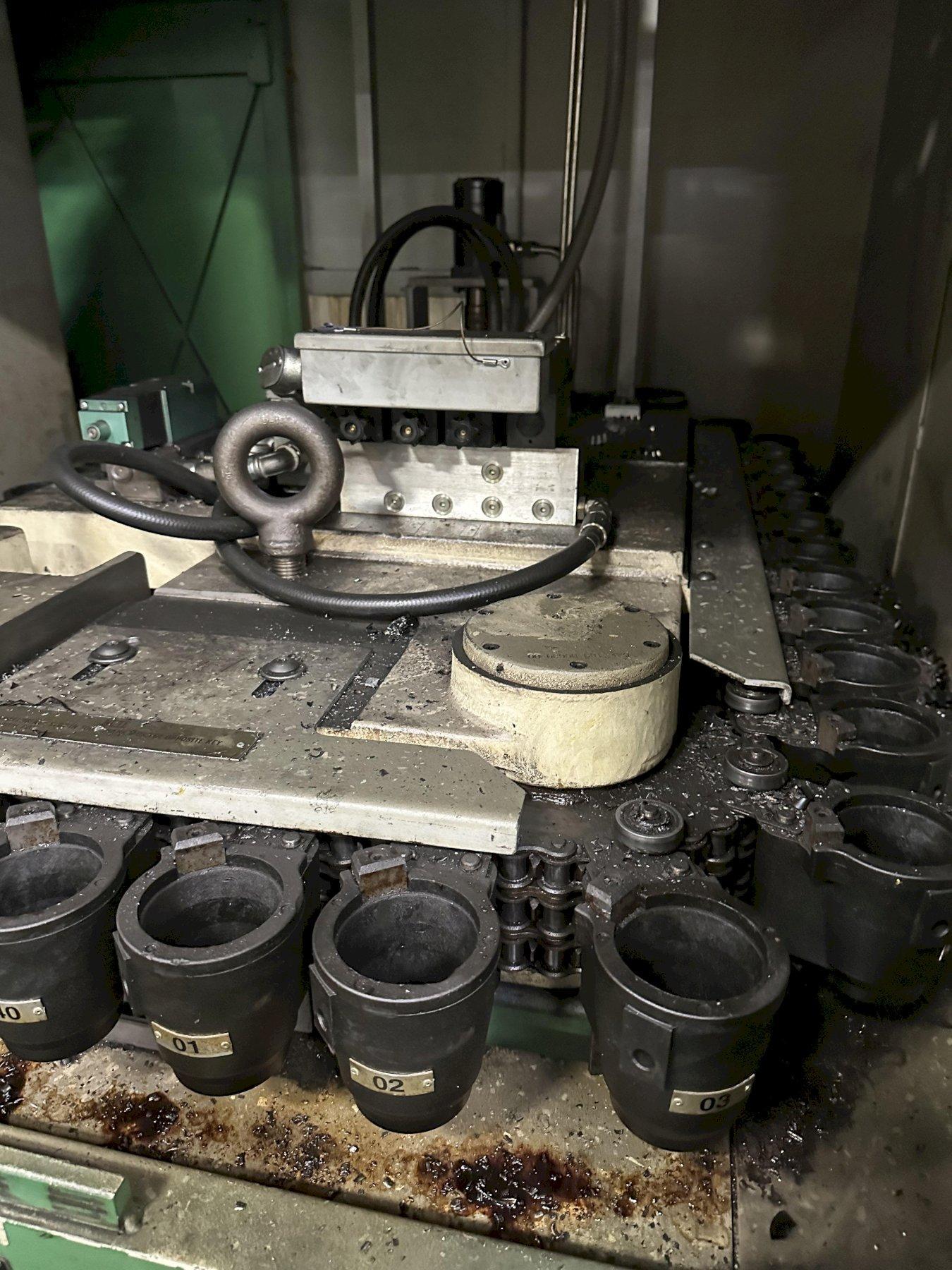

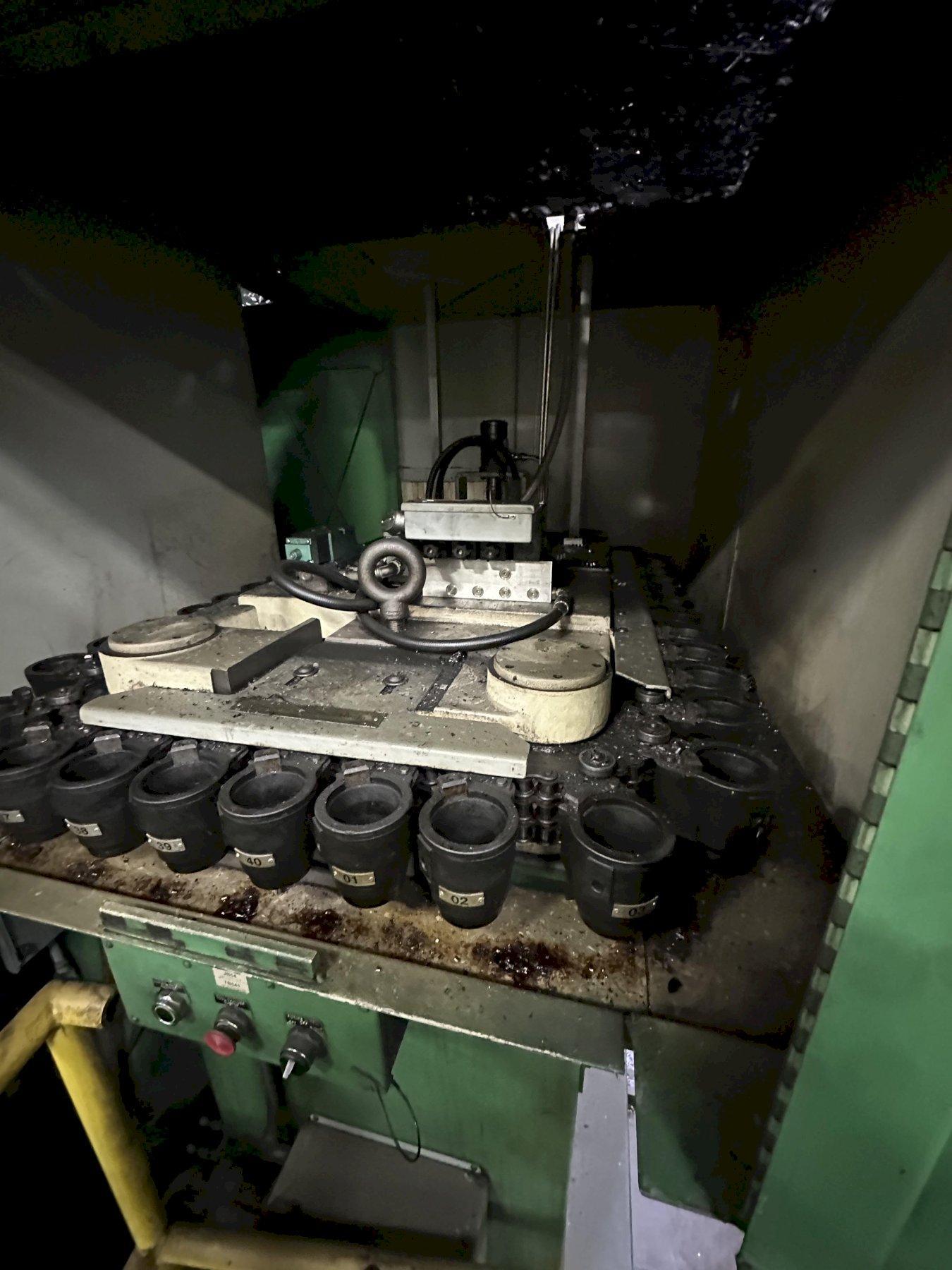

40-STATION AUTOMATIC TOOL CHANGER
THRU-SPINDLE & FLOOD COOLANT SYSTEM
HARDENED WAYS ON ALL AXIS
3-WAY VERTICAL COLUMN

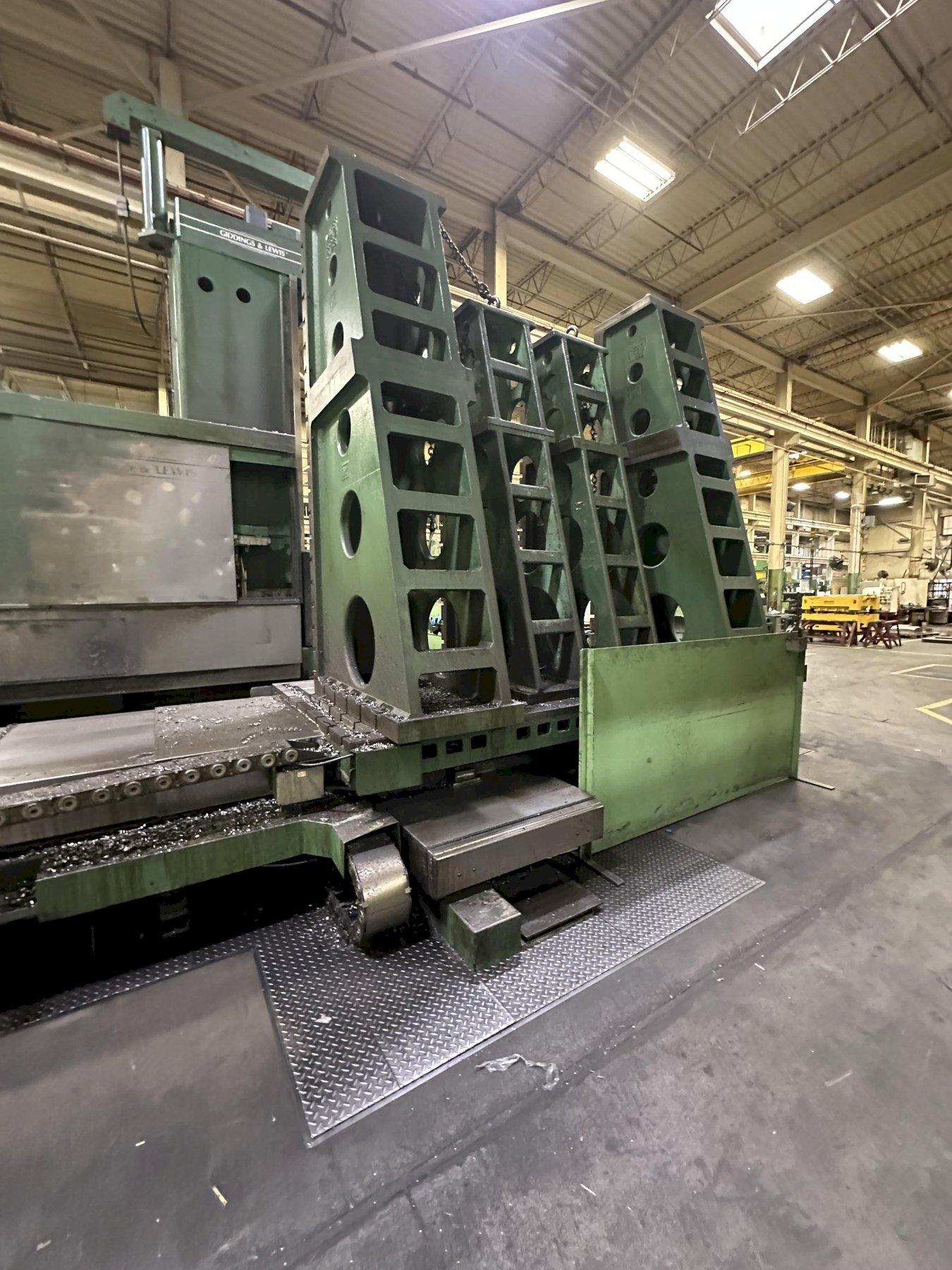

TRIPLE OUTRIGGER TABLE SUPPORTS

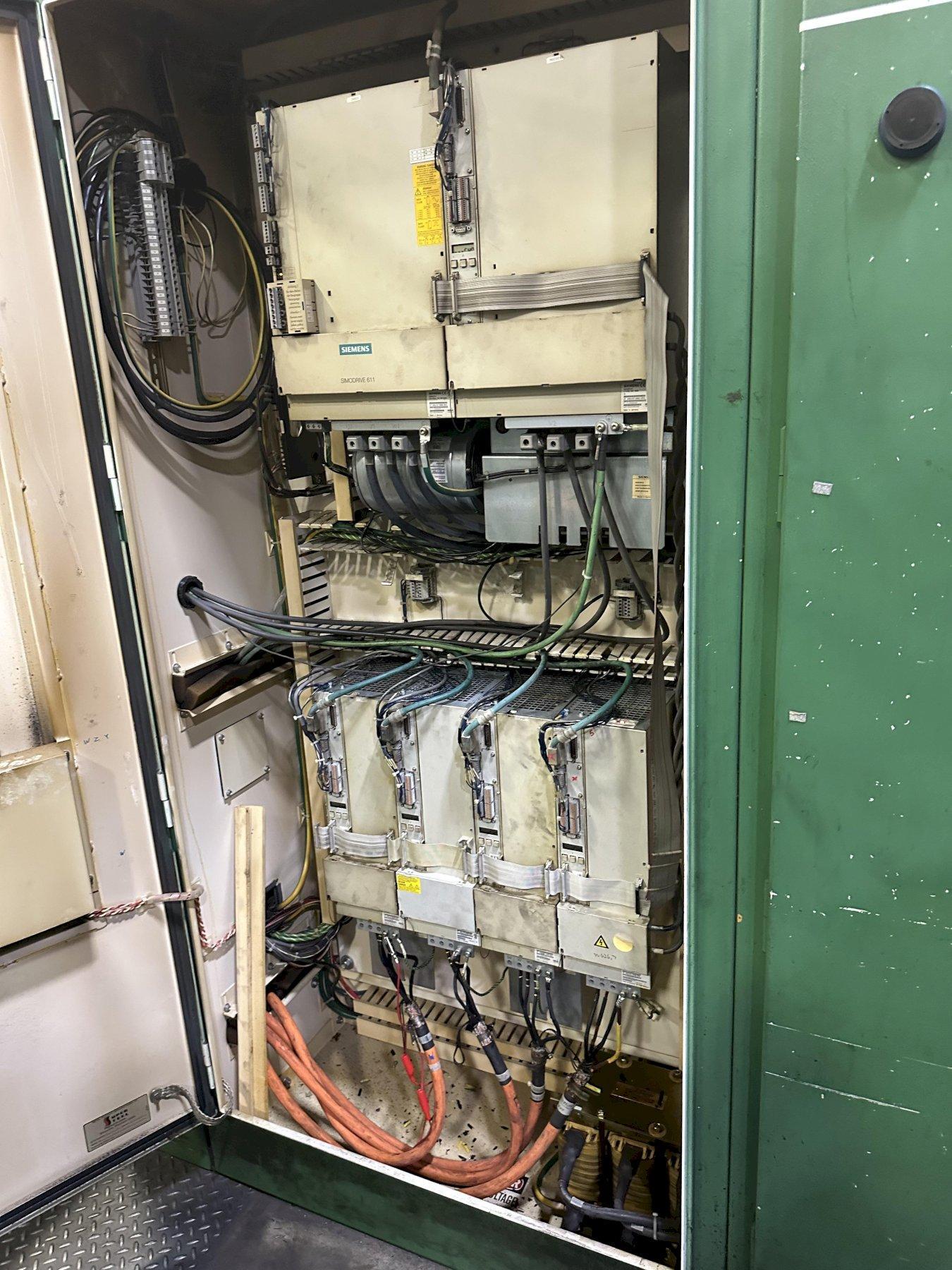

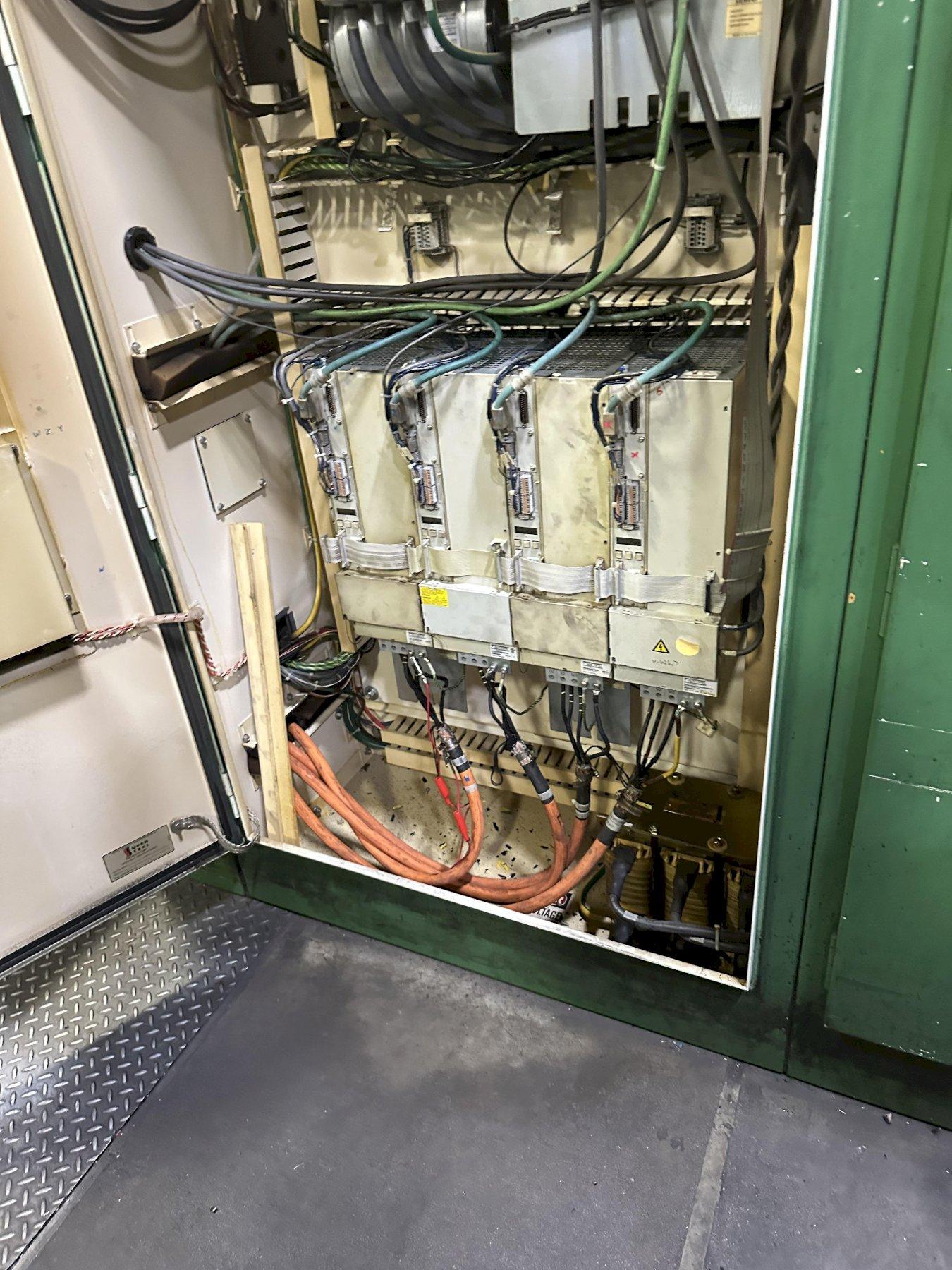

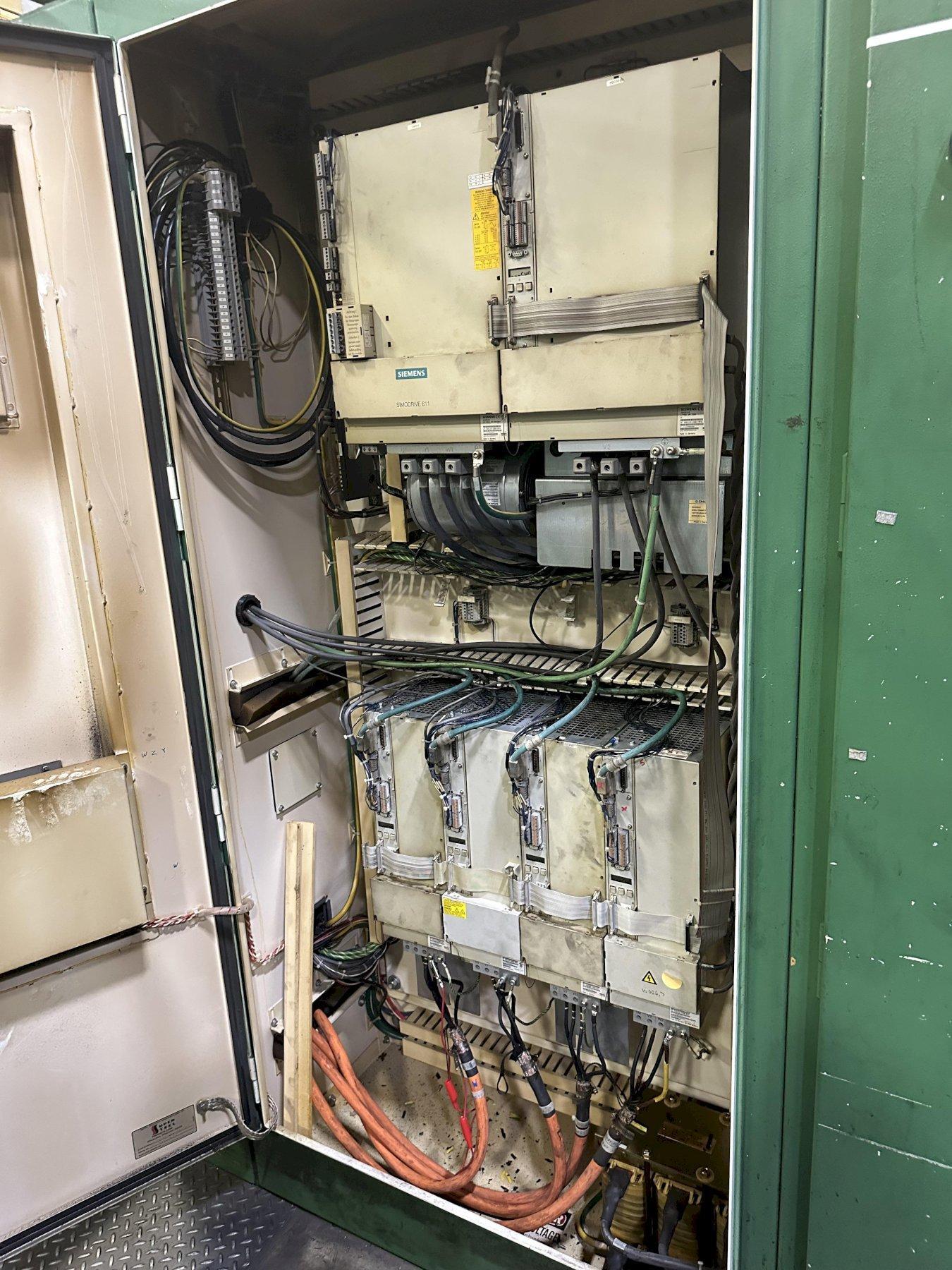

BALLSCREWS & INDEPENDENT SIEMENS AC SERVO DRIVES
STEEL TELESCOPING WAY COVERS
CHIP CONVEYOR
FULL CHIP AND SPLASH ENCLOSURE
COOLANT PUMP & 200 GALLON TANK
NOTE: MACHINE REFURBISHED WITH NEW BALL SCREWS, DRIVES & SERVO MOTORS IN 2022
