Equipped With

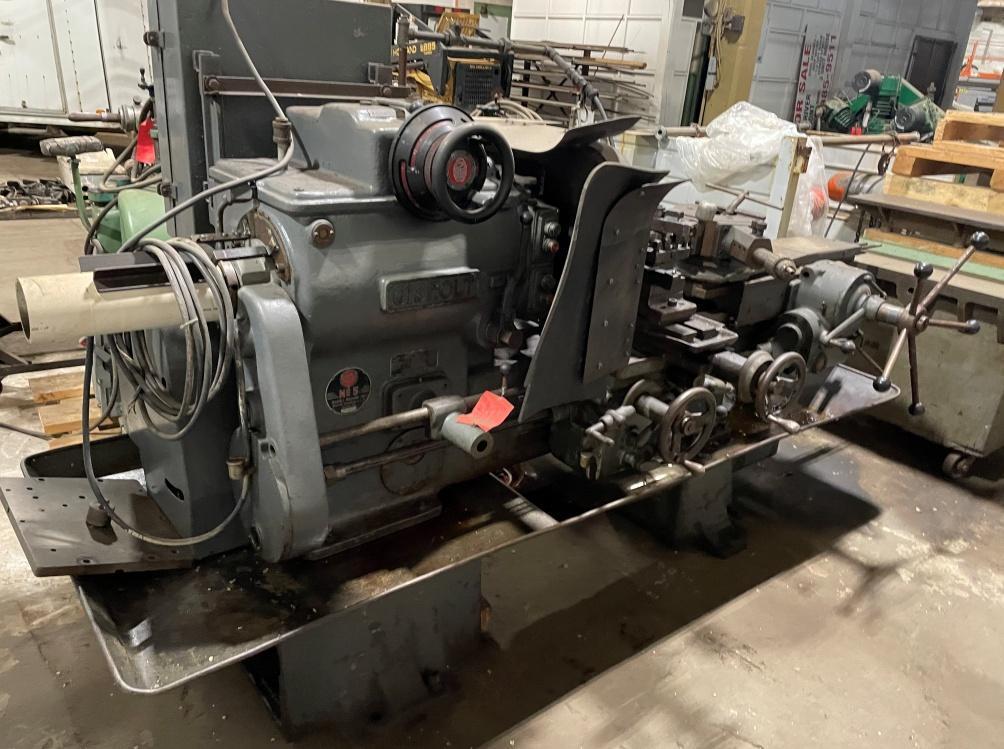

Model: No. 5 Specifications:
Swing Over Bed................................................................20"
Swing Over Cross Slide....................................................10-1/4"
Max Distance Spindle Nose To Cross Slide......................28-7/8"
Max Distance Spindle Nose To Turret Face......................36-1/2"
Minimum Distance Spindle Nose To Turret Face................5-1/2"
Max Turning Length..........................................................12"
Max Bar Capacity...............................................................5"
Spindle Speeds..................................................................(24)25-1500 RPM Spindle Nose.....................................................................A2-8
Carriage Longitudinal Feeds.............................................(6)0.004-0.045 IPR
Carriage Cross Feeds.......................................................(6)0.003-0.027 IPR
Turret Feeds......................................................................(6)0.005-0.048 IPR

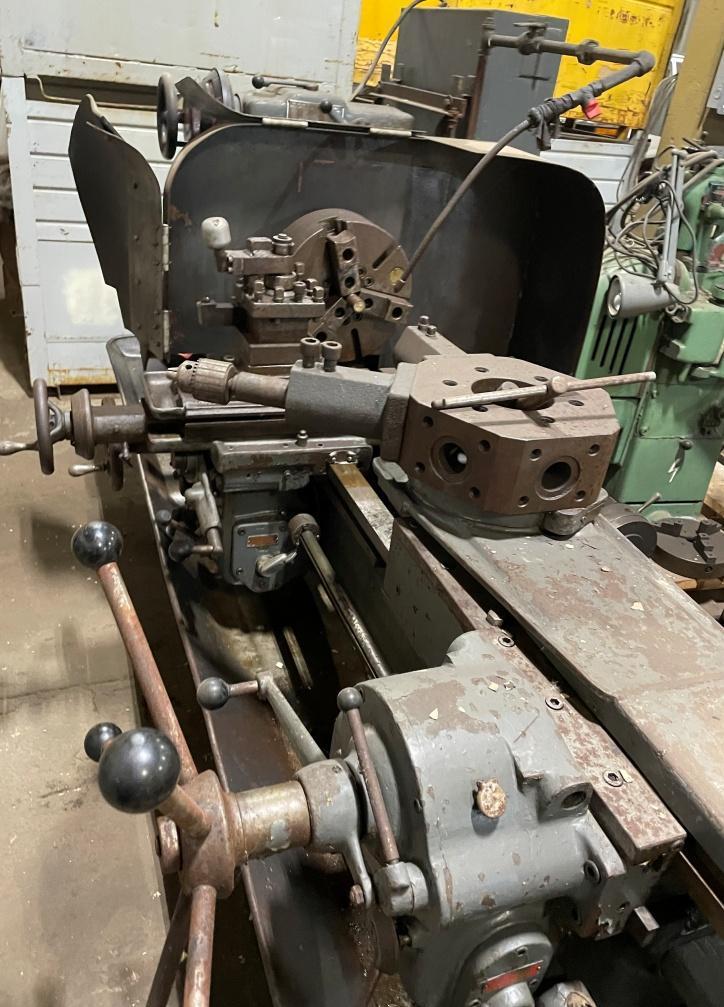

Turret Stations....................................................................6 Stations Main Drive Motor...............................................................20/10 HP
EQUIPPED WITH:
MUCH TOOLING
