Equipped With
Manufacturer: GROB
Model: G550-185
Year: 2016
Condition: Very Little Use Like New

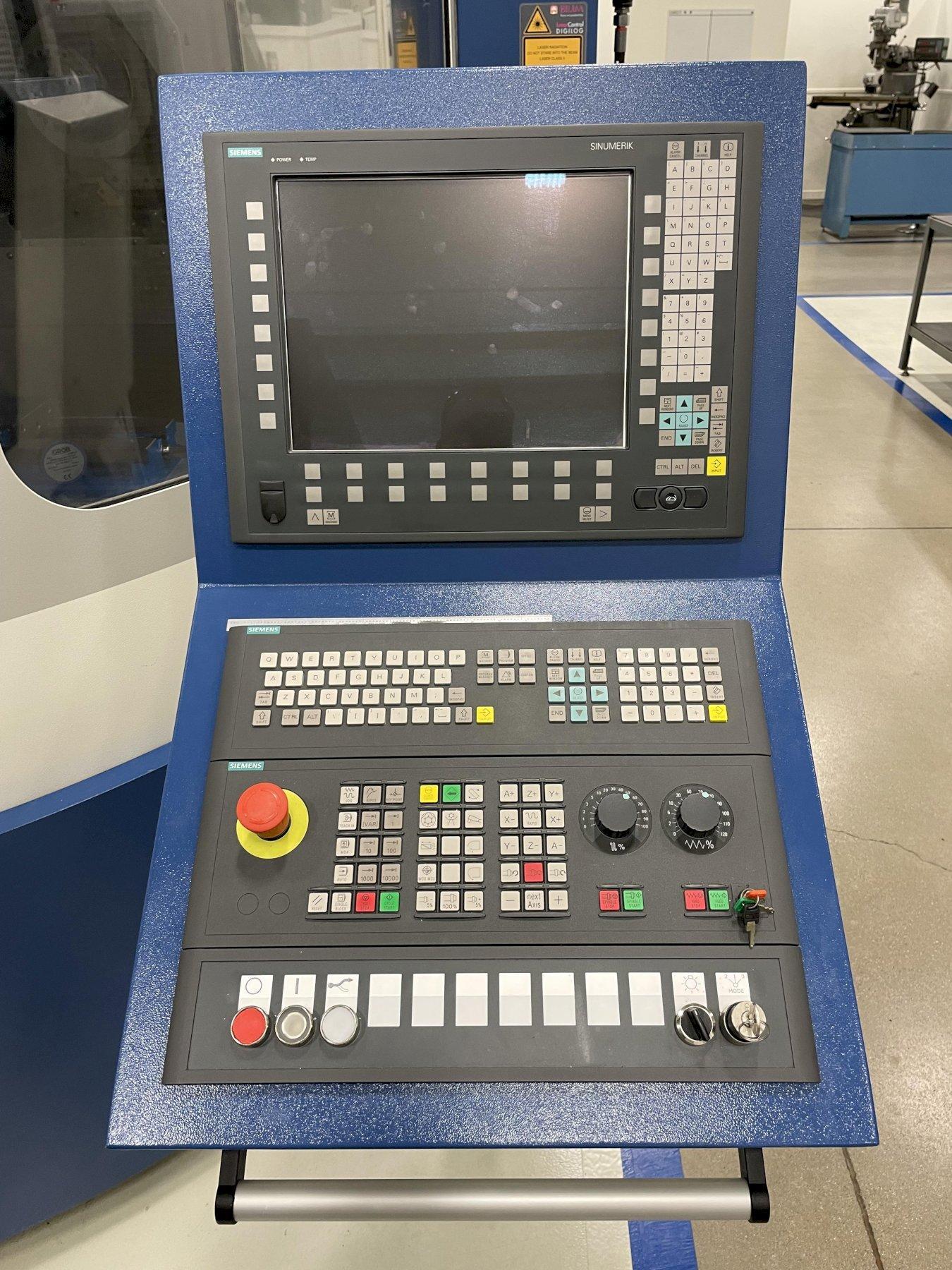

CONTROL SIEMENS 840D CNC
Table Size 24" x 24" 630 mm X 630 MM
X Travel 31.4" 800 mm
Y Travel 40.1" 1020 mm
Z Travel 40.1" 1020 mm
B-Axis Table Diameter 30.3"
C Axis Motion (Degrees) 360 Degrees
A-Axis Swivel Angle -180° / 45°
Max Table Load 1.543 lbs
Spindle RPM 16,000 RPM
Spindle Taper HSK 63A
Spindle HorsePower 54/71 HP
ATC Capacity 50 Position
Machine Weight 44,000 lbs
Equipped With:
HIGH PRESSURE COOLANT SYSTEM
COMPRESS AIR THROUGH SPINDLE
RENISHAW PROBE
MIST COLLECTOR
OIL SKIMMER
CHIP CONVEYOR
GRID HOLE PATTERN PALLET DESIGN (2ND EXTRA PALLET INCLUDED)
HAIMER SHRINK FIT UNIT W/CART
75 TOOL HOLDERS- HSK 63A
2 CABINETS W/ASSORTED TOOLING INSERTS.
ALUMINUM SQUARE BLOCK RISERS
