TABLE TRAVEL, X-AXIS 79.92"
HEAD TRAVEL, Y-AXIS 40"
MAX GUN DRILLING DEPTH 43.3"
DRILLING DIAMETER, OPTIMAL .157" TO 1.57"
HEAD TILT, A-AXIS +/- 20 DEGREES
TILT INDEXING 0.001 DEGREE
GUN DRILL SPEED, MAX 4200 RPM
GUN DRILLING SPINDLE MOTOR 12.6 HP / 9 KW
MILLING HEAD SPEED, MAX 4000 RPM
MILLING SPINDLE MOTOR 12.6 HP / 9 KW
MILLING HEAD TAPER CAT 40

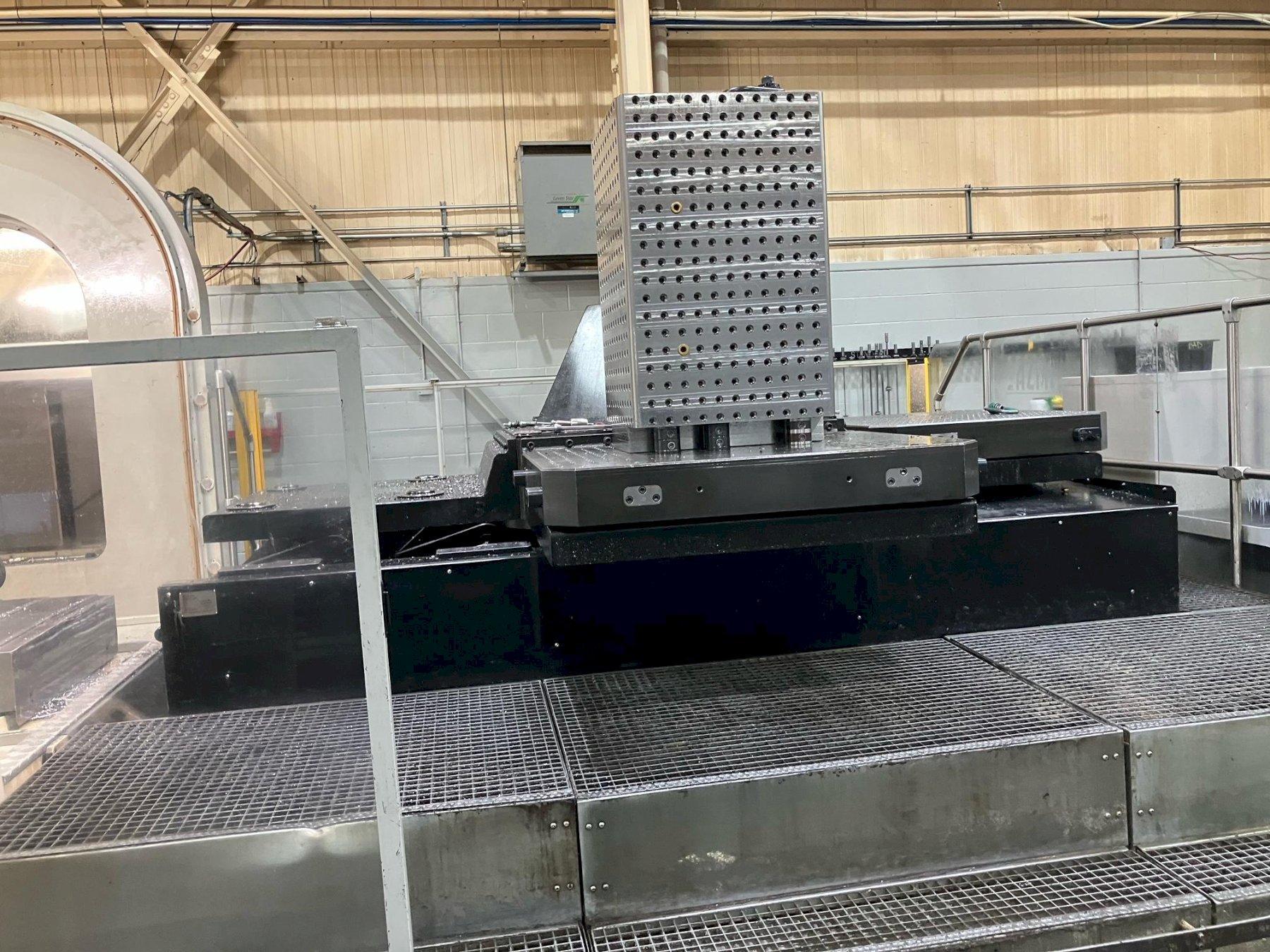

PALLET SIZE 47.24" X 39.37"
PALLET/TABLE WEIGHT CAPACITY 14,300 LBS.
NUMBER OF PALLETS 4
GUN DRILL STORAGE/CHANGER 6-STATIONS
MILLING HEAD, TOOL CHANGER 60-STATION
EQUIPPED WITH:

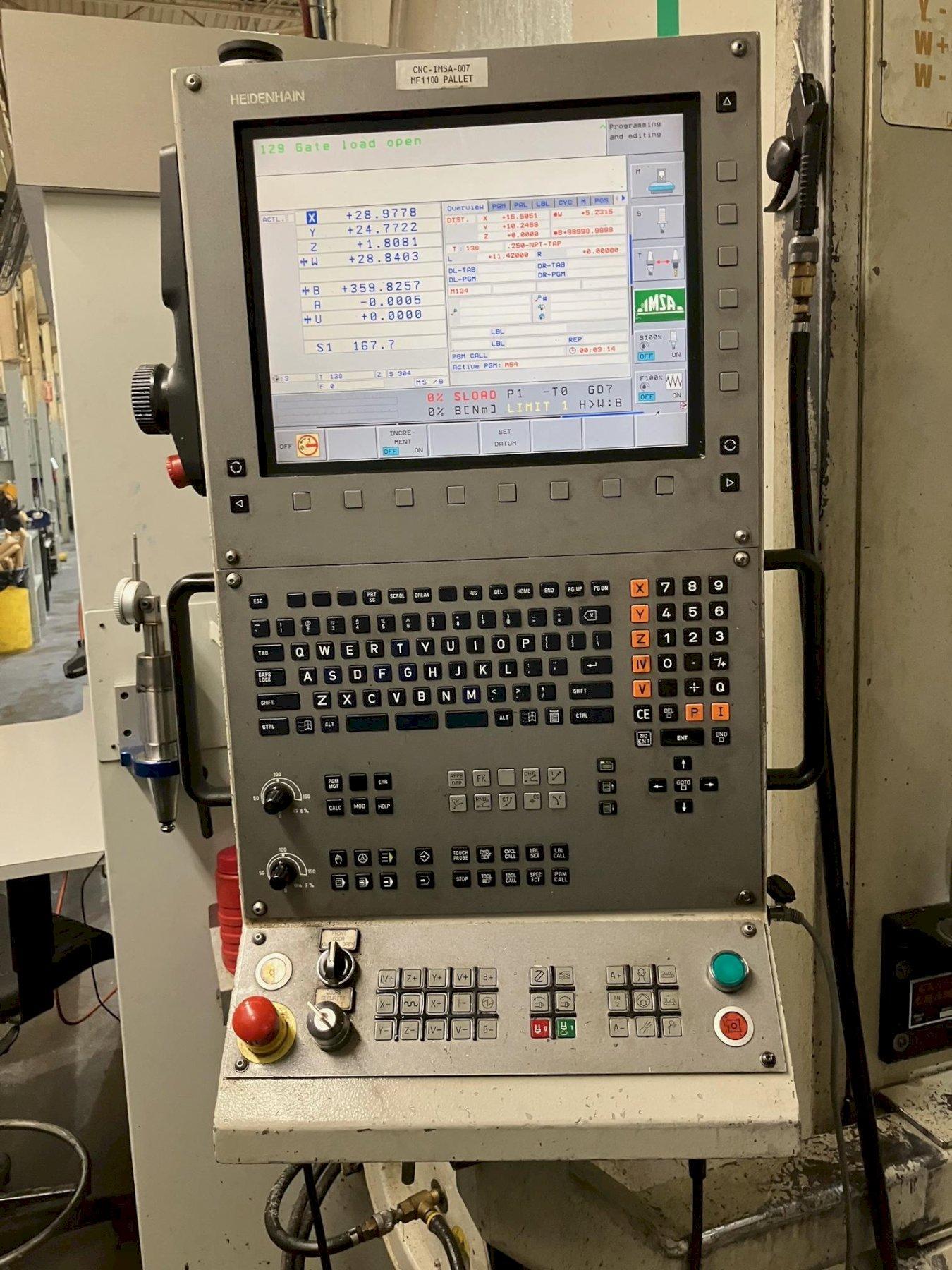

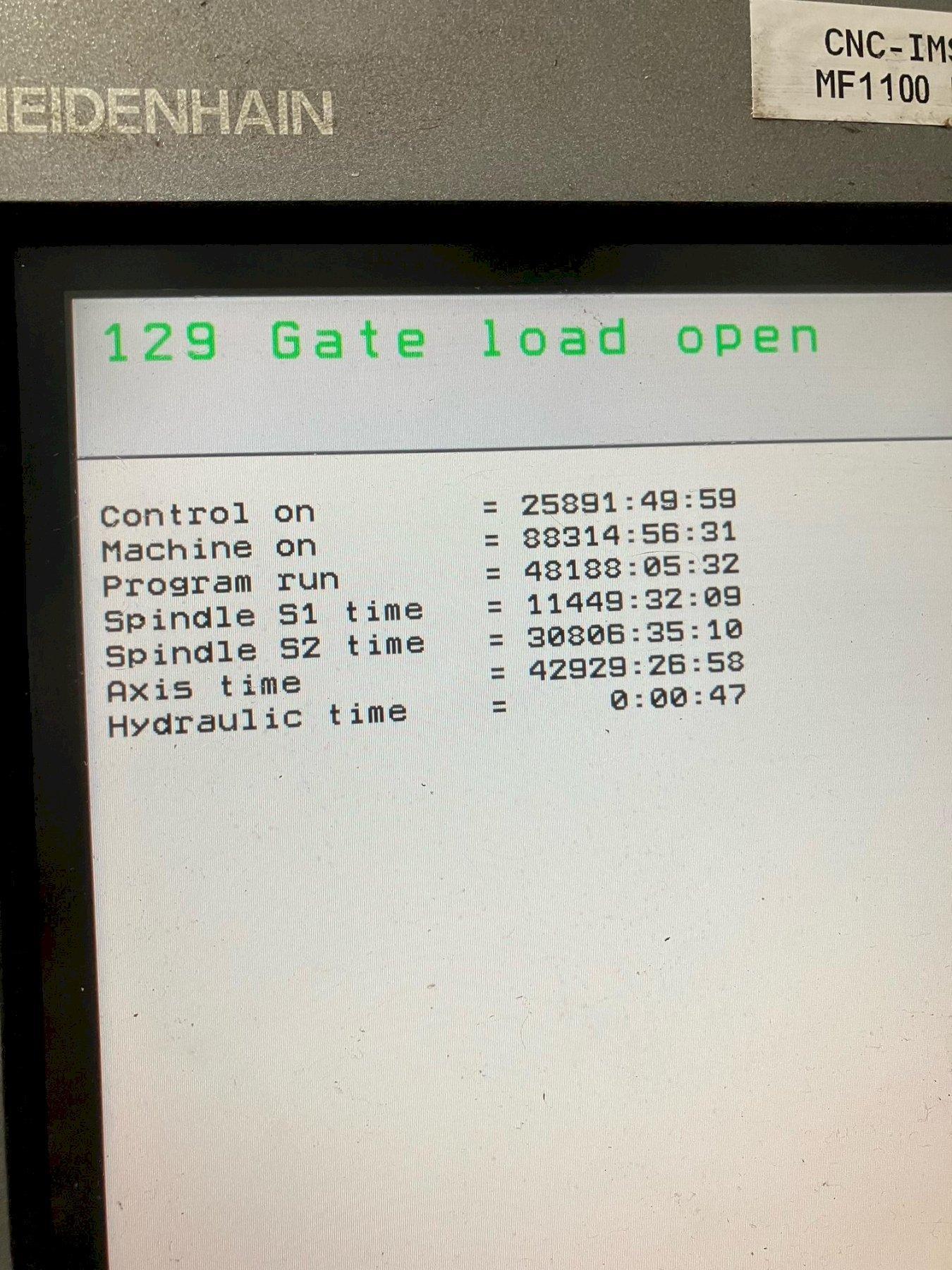

HEIDENHAIN ITNC i530 CNC CONTROL
4-STATION PALLET CHANGER
6-STATION GUN DRILL AUTOMATIC CHANGER/STORAGE
60-STATION AUTOMATIC CHANGER FOR 40 TAPER MILLING TOOLS

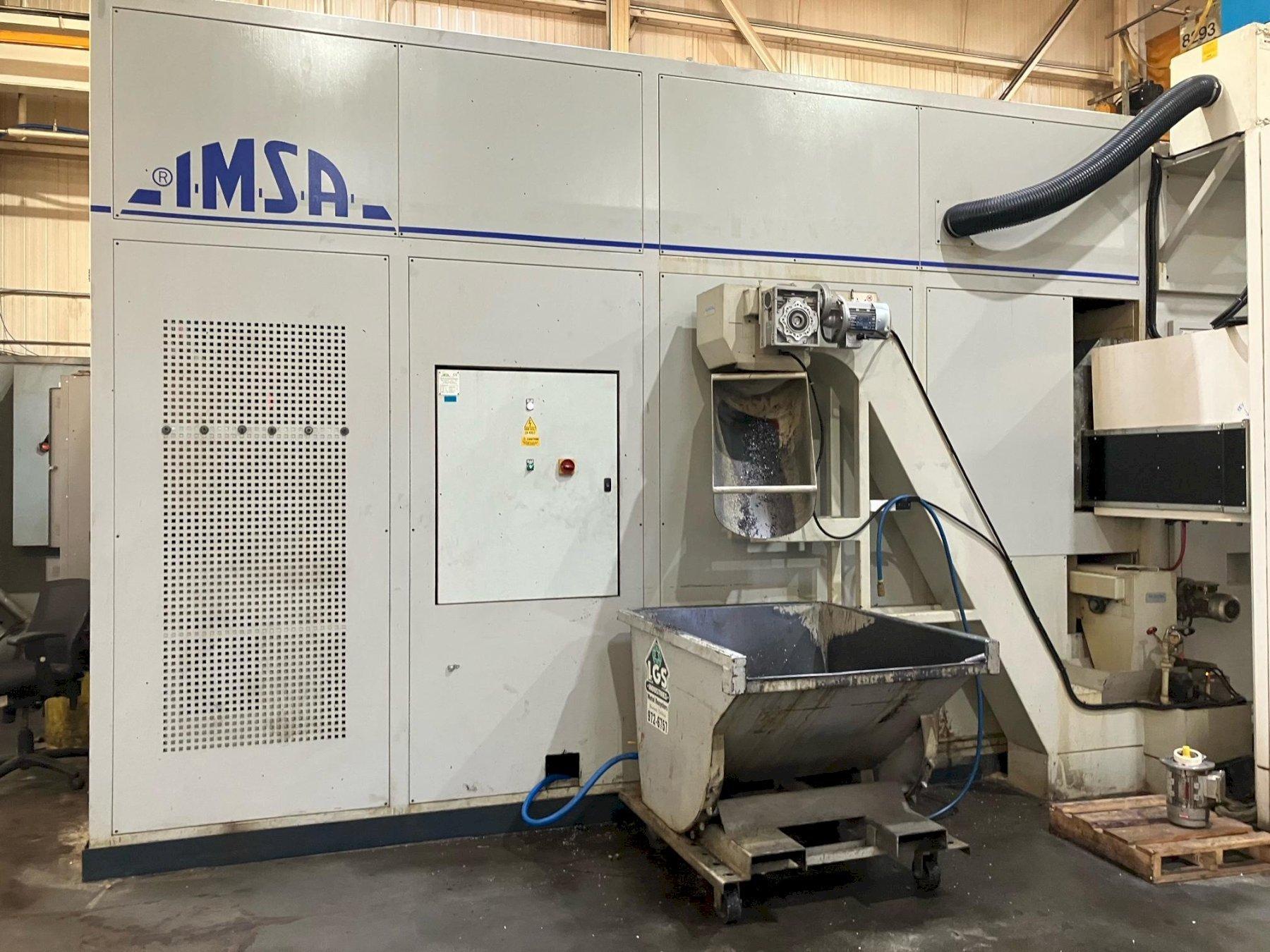

CHIP CONVEYOR
MISCELLANEOUS CAT 40 TOOL HOLDERS
MANUALS
Equipped With:
Chip Conveyor
Cat 40 Tool Holders
Manuals
Machine Weight: 97,000 Lbs.
