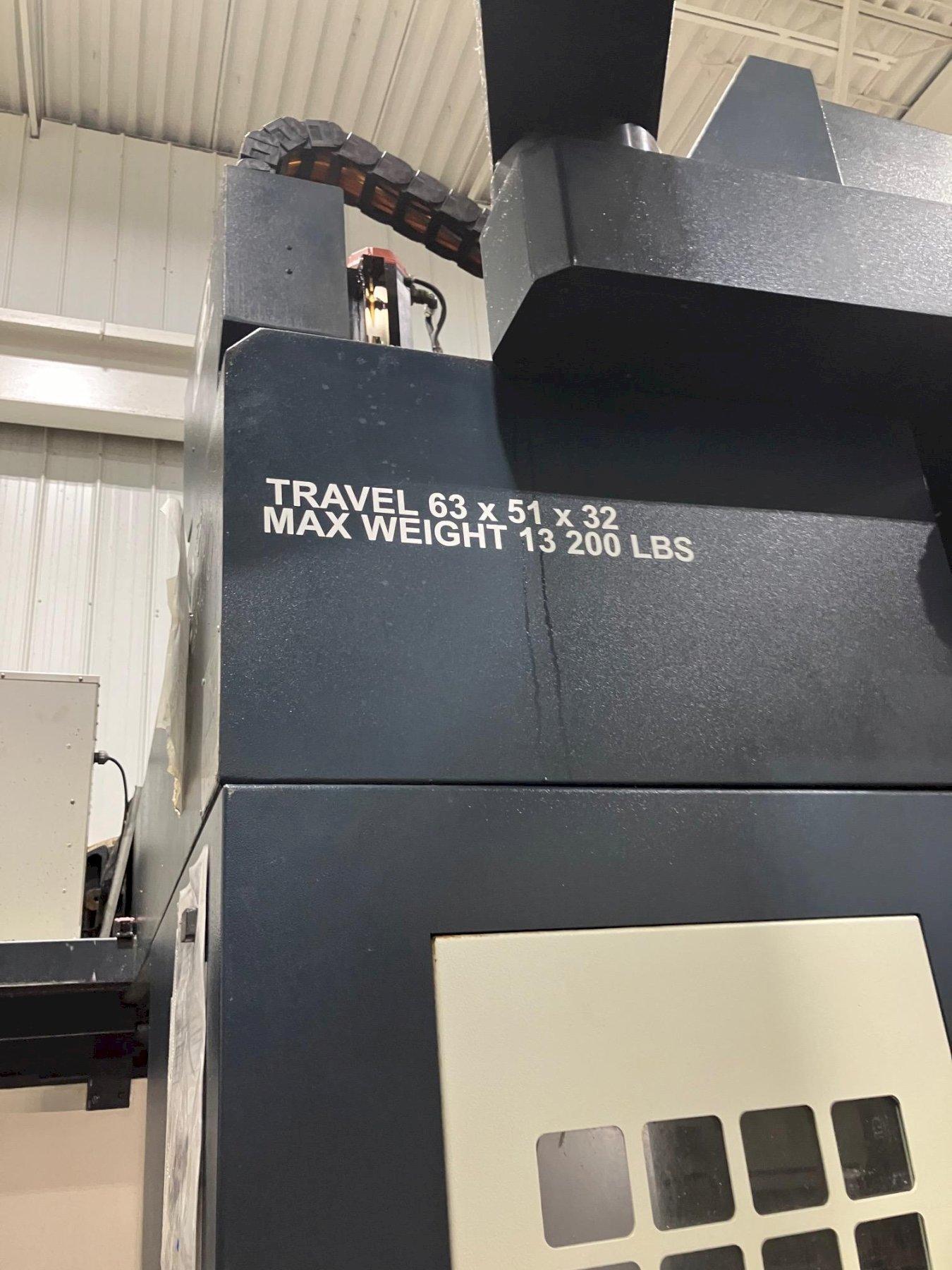

X-Axis Travel: 63″
Y-Axis Travel: 51″
Z-Axis Travel: 31.5″
Table to Spindle: 5.9″ Min – 37.4″ Max
Distance Between Columns: 51.2″

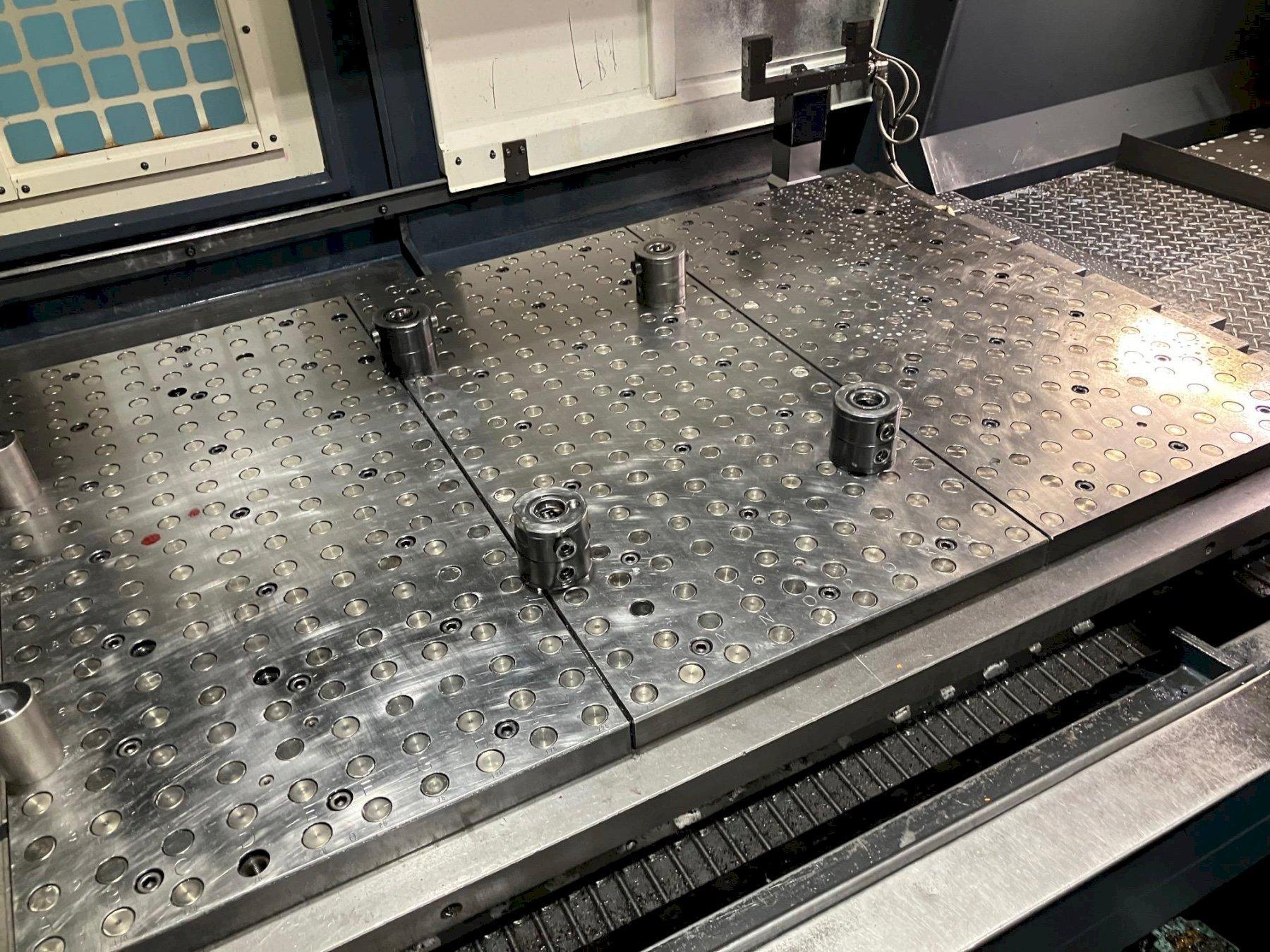

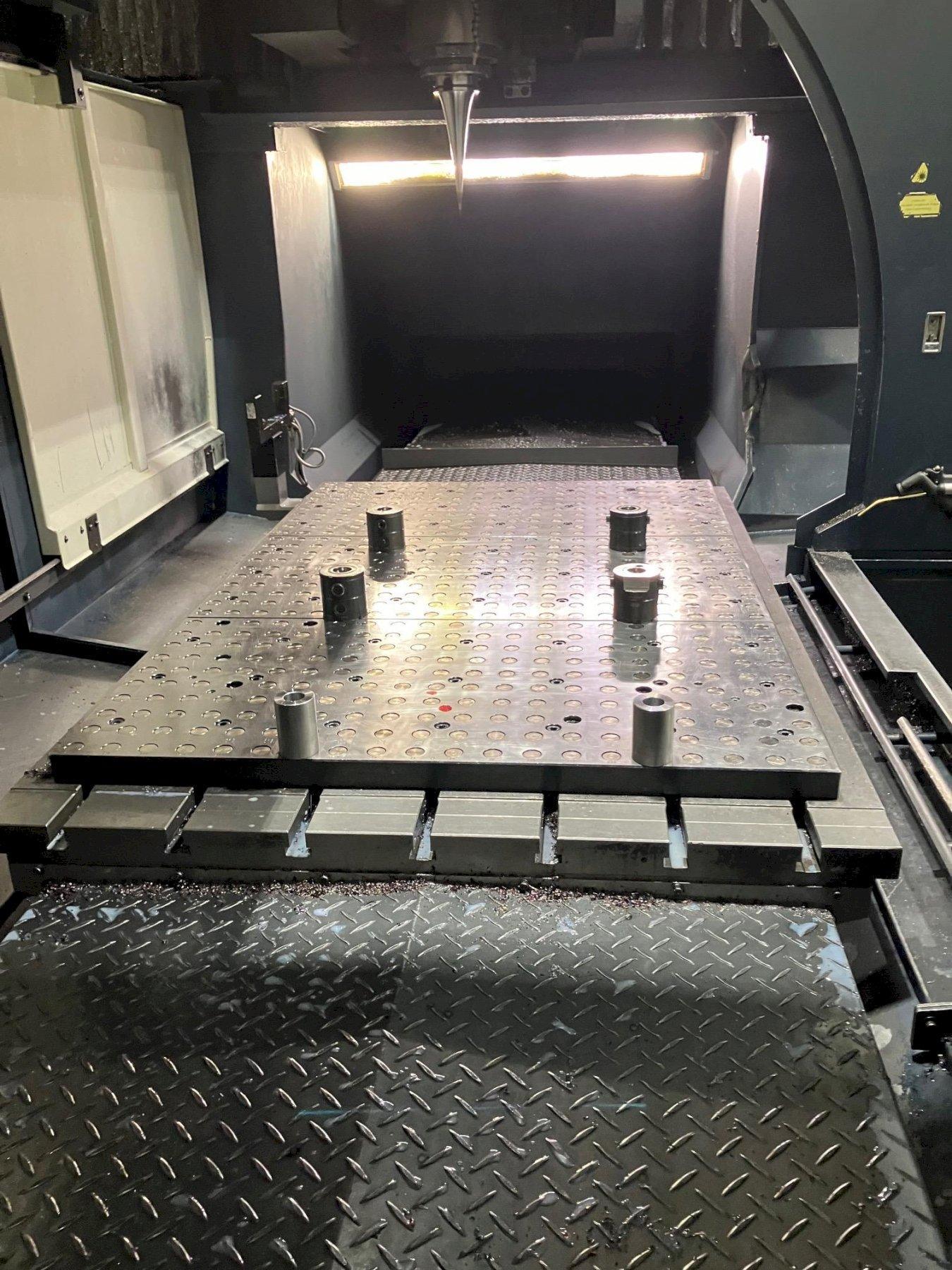

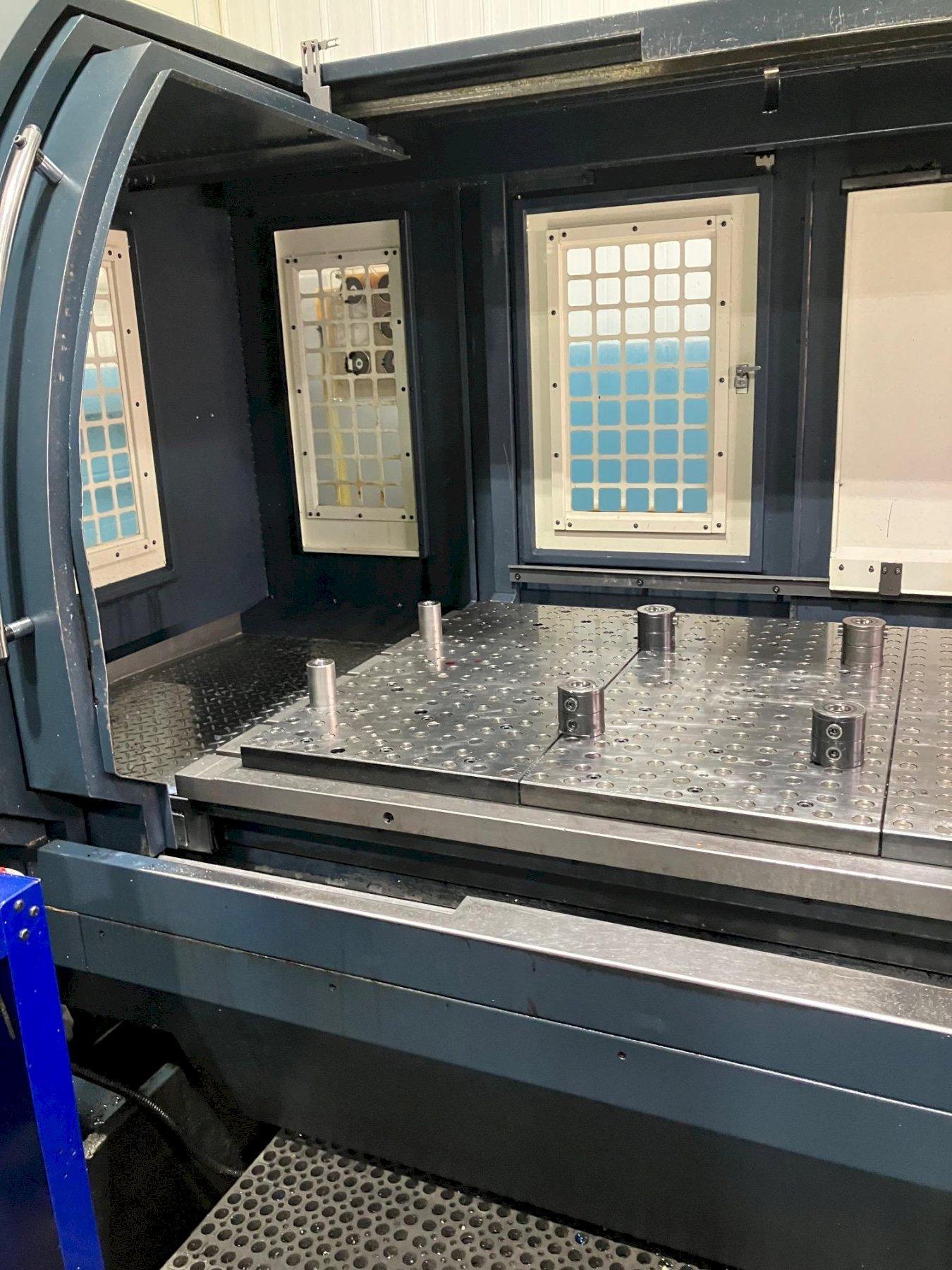

Table Working Surface: 66.9″ x 43.3″
Maximum Workload on Table: 13200 lbs
Spindle Motor: 35HP
Spindle Taper: CAT 50
Spindle Diameter: 2.8”
Spindle Speed: 6000 RPM
Spindle Motor: 15Hp +Auto Hi/Lo Gear
Number of Tools: ARM Type 24
Maximum Tool Diameter: 04”
Maximum Tool Length: 12.6″
Maximum Tool Weight: 22 lbs
Tool Selection: Bi-direction random type, Shortest Path
Table Load Capacity: 13,200 lbs
Rapid Traverse Rate: X-Y-Z Axis: 15X15X12m/min
Cutting Feed Rate: 1-10,000 mm/min

Equipped With:
Fanuc 31iM-B CNC Control
Coolant System
Oil Mist Cooland System
Heat Exchanger

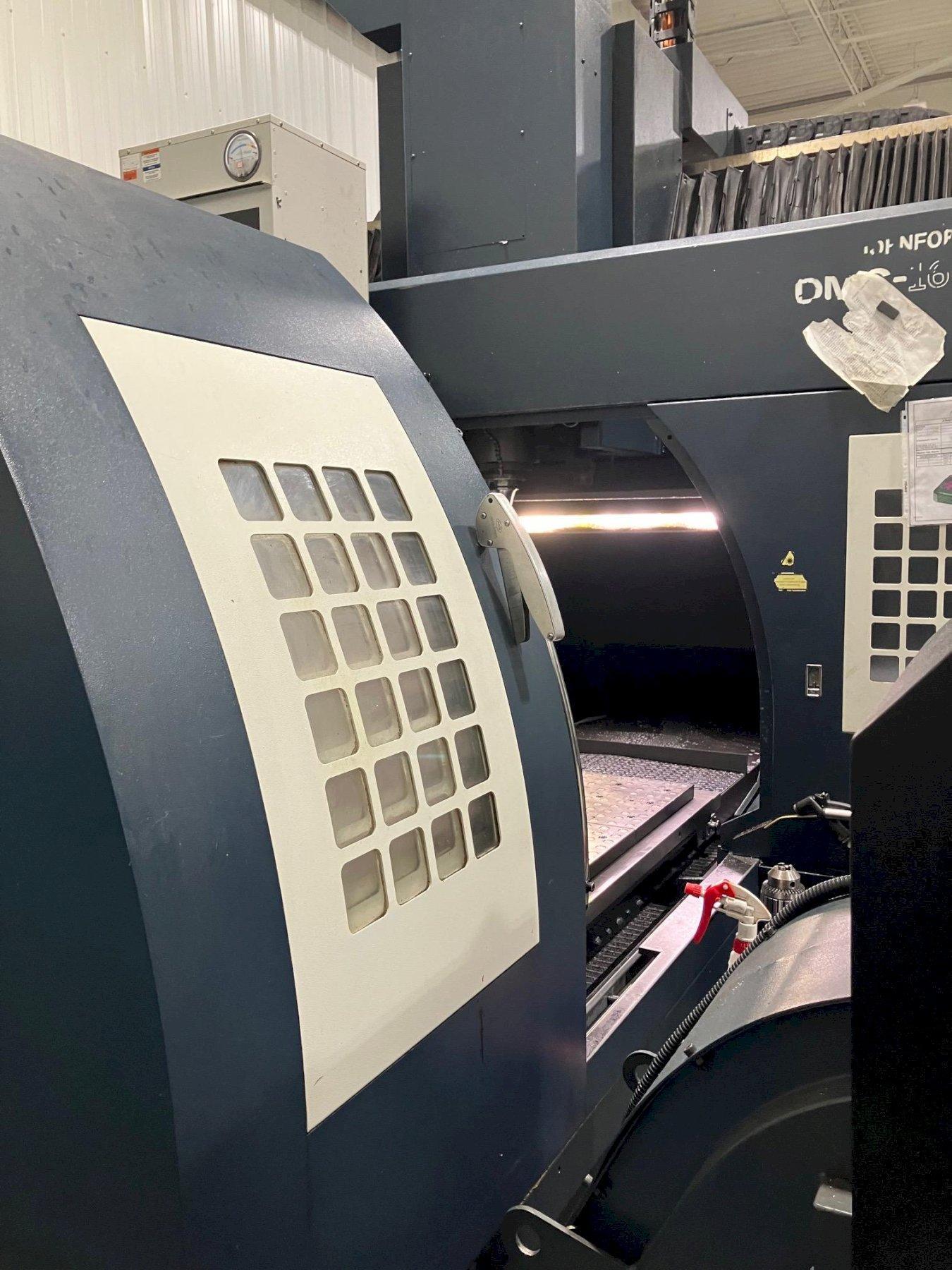

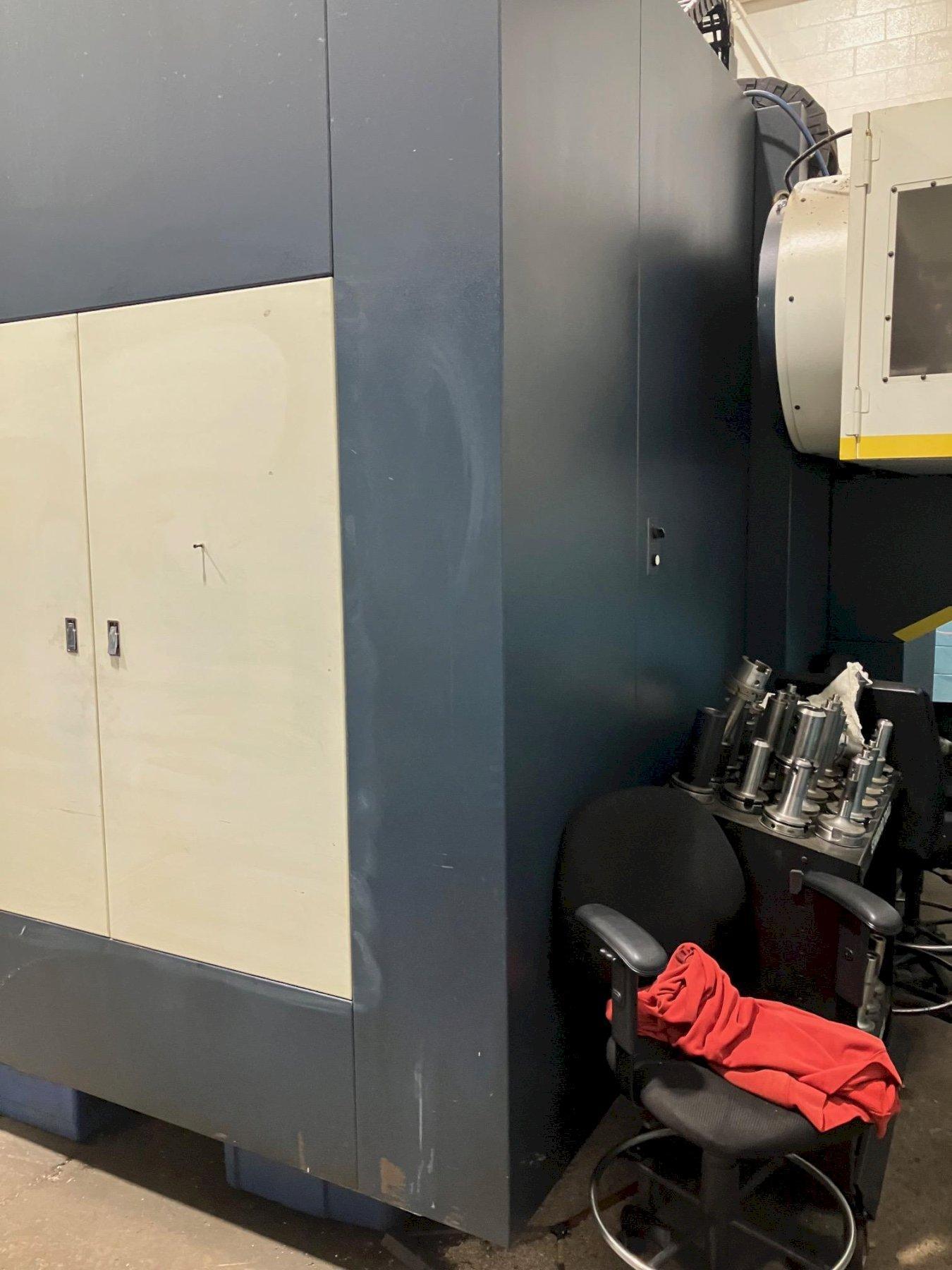

Full Enclosure
Two Screw Type Chip Conveyors
One Chain Type Chip Conveyor
Operation Box

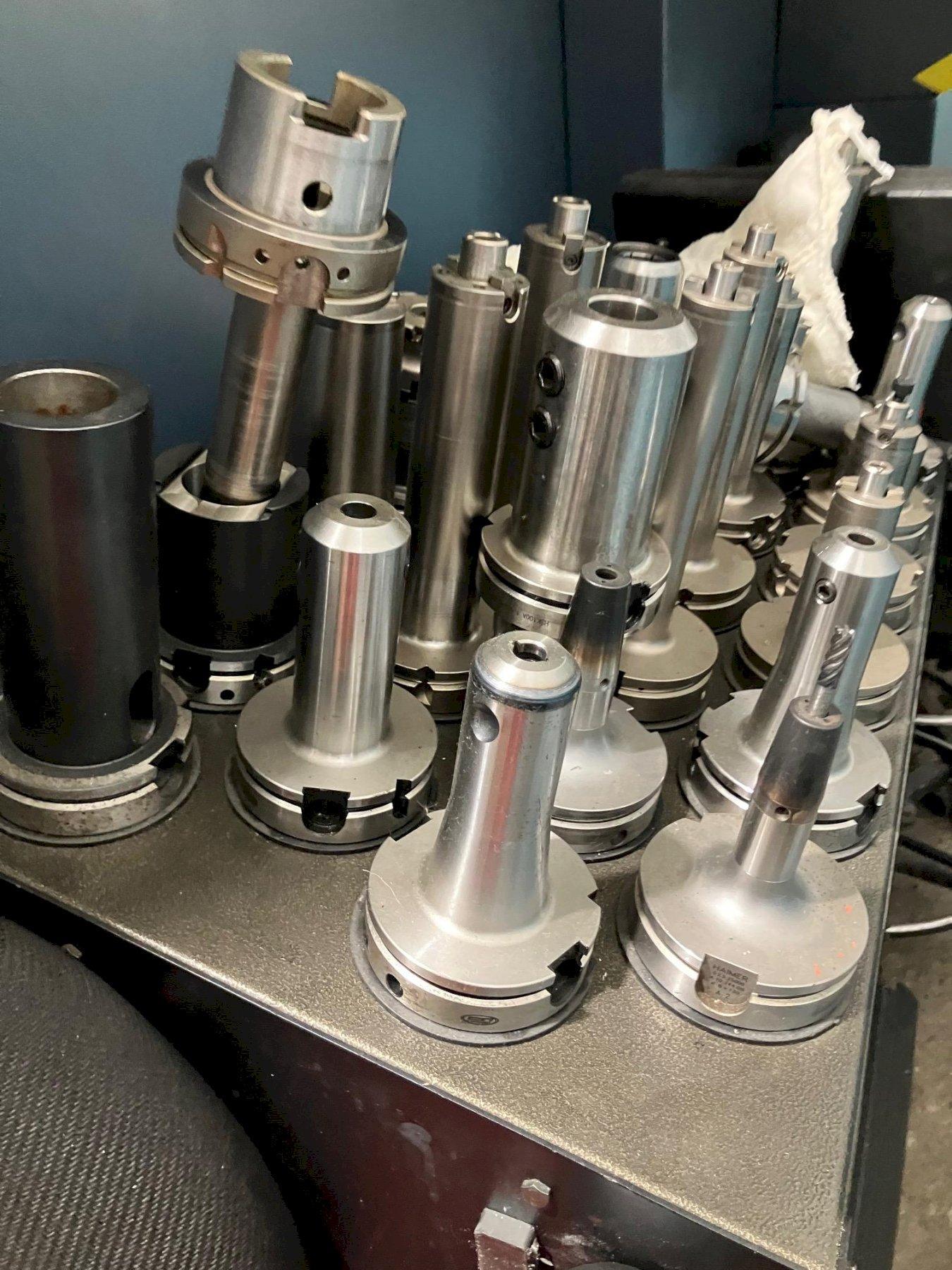

Tools, Tool Box and Various Manuals
Rigid Tapping
Spindle Oil Cooler (CAT50)
Dimensions & Weight: 218”L x 130”W x 149.6” H 45,000 Lbs

Power Requirements:
Voltage: 220VAC
Frequency: 50/60 HZ
