Equipped With

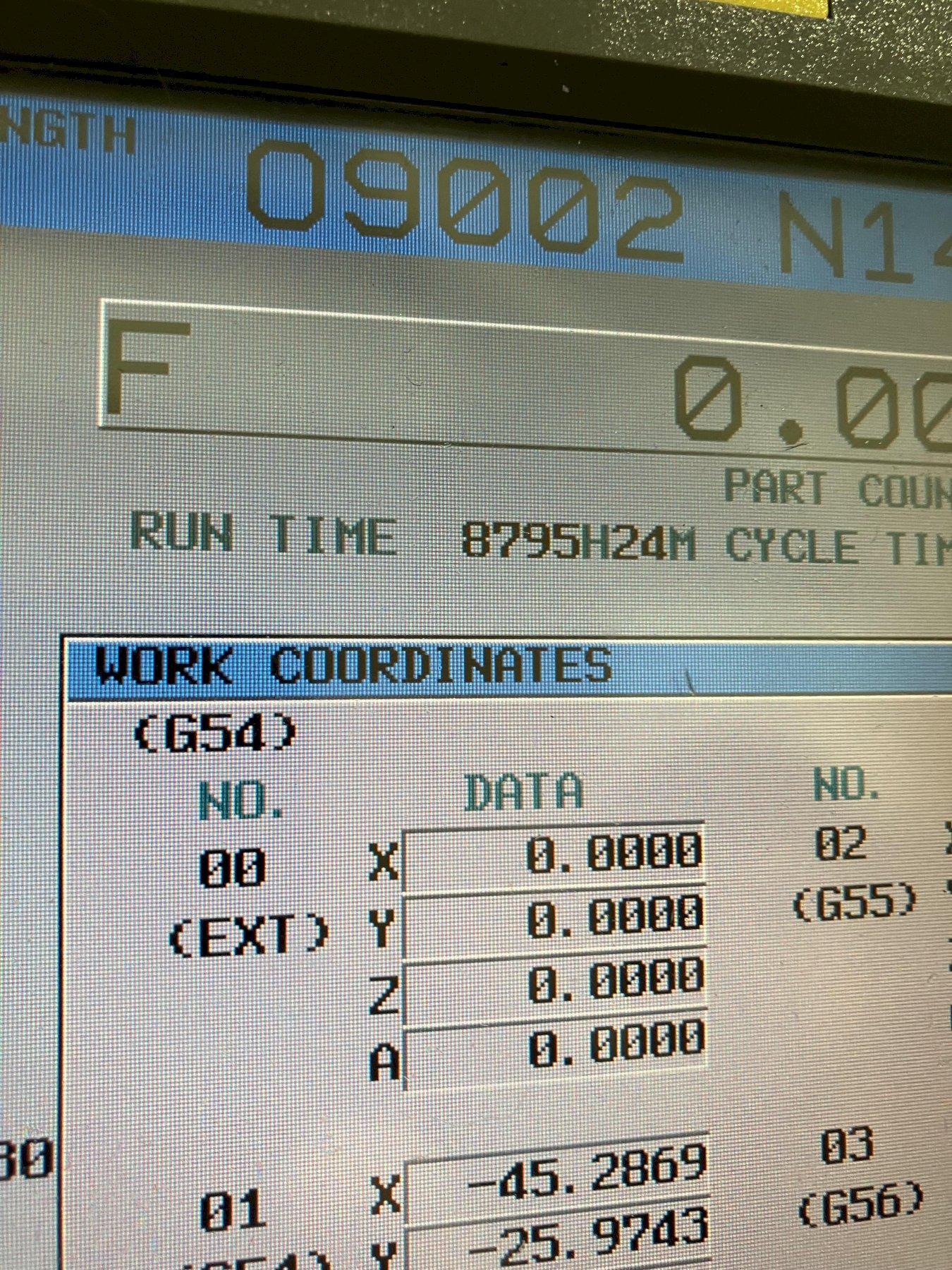

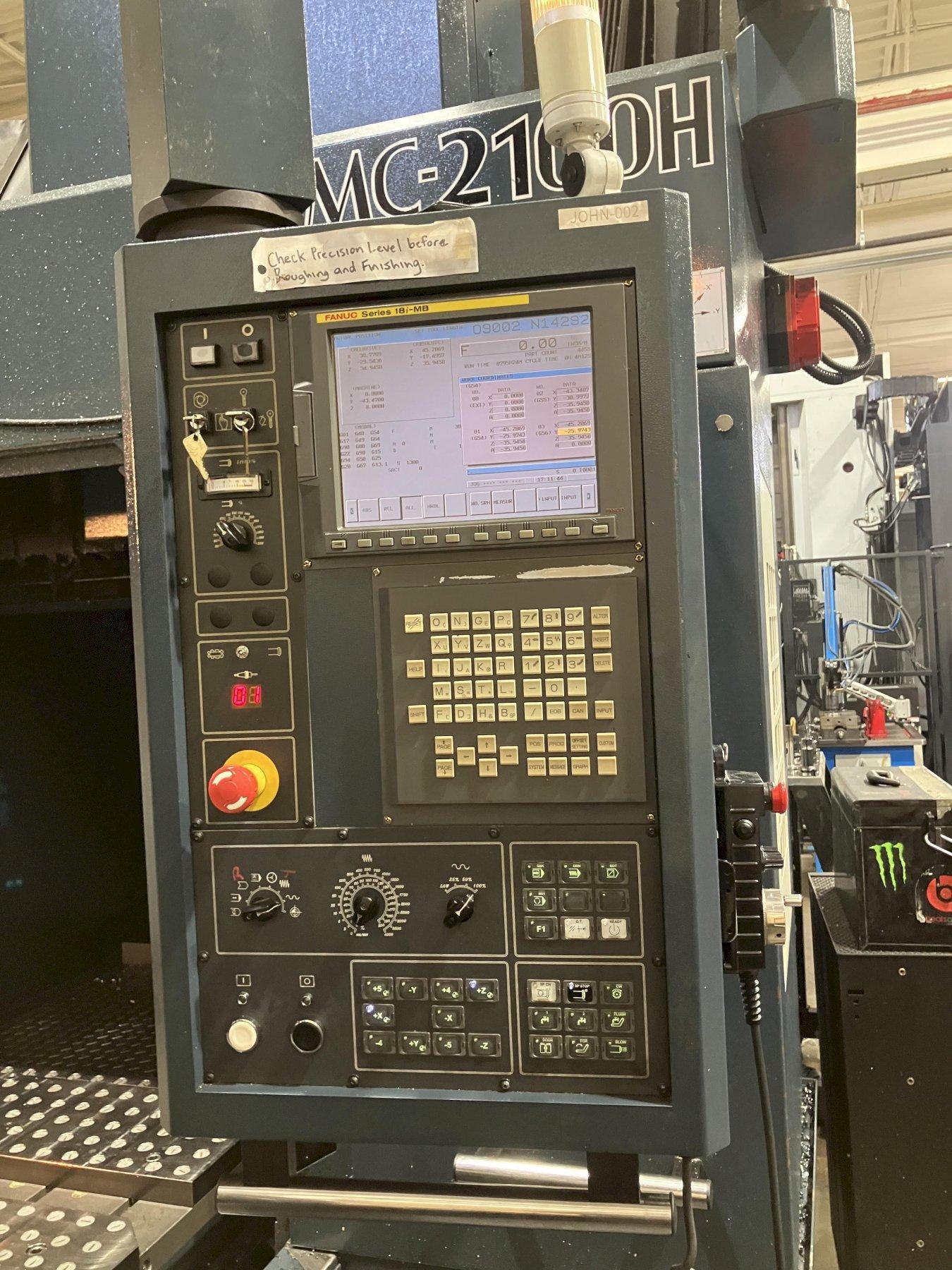

CONTROL TYPE...............................: FANUC 18iMB CONTROL
TABLE SIZE ...................................: 43" X 86"
TABLE TO SPINDLE..........................: 5.9" MIN/ 37.4" MAX
TABLE LOAD CAPACITY ...................: 13,200 LBS.
LONGITUDINAL TRAVEL (X)..............: 83"
(Y) TRAVEL....................................: 52"
(Z) TRAVEL....................................: 31.5"
SPINDLE SPEEDS............................: 8,000 RPM
SPINDLE DRIVE..............................: 35 HP
SPINDLE TAPER..............................: Cat 50
RAPID RATE...................................: 472 IPM
ATC CAPACITY ...............................: 40 ATC
MACHINE WEIGHT ..........................: 52,000 LBS.
EQUIPPED WITH:

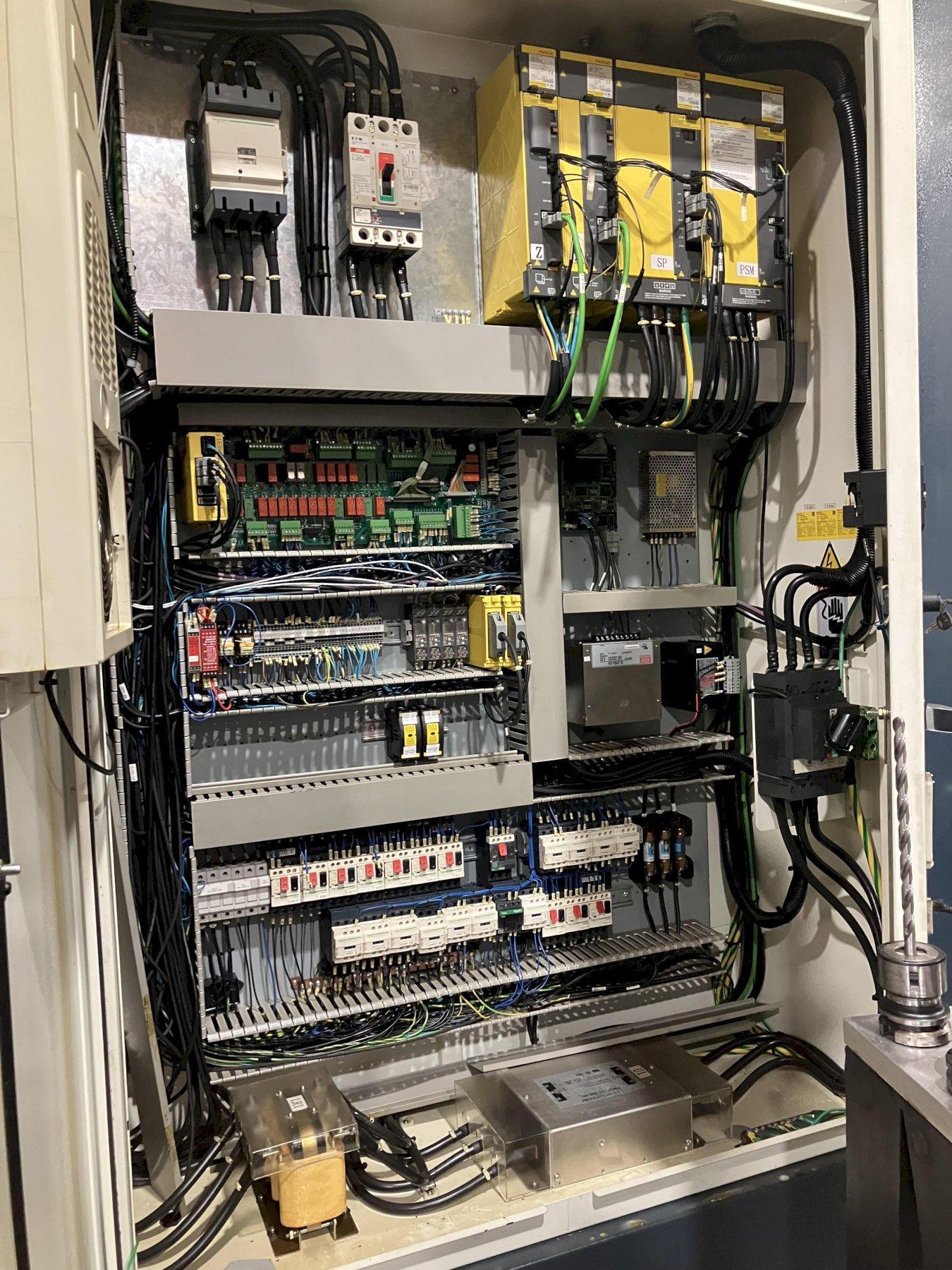

ELECTRICS-220 3/60
DUAL CHIP AUGERS
CHIP CONVEYOR
FANUC HPCC (HIGH SPEED CONTOURING)
HEIDENHAIN LINEAR GLASS SCALES ON X,Y,Z, AXIS
COOLANT THROUGH SPINDLE

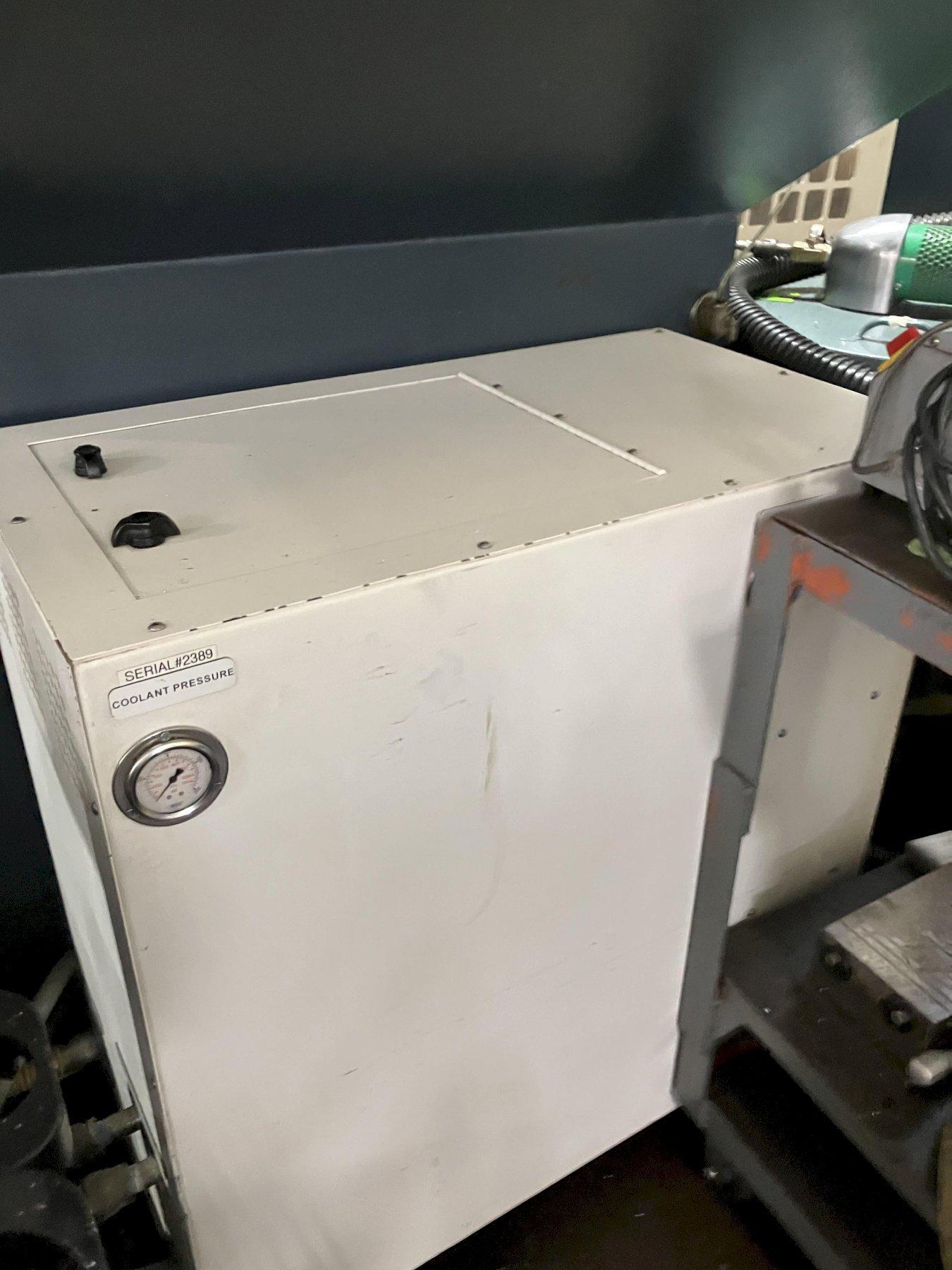

HIGH PRESSURE COOLANT PUMP UNIT
ACCU-LUBE OIL MIST UNIT TURN ON/OFF ON CONTROL
REMOTE HAND WHEEL

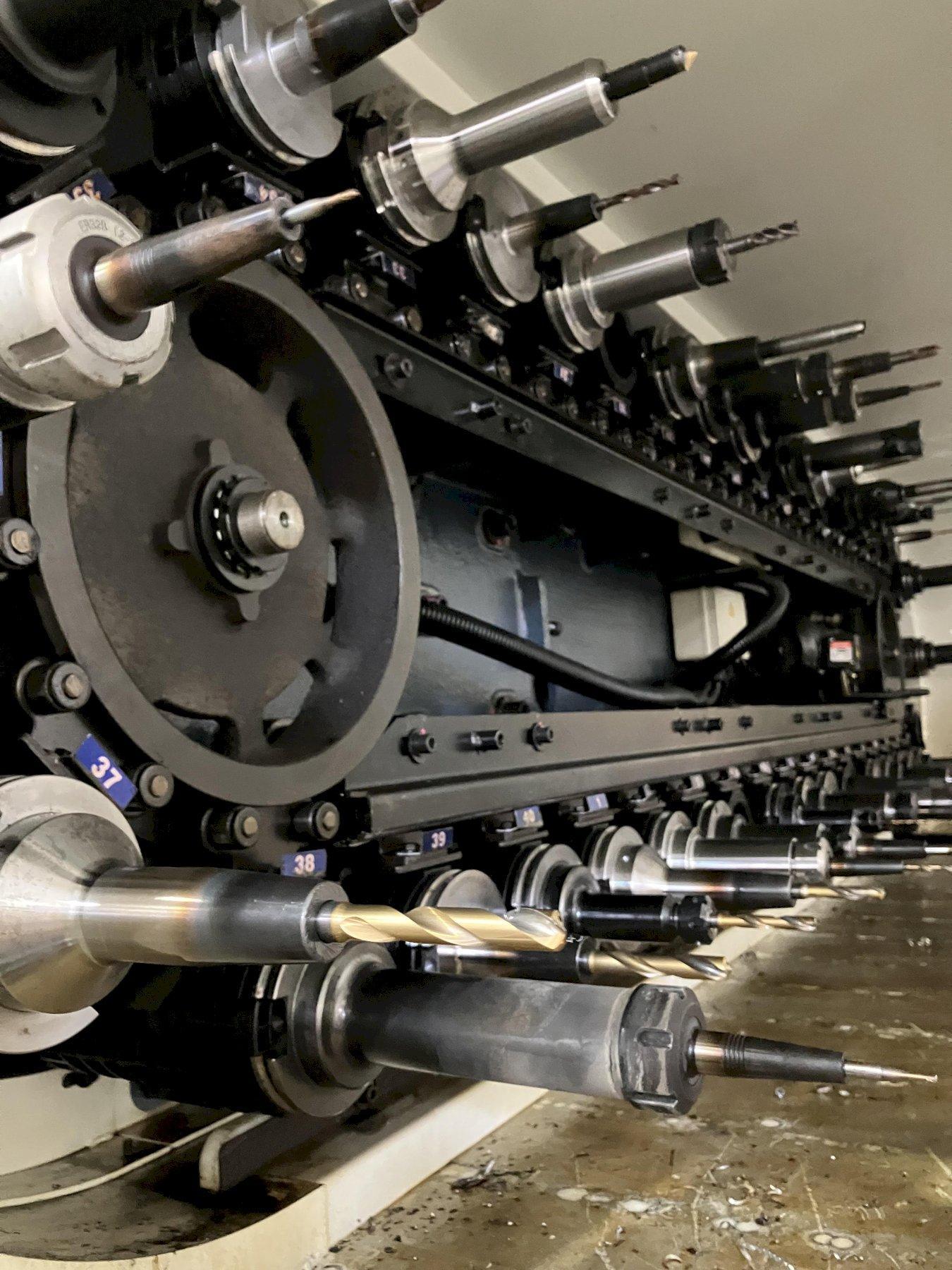

40 TOOL CHANGER
RIGID TAPPING
