Equipped With

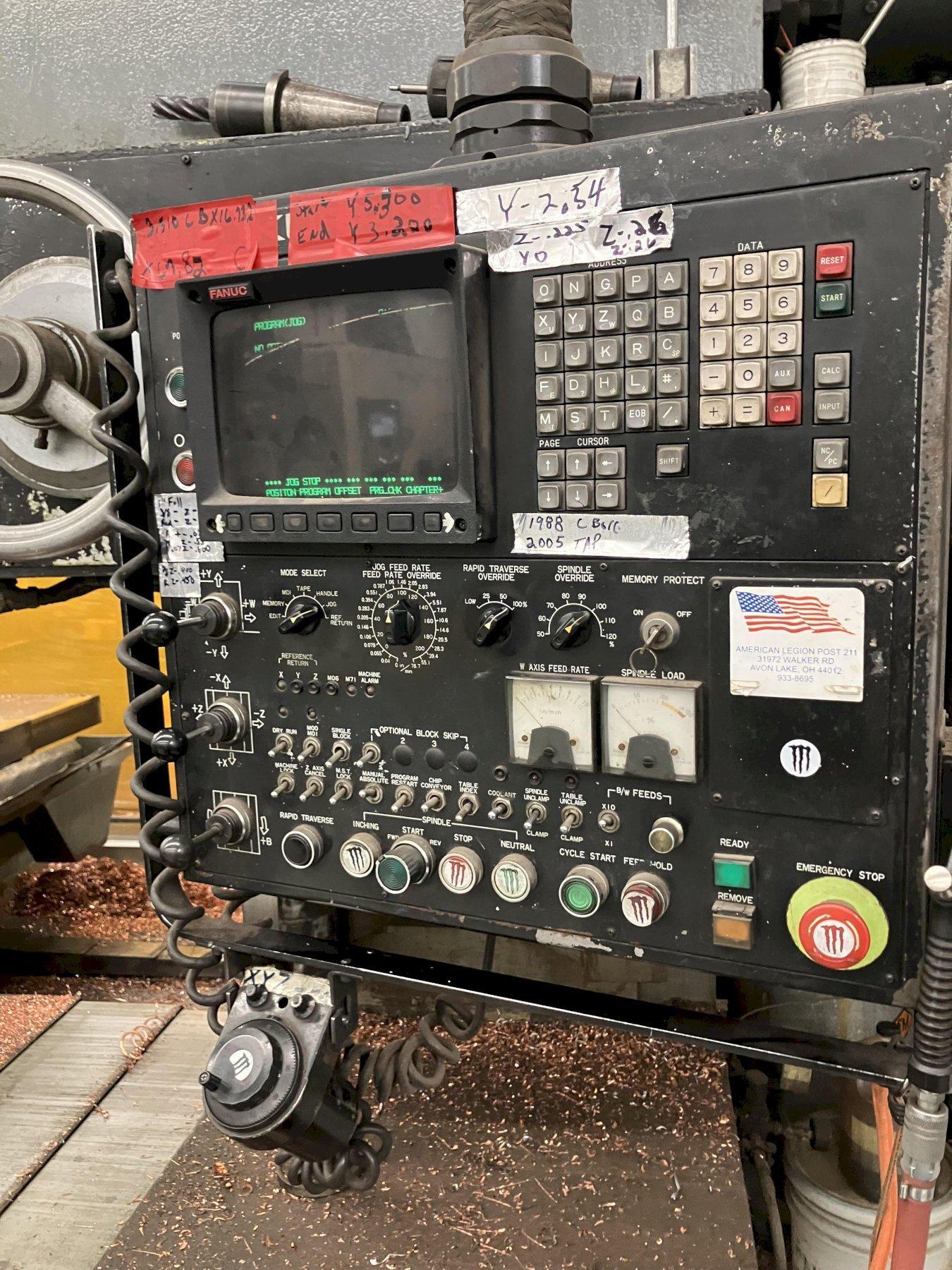

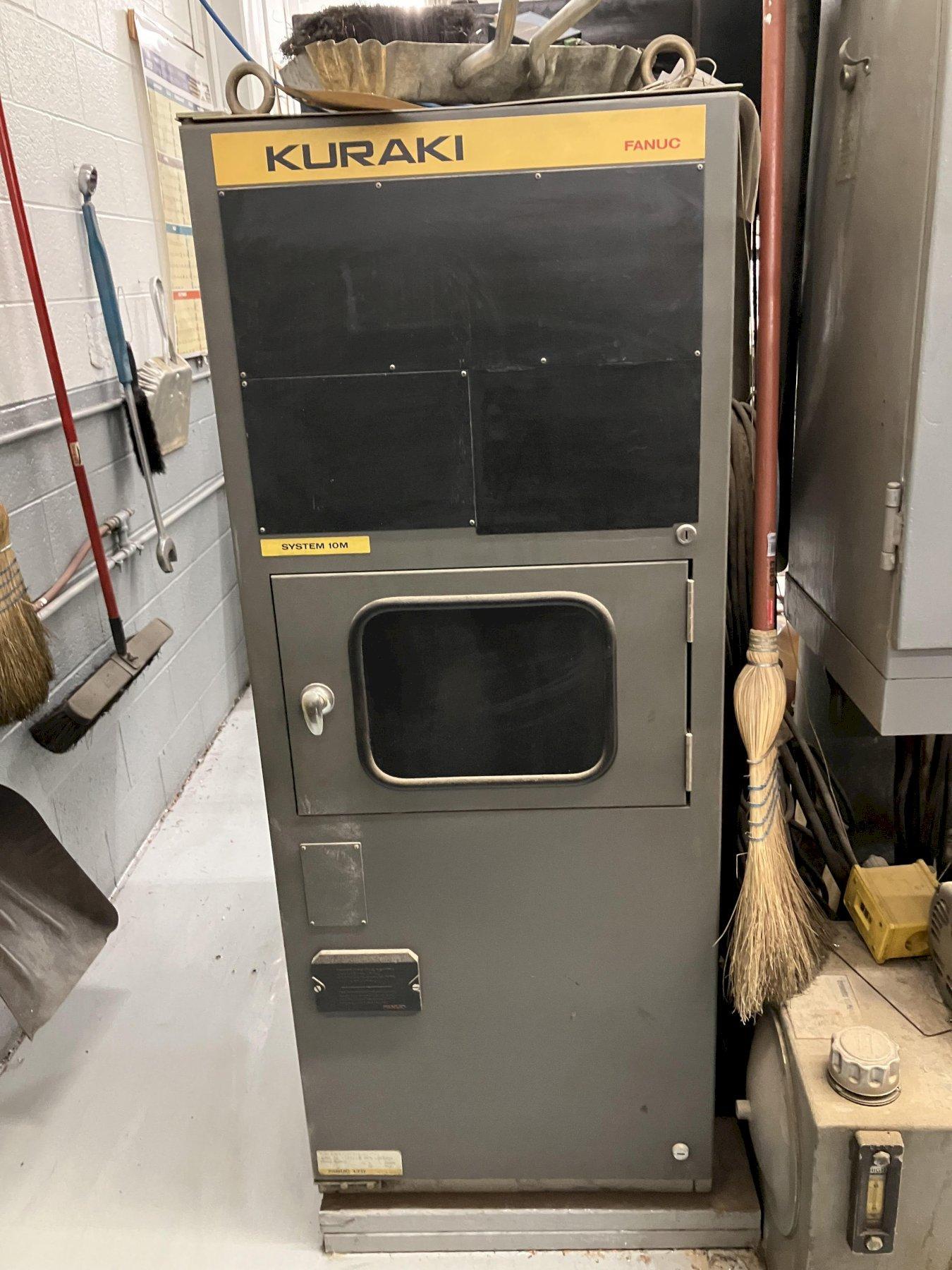

CONTROL: FANUC 10M CNC CONTROL (PENDANT MOUNTED)
SPINDLE DIAMETER . . . . . . . . . . : 4.3"
TABLE SIZE. . . . . . . . . . . . . . . . .: 63" X 55"
CROSS TRAVEL (X). . . . . . . . . . . .: 79"
VERTICAL HEAD TRAVEL (Y). . . . . : 59"
TABLE LONGITUDINAL TRAVEL (W) : 59"
SPINDLE TRAVEL (Z). . . . . . . . . . .: 26.6"
SPINDLE SPEEDS. . . . . . . . . . . . . : TO 1250 RPM
SPINDLE MOTOR . . . . . . . . . . . . . : 15 KW (20hp)
SPINDLE TAPER . . . . . . . . . . . . . . : #50
MAX TABLE WEIGHT CAPACITY . . . .: APPROX 14,000 LBS.
EQUIPPED WITH:
POWER DRAW BAR
STAINLESS WAYCOVERS
POWER ROTARY TABLE CONTROL
IN BASE SADDLE SUPPORTS
VERTICAL BALL SCREW COVERS
FLOOD COOLANT
ALL HARD WAYS
REMOTE PULSE GENERATOR

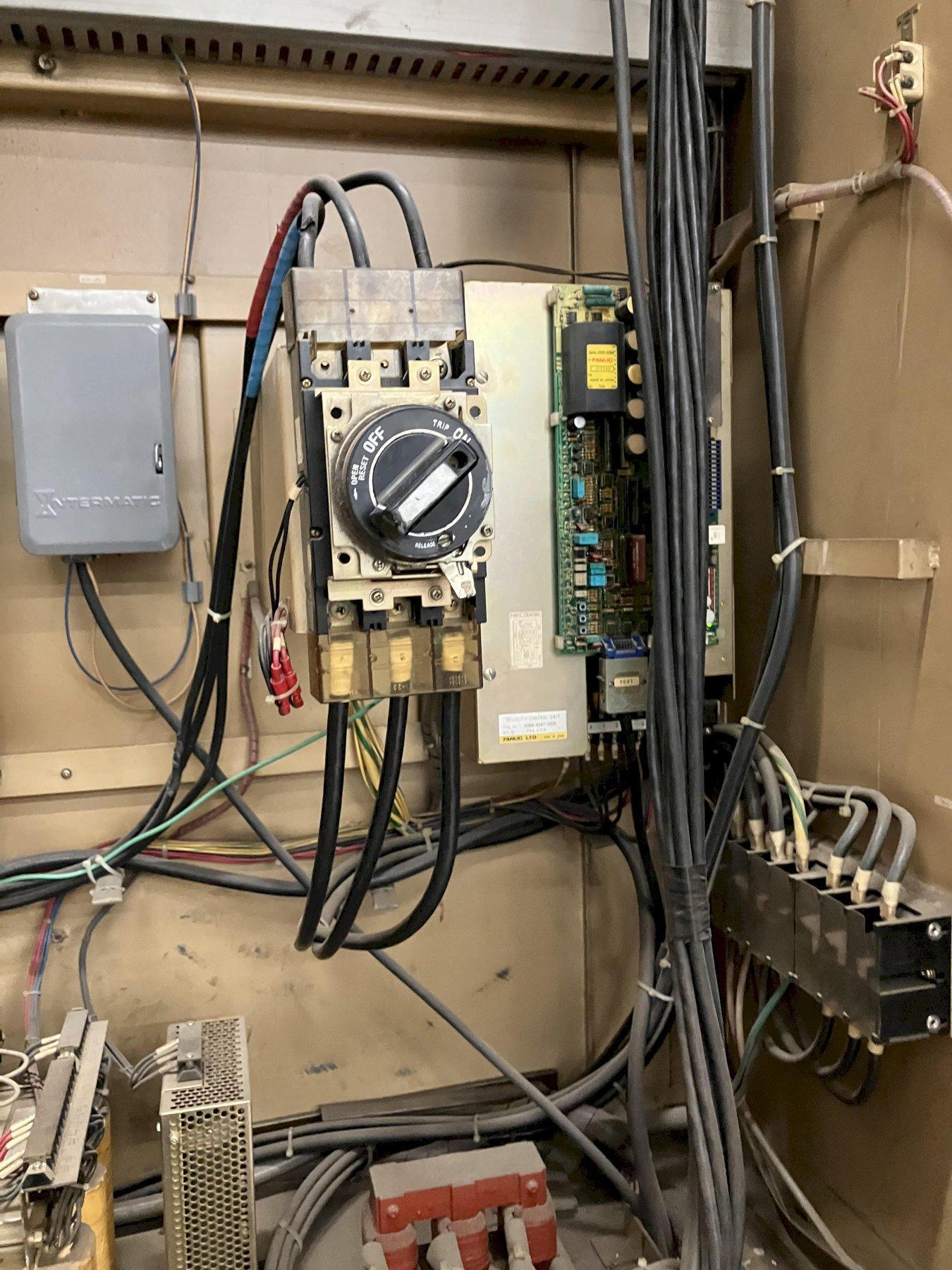

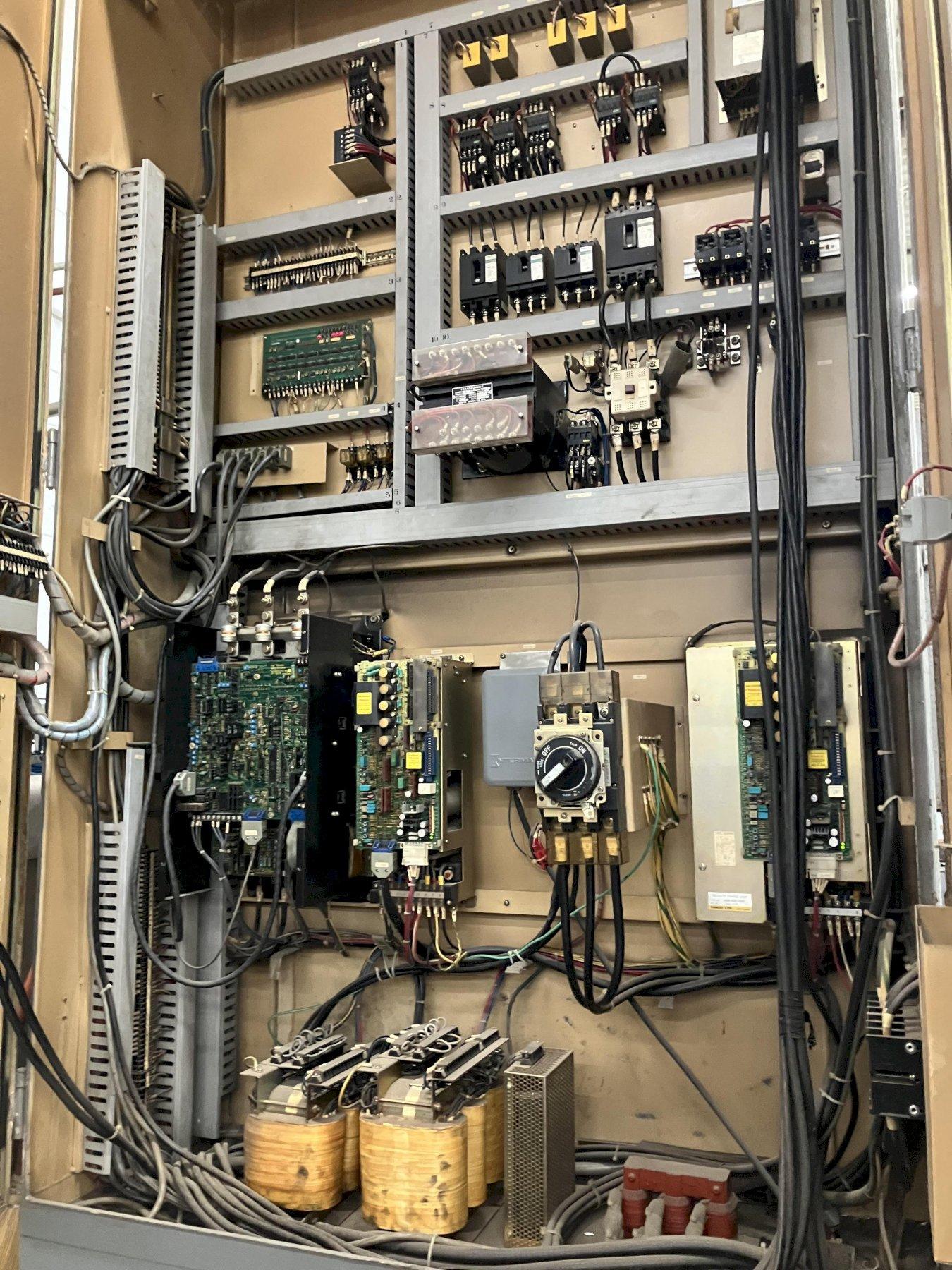

ELECTRICS-220 Volt 3/60
DIMENSIONS: 180" LR x 243" FB x 177" to top of boom
