Equipped With
Control Type Professional 5
# Axis 4
Pallet Length 39.4"
Pallet Width 31.5"
Pallet Load Capacity 4,409 Lbs.
Pallet Indexing (B-Axis) 0.0001°
X-Axis Travel 59.8"
Y-Axis Travel 49.2"
Z-Axis Travel 53.15"
Rapid Traverse Rate (X/Y/Z) 1,969 ipm
Spindle Taper CAT 50
Spindle Speed 10,000 rpm
Spindle Motor (HP) 50 hp

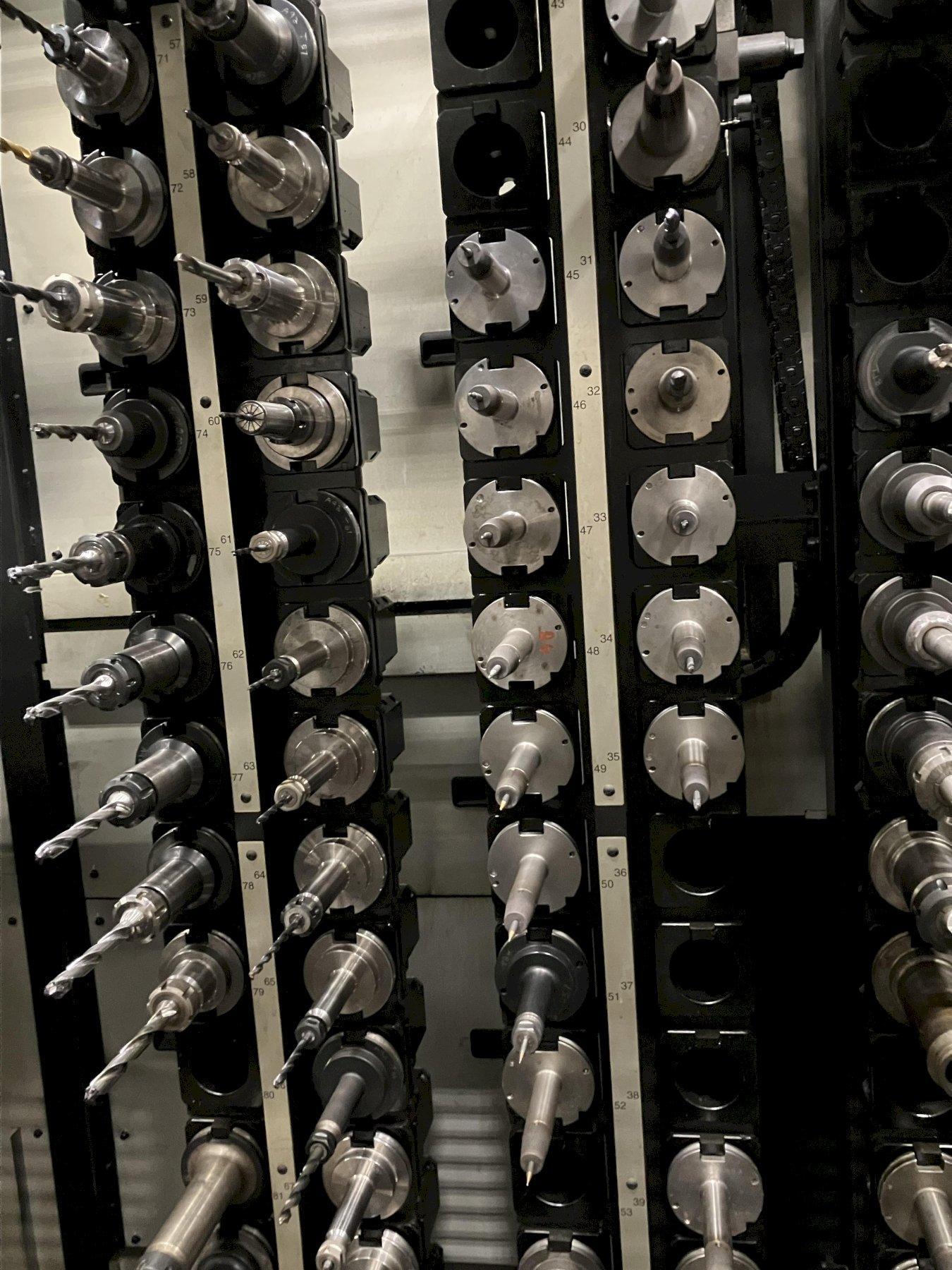

Tool Changer Capacity 99 ATC
Machine Weight 75,000 pounds
Equipped With:

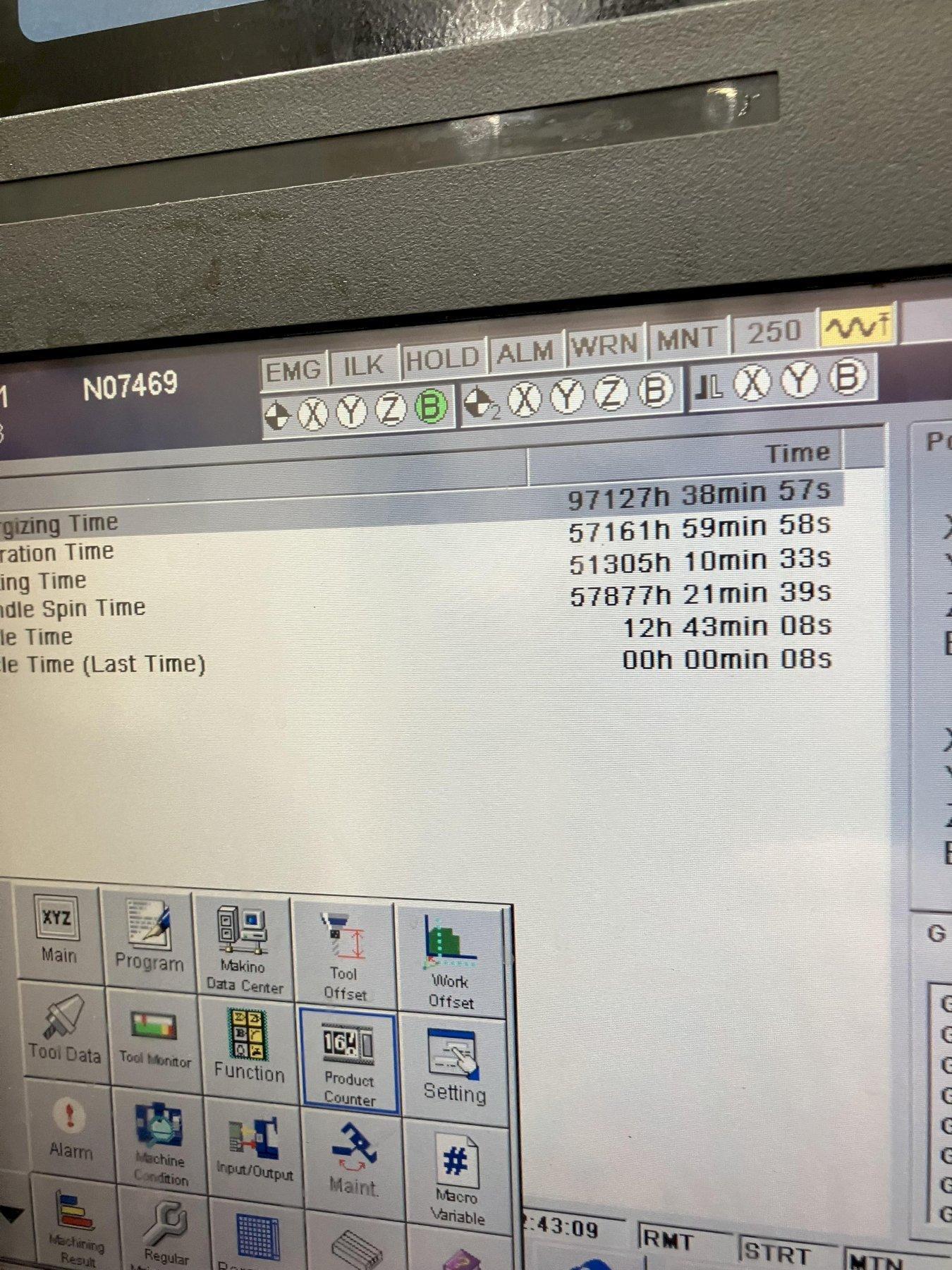

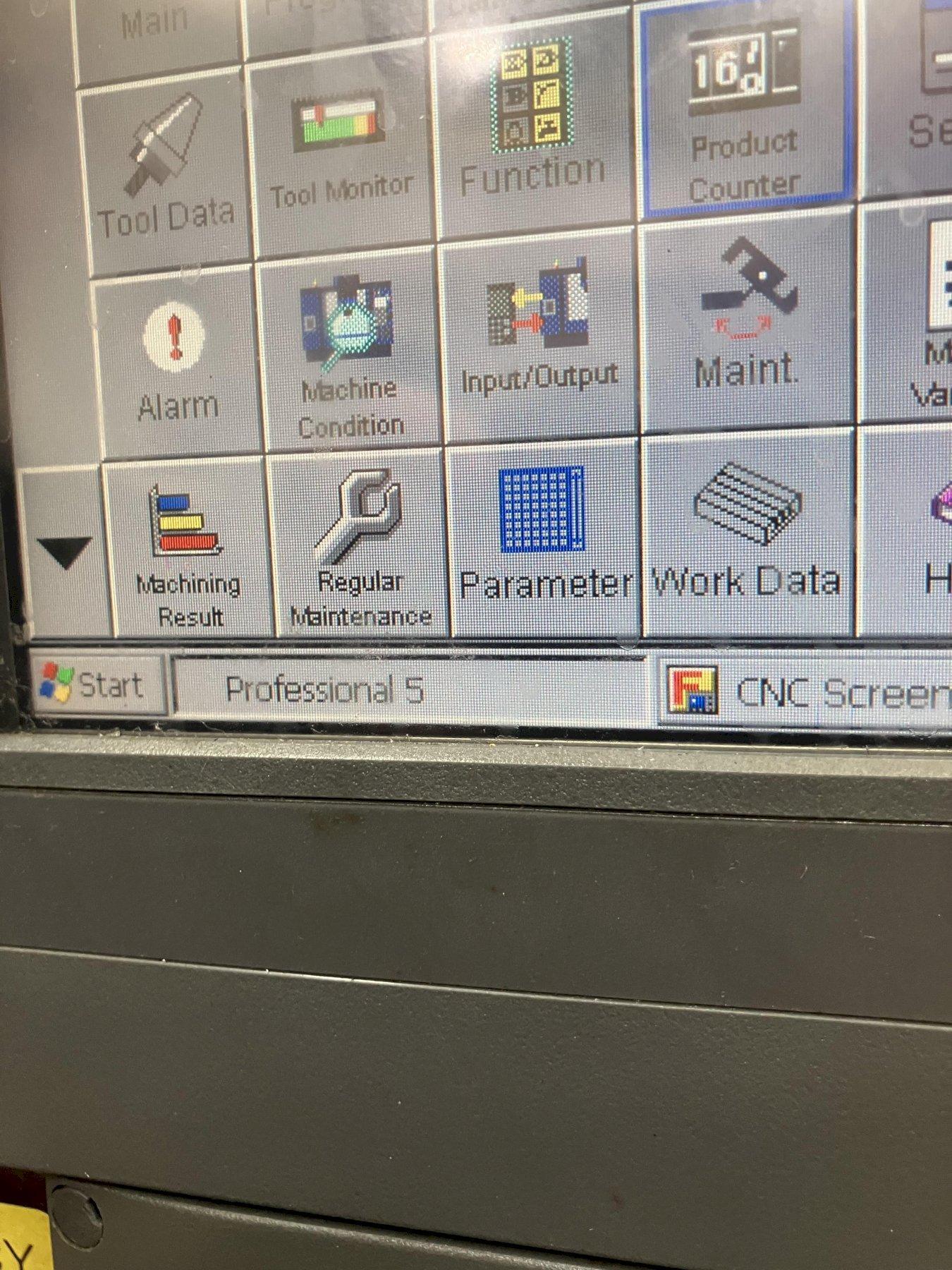

Makino Professional 5 CNC Control
Coolant Through Spindle - High Pressure

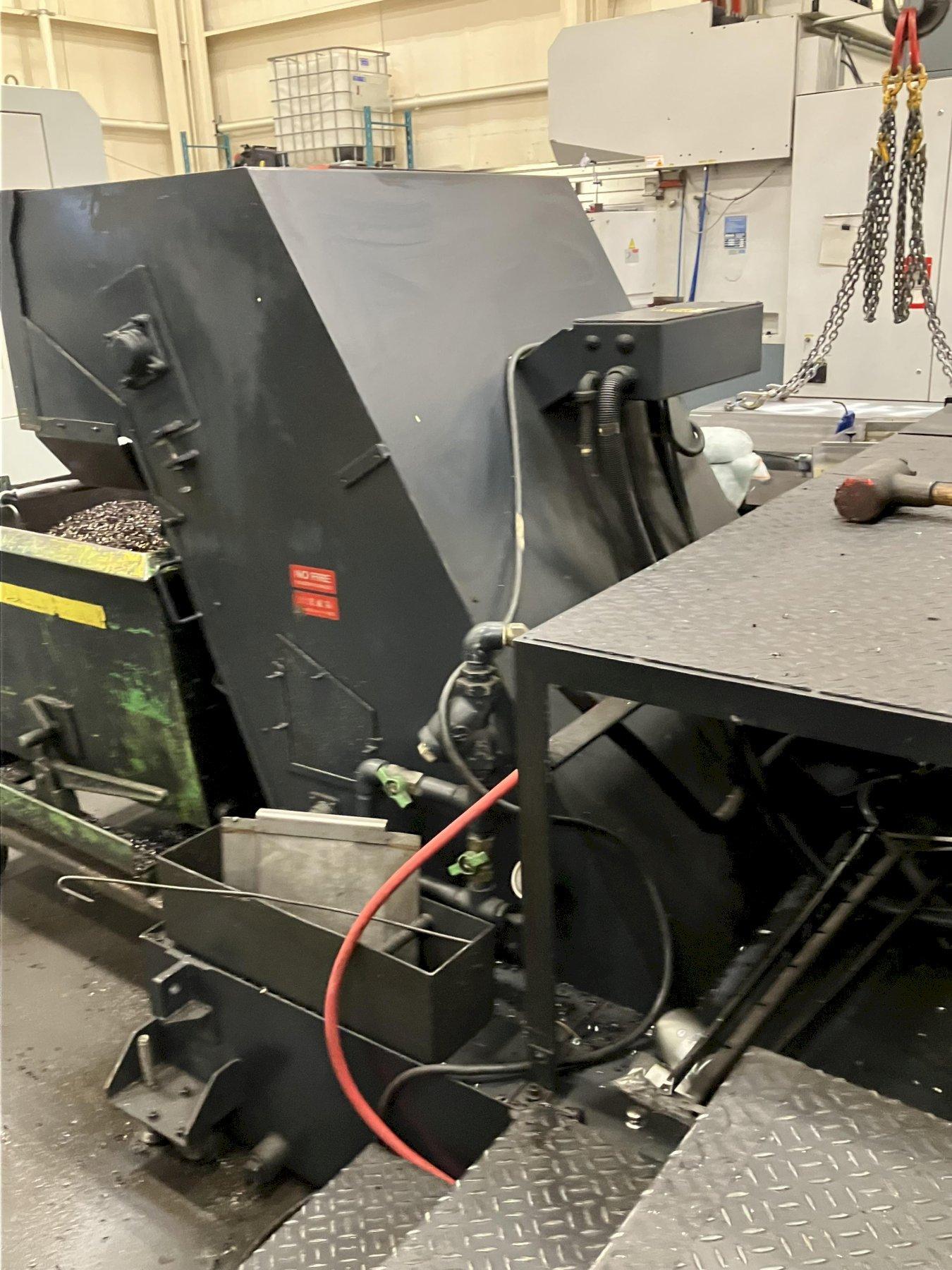

Chip Conveyor
Coolant Through Spindle
Coolant Tank
Chip Blaster
Spindle Chiller
Air Dryer
