SPECIFICATIONS:
TABLE SIZE 31.5" X 24.8"
NUMBER OF PALLETS 2
MAX. WORKPIECE LOAD 2205 LBS.
MAX. WORKPIECE SIZE 39.37" X 19.69"
X - AXIS TRAVEL 28.74"
Y - AXIS TRAVEL 33.46"
Z - AXIS TRAVEL 22.05"
A - AXIS TRAVEL -120 + 30 DEGREES
C - AXIS TRAVEL 360,000 DEG.
RAPIDS X, Y, Z 1654 IPM
RAPID TRAVERSE A - AXIS 18000 DEGREES / MIN.
CUTTING FEED RATES 1654 X, Y . Z/ 984 IPM A, AND C
SPINDLE NOSE CAT 50
SPINDLE SPEED 12,000 RPM
TOOL MAGAZINE 120 ATC
MAIN MOTOR 50/40/30 HP AC
MAX. SPINDLE TORQUE 258 FT/LBS
MACHINE WEIGHT 43,297 LBS.

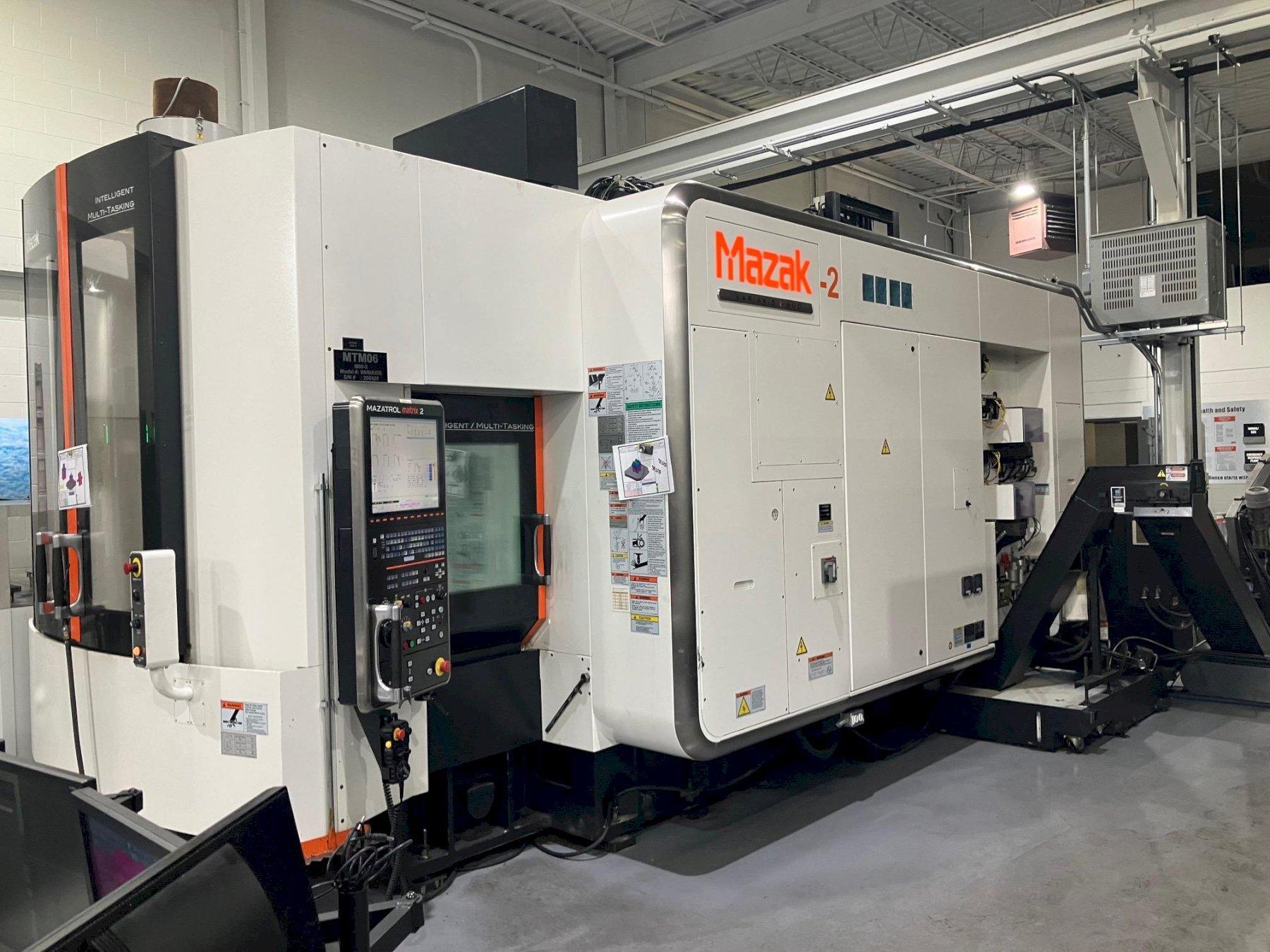

MAZAK SMOOTH X CONTROL

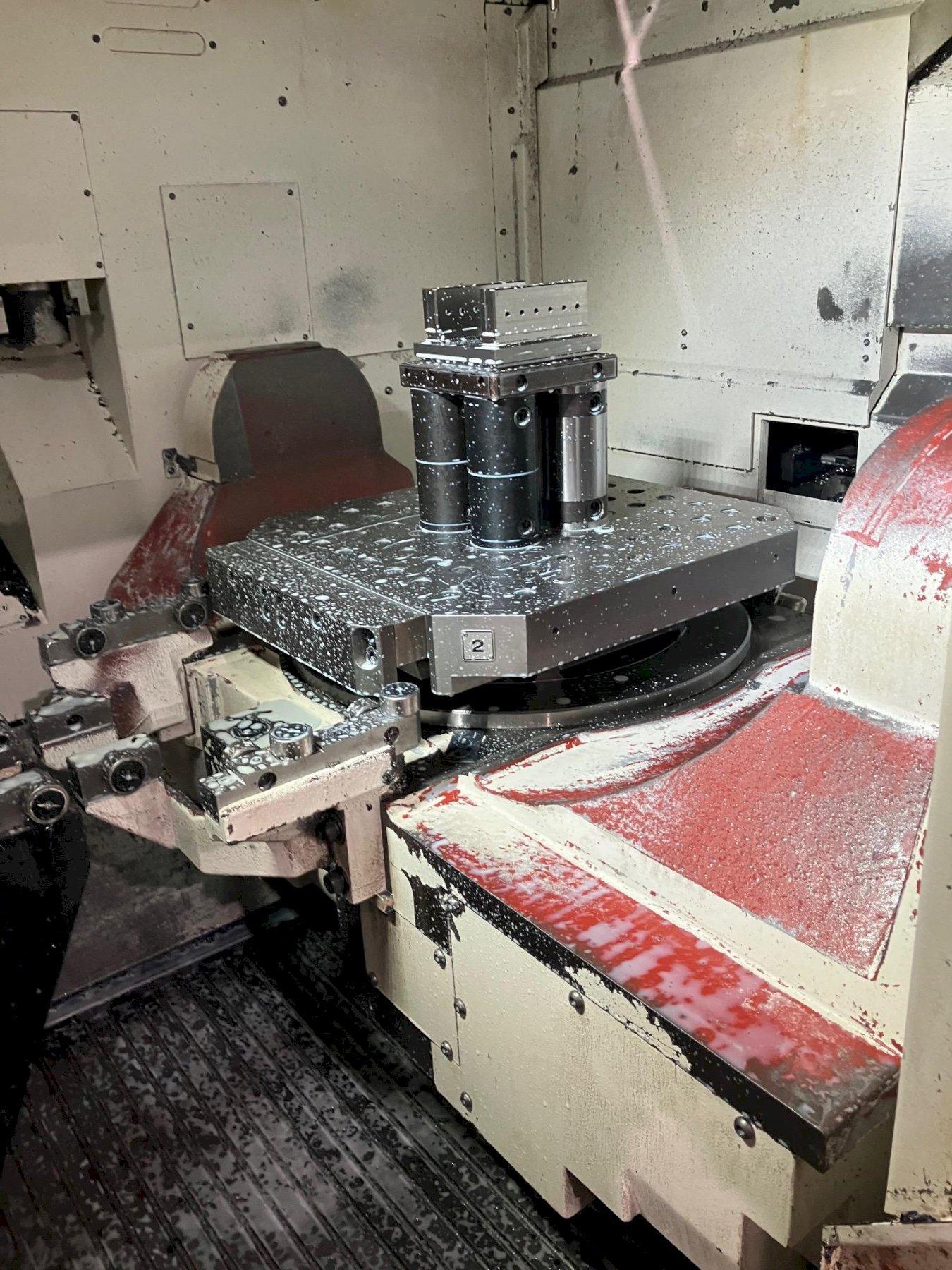

2 PALLET CHANGER - 500mm PALLETS
120 TOOL DOUBLE MAGAZINES
RENISHAW OMP 400 STRAIN GAGE PROBE SYSTEM
RENISHAW OMP 60M/LP2 DEEP BORE PROBE SYSTEM
RENISHAW CAPPS NC ON-MACHINE INSPECTION SOFTWARE PKG (5 AXIS)
RENISHAW CAPPS NC OFFLINE PROG PKG (5 AXIS)
RENISHAW ARTIFACT SOFTWARE FOR MACHINE
SCALE FEEDBACK SYSTEM FOR X, Y, Z AXIS
SCALE FEEDBACK SYSTEM FRO A, C AXIS

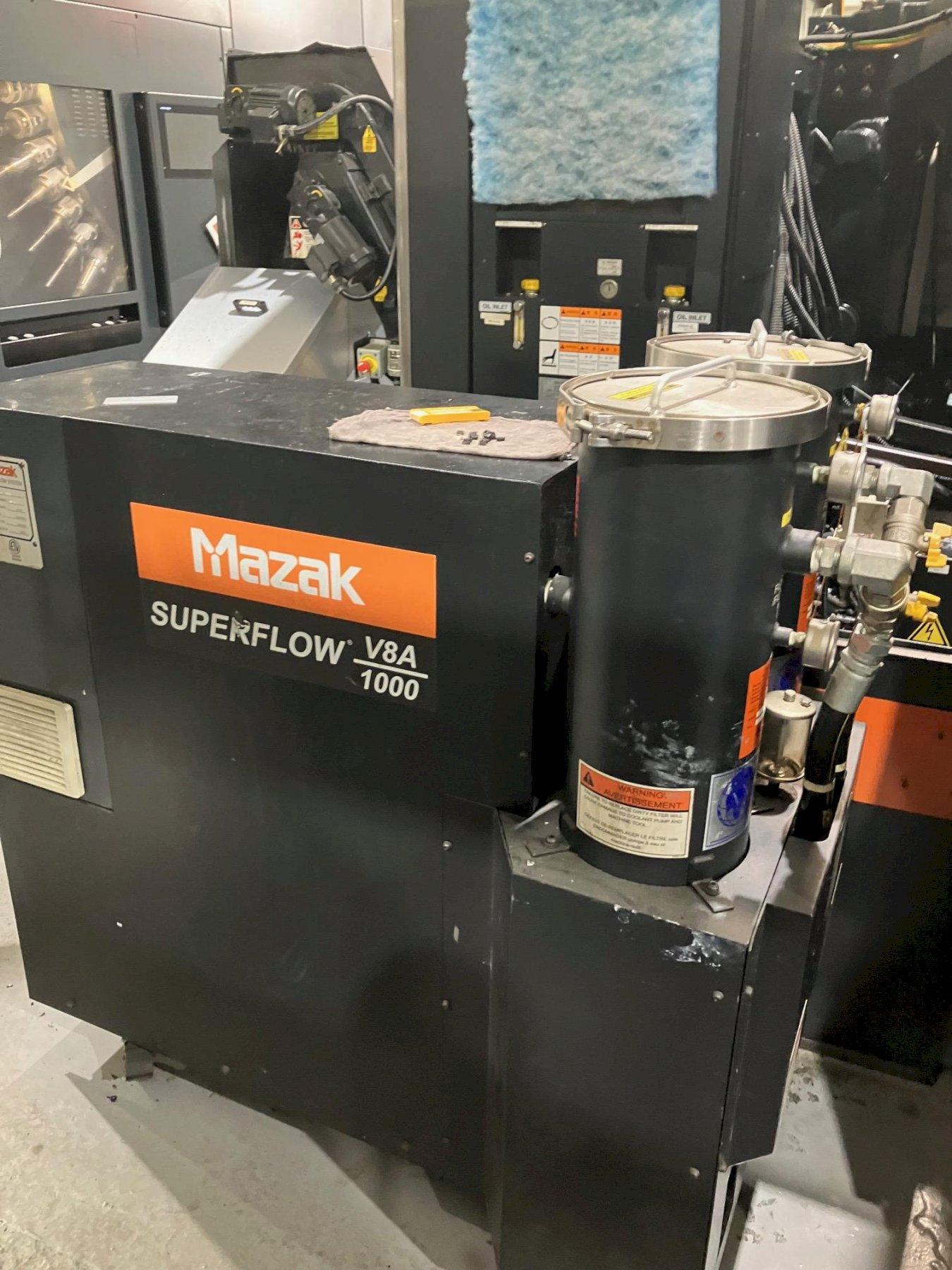

HI-PRESSURE COOLANT THRU SPINDLE - 213/1000 PSI
COOLANT TEMP CONTROL SYSTEM (WATER SOLUBLE)
WORKPIECE CLEANING COOLANT
MANUAL PULSE GENERATOR - PALM SIZE
WORK SETTING ERROR COMPENSATION

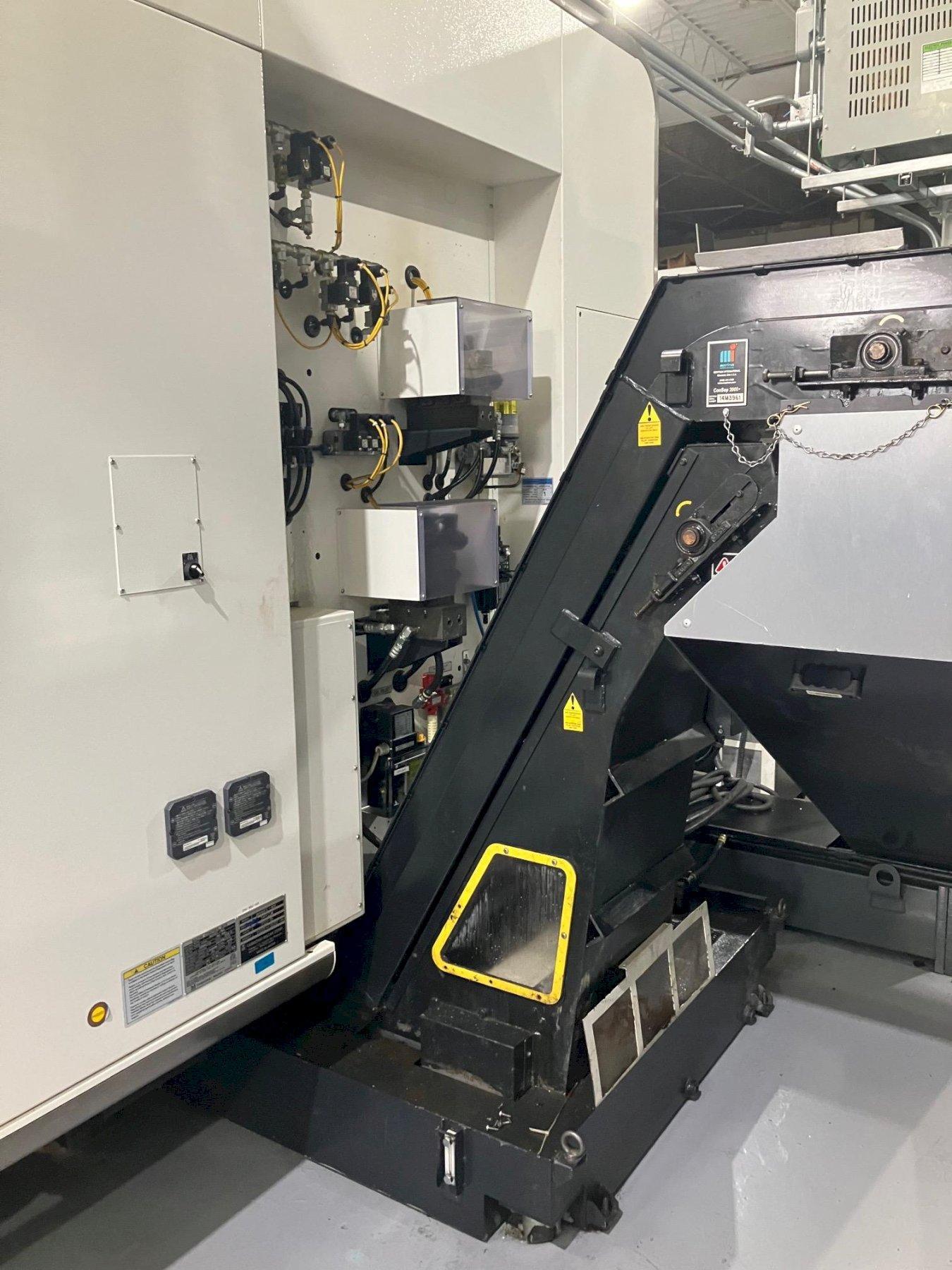

MAYFRAN CHIP CONVEYOR
