Equipped With
X-AXIS TRAVEL.................................... 23.6"
Y-AXIS TRAVEL.................................... 15.7"
Z-AXIS TRAVEL................................... 16.7"
MAX WORKPIECE DIMENSIONS............. 31.3" x 27.3" x 8.5"
MAX SUBMERGED WORKPIECE WEIGHT.. 1,100 LBS
MACHINING RANGE............................. 15.6" x 11.7" x 8.7"
MAX. WORKPIECE AT HEIGHT .............. 8.7"
TABLE DIMENSIONS (W x D)................. 29.1" x 17.2"
TABLE TRAVELS (U & V AXIS)............... +/-3.0" x +/- 3.0"
MAX TAPER ANGLE @ THICKNESS......... 15 DEGREES @ 8"
WIRE DIAMETER RANGE BT AT............. 0.004" to 0.012"
U/V TRAVEL....................................... +-2.4" +- 2.4"
FILTER TANK CAPACITY........................ 145 GAL
MACHINE DIMENSIONS........................ 79.7" x 106.3" x 79.3"
MACHINE WEIGHT............................... 5,952 LBS
EQUIPPED WITH:
REMOTE HAND PENDANT
FILTER TANKS

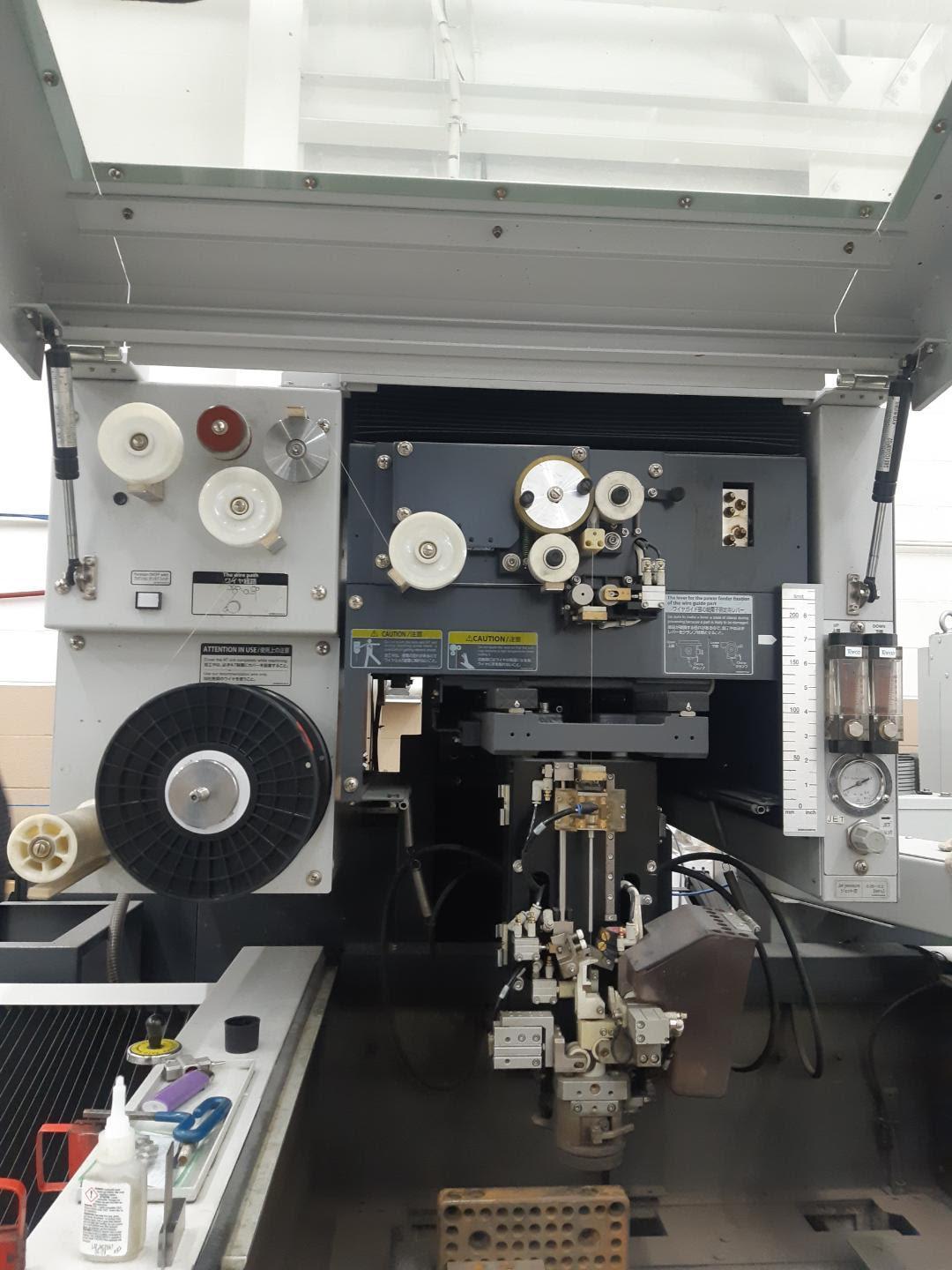

AUTO THREADING
