Equipped With
New in 2001

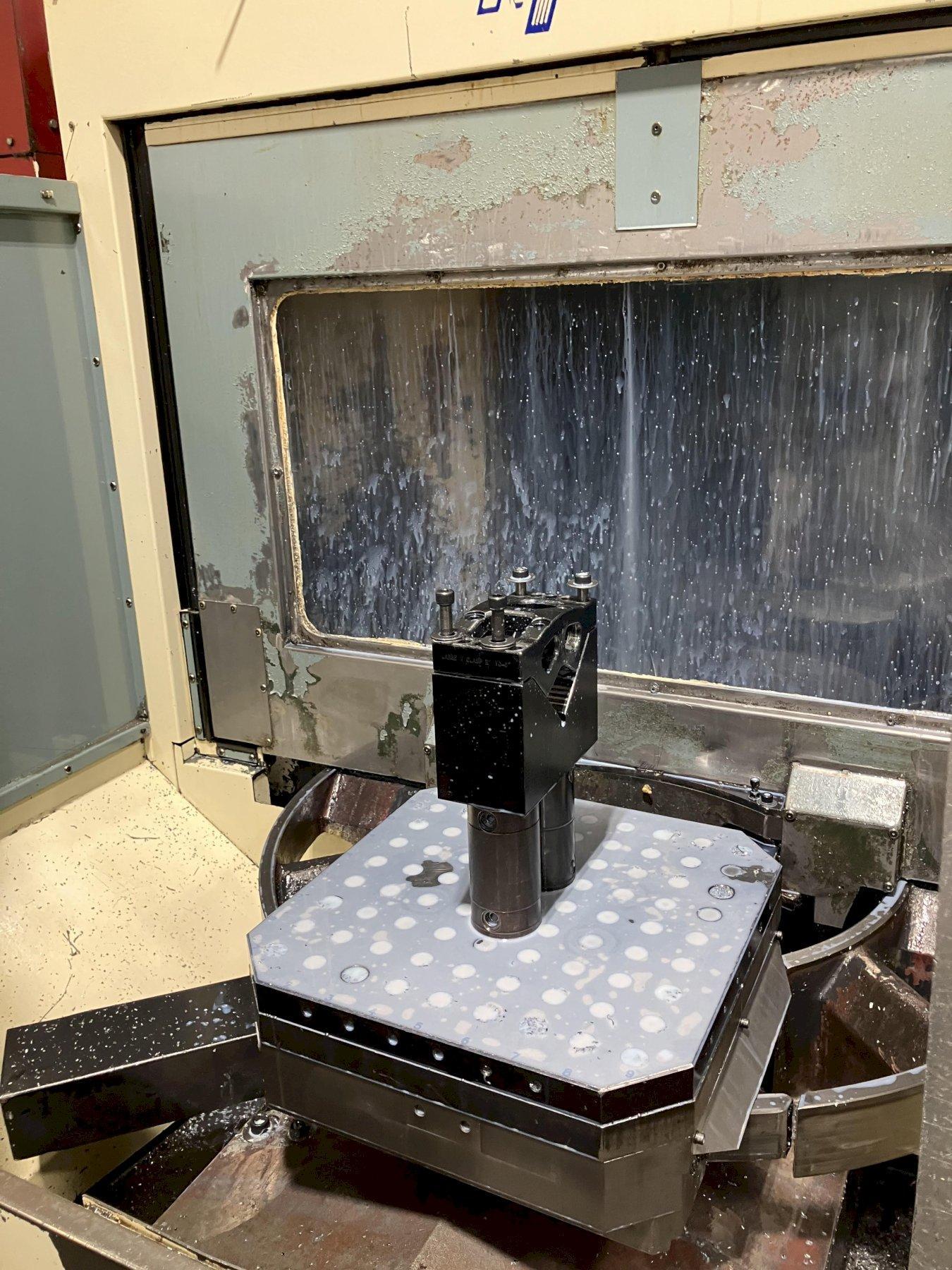

Pallet Size: 19.7 x 19.7"
Travel: X-Axis 29.5"
Y-Axis 29.5"
Z-Axis 29.5"
Pallet Index: 360,000 Degree
Spindle Speed: 35 - 12,000 RPM
Spindle Taper: Cat 50
Spindle Nose to Table Center: 5.91" - 35.4"
Spindle Center to Table Top: 1.96" - 31.46"
Tools: 60 ATC
Main Motor: 35/40 HP AC
Number of Pallets: 2
Rapid Traverse Rates: 1,575 IPM
Pallet Load Capacity: 1320 lbs.
Spindle Torque: 260 ft. lbs.
Spindle Acceleration: 1.5 Seconds
Pallet Change Time: 6 Seconds
Max Tool Weight 33: lbs.
Machine Dimensions: (L x W x H) 196" x 102" x 108"
Machine Weight: 29020 lbs.
EQUIPPED WITH:

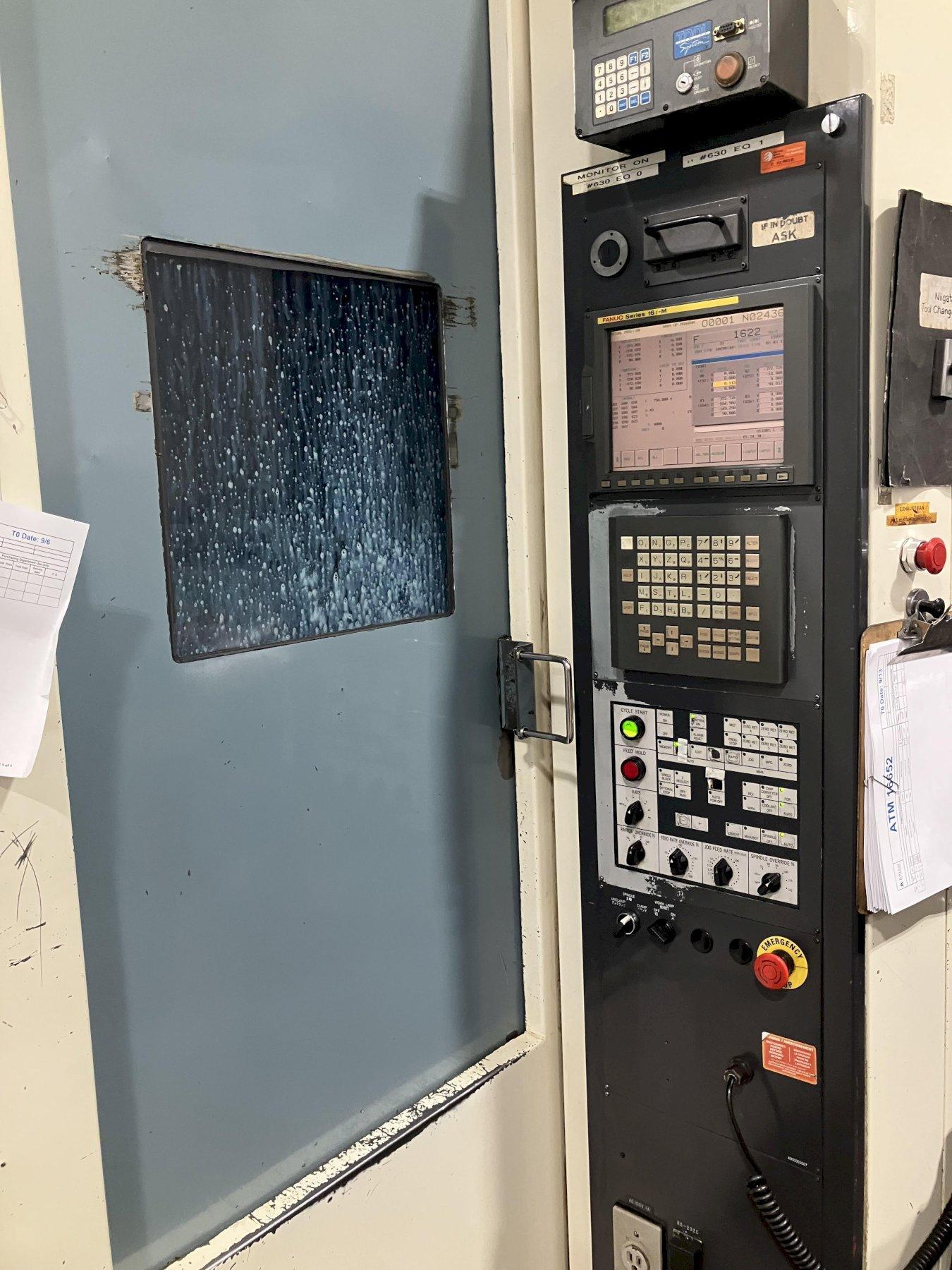

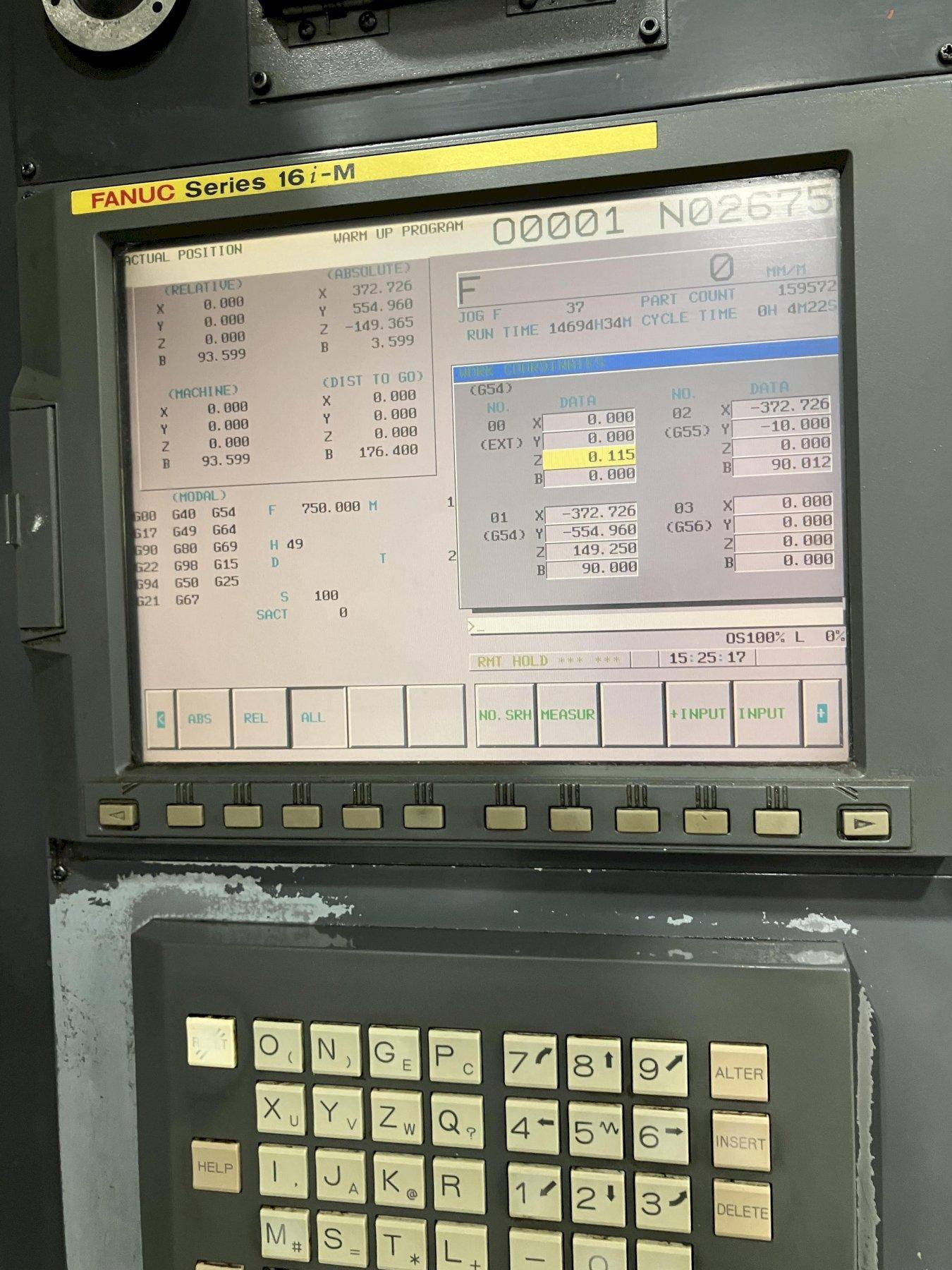

Fanuc 16im CNC CONTROL
4 Axis Machine
Graphic Display
14" LCD
Coolant Thru Spindle - High Pressure 1000 psi

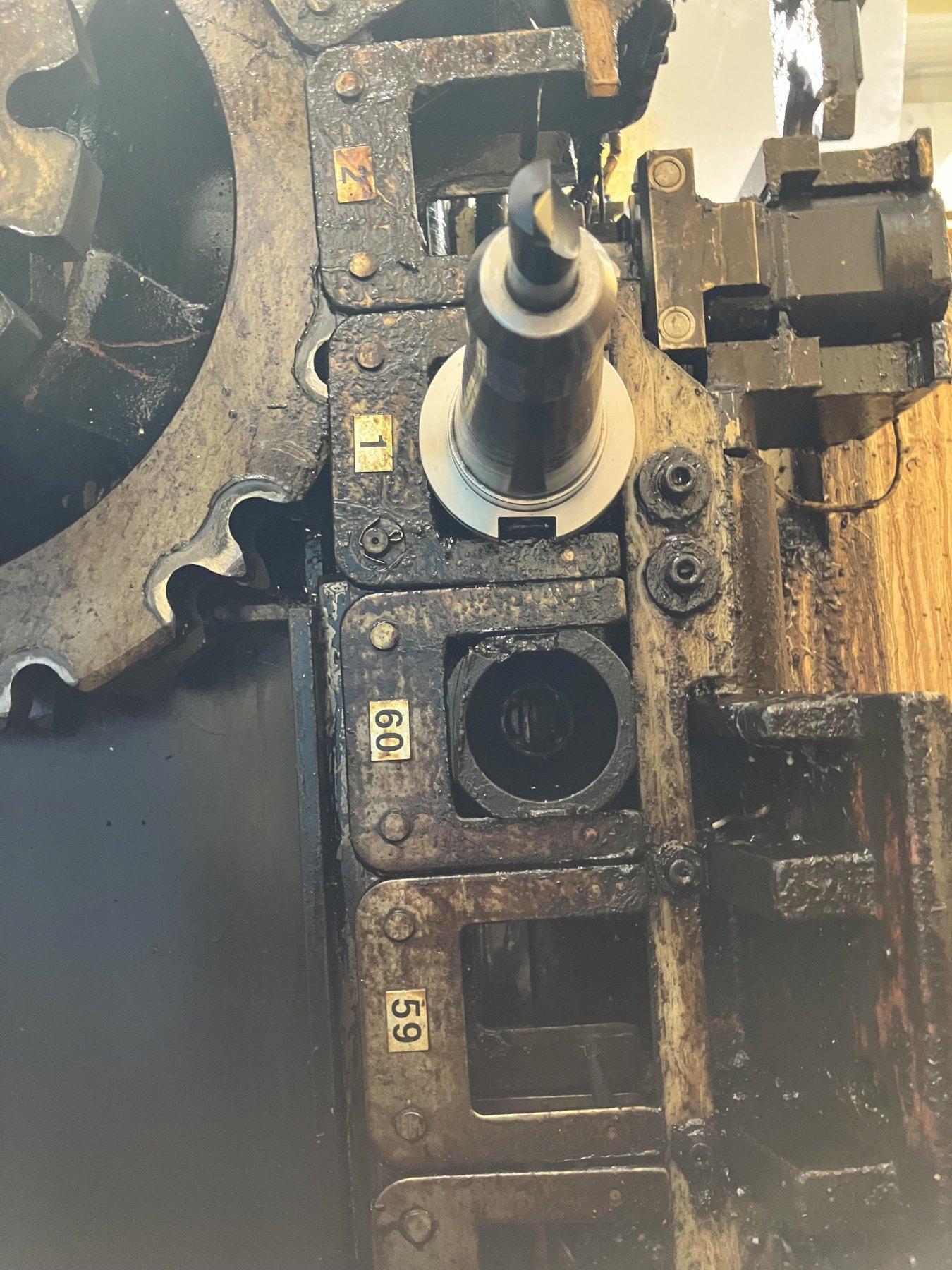

60 Tool Magazine
Rigid Tapping
Chip Conveyor
Tool Life Management
Niagara Flood Coolant
High Torque Spindle
Probing System
Tool Breakage Detection System
Machined Aluminum Transmission Cases.. Holes..Mounting Surfaces
