| X | 137 inches |
|---|---|
| Y | 106 inches |
| Z | 47 inches |
| Power | 40 horsepower |
| RPM | 20000 |
| # ATC | 40 |
| Taper | HSK 100 |
| Table-W | 79 inches |
| Table-L | 118 inches |
| CNC Control | yes |
| Type of CNC Control | Heidenhain TNC 530 |

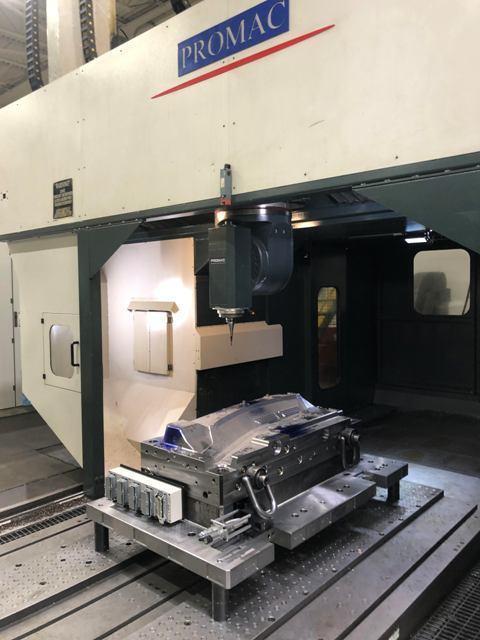

NEW 2009

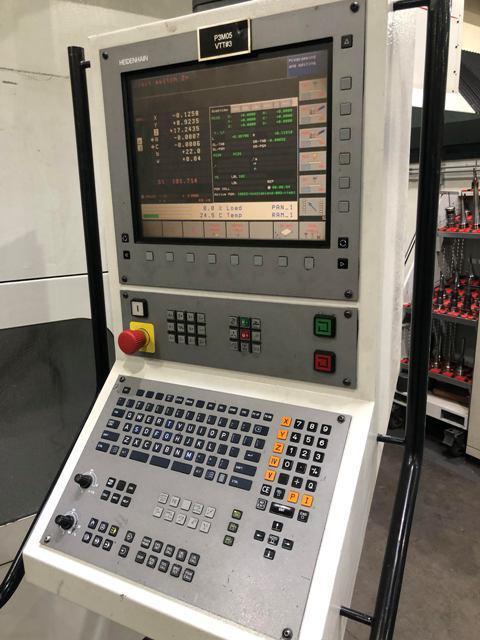

Control: Heidenhain iTNC 530
Travels:
Longitudinal ......... X: 137"
Cross Travel Ram (1).. Y: 106"
Cross Travel Ram (2).. Y: 106"
Vertical Ram ......... Z: 47"
Distance Between Columns: 110"
Spindle Nose to Table...: 47"
Table Size..............: 118" x 79"
Table Max. Load.........: 55,000 Lbs.
Spindle Motor...........: 40 HP
Spindle Speed 5 Axis Head HSK 63...: 20,000 RPM
Spindle Speed Roughing Head HSK 100: 8,000 RPM

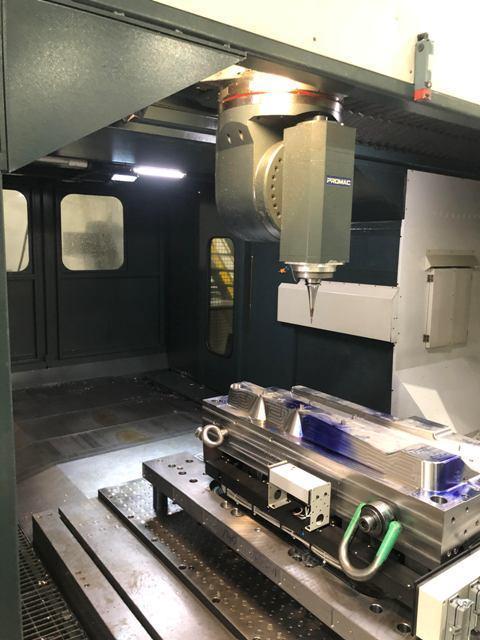

SPINDLE #1 (5) AXIS:
Spindle Speed: 20,000 RPM
Torque: 85Nm
Taper: HSK 63A
Max power: 40HP

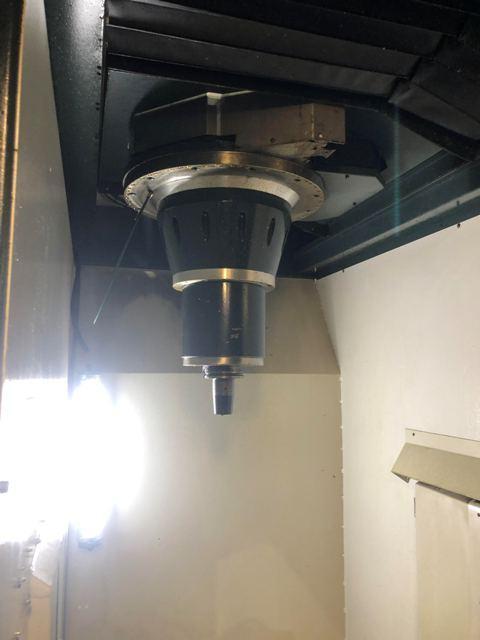

SPINDLE #2 ROUGHING HEAD:
Spindle Speed: 6000 RPM
Torque: 830 Nm
Taper: HSK 100
Max power: 73HP
No. of Tool Changers: 2
40 ATC HSK 63A
20 ATC HSK 100

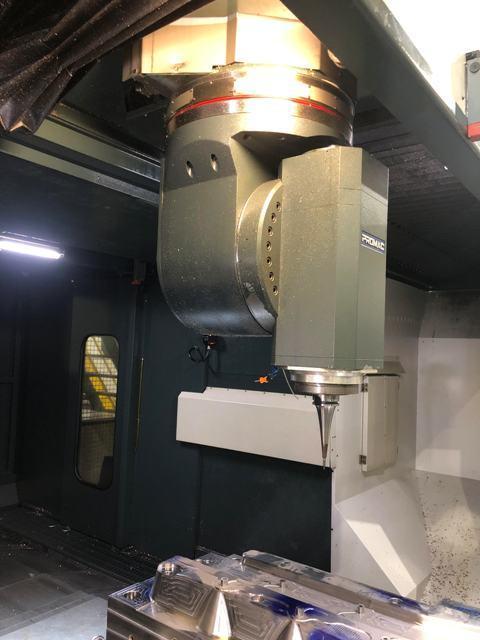

Spindle Head #1 (5) Axis : A axis +/- 110 deg.
C axis +/- 360 deg.
Equipped With:
(2) Full Length Chip Conveyors
Probe Reader with Software
T-Slotted Table
Sliding Door Enclosure
Remote Jog Handle All Axes
Chiller Units
400 Volt 60 Hz Electrics
