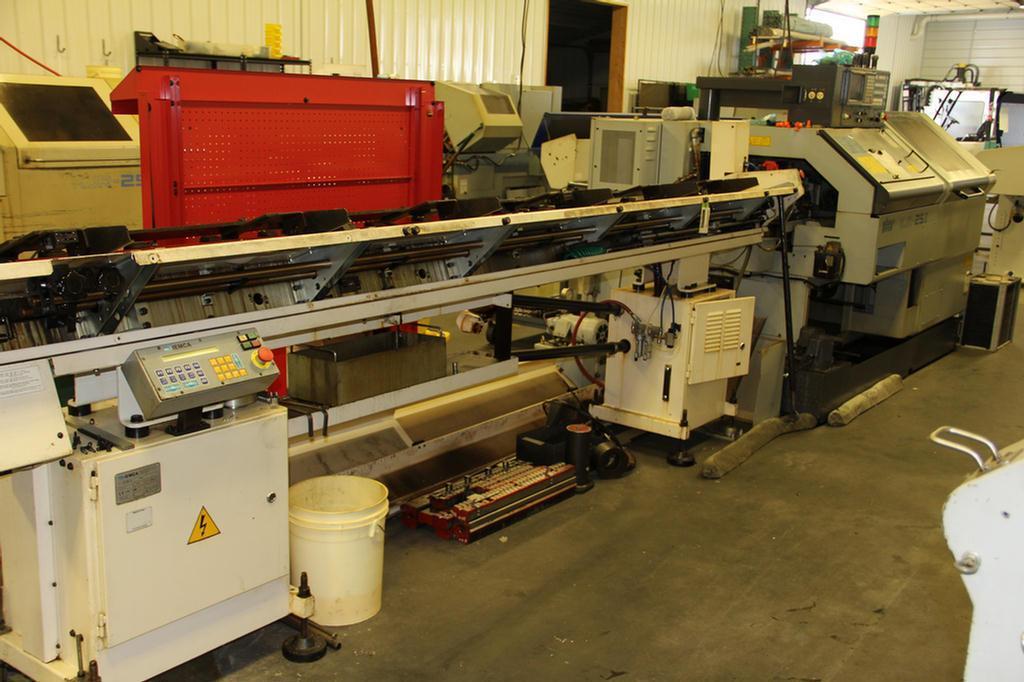

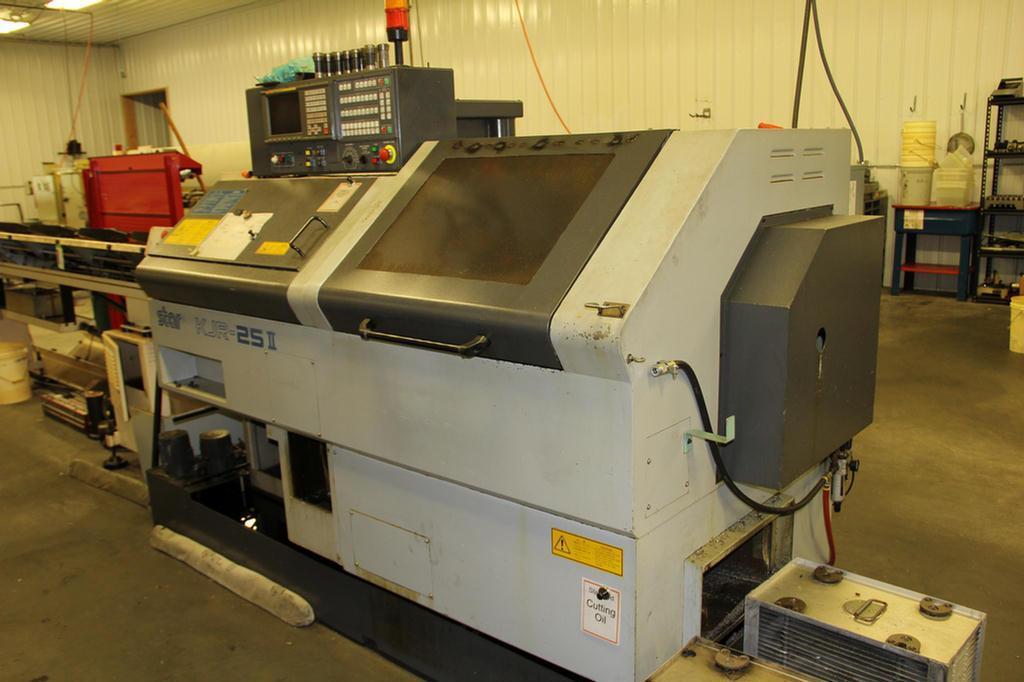

S/N NEW-2001
SPECIFICATIONS: STOCK #
Turning Diameter: 1" (25mm)
Headstock Stroke (rev.gb): 10.2"
Drilling Capacity:
Stationary Tool: 14mm/MT1
X Power Driven Attachment: 8mm/ER16
Y Power Driven Attachment: 8mm/ER16
Tapping Capacity:
Stationary Tool: M12 x P1.75
X Power Driven Tool: M6 x P1.0
Y Power Driven Tool: M6 x P1.0
Die Cutting Capacity: M10 x P1.5
Milling Capacity: 10mm
Slotting Capacity: 2mm width x 6mm depth
Headstock Specifications:
Headstock Spindle Speed: 7000 rpm
Speed Control: Direct 4 Digit S Command
Main Spindle Min Indexing Angle: 0.01 degree
Main Spindle Motor: 7.5/5.5 kW

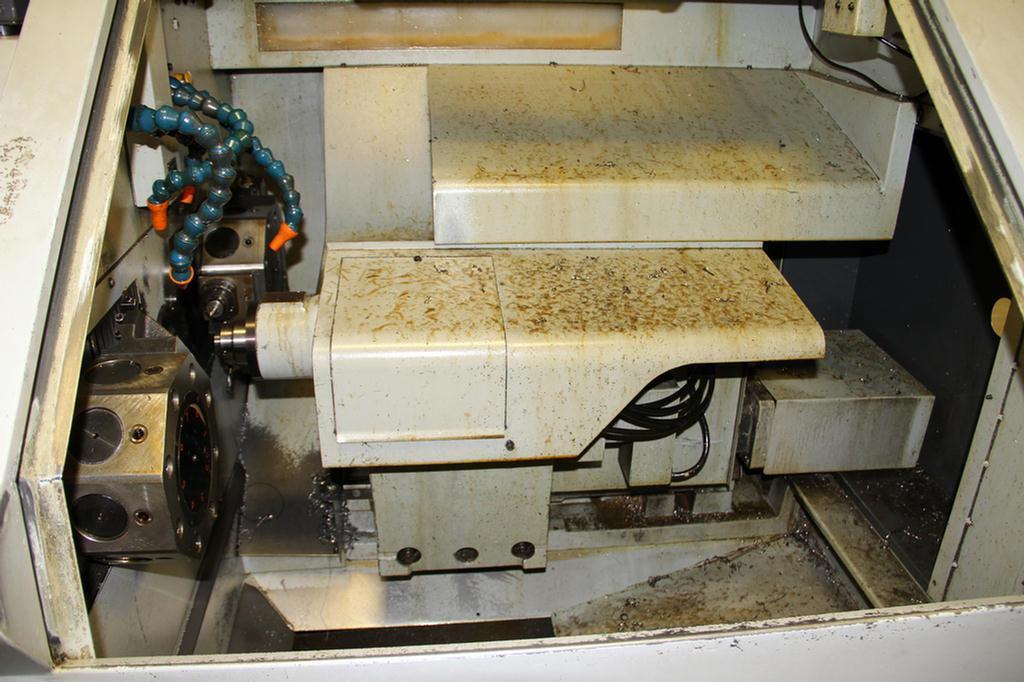

Turret Specifications:
Turret: Twin Turret,2 Horizontal Slides
Number of Tools: station x 2 (16 total)
Tool Selection: Random Indexing Shortest Path
Indexing & Positioning: Face Tooth Coupling
Turret Indexing Device: Servo Motor
X-Power Driven Attachment:
Spindle Speed: 4500 rpm
Speed Control: Direct 4-Digit S Command
Power Driven Attachment: 0.75 kW
Driven Attachment Position 8 Stations
Y-Power Driven Attachment:
Spindle Speed: 4500 rpm
Speed Control: Direct 4-Digit S Command
Power Driven Attachment: 0.75 kW
Driven Attachment Positions 8 Stations

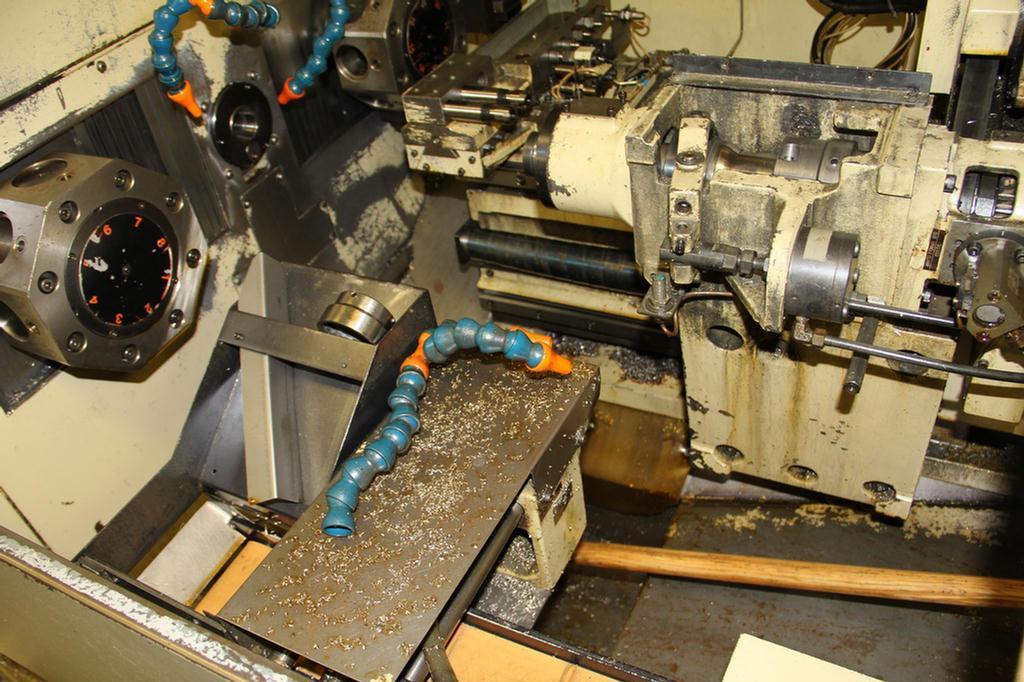

Backworking Attachment (Type B)
Pickoff Capacity:
Chucking Diameter: 1" (25mm)
Stroke: 14.1"
Pickoff Workpiece Length: 6.1"
Workpiece Ejection Length: 2.4"
Machining Capacity:
Drilling Capacity: 10mm
Tapping Capacity: M10 x P1.5
Sub-Spindle Specifications:
Spindle Speed: 4500 rpm
Speed Control: Direct 4-Digit S Command
Sub-Spindle Motor: 2.2 kW

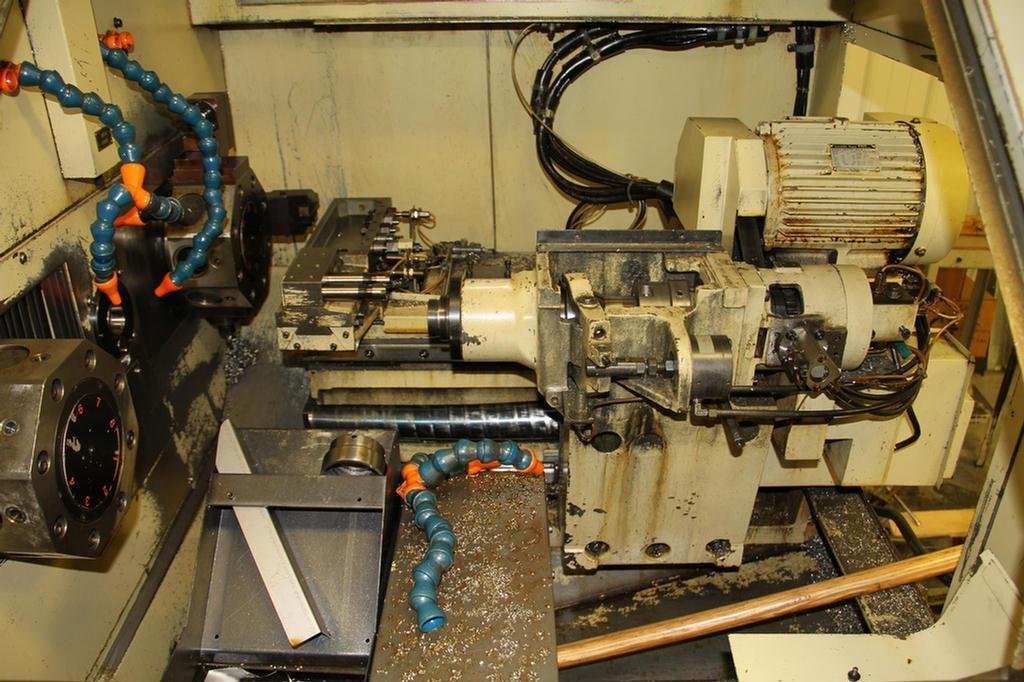

3 Spindle Unit for Backworking Attachment:
Number of Tools: 3
Collet Chuck: ER 16
Applicable Drill Sleeve: Part No.(736-21)
Applicable Tap Sleeve: Part No.(221-30)
Approximate Machine Weight: 6,100 lbs
Equipped With:

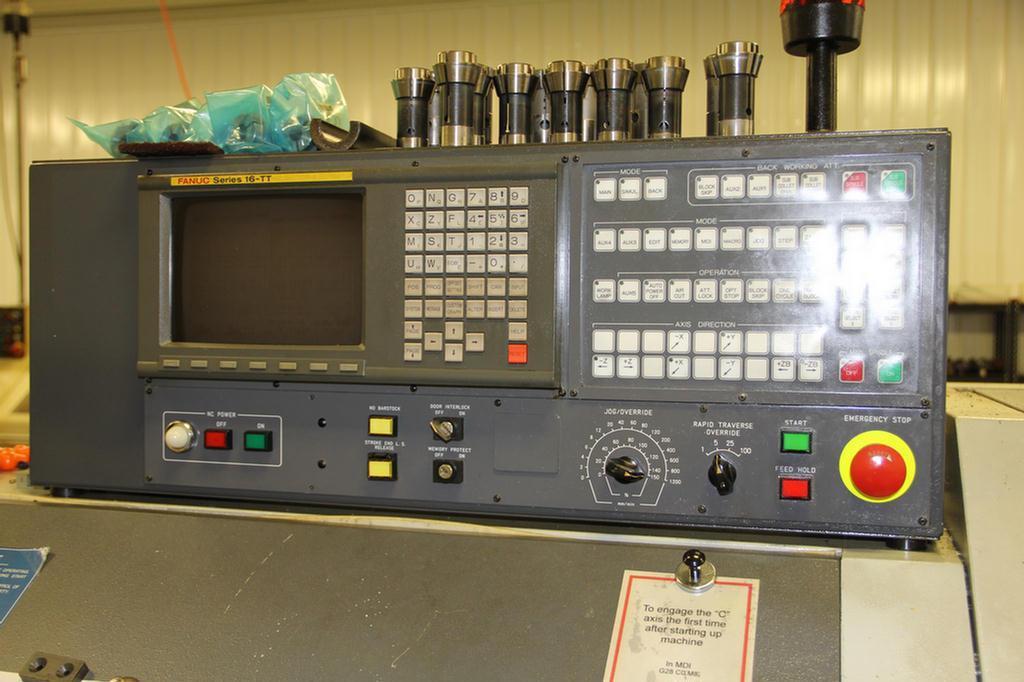

Fanuc 16TT CNC Control
Tool Presetter
Revolving Guide Bushing
C-Axis
ELECTRICS-220/440 Volt
