| Max Dia. Hole Drilled | 2 inches |
|---|---|
| Max Drilling Depth | 84 inches |
| # Spindles | 1 |
| CNC Control | yes |
| Type of CNC Control | LEMOINE |

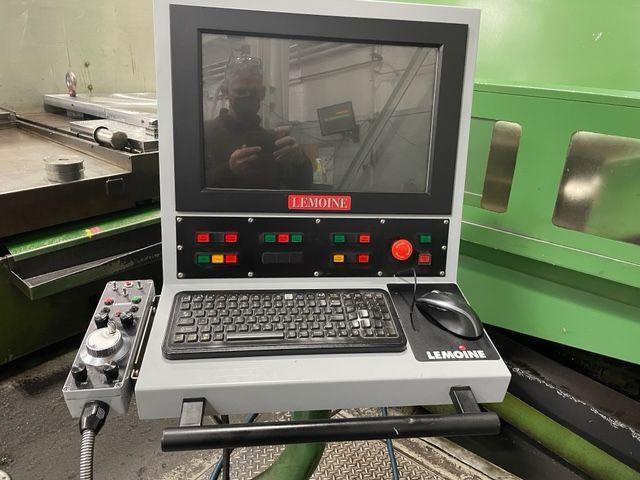

CONTROL: LEMOINE RETROFIT in 2015
15 HP Main Spindle / 3500 RPM
X Axis : 106" Table Left/Right
Y Axis : 60" Vertical
Z Axis : 84" (Drill Stroke)
Drill Capacity: .250 - 2.00 inch
60" x 108" Table Size
50,000 Lbs. Table Weight Capacity
Hydraulic Tapping Auxiliary Spindle #50 Taper
Coolant Tank
Chip Conveyor
Equipped With:
Lemoine retrofit , was installed early 2015
Table size 60” X 108”

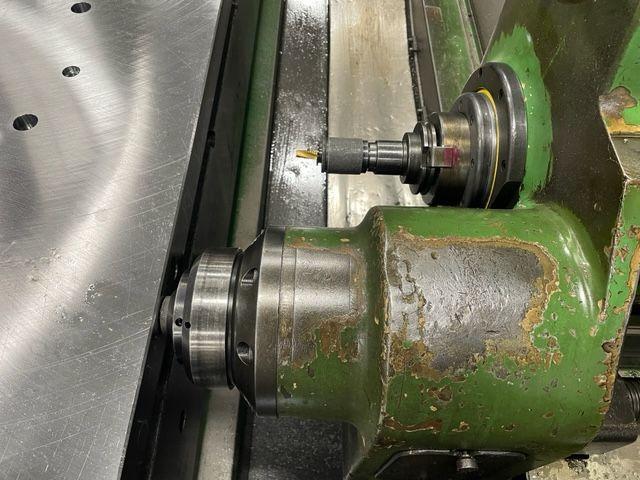

Milling head CAT 50 taper
Drilling capacity is 2” x 84“
Whip guides
Cat 50 tool holders for milling head
