Equipped With
Control.................................: Mitsubishi 70 Series (Retrofit)
Spindle Diameter.............: 5.12"
Table Size.............................: 60" x 168"
X Travel..................................: 157"
Y Travel..................................: 87"
Z Travel Column In/Out..: 60"
W Axis Spindle Travel......: 27"
Spindle Speeds..................: 2,500 RPM
Spindle Taper......................: # 50
Max. Table Load.................: 33,000 Lbs.
Machine Weight.................: 65,000 Lbs.
Equipped With:

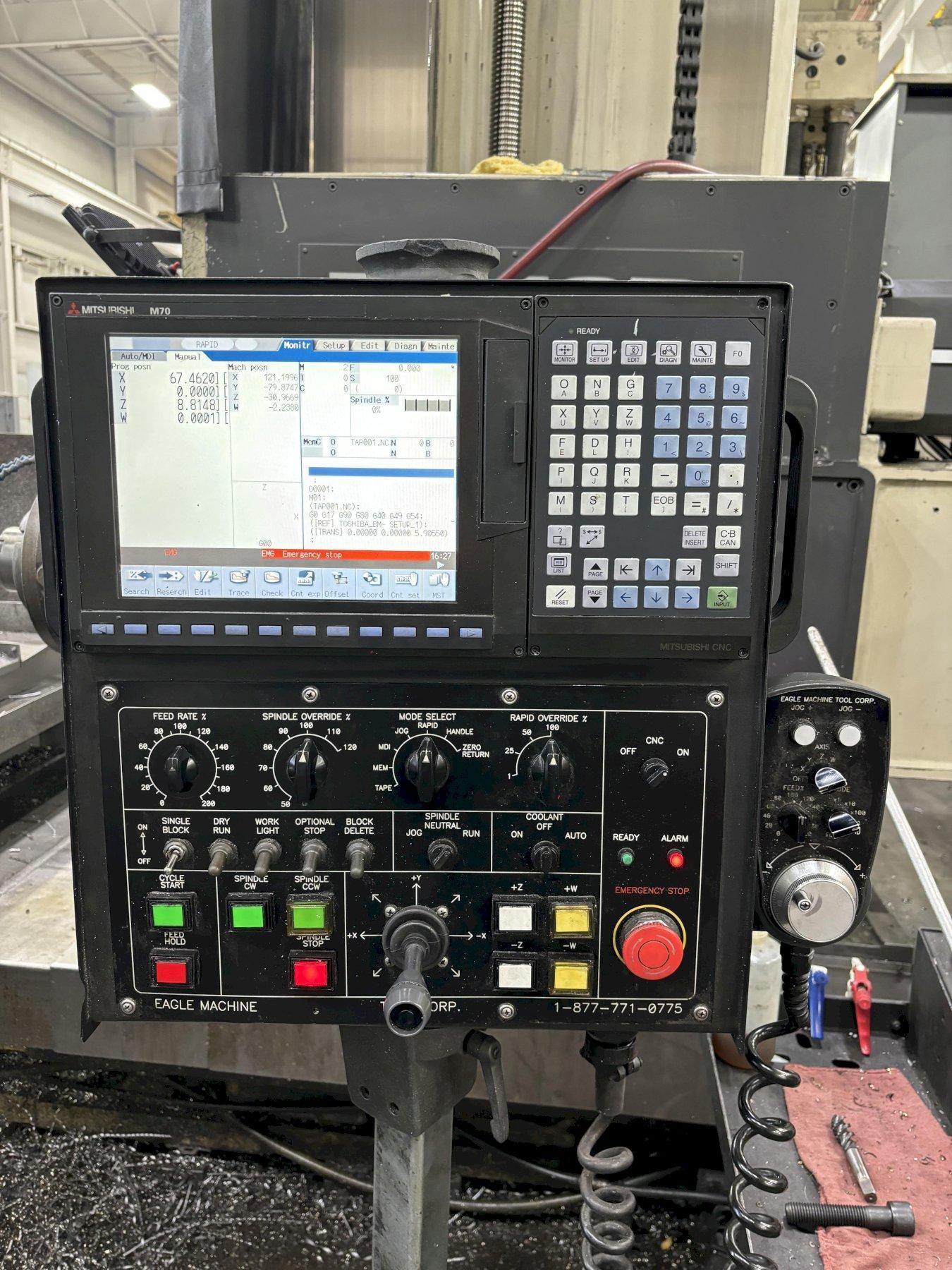

Mitsubishi 70 Series Control
All new Mitsubishi Spindle Motor & Drives
Glass Scales X & Y
20gig Hard Drive
High Speed Machining
Telescoping Stainless Steel Way Covers
Toshiba Hardened and Ground Large Flat Ways
Coolant
