SPECIFICATIONS:

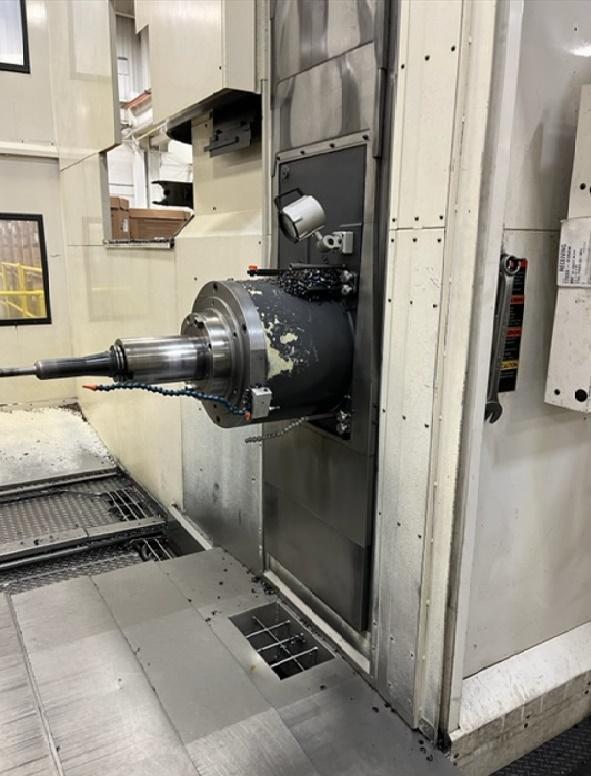

SPINDLE DIAMETER 5.12"

TAPER IN SPINDLE #50

VERTICAL HEAD TRAVEL, Y-AXIS 90.55"

TABLE CROSS TRAVEL, X-AXIS 118.11"

SPINDLE TRAVEL, Z-AXIS 55.99"

SADDLE TRAVEL, W-AXIS 27.55"

TABLE SIZE, BUILT-IN ROTARY 86.61" X 70.86"

TABLE INDEXING 0.0001 DEGREE

FEED RATES TO 157 IPM

RAPID TRAVERSE: X,Y, & Z AXES TO 393 IPM

RAPID TRAVERSE: W-AXIS 236 IPM

RAPID TRAVERSE: B-AXIS 500 DEGREES/MINUTE

TABLE LOAD CAPACITY 44,400 LBS.

SPINDLE SPEEDS 5-2500 RPM

EQUIPPED WITH:

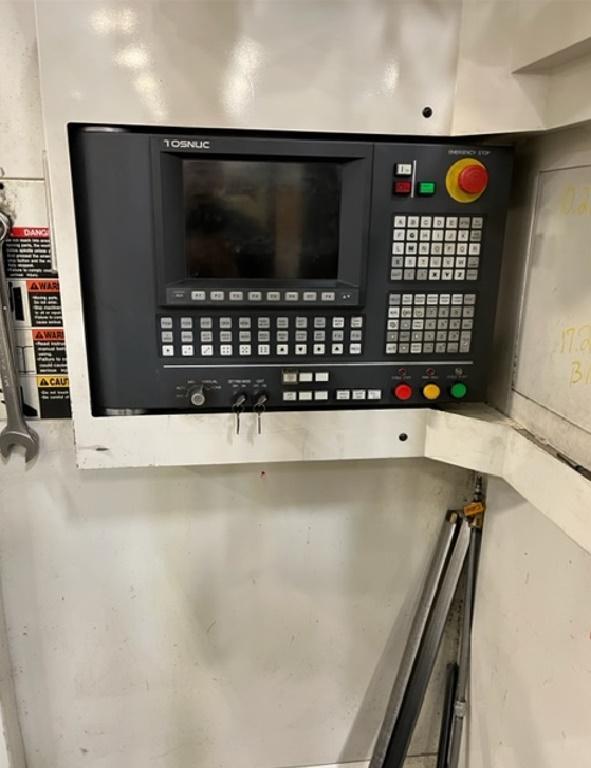

TOSNUC 999 CNC CONTROLS

FULL B-AXIS ROTARY TABLE

38 POSITION AUTOMATIC TOOL CHANGER

THROUGH SPINDLE COOLANT

CHIP CONVEYOR

FLOOD COOLANT
ANGLE PLATES-24" X 48"

40 HP SPINDLE MOTOR
