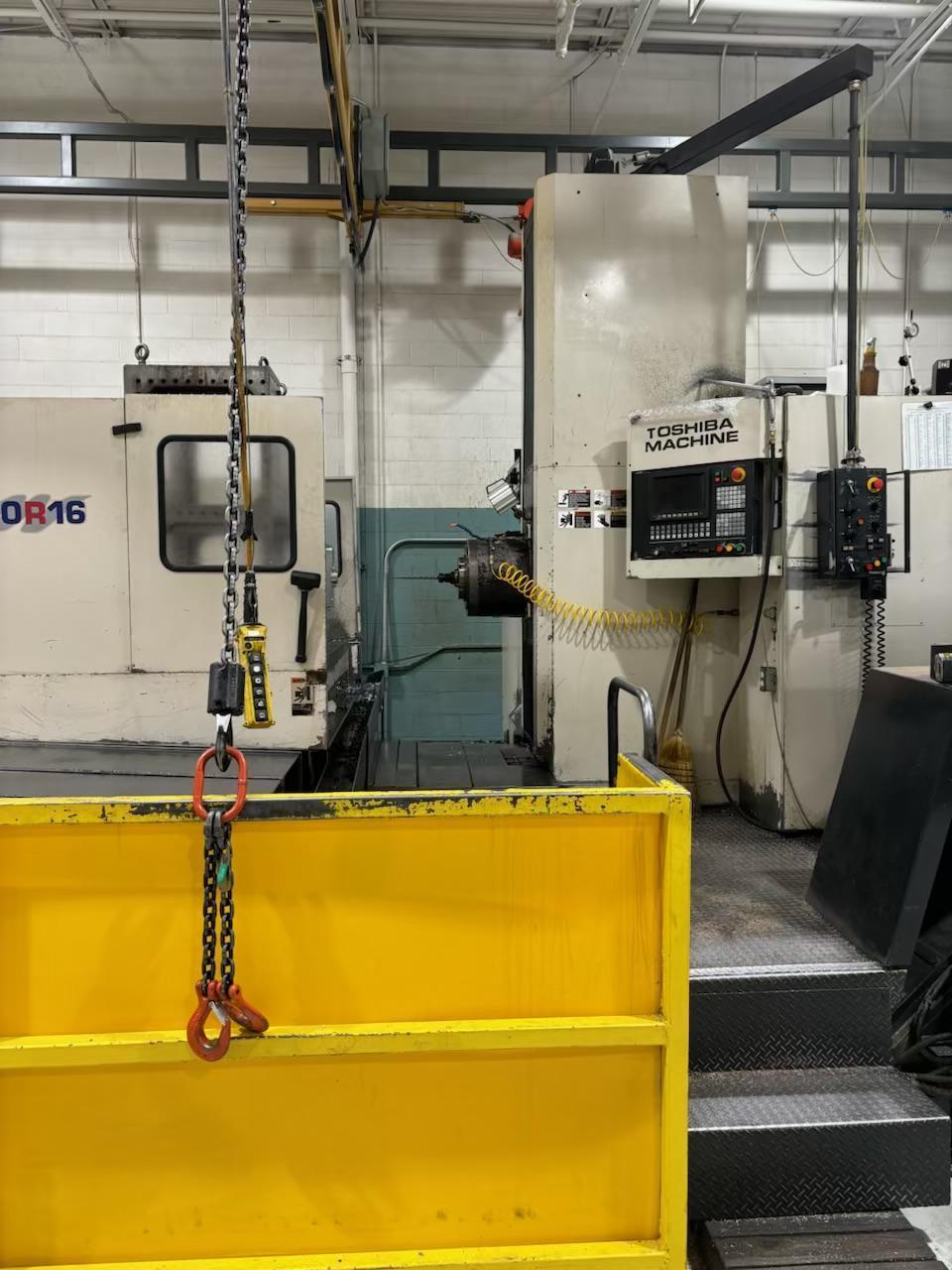

Toshiba BTD110R16 CNC Horizontal Boring Mill

Type
Boring Mills, Horizontal, Table Type, CNC

Brand
TOSHIBA MACHINE

Model
BTD110R16

Year
1998

Stock #

Condition
Very Good

Request a Quote

248-366-6400

Specifications

Equipped With

Spindle Dia. inch(mm)	4.3 (110)
X Stroke inch(mm)	78.7 (2000)
Y Stroke inch(mm)	59 (1500)
Z Stroke inch(mm)	57 (1450)
W Stroke inch(mm)	19.7 (500)
Spindle (rpm)	3000
TABLE size inch(mm) width x length	55 x 63 (1400 x 1600)
Max. load lbs (kg)	13,860 (6,300)
ATC Tool Pod	38
Control	TOSNUC 888

Equipped with:

Coolant through Spindle
Chip Auger
Data Server
CNC SHAPE programming
(Featuring CNC Shape, the Tosnuc 888 forecasts a workpiece profile based on forward data and then calculates acceleration and deceleration to maintain high accuracy and high speed. The result is a smoother surface finish. CNC Shape also automatically changes feed rates in corners and at the corner's edge to avoid machine shock.)
misc Tooling
