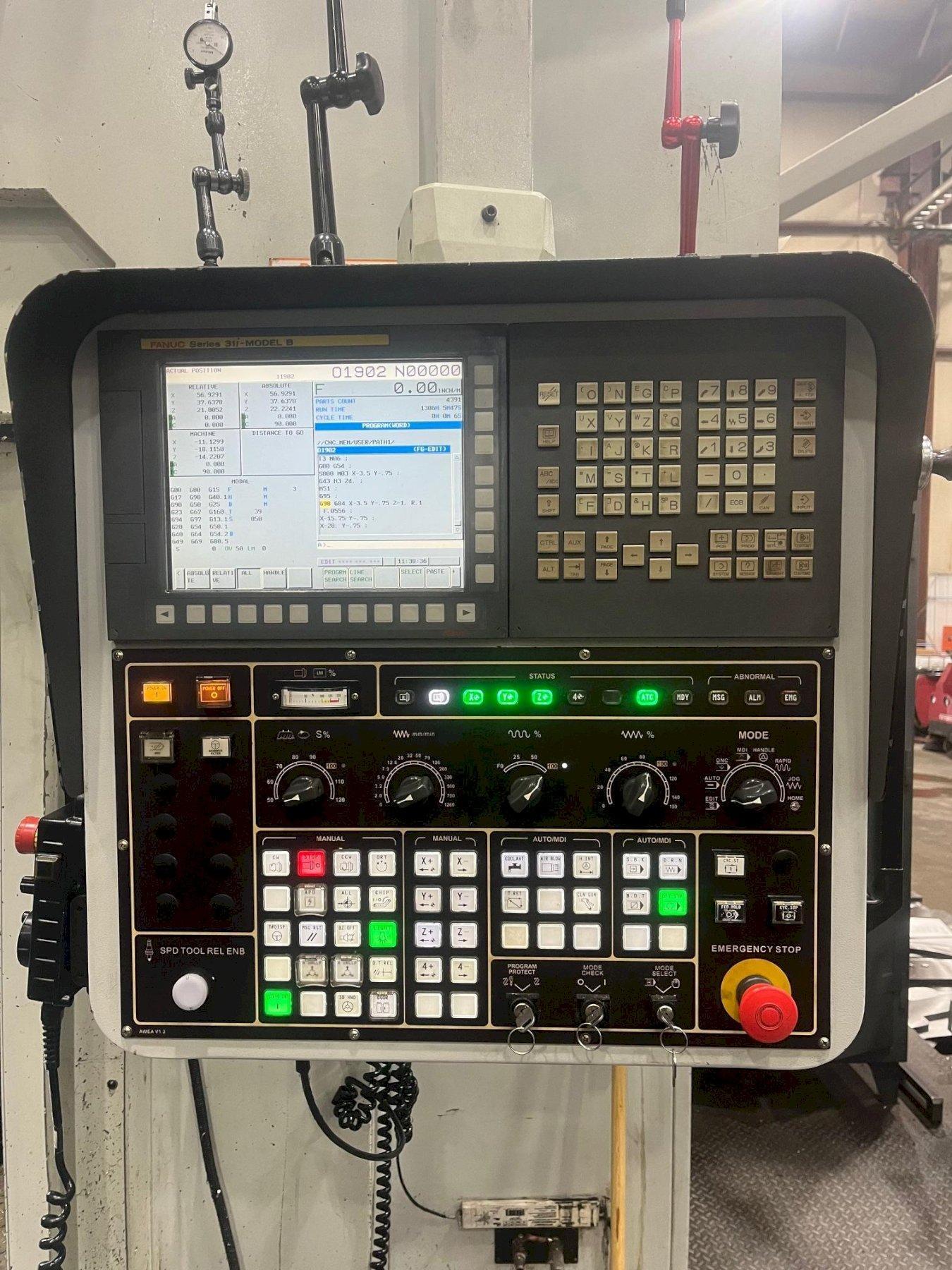

CONTROL TYPE.................................................................: FANUC 31i Model B

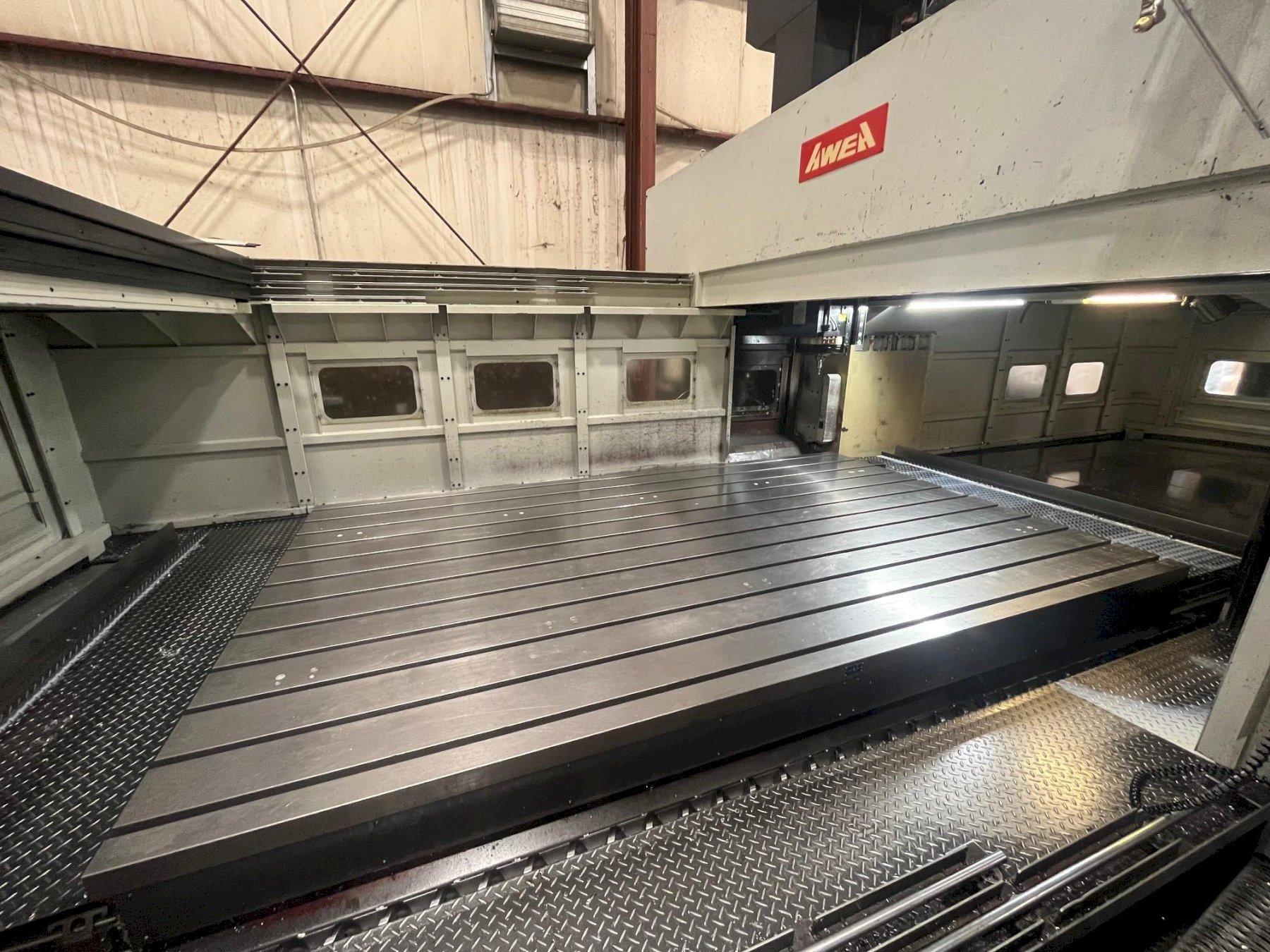

TABLE SIZE .........................................................................: 158" X 94"
TABLE LOAD CAPACITY .................................................: 33,000 Lbs.
X TRAVEL.............................................................................: 158"
Y TRAVEL.............................................................................: 125.9"
Z TRAVEL ............................................................................: 40"
SPINDLE SPEEDS..............................................................: 5000 RPM GEARED SPINDLE
SPINDLE DRIVE................................................................: 30/35 HP
SPINDLE TAPER...............................................................: CAT#50
DISTANCE BETWEEN COLUMNS .............................: 106"
DISTANCE SPINDLE NOSE TO TABLE TOP.............: 7.8"-47.2"
RAPID FEED RATE X,Y,Z ..............................................: 590 IPM
CUTTING FEED RATE.....................................................: 393 IPM

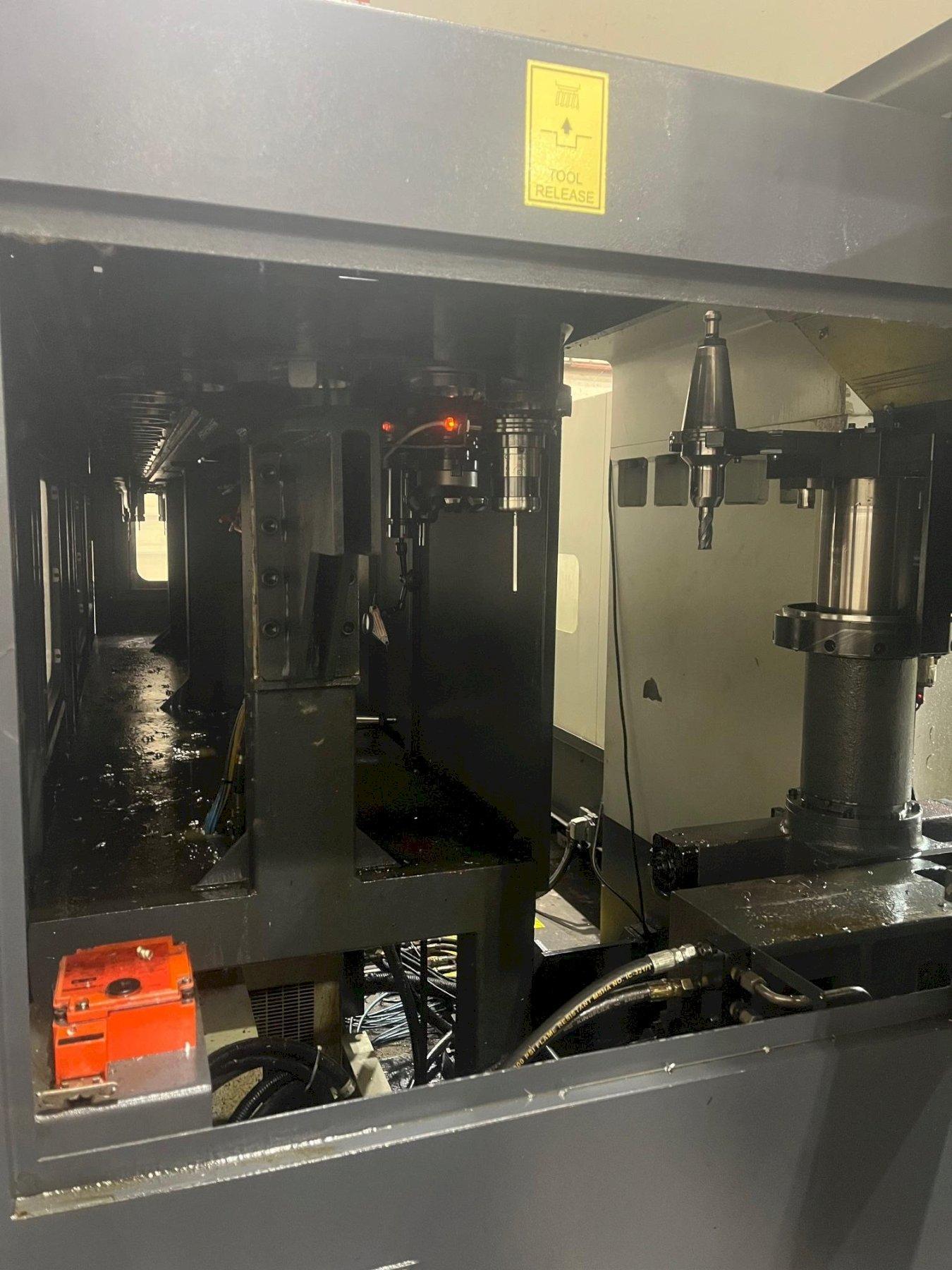

TOOL MAGAZINE...........................................................: 32 ATC
MAX. TOOL DIAMETER ...............................................: 5.0"/8.4"
MAX. TOOL LENGTH ....................................................: 13.7"
MAX. TOOL WEIGHT ....................................................: 44 Lbs.
MACHINE WEIGHT........................................................: 97,000 Lbs.
EQUIPPED WITH:
RIGHT ANGLE HEAD ATTACHMENT SEMI AUTO LOADING 2.5 DEGREE AUTO INDEX

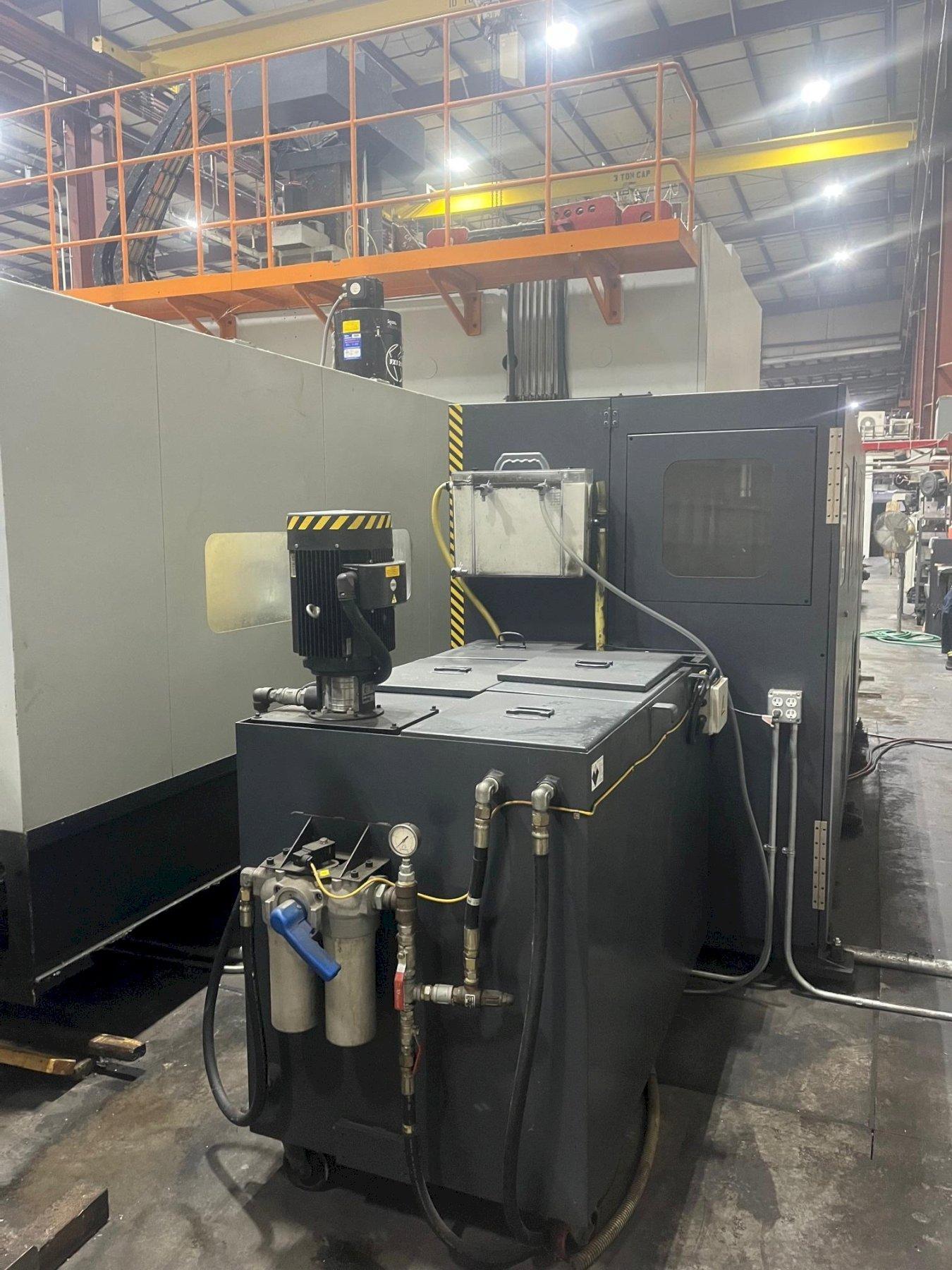

CHIP BLASTER UNIT
1000 PSI COOLANT THROUGH SPINDLE
CHIP CONVEYOR
LASER PROBE
AWEA 2 SPEED GEARBOX FOR SPINDLE DRIVE
3+1 AUTO RIGHT ANGLE HEAD ATTACHMENT
(5) FACE INDEXING HEAD AUTO ACC
