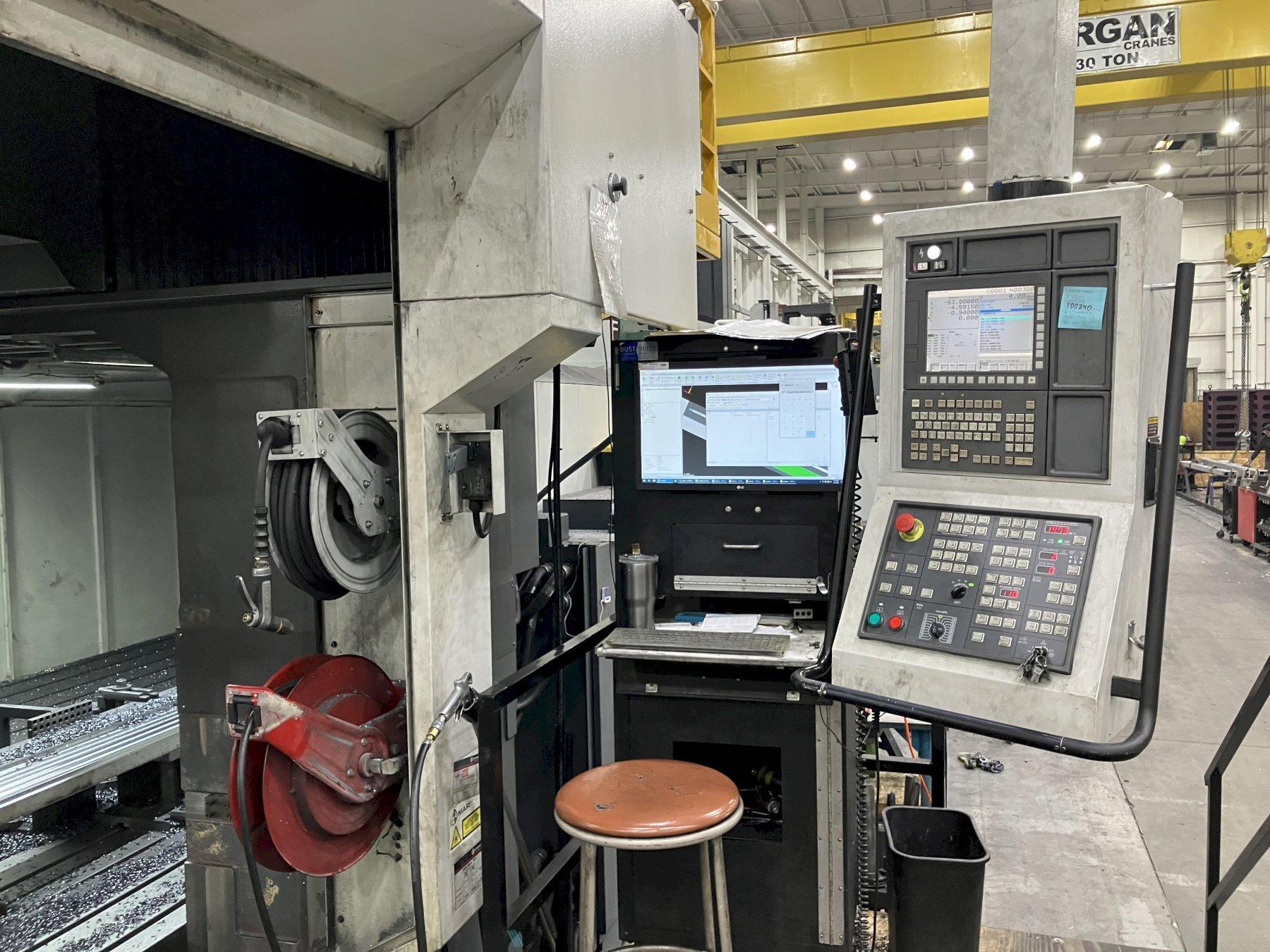

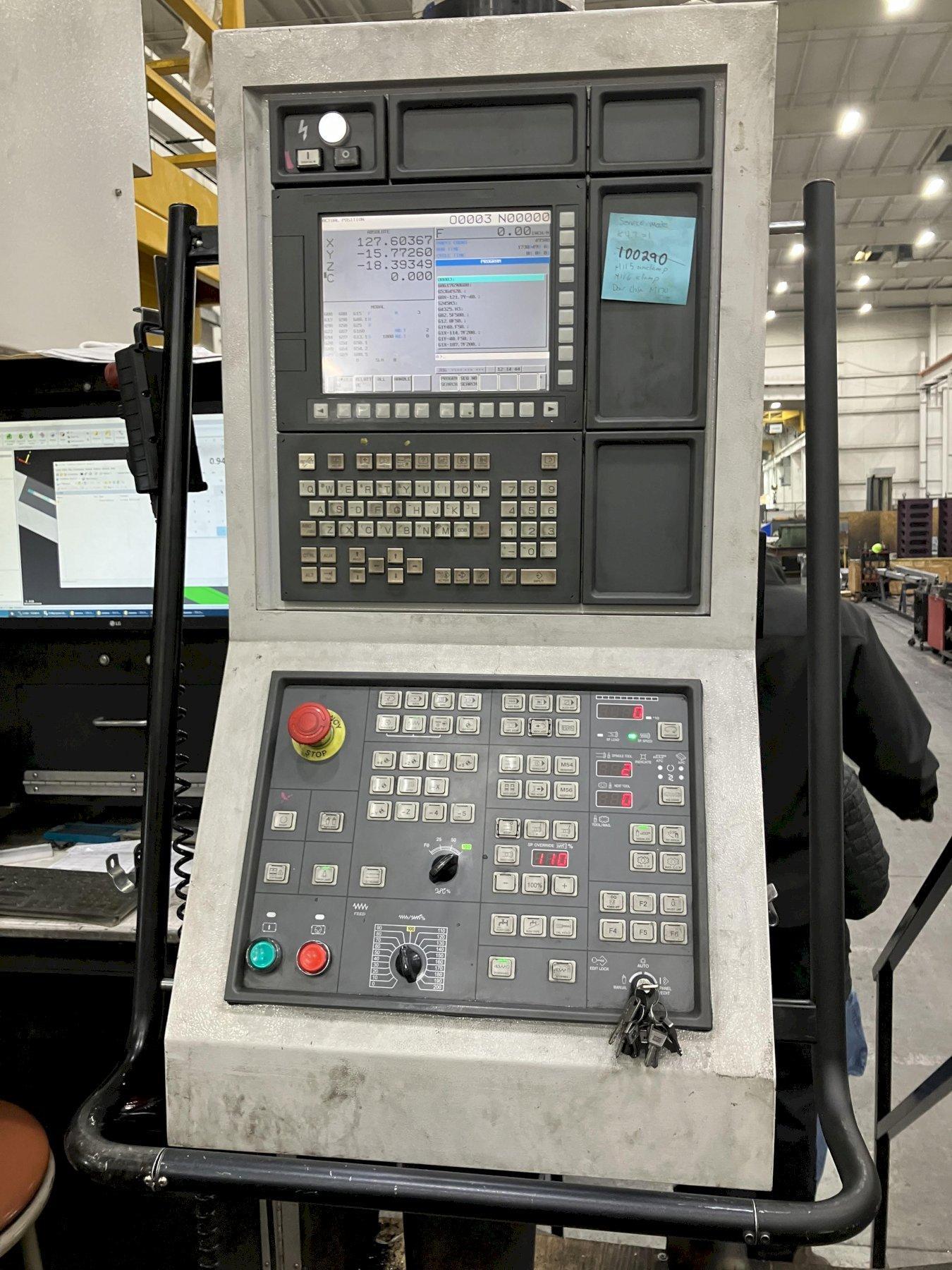

CONTROL: FANUC 200FB
X-AXIS LONGITUDINAL TABLE TRAVEL..... 220"
Y-AXIS CROSS HEAD TRAVEL......................... 120"
Z-AXIS RAM VERTICAL TRAVEL..................... 40"

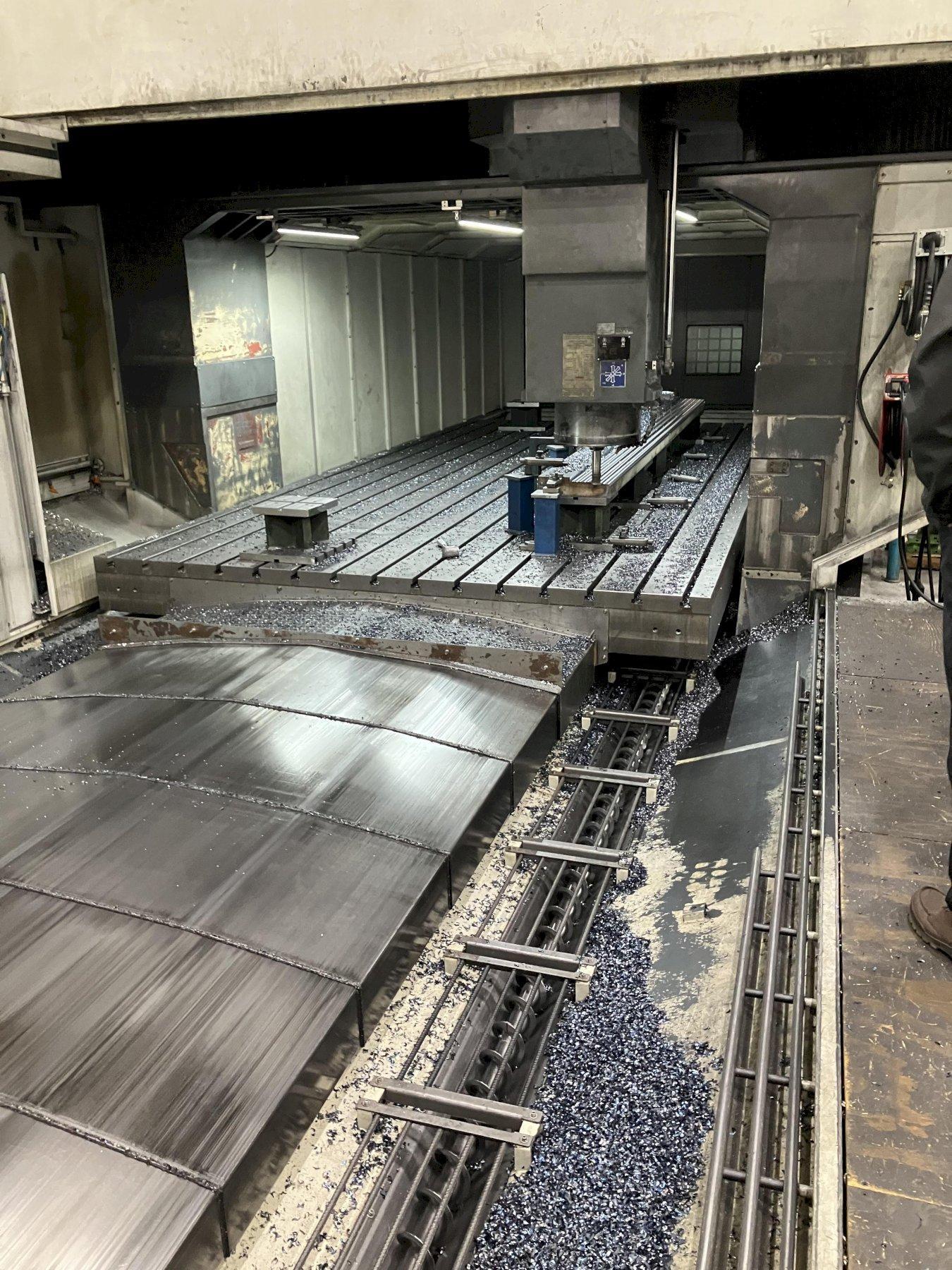

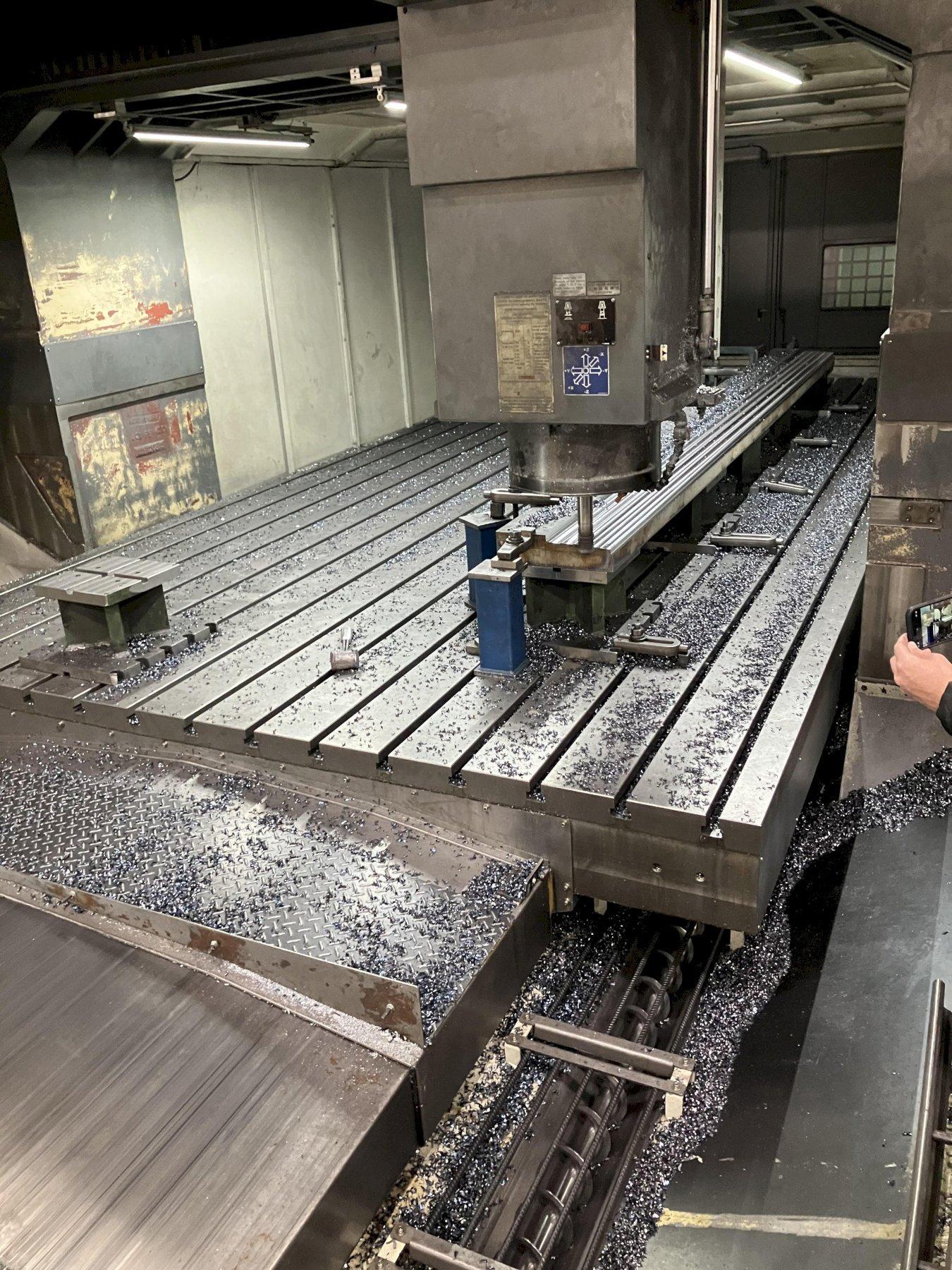

TABLE SIZE............................................................ 236.22" X 118.11"
DISTANCE BETWEEN COLUMNS................... 122"
SPINDLE NOSE TO TABLE, MAXIMUM........ 50.63"
SPINDLE NOSE TO TABLE, MINIMUM ....... 20.63"
SPINDLE SPEEDS................................................ 6000 RPM (2) SPEED GEARED
SPINDLE TAPER.................................................. CAT #50
FEED RATES ........................................................ X,Y,Z AXES .04-394 IPM
TABLE LOAD CAPACITY.................................. 55,110 LBS
MACHINE WEIGHT.......................................... 153,000 LBS
EQUIPPED WITH:
HIGH POWER HIGH TORQUE SPINDLE
TOP COVER ENCLOSURE
DATA SERVER 2GB
HIGH SPEED SKIP FUNCTION
TRANSFORMER
250 MM RAISED COLUMN
HEIDENHAIN SCALES X,Y,Z
300 PSI COOLANT THROUGH SPINDLE WITH PUMP CANNISTER FILTER
SPINDLE LOAD COMPENSATION
60 POSITION AUTOMATIC TOOL CHANGER

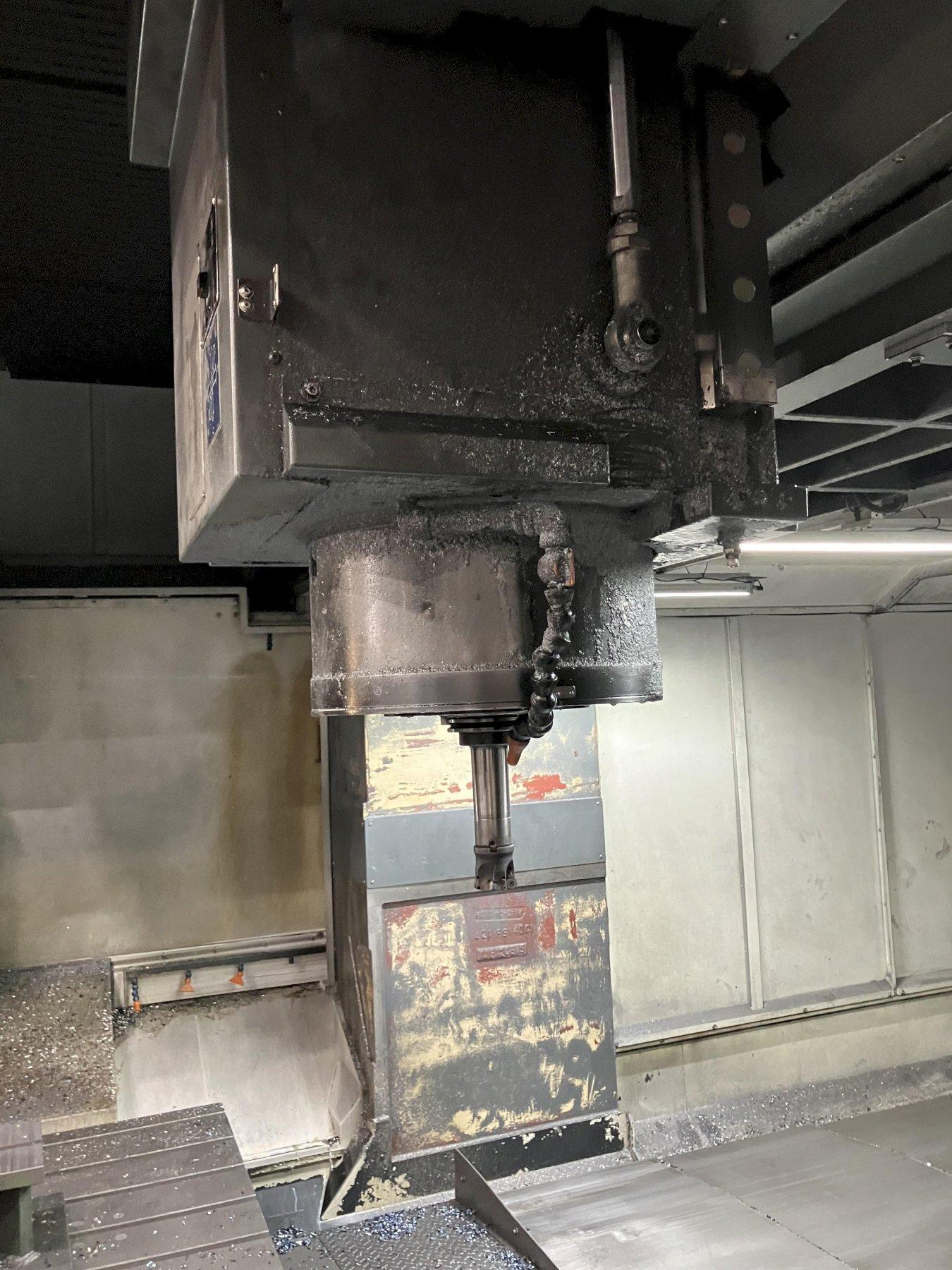

90 DEGREE HEAD (5) FACE TYPE AICC HEAD CHANGER
HEAD HAS BEEN RECENLTY REBUILT
AUTO HEAD CHANGER AICC
MARPOSS GAUGE TOOL LASER MEASUREMENT
RENISHAW TOUCH PROBE
CHIP CONVEYOR
COOLANT SYSTEM
SPINDLE CHILLER
TELESCOPING STEEL WAY COVERS

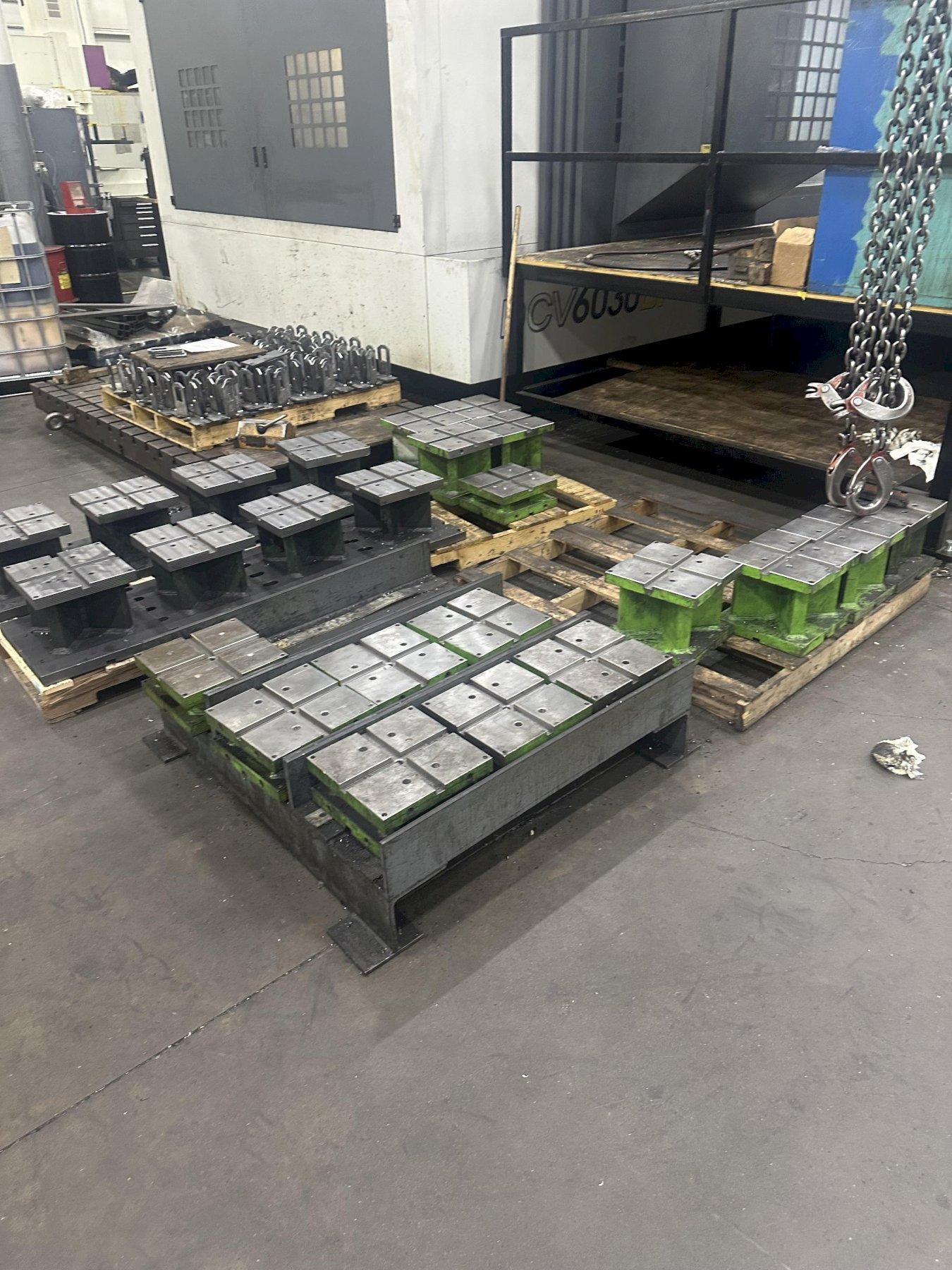

LARGE ASSORTMENT OF PRECISION GROUND TABLE RISERS
OPERATORS PLATFORM
