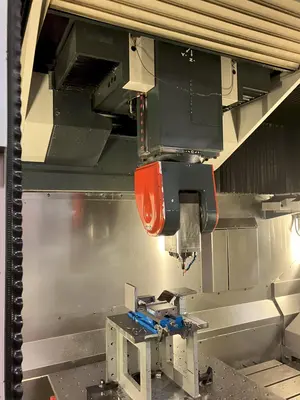

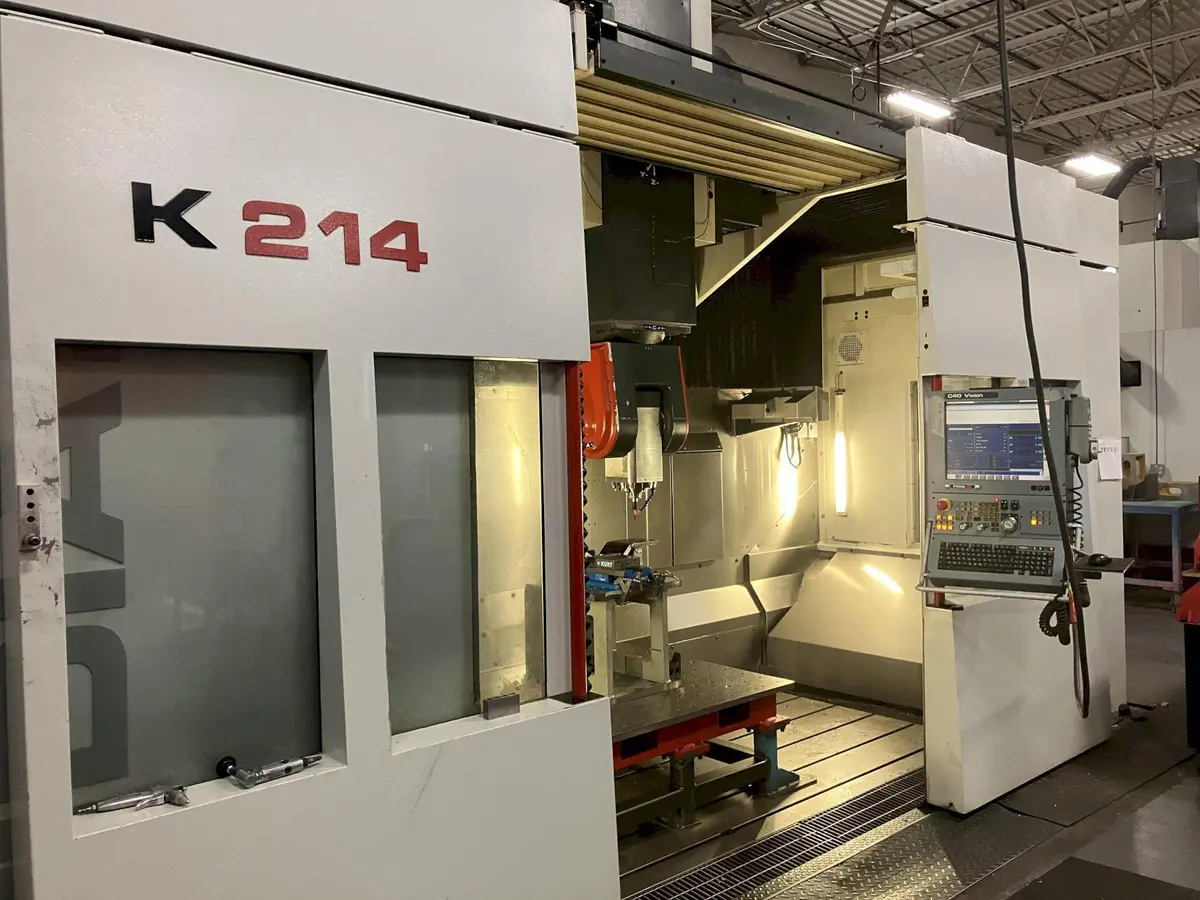

Fidia K214 CNC 5 Axis Machining Center
Have one to sell?
ConditionUsed
1 available
Fidia K214 CNC 5 Axis Machining Center available, manufactured by FIDIA in 2016. Ideal for precision tasks, this used vertical machining center accommodates complex machining operations with its multi-axis capabilities.
Linear axes travel
X(*) 2700 mm
Y(*) 1100 mm
Z 1400 mm
Axes speed X Y Z
50 m/min (1968 ipm) 40 m/min (1575 ipm) 30 m/min (1181 ipm)
Positioning accuracy
X Y Z ± 0,006 ± 0,005 ± 0,004 mm ± 0,0075 ± 0,005 ± 0,004 mm

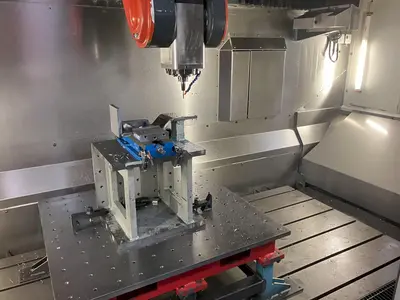

Work-piece table:
Dimensions 3500 x 1500 mm 5
T-Slots n° 6 - pitch 250 mm (10”)
Loading capacity 22000 kg
Machine Dimensions 5950mm Wide x 4640mm Deep x 5620mm Tall
Machine Weight 26,000 kg
Fidia K214 CNC 5 Axis Machining Center available, manufactured by FIDIA in 2016. Ideal for precision tasks, this used vertical machining center accommodates complex machining operations with its multi-axis capabilities.
Imperial
| X | 106.3" |
| Y | 43.3" |
| Z | 55.1" |
| # Axis | 5 |
| Power | 32 hp |
| RPM | 18,000 RPM |
| # ATC | 24 |
| Taper | HSK63 |

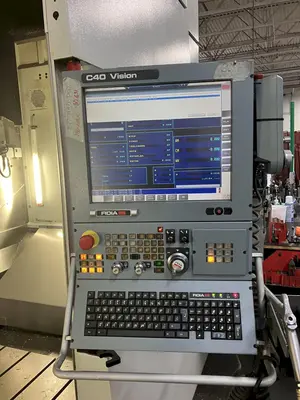

| Control | CNC (FIDIA) |
| Dimensions | 212 x 157 x 126 in |
| Weight | 57683 lbs |
Linear axes travel
X(*) 2700 mm
Y(*) 1100 mm
Z 1400 mm
Axes speed X Y Z
50 m/min (1968 ipm) 40 m/min (1575 ipm) 30 m/min (1181 ipm)
Positioning accuracy
X Y Z ± 0,006 ± 0,005 ± 0,004 mm ± 0,0075 ± 0,005 ± 0,004 mm
Work-piece table:
Dimensions 3500 x 1500 mm 5
T-Slots n° 6 - pitch 250 mm (10”)
Loading capacity 22000 kg
Machine Dimensions 5950mm Wide x 4640mm Deep x 5620mm Tall
Machine Weight 26,000 kg
