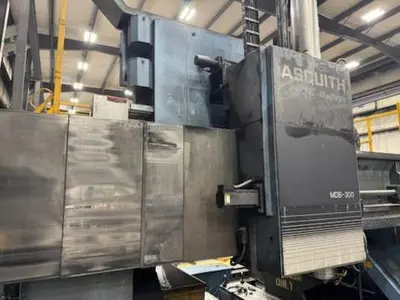

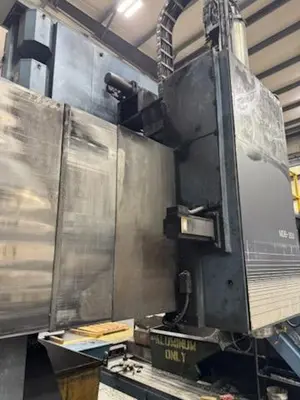

ASQUITH MDB 300 VERTICAL GANTRY CNC MILLING MACHINE

NEW-2006 (RETROFIT)

CONTROL TYPE...................................: DELTA DYNAPATH 50

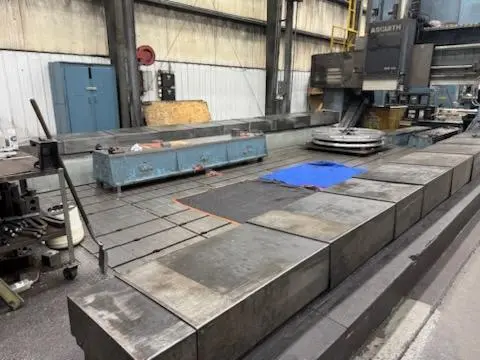

TABLE SIZE (FLOOR PLATE)..................: 400" x 160"
(X) TRAVEL........................................: 393"
(Y) TRAVEL .......................................: 157"
(Z) QUILL TRAVEL ..............................: 50"
SPINDLE SPEEDS................................: 4000 RPM
SPINDLE DRIVE..................................: 100 HP
SPINDLE TAPER..................................: #50
SPINDLE QUILL DIAMETER ..................: 11"
MAXIMUM RAIL BOTTOM TO TABLE .......: 60"

EQUIPPED WITH:

ELECTRICS-440 3/60
UNLIMITED TABLE WEIGHT CAPACITY (FLOOR PLATE)
SCALES X,Y,Z
COOLANT THROUGH SPINDLE
BALDOR SERVO DRIVES
SIEMENS SPINDLE DRIVE

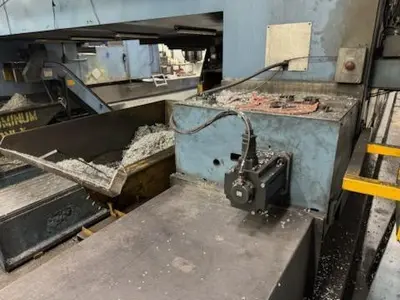

DUAL CHIP CONVEYORS
NO TOOL CHANGER
