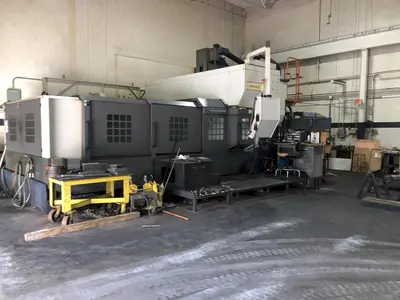

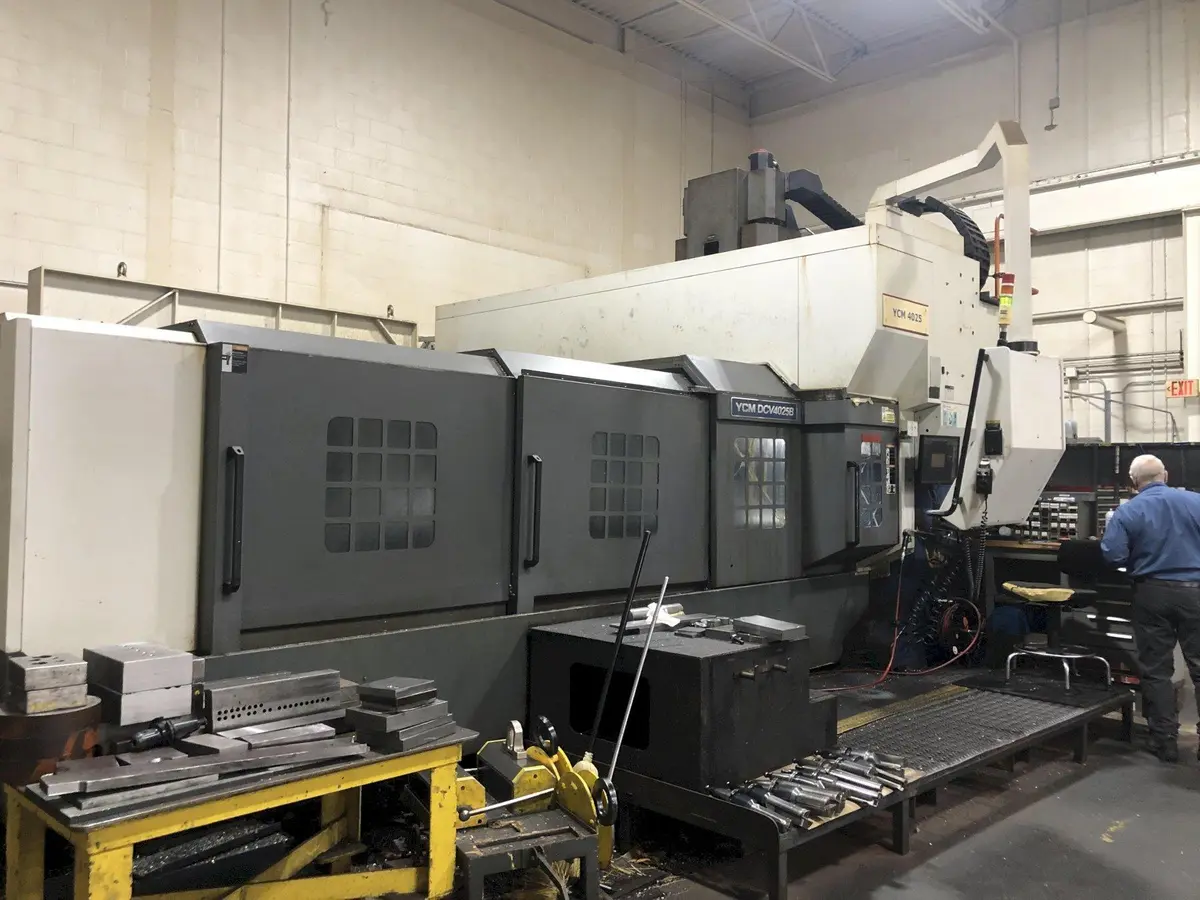

YCM DCV 4025B CNC BRIDGE TYPE MACHINING CENTER

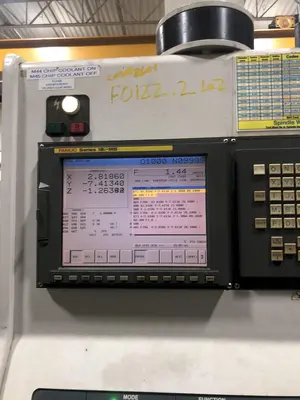

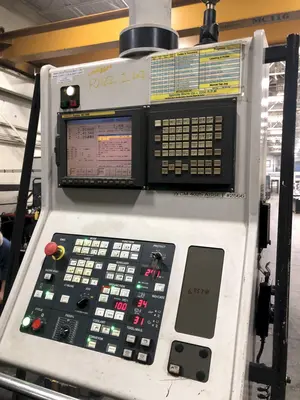

CONTROL: MBX 200FB (FANUC)

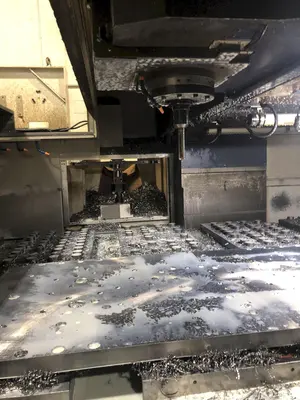

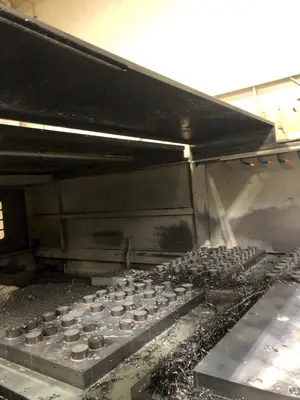

TABLE SIZE.............................................: 158" x 94.5"
TABLE WEIGHT CAPACITY .................................: 44,092 LBS.
LONGITUDINAL TRAVEL (X)................................: 160"
CROSS TRAVEL (Y)................................: 98"
VERTICAL TRAVEL (Z)................................: 40"
FEED RATE X, Y, Z .....................................: 472/591/591 IPM
CUTTING FEED RATE .....................................: 0.04~394 IPM
SPINDLE SPEEDS.........................................: TO 10,000 RPM
SPINDLE DRIVE..........................................: 25/30 HP (18.5/22 kw)
SPINDLE TAPER..........................................: CAT 50
TOOL CHANGER ..........................................: 40 ATC
DISTANCE BETWEENS COLUMNS..............................: 107.9"
MAX. TOOL WEIGHT ......................................: 44.1 Lbs.
MAX. TOOL DIMENSIONS ..................................: 4.92" x 13.78"
DISTANCE SP NOSE TO TAPLE TOP..........................: 7.87~47.87"
GROSS MACHINE..........................................: 101,412 Lbs.

EQUIPPED WITH:

ELECTRICS-220/480
COOLANT THROUGH SPINDLE
CHIP CONVEYOR

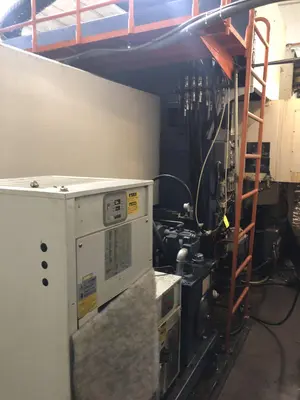

CHILLER UNIT
ETHERNET
HIGH SPEED MACHINING
DATA SERVER
SPINDLE THERMAL COMPENSATION
3 ROLLER TYPE GUIDE WAY FOR Y AXIS
HARDENED AND GROUND BOX WAY Z AXIS
TOOL SELECTION RANDOM METHOD
