Used TOS TRENCIN SUI 80 | Lathes, Engine

Spec Sheet Technical Specifications:

TOS Trenčín SUI 80/4000 Basic Parameters:

Swing over bed: 800 mm,
Swing over cross-slide: 520 mm,
Distance between centers / Turning length: 4000 mm,
Spindle / Vreteno: Spindle bore: 92 mm,
Internal taper: Metric 100, Spindle speed range: 14 – 1400 rpm
Carriage & Slides / Suport Cross-slide travel: 440 mm,
Top slide travel: 195 mm,
Longitudinal feed range: 0.06 – 1.55 mm/rev,
Cross-feed range: 0.03 – 0.775 mm/rev,
Longitudinal rapid traverse: 4800 mm/min,
Cross rapid traverse: 2400 mm/min
Threading Metric threads (43 steps): 0.5 – 160 mm,
Whitworth threads (40 steps): 40 – 1/8 TPI,
Module threads (36 steps): 0.25 – 48 Mod
Tailstock Quill diameter: 110 mm,
Internal taper: Morse 6 (MT6),
Quill stroke: 210 mm

Maintenance Status Medium-scale overhaul performed in 2024,

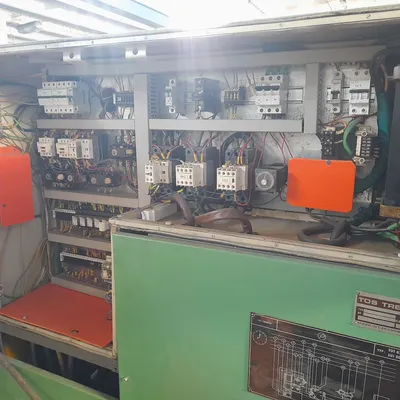

New electrical components and wiring. Sold without accessories
