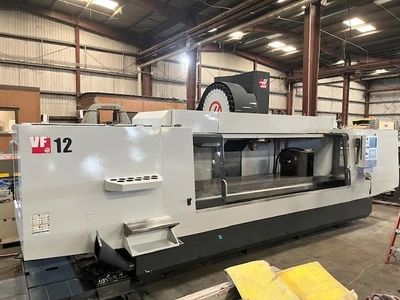

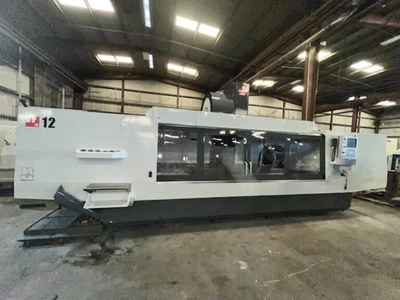

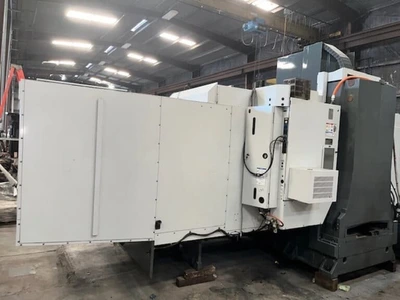

Used 2014 HAAS VF-12/50 | Machining Centers, Vertical

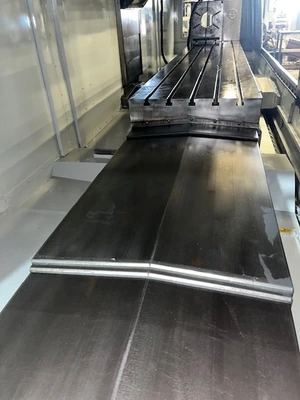

Table Dimensions..............: 150″L x 28″D
Maximum Table Load............: 4,000 LBS
X-Axis Travel.................: 150″
Y-Axis Travel.................: 32″
Z-Axis Travel.................: 30″
Spindle Nose to Table(Min-Max): 4″ – 34″
Maximum Spindle HP............: 30 HP
Maximum Spindle Speed.........: 7,500 RPM (2-Speed Gearbox)
Spindle Taper.................: CT-50
Rapid Traverse Rates (X)/(Y,Z): 360 IPM / 600 IPM

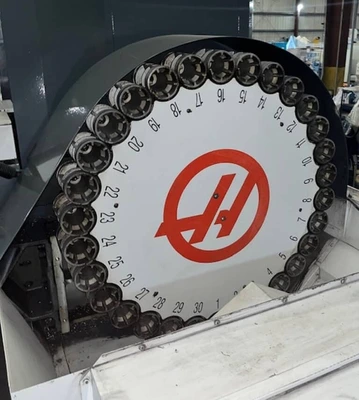

Side Mount ATC Capacity.......: 30 + 1
Electrical....................: 230V / 3PH

Equipped With:

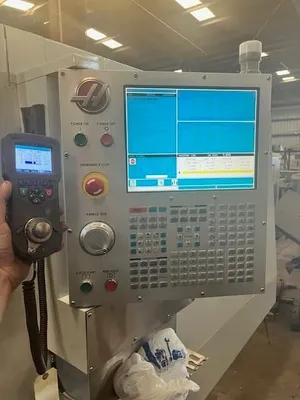

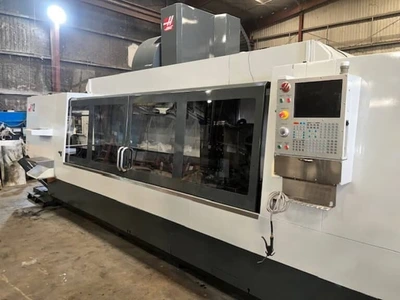

15″ Color LCD Haas Control

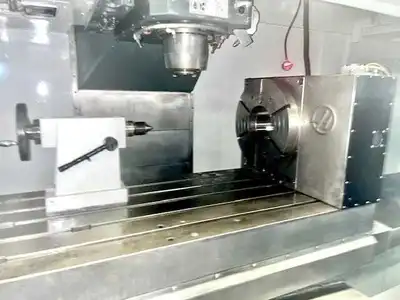

HRT-450 Rotary Table w/ Tailstock
CT-50 Spindle
X-Axis Scale Feedback

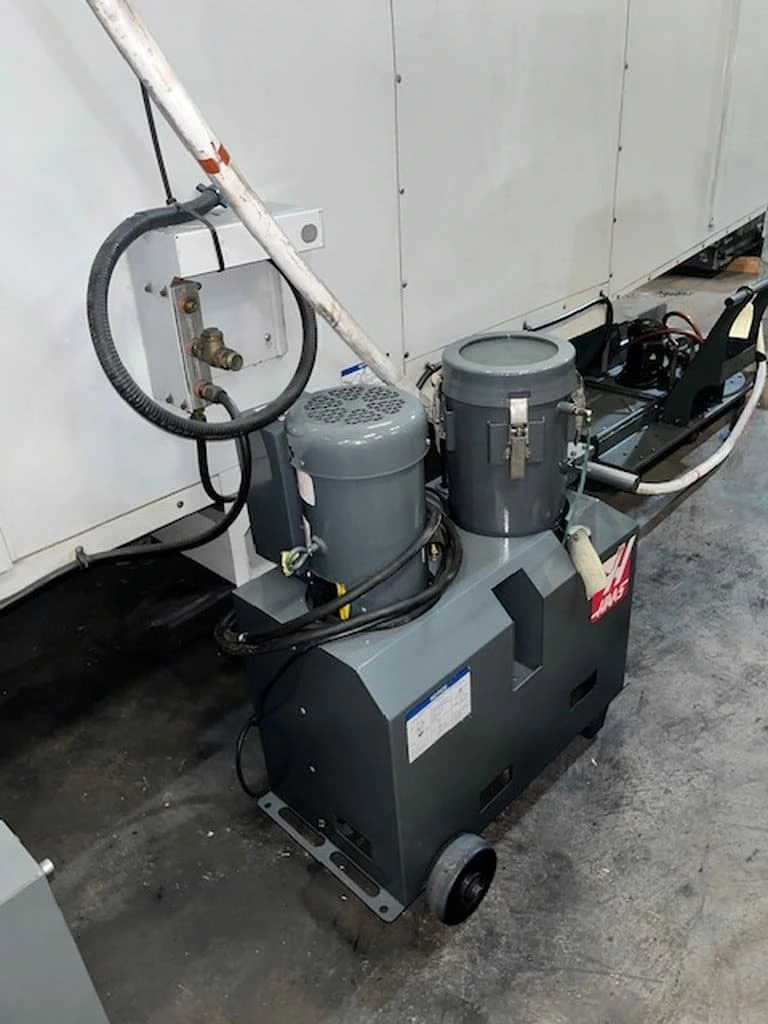

1,000 PSI TSC (Through Spindle Coolant)
4th Axis Drive & Wiring
2-Speed Gear Box
Programmable Coolant Nozzle
Haas WIPS Renishaw OMI (No Spindle Probe / Tool Pre-setter Included)
Visual Quick Code Programming
User-Definable Macros
Spindle Orientation
Coordinate Rotation & Scaling
Rigid Tapping
1GB Program Memory
USB Port

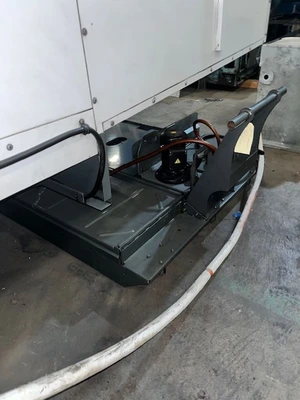

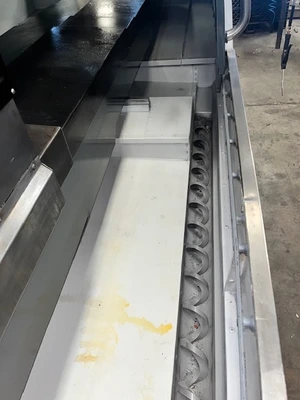

Auger Style Chip Removal System

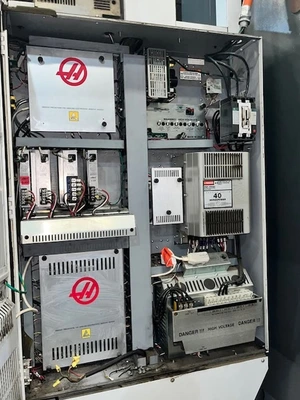

CNC Control Cabinet Cooler
High Intensity Lighting

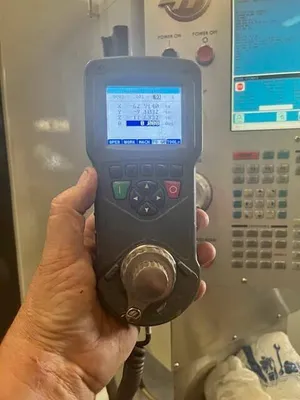

Remote Jog Handle
95 Gallon Coolant Tank
