Used MAXICUT MLNC 9/32120 | Lathes, Flat Bed, CNC
Have one to sell?
ConditionUsed
1 available

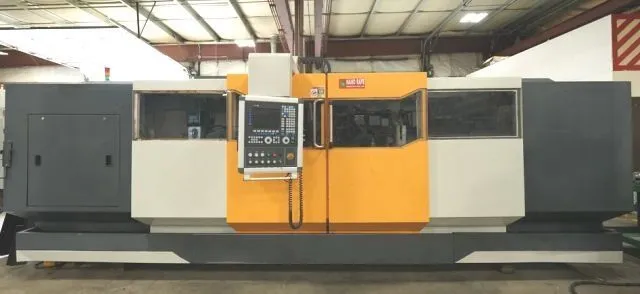

Enhance your machining capabilities with the used MAXICUT MLNC 9/32120 CNC flat bed lathe. Featuring a 33" swing, 120" machining length, 25" chuck size, and 30 hp power, this robust unit delivers precision with its Fagor 8055 Control system.
Model: Maxcut MLNC-9/32120
Control: Fagor 8055 Control
Swing over bed: 33"
Distance between centers: 120"
Swing over cross slide: 17.50"
Max. cutting diameter: 32"
Max cutting length: 110"
Bar cap.: 9"
Bed Width: 23.6"
Load Cap. between centers: 5,511 lbs
Bedway: 24"
Steady Rest Cap.: 1.60" - 14"
Backsplash guard with travelling door
Heavy Duty Structure Frame: 14,000 lbs
Chip Conveyor
Travel X: 16.5"
Travel Z: 110.23"
Spindle: 60 - 800 RPM
Spindle Bore: 9.48"
Spindle Motor: 30 HP
Spindle Mount: A2-15

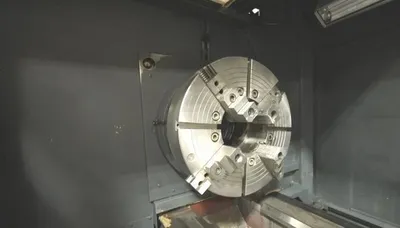

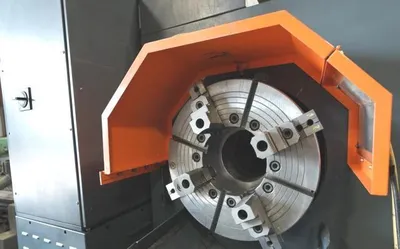

Dual Chuck: 25"- 4 Jaw Master (Bison)
Feedrate X: 3 M/min
Feedrate Z: 6 M/min
Voltage: 400 V

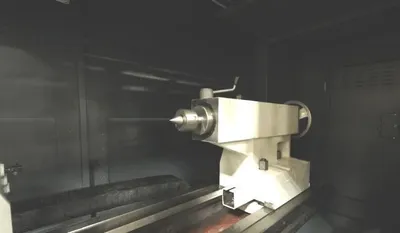

Tailstock Taper: MT5
Quill Stroke: 9.84"
Quill Diameter: 3.93"
Machine Dimension: 222.5" x 87.5" x 72"
Machine Weight: 16,540 lbs
