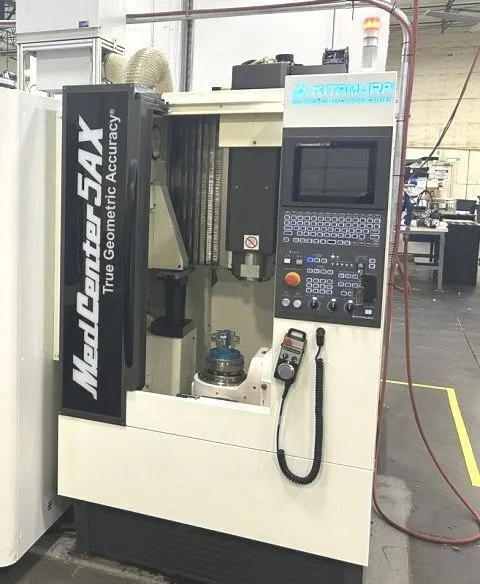

Used 2023 KITAMURA MYTRUNNION-5 | Universal Machining Centers

TableSize: .............. 6.7" Dia
Travels: X-Axis Travel .. 10 "
Y-Axis Travel............ 13 "
Z-Axis Travel ........... 13 "
Spindle: Spindle Speed: Minimum (RPM) .... 300 rpm
Maximum .................................. 30,000 rpm
Spindle Taper ............................ HSK-E40
Main Motor (HP) .......................... 469 HP/35KVA hp
Tool Changer: Tool Changer Positions ..... 120 Upgrade atc

Equipped With: Arumanik Mi Control
Reneshaw NC4+ Blue F115C Probe

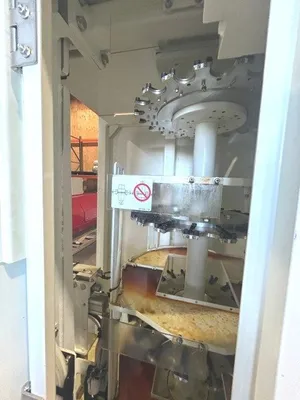

High Capacity 40 Tool ATC w/120 ATC Upgrade
6.7" Diameter Table
A-Travel: -120 to + 120 Degrees
C-Travel: 0 to 360 Degrees

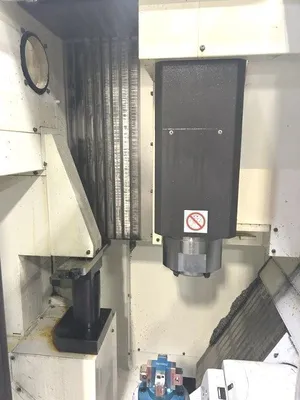

300-30,000 RPM Direct Drive Spindle
Spindle Oil Cooler
Chip Conveyor(Scraper Type)
