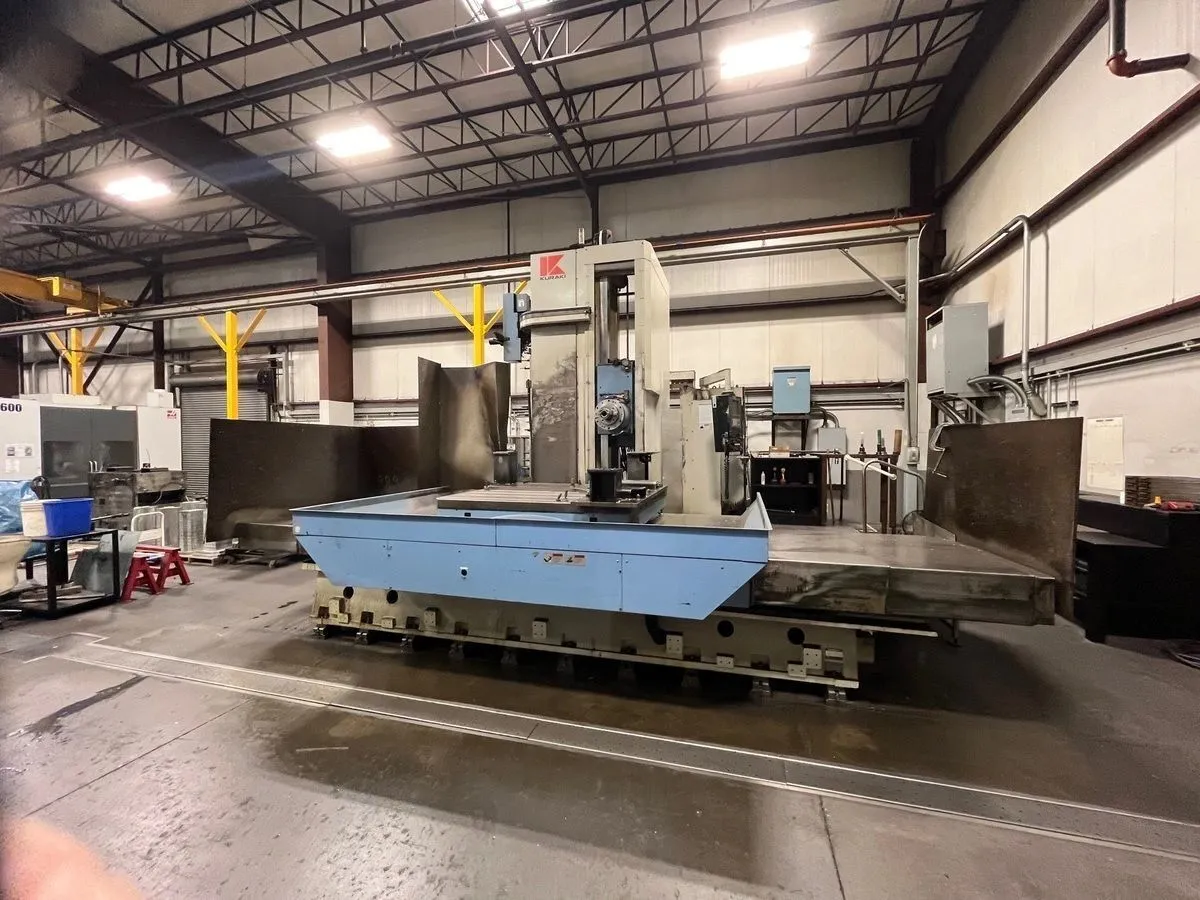

Used 2000 KURAKI KBT-13E.A | Boring Mills, Horizontal, Table Type

Have one to sell?
248 366-6400
sales@starequipment.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills, Horizontal, Table Type
Manufacturer:
KURAKI
Model:
KBT-13E.A
Year:
2000
Status:
For Sale
Spindle Size5.11"129.79 mm
X-Horiz Tvl of Table118"2,997.2 mm
Y-Vert Tvl of Head78.74"2,000 mm
Power60 hp44.7 kW
RPM4,000 RPM4,000 RPM
Table-W70.87"1,800.1 mm
Table-L86.61"2,199.9 mm
Spindle Tvl.25.59"649.99 mm

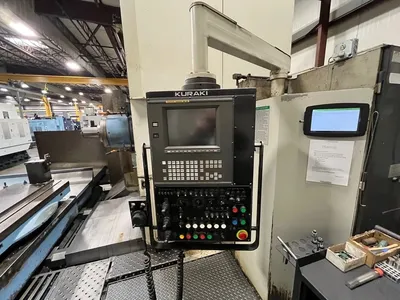

FANUC 16iM CNC CONTROL
Table Size - L 86.61"
Table Size - W 70.87"
Table Capacity 26,400 lb
Table Indexing .001 Degrees
Spindle Diameter 5.1"
Spindle Taper #50 CT
Spindle Speed 4,000 RPM
Main Motor 60 hp
X - Axis Travel 118.11"
Y - Axis Travel 90.5"
Z - Axis Travel 51.2"
W - Axis Travel 25.6"
Automatic Tool Changer Capacity 40
Tool Diameter 4.92" / 9.45"
Max Tool Length 23.62"
Max Tool Weight 66 lb
Machine Weight 81,400 lb

Equipped With
FANUC 16IM CNC CONTROL
CHIP CONVEYOR
