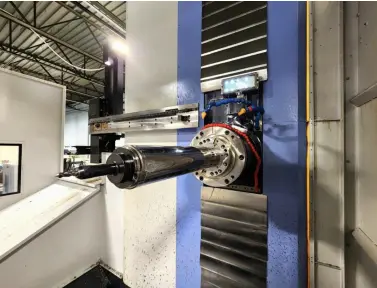

DOOSAN DBC110 II

Have one to sell?
248 366-6400
sales@starequipment.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills, Horizontal, Table Type
Manufacturer:
DOOSAN
Model:
DBC110 II
Year:
2015
Status:
For Sale

Description

DOOSAN DBC110 II, 2015 used horizontal boring mill. Features: 110.0 spindle size, 2500.0 x-axis table travel, 2000.0 y-axis head travel, 1400.0 width x 1800.0 length table dimensions, 1500.0 spindle travel.

Spindle Size110 mm4.3307"
X-Horiz Tvl of Table2,500 mm98.425"
Y-Vert Tvl of Head2,000 mm78.74"
Table-W1,400 mm55.118"
Table-L1,800 mm70.866"
Spindle Tvl.1,500 mm59.055"

Doosan DBC-110-II CNC Horizontal Table
Type Boring Mill, New 2015
FANUC 31iA Control
SPINDLE SIZE 4.33" DIA.
X AXIS - TABLE TRAVEL 98"
Y AXIS - VERTICAL 78"
Z AXIS - TABLE IN/OUT 59"
W AXIS - QUILL TRAVEL 21.56"
B AXIS - TABLE ROTATION 0.001
TABLE SIZE - 70.61" x 55.74"
POWER40 hp, 60 ATC tool change
RPM , 4000 RPM, Coolant Through
MAX TABLE LOAD 22,455.4 Lbs
