Used 2017 DMG MORI NLX 2500SMC | 5-Axis or More CNC Lathes

Specifications:

Year: 2017
Control: MAPPS V
Main Spindle: 5,000 RPM
Live Tooling Spindle: 6,000 RPM
Spindle Nose: JIS A2-6
Bar Capacity: 2.56”
Max Turning Diameter: 14.02”
Standard Turning Diameter: 10.83”
Max Turning Length: 20.27”
X-Axis Travel: 10.24”
Z-Axis Travel: 22.8”
Rapid Traverse (X/Z): 1,181 IPM
Tailstock Rapid: 275 IPM

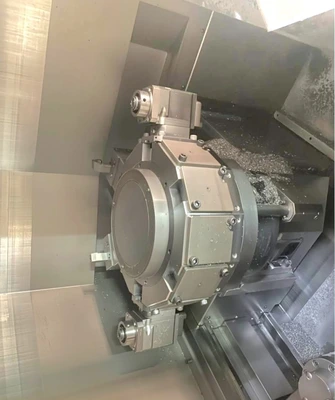

12-Station Turret
BMT60 Tooling
Live Tooling with C-Axis (No Y-Axis)
Includes (2) static holders and (2) live holders

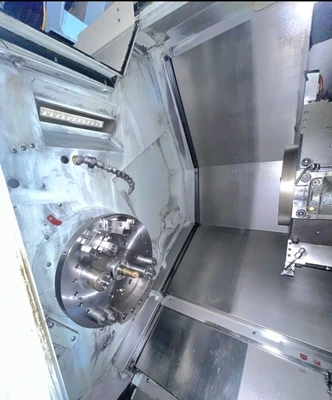

8” solid chuck & hollow chuck configuration
Currently equipped with custom hydraulic chuck (set up for prior production part)
Hydraulic, programmable tailstock
3-Phase, 220V
30 kVA / ~79A full load
Weight: approx. 6,100 kg (13,450 lbs)
Included:
Chip conveyor & filtration system
Electrical disconnect
Mist collector
Manuals
Spindle Hours for each machine
15,715 hrs
14,209 hrs
12,052 hrs
9,724 hrs
