Used FRYER VT-60 | Boring Mills, Vertical

Chuck Size...............50"

Cutting Diameter Range...0 - 60"

Machine Dimensions (L x W x H)1..62” x 79” x 115”

Machine Weight............32,000 LBS

Max Part Weight...........10,000 LBS

Max Swing Diameter........60"

Milling Spindle...........10 HP

Milling Spindle Speed.....10 - 4000 RPM

Rapid Traverse Rate.......750 IPM

Spindle Bore..............2.625"

Spindle Motor.............75 HP

Spindle Speed.............10 - 500 RPM

Spindle Torque............2,700 FT/LBS

Thrust (X & Z Axis)........6,504 LBS

Tooling Size...............BMT-65

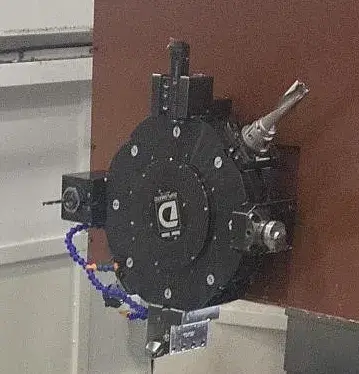

Turret Positions...........8

Turret to Spindle Nose.....8" - 40"

X-Axis Column Travel.......34"

X-Axis Turret Face/Spdle Center..-3" - 31"

Z-Axis Travel...............32"

Features:

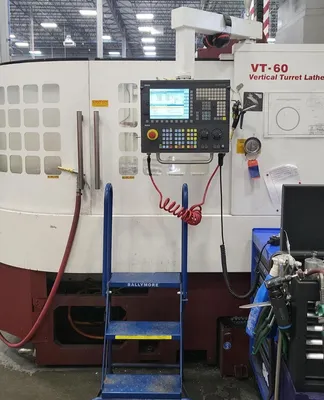

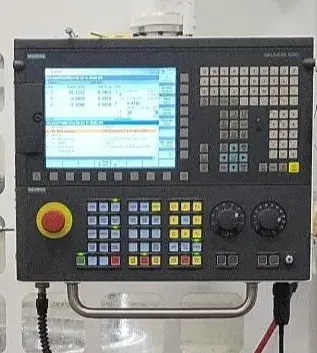

• SIEMENS 828-HS CNC Control

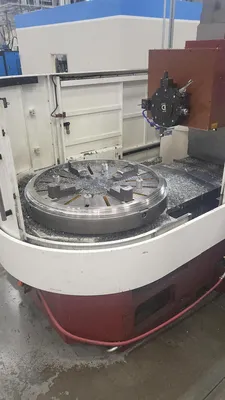

• 50" Manual 4-Jaw Chuck

• C-axis Milling

• Tool Presetter

• Remote Jog Handle

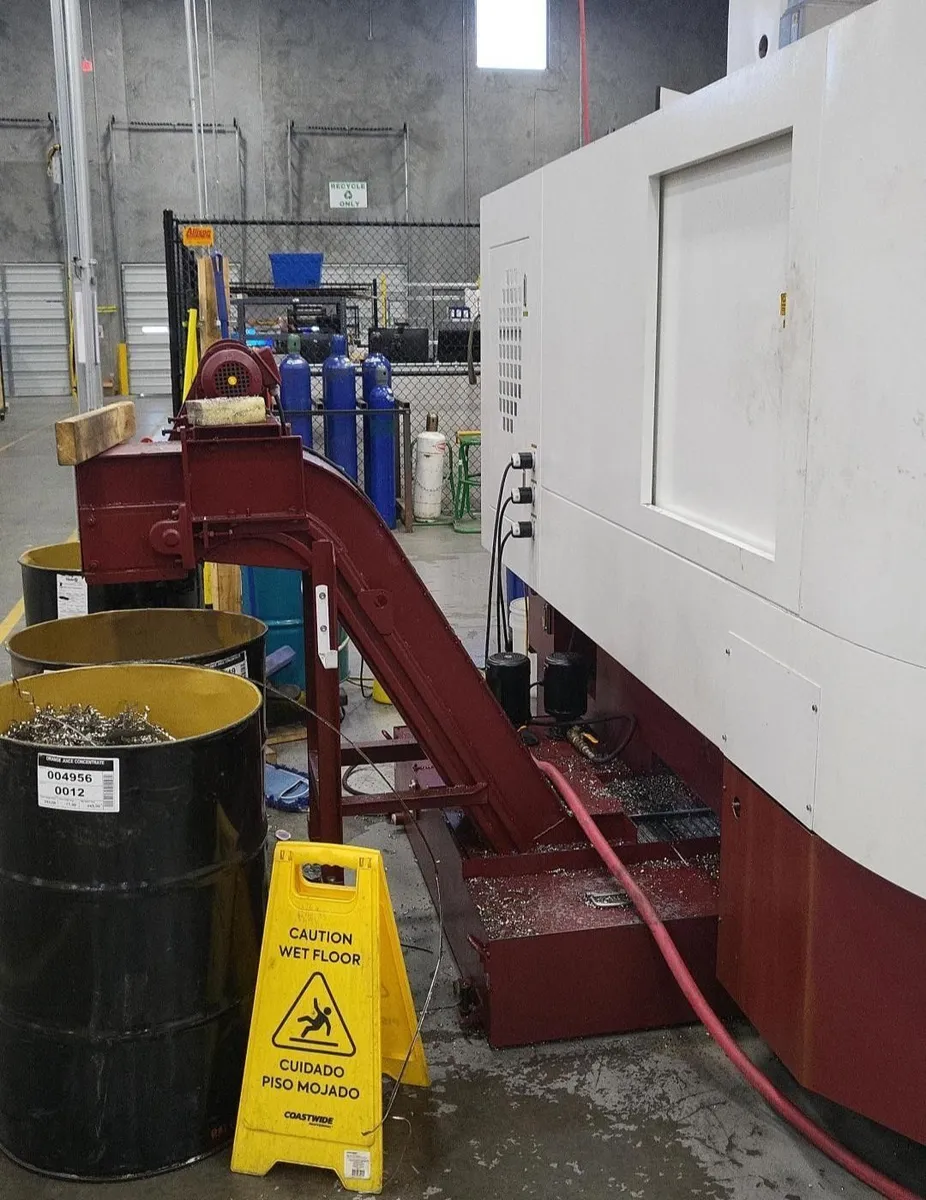

• Chip Conveyor
