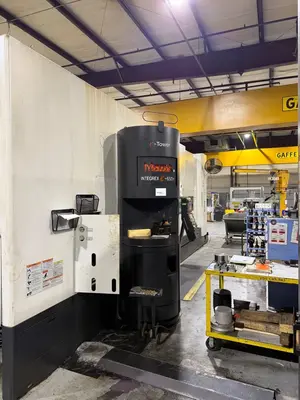

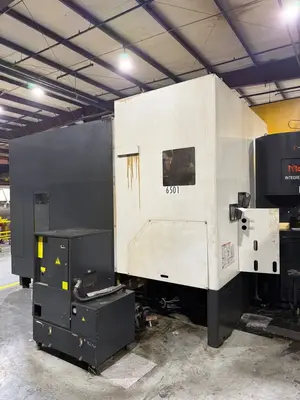

Used 2006 MAZAK E650H 3000 | 5-Axis or More CNC Lathes

Specifications:

Swing Over Bed

36.2"

Turning Diameter

36.2"

Turning Length

120"

Distance Between Centers

126"

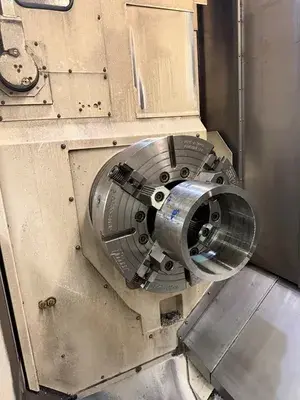

Chuck Size 1

24"

Spindle Nose 1

A2-11

Spindle Bore Diameter 1

6.69"

Bar Capacity 1

6.69"

Spindle Speeds 1

1,600 RPM

Spindle Horsepower 1

60 hp

B - Axis Head Indexing

0.0001

B - Axis Milling Spindle Taper

#50 CT

B - Axis Milling Spindle Speed

10,000 RPM

ATC For Milling Spindle

80

Tool Diameter

5.31

Tool Length

19.69"

Tool Weight

66 lb

X1 - Axis Travel

40.35"

Z1 - Axis Travel

122.91"

Y1 - Axis Travel

25.6"

C - Axis Indexing 1

0.0001

Rapid Traverse Rate - X1

1575 ipm

Rapid Traverse Rate - Z1

1575 ipm

Rapid Traverse Rate - Y1

1575 ipm

Tailstock Taper

MT #6

Tailstock Quill Travel

6.3"

Programmable Tailstock

'Yes'

Tailstock Travel

118.15

Machine Weight

77,900 lb

Control

CNC

Dimensions

368" x 155" x 155"

Weight

97900.00

Swing Over Bed: 36.2"

Turning Diameter: 36.2"

Turning Length: 120"

Distance Between Centers: 126"

Distance Between Spindles: 0

Chuck Size 1, 2: 18"

Spindle Nose 1, 2: A2 - 11

Spindle Bore Diameter 1, 2: 6.69"

Bar Capacity 1, 2: 0

Spindle Speeds 1, 2: 1600 RPM

Spindle Horsepower 1, 2: 70 HP

B - Axis Head Indexing: -30 ~ +210

B - Axis Milling Spindle Speed: 10,000 RPM

B - Axis Milling Spindle Taper: 50 CT

B - Axis Milling Spindle Horse Power: 0

ATC For Milling Spindle: 80 ATC

Tool Diameter: 0

Tool Length: 0

Tool Weight: 0

X - Axis Travel X1, X2, X3: 40.35"

Z - Axis Travel Z1, Z2, Z3: 122.91"

Y - Axis Travel Y1, Y2, Y3: 25.6"

C - Axis Indexing 1, 2: .0001 Degrees

W - Axis Travel Sub Spindle: 0

Rapid Traverse Rates X1, X2, X3: 1575 IPM

Rapid Traverse Rates Z1, Z2, Z3: 1181 IPM

Rapid Traverse Rates Y1, Y2, Y3: 1575 IPM

Turret Tool Positions 1, 2, 3: 0

Turret Rotary Tool Speeds 1, 2, 3: 0

Turret Rotary Tool Horse Power 1, 2, 3: 0

Tailstock Quill Diameter: 0

Tailstock Taper: MT 6

Tailstock Quill Travel: 6.30"

Programmable Tailstock: Yes

Tailstock Travel: 118.15"

Machine Weight: 96900 Lbs.

Equipped With:

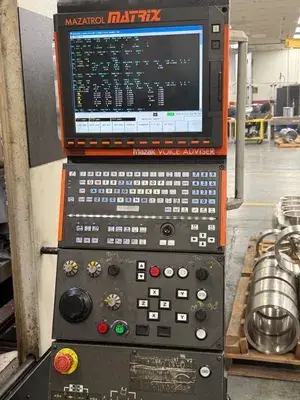

MAZATROL MATRIX E TOWER CNC CONVERSATIONAL CONTROL
CHIP CONVEYOR
RENISHAW PROBING
HIGH PRESSURE COOLANT THRU SPINDLE 1000 PSI
MIST COLLECTOR
AUTO TOOL MEASUREMENT
SPINDLE CHILLER
Y AXIS CONTROL
.0001 DEGREE B-AXIS INDEXING

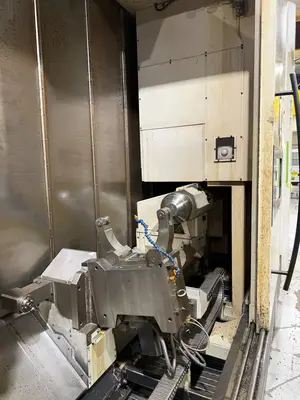

PROGRAMMABLE HYDRAULIC STEADY REST

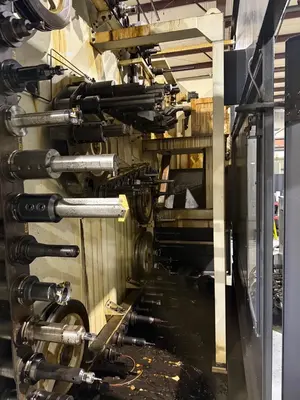

LARGE AUTOMATIC BORING BAR STOCKER SYSTEM
AUTO DOORS
DUAL FOOT TRIPS
