Used 2001 SNK RB-150F | Machining Centers, Gantry (incld. Bridge & Double Column)
Have one to sell?
ConditionUsed
1 available
TABLE SIZE.....: 60" x 120"
TRAVELS:
X LONGITUDINAL.: 127"
Y CROSS........: 94"
Z..............: 23"
W CROSS RAIL...: 23"
B AXIS.........: ±95 degree (spindle head swivel)
C AXIS.........: ±360 degree (spindle head rotation)
MAIN MOTOR ....: VAC 22/18.5 KW (30/22HP)
SPINDLE SPEED..: 40 - 6000 RPM
SPINDLE TAPER..: #50
DISTANCE BETWEEN COLUMNS: 92"
TOOL CHANGER...: 40 ATC
ADDITIONAL SPECIFICATIONS:
CHIP CONVEYOR
AUTO TOOL LENGTH MEASURING
AIR-BLOW
HELICAL INTERPOLATION
RIGID TAPPING
TOOL LIFE MANAGEMENT

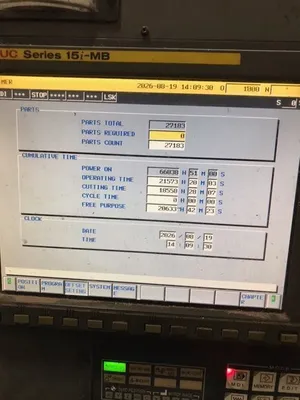

Operating Time: 21573 hours
Cutting Time: 18558 hours
Imperial
| X | 127" |
| Y | 94" |
| Z | 23" |
| Power | 30 hp |
| RPM | 6,000 RPM |
| # ATC | 40 |
| Taper | 50 |
| Table-W | 60" |
| Table-L | 120" |
| Control | CNC (FANUC 15iMA) |
TABLE SIZE.....: 60" x 120"
TRAVELS:
X LONGITUDINAL.: 127"
Y CROSS........: 94"
Z..............: 23"
W CROSS RAIL...: 23"
B AXIS.........: ±95 degree (spindle head swivel)
C AXIS.........: ±360 degree (spindle head rotation)
MAIN MOTOR ....: VAC 22/18.5 KW (30/22HP)
SPINDLE SPEED..: 40 - 6000 RPM
SPINDLE TAPER..: #50
DISTANCE BETWEEN COLUMNS: 92"
TOOL CHANGER...: 40 ATC
ADDITIONAL SPECIFICATIONS:
CHIP CONVEYOR
AUTO TOOL LENGTH MEASURING
AIR-BLOW
HELICAL INTERPOLATION
RIGID TAPPING
TOOL LIFE MANAGEMENT
Operating Time: 21573 hours
Cutting Time: 18558 hours
