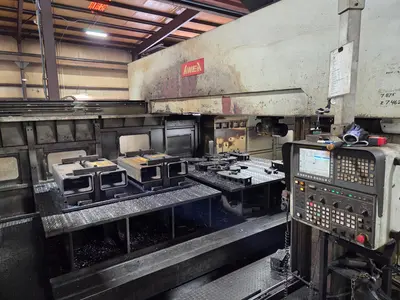

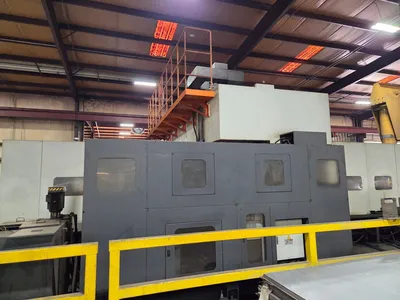

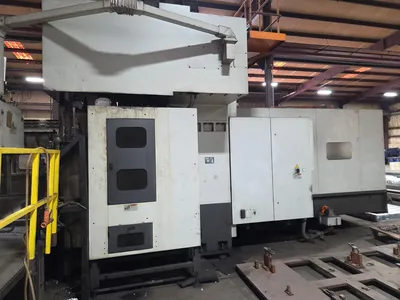

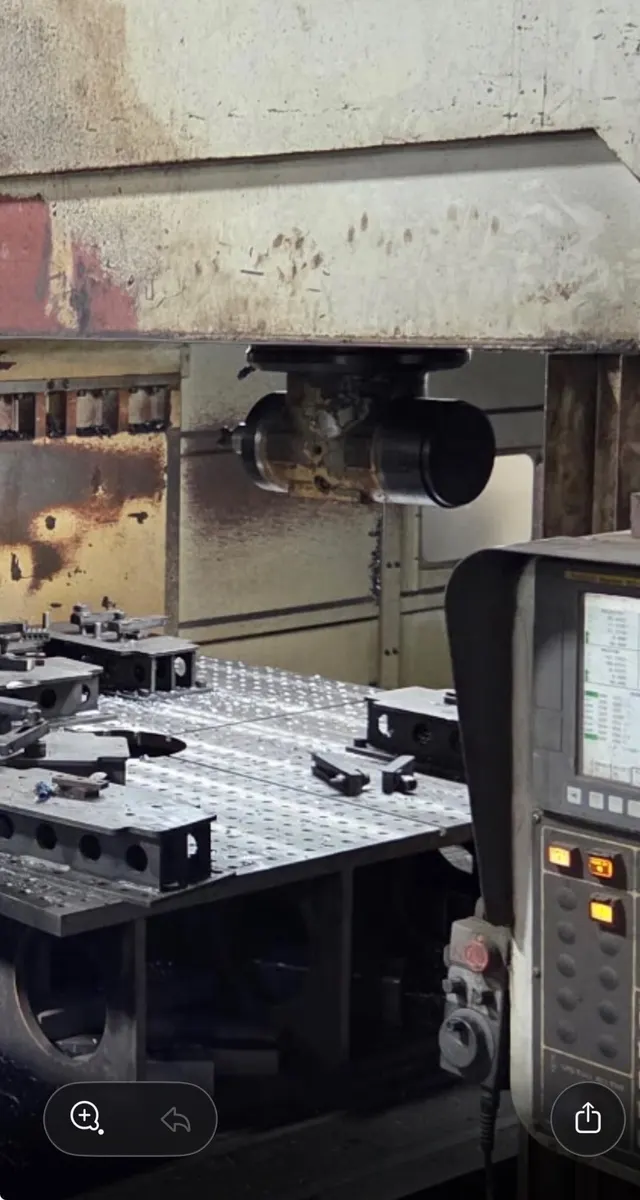

Used AWEA 4025YZF | Machining Centers, Gantry (incld. Bridge & Double Column)

TABLE SIZE.................................: 158" X 94"
MAX. LOAD ON TABLE ........................: 33,000 Lbs.
LONGITUDINAL TRAVEL (X)....................: 157.48"
CROSS TRAVEL (Y)...........................: 125.98"
VERTICAL TRAVEL (Z)........................: 39.37"
SPINDLE SPEEDS.............................: 6000 RPM
SPINDLE DRIVE..............................: 29/34 HP
SPINDLE TAPER..............................: CAT 50
TOOL CHANGER ..............................: 60 ATC
DISTANCE BETWEEN COLUMNS ..................: 106"
FEED RATES X,Y,Z ..........................: 590,590,393 IPM
MAX. TOOL WEIGHT ..........................: 44 Lbs.
MAX. TOOL DIMENSIONS ......................: 5" X 8.46"
MAX. TOOL LENGTH ..........................: 13"
POWER .....................................: 220 VOLT 3/60
MACHINE GROSS WEIGHT ......................: 101,412 Lbs.

EQUIPPED WITH:

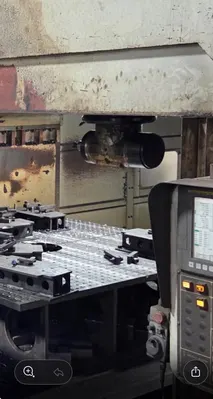

5 DEGREE 5 FACE AUTO HEAD WITH AUTO HEAD CHANGER
RIGHT ANGLE HEAD SPINDLE SPEED AT 2000 RPM
ELECTRICS-220 3/60
COOLANT THROUGH THE SPINDLE
CHIP AUGERS
CHIP CONVEYOR
CHILLER UNIT
GEARED SPINDLE HEAD (2) RANGES
ETHERNET
DATA SERVER
BOX WAYS Z AXIS VERTICAL RAM
LINEAR AXIS X & Y
INDEXING HEAD RECENTLY REBUILT

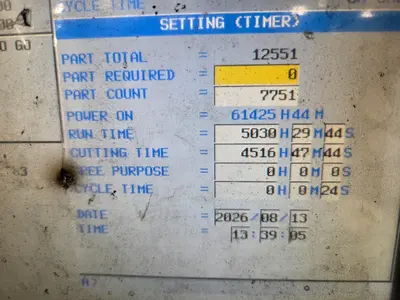

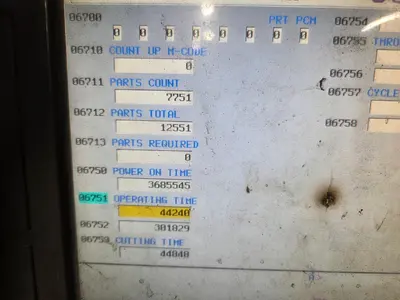

NOTE: UNDER POWER FOR INSPECTION
