Used 2002 STUDER S30 Lean Pro OD CNC | Grinders, Cylindrical, Universal

Description

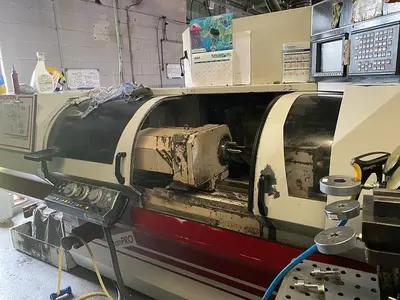

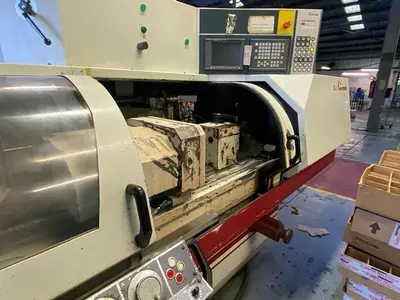

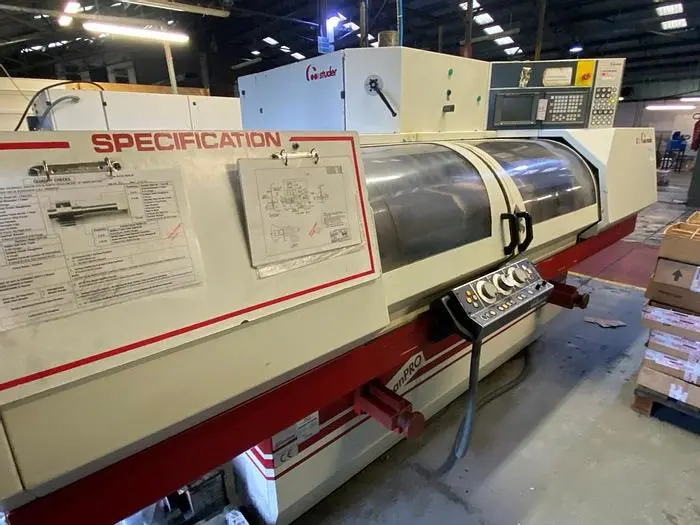

Studer S30 Lean Pro OD CNC Cylindrical Grinder

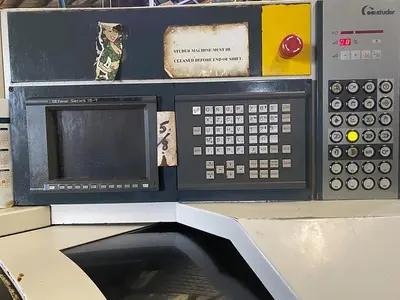

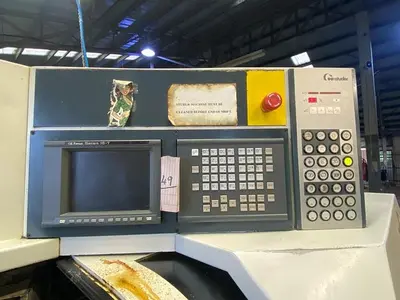

Control: Fanuc Series 16-T

This machine went through a complete refurbishment

Swing - Max: 350mm
Centre Distance: 1000mm
Grinding length - Max: 960mm
Workpiece Weight - Max: 130kg

Z Axis (Longitudinal Slide)
Travel - Max: 1051mm
Speed - Infinitely Variable: 0.000001 to 10m/min
Resolution: 0.0001mm

Turret Wheelhead
Swivel Range: -15 to 195 Degrees
Left Grinding Wheel Size: 19.7" Dia. x 3.15" Wide x 5" Bore
Right Grinding Wheel Size: 15.75" Dia. x 1.6" Wide x 5" Bore

Tailstock
Taper: MT 3
Barrel Travel: 35mm

Main Spindle Motor: 10HP

Fully working condition

Transport can be arranged, depending on distance.
