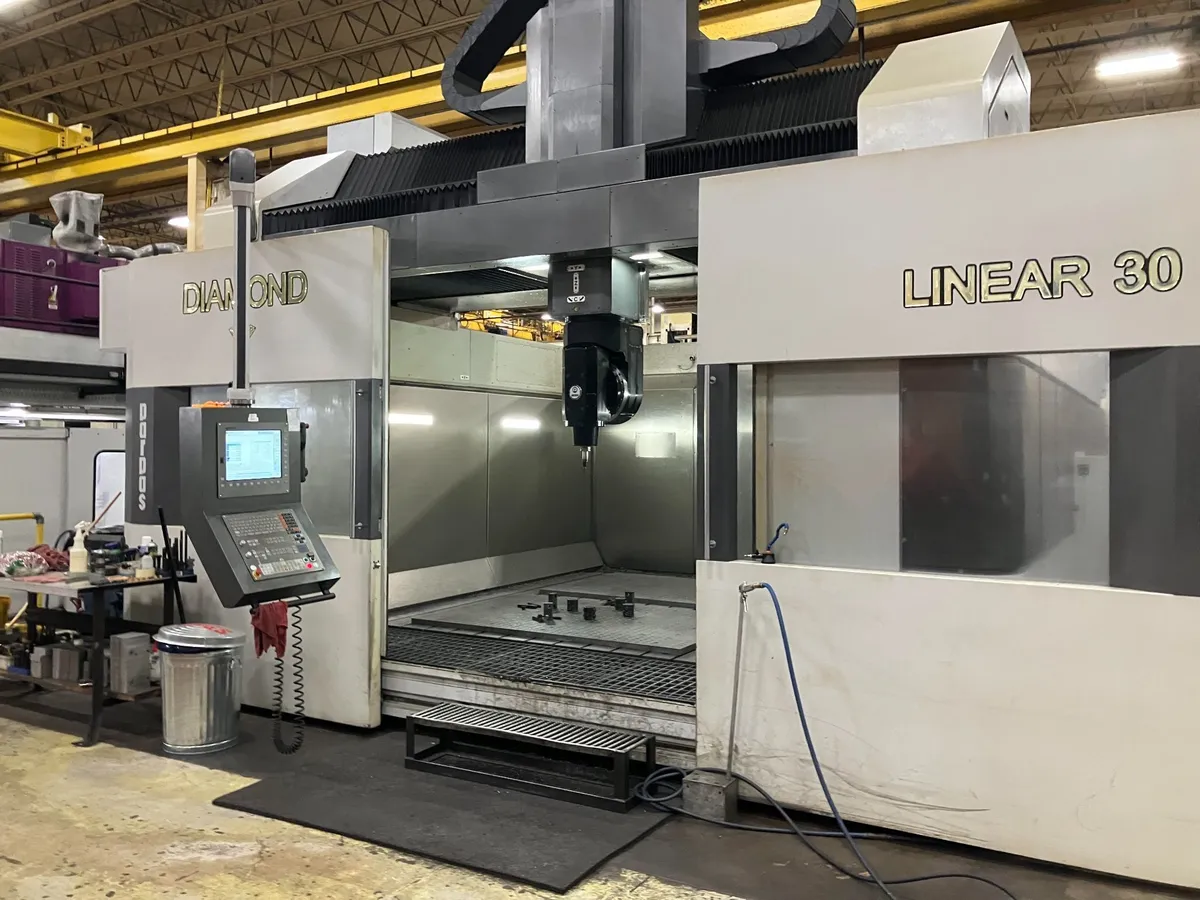

Used 2020 PARPAS DIAMOND 30 | Machining Centers, Gantry (incld. Bridge & Double Column)
Have one to sell?
ConditionUsed
1 available

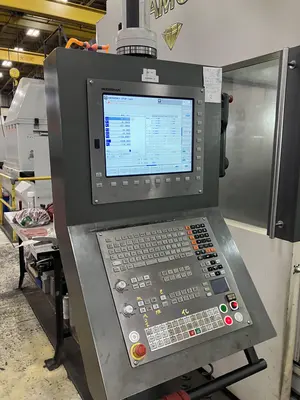

Heidenhain TNC 640 HSCI CNC Control
80 Station Automatic Tool Changer

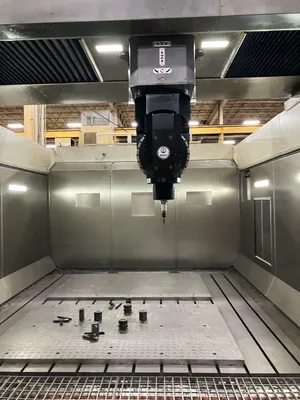

5-Axis Continuous Orthogonal Head
Dual Chip Conveyors
CAPACITY:
X-Axis, Longitudinal 118.11”
Y-Axis, Transversal Travel 102.36”
Z-Axis, Vertical Travel 55.11"
C-Axis, Ram Rotation .001 Degrees
C-Axis, Ram Range +/- 370 Degree
A-Axis, Head Sweep +/- 110 Degrees
Work Table 122.04" x 110.23"
Spindle Speeds 20,000 RPM
Spindle taper HSK-63-A
Spindle Motor 52 HP
Feed Rates 236.232"
Approximate Machine Dimensions 296.4" x 259.84" x 226.9"
EQUIPPED WITH:
Heidenhain TNC 640 CNC Control
80 Station Automatic Tool Changer
5-Axis Continuous Orthogonal Head
Dual Chip Conveyors
Losma Brand Paper Coolant Filter System
High Pressure Coolant Through Spindle 50 Bar
Air Through Spindle
Blum Laser Tool Pick Up
M&H Radio Frequency Probe
Imperial
| X | 3,000 mm |
| Y | 2,600 mm |
| Z | 1,400 mm |
| Power | 29 kW |
| RPM | 20,000 RPM |
| # ATC | 80 |
| Taper | HSK 63 |
| Table-W | 110" |
| Table-L | 122" |
| Control | CNC (Heidenhain 640) |
Heidenhain TNC 640 HSCI CNC Control
80 Station Automatic Tool Changer
5-Axis Continuous Orthogonal Head
Dual Chip Conveyors
CAPACITY:
X-Axis, Longitudinal 118.11”
Y-Axis, Transversal Travel 102.36”
Z-Axis, Vertical Travel 55.11"
C-Axis, Ram Rotation .001 Degrees
C-Axis, Ram Range +/- 370 Degree
A-Axis, Head Sweep +/- 110 Degrees
Work Table 122.04" x 110.23"
Spindle Speeds 20,000 RPM
Spindle taper HSK-63-A
Spindle Motor 52 HP
Feed Rates 236.232"
Approximate Machine Dimensions 296.4" x 259.84" x 226.9"
EQUIPPED WITH:
Heidenhain TNC 640 CNC Control
80 Station Automatic Tool Changer
5-Axis Continuous Orthogonal Head
Dual Chip Conveyors
Losma Brand Paper Coolant Filter System
High Pressure Coolant Through Spindle 50 Bar
Air Through Spindle
Blum Laser Tool Pick Up
M&H Radio Frequency Probe
