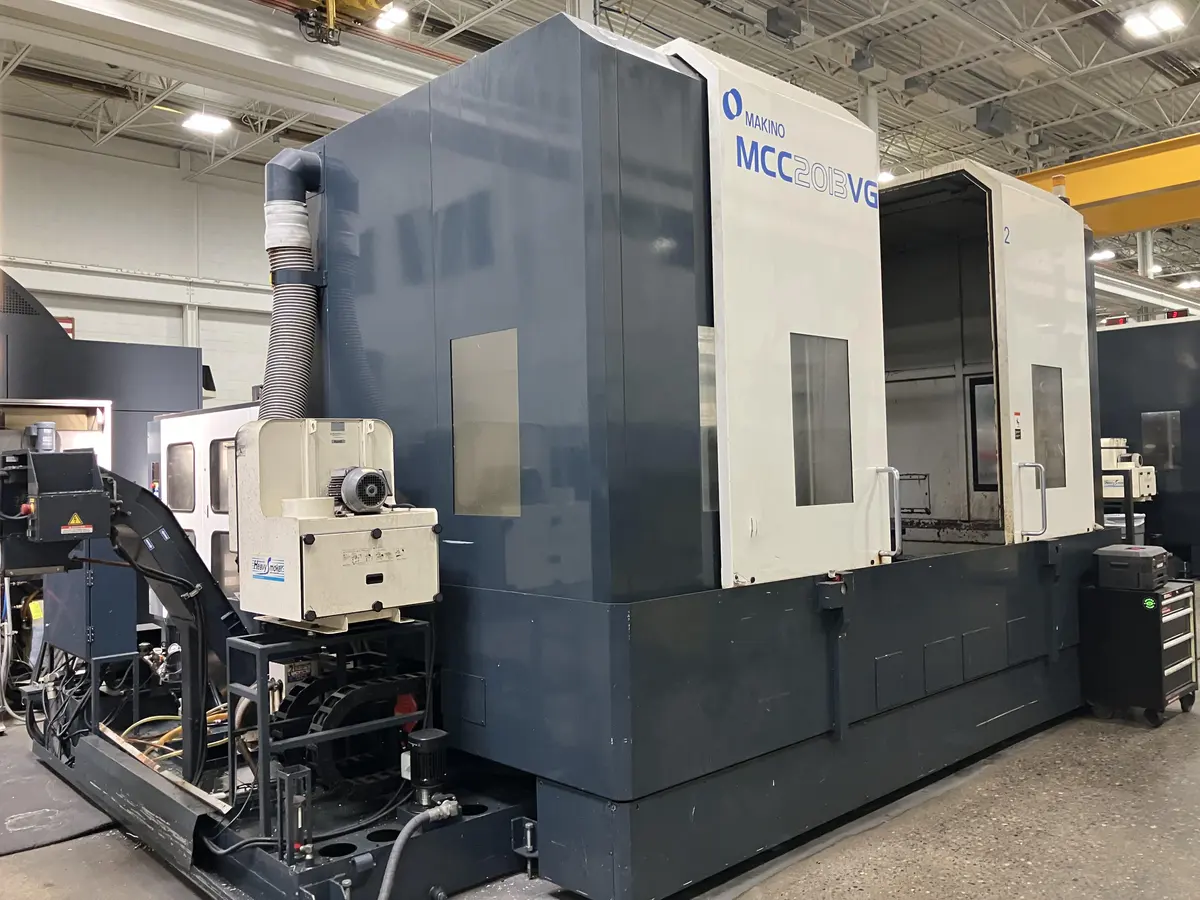

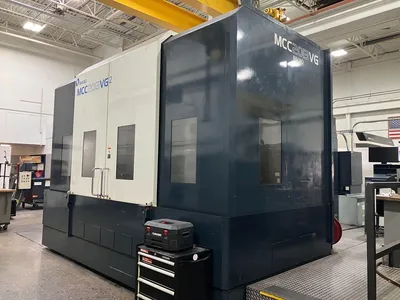

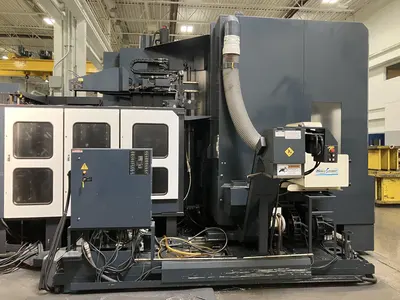

Used MAKINO MCC2013-VG 6-AXIS | Machining Centers, Vertical, (5-Axis or More)

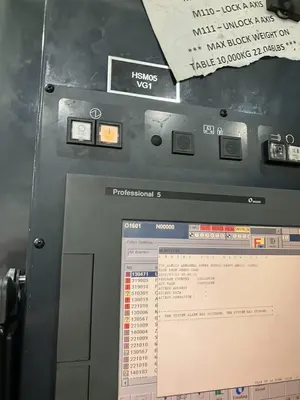

CONTROL: MAKINO PRO 5 (FANUC SERIES 30i)

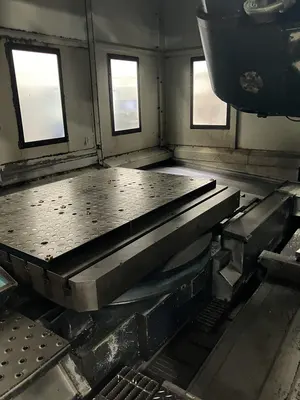

INDEXING ROTARY TABLE SIZE...................: 59" X 47" (360,000 DEGREE)
TABLE MAX. LOAD .............................: 22,000 Lbs.
CROSS TRAVEL (X).............................: 80"
VERTICAL TRAVEL (Y)..........................: 51.5"
LONGITUDINAL TRAVEL (Z)......................: 51.5"
SPINDLE SPEEDS...............................: 5 TO 12,000 RPM
SPINDLE DRIVE................................: 40/29 HP
SPINDLE TAPER................................: HSK 100/A
MAX. MACHINING DIMENSIONS L x W x H..........: 80" X 51.5" X 51.5"
DISTANCE TABLE TOP TO SPINDLE CENTER LINE....: 10" TO 61"
A AXIS ROTATION .............................: -30 DEG. TO +30 DEGREE
A AXIS MINIMUM INDEXING ANGLE................: 1 DEGREE
C AXIS ROTATION .............................: +/- 185 DEGREE
C AXIS MINIMUM INDEXING ANGLE ...............: 1 DEGREE
RAPID TRAVERSE X,Y,Z AXIS ...................: 787 IPM

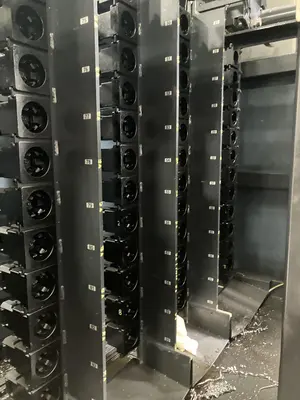

TOOL CHANGER.................................: 120 ATC
CUTTIG FEED RATE ............................: 787 IPM
LEAST INPUT ANGLE INCREMENTS X,Y,Z,B AXIS....: .0001 DEGREE
MAX. TOOL DIA EVERY POSITION/ADJACENT .......: 4"/8" DIA.

EQUIPPED WITH:

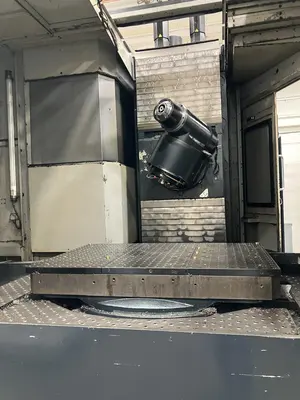

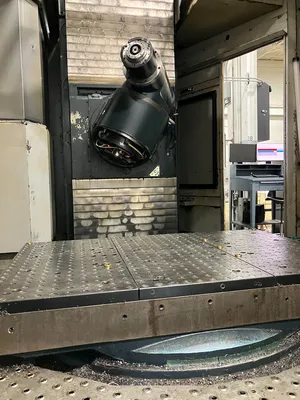

3 PLUS 2 SPINDLE INDEXING HEAD (1) DEGREE INCREMENTS A & C AXIS
(2) SPINDLE SPEED ELECTRIC RANGES FOR HIGH TORQUE AND HIGH SPEED OPERATION
COOLANT THROUGH SPINDLE
MOIRE SCALE FEED BACK SYSTEM X,Y,Z AXIS (0.1 MICRON RESOLUTION)
FULL 4TH AXIS BUILT IN ROTARY TABLE 0.0001 DEGREE
SUPER GI MAKINO CONTROL FUNCTION
MIST COLLECTOR
LIFT UP TYPE CHIP CONVEYOR
FLOOD COOLANT
DATA SERVER
2 RANGE SPINDLE GEAR SELECTION
RENISHAW PROBE SOFTWARE
AUTOMATIC NON-CONTACT BLUM TOOL LASER PICK-UP (POP UP TYPE)
PORTABLE MANUAL PULSE GENERATOR
(600) MACRO COMMON VARIABLES
HIGH SPEED SMOOTH TCP
DATA CENTER STORAGE 360MB
99 TOTAL TOOL OFFSETS
INCH METRIC SELECTION
RIGID TAPPING STANDARD
