Used 1996 NARDINI Fast Trace 220 | CNC Lathes

Description

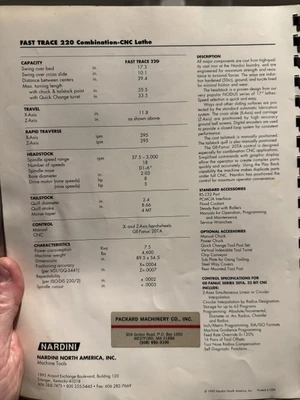

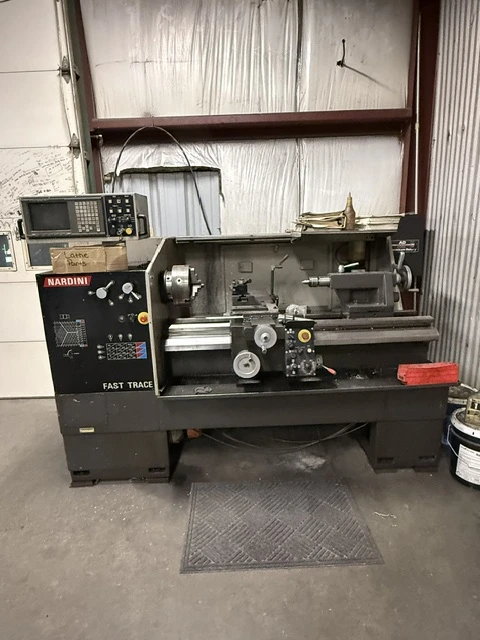

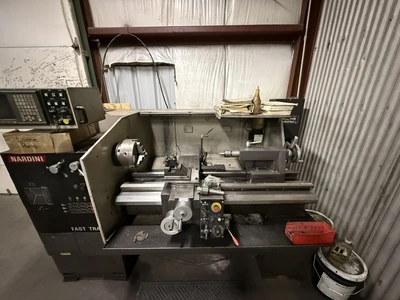

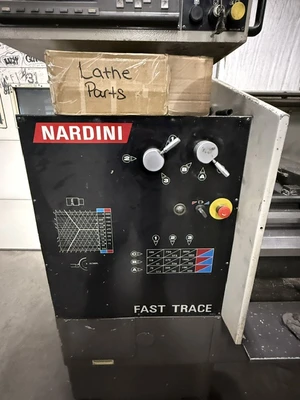

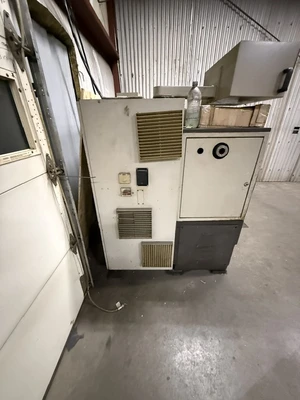

Nardini Fast Trace Combination Lathe, with GE Controller.

Capacity
Swing over bed 17.3 in.
Swing over cross slide 10.1 in.
Distance between centers / maximum turning length 35.5 in. [label partly unclear]
With chuck and tailstock point 33.5 in.

Travel
X axis 11.8 in.
Z axis Shown above [value not separately legible]

Rapid Traverse
X axis 295 ipm
Z axis 295 ipm

Headstock
Spindle speed 375–3,000 rpm
Number of speeds 18
Spindle nose D1-6 in. [as printed; verify]
Spindle bore 2.03 in.
Bar diameter 0.8 in. [unclear in photograph]
Drive motor (main spindle) 5 hp
Drive motor (other spindle/axis entry) 5 hp [label/value pairing partly unclear]

Tailstock
Quill diameter 2.6 in.
Quill stroke 8.66 in.
Motor torque 4 MT

Control
Manual X- and Z-axis handwheels

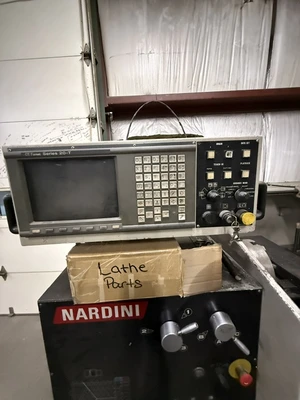

CNC GE-Fanuc 20TA

Characteristics
Power consumption 7.5 kVA
Machine weight 4,600 lb
Dimensions 89.5 × 54.5 in. [height/depth notation unclear]
Positioning accuracy X: 0.0004 in.; Z: 0.0007 in.
Repeatability (per ISO/DIS 230/2) X: 0.0002 in.; Z: 0.0002 in.
Spindle runout < 0.0003 in.

Standard Accessories
Control GE-Fanuc 20TA
Interface RS232C interface
Coolant Flood coolant
Tooling Steady rest with rollers
Documentation Manuals for Operation, Programming and Maintenance
Service Service wrenches

Optional Accessories
Manual chuck
Power chuck
Quick-change Tool Post Set
Vertical Indexable Tool Turret
Chip Conveyor
Chip Plate for Tooling
Steel Way Covers
Rear Mounted Tool Post

Control Specifications for GE-Fanuc Series 20TA, 32T CNC
Included features 2-Axes Simultaneous Linear or Circular Interpolation
Circular Interpolation by Radius Designation
Storage for up to 63 Programs
Programmable Absolute/Incremental, Diameter or Arc Radius, Chamfer and Radius
Inch/Metric Programming, EIA/ISO Formats
Machine Guidance Programming
Feed Rate Override: 0–120%
Feed per Revolution
Tool Nose Radius Compensation
Self Diagnostic Functions
