Used 2010 NIIGATA HN63D | Machining Centers, Horizontal

Overview

Specifications

Imperial

Equipped With

CAT 50

6k spindle

Full 4th

90 tool ATC

Machine is 220v

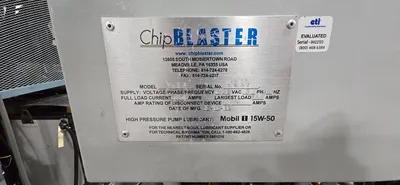

Chip Blaster is 480v

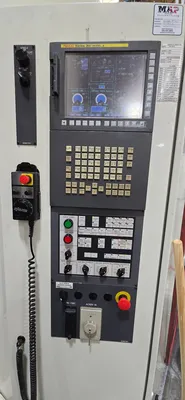

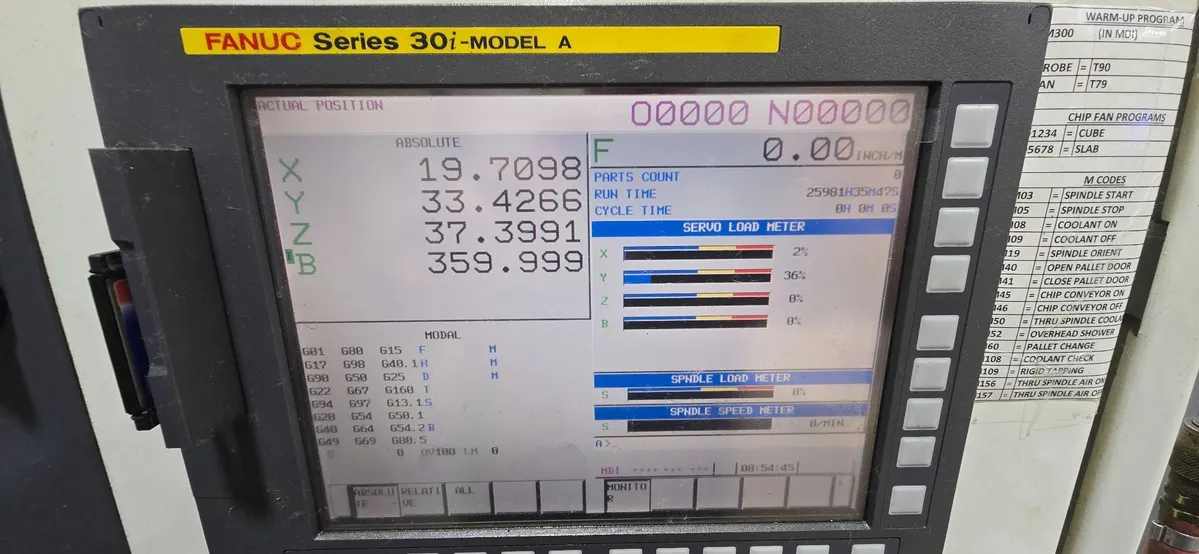

Fanuc 30i Model A control.

Renishaw probe and laser tool setter included. Tool setter was just replaced last year.

Rotary axis was rebuilt 2019

Chiller serviced 2024

Maximum Diameter

1050mm (41.3”)

Max Height

1000mm (39.4”)

Machine work envelope


Specification

Dimension

X-axis travel

39.4" (1,000 mm)

Y-axis travel

34.25" (870 mm)

Z-axis travel

30.7" (780 mm)

Pallet size

24.8" × 24.8" (630 × 630 mm)

Maximum pallet load

3,306 lbs (1,500 kg)

B-axis rotation

360°, programmable

B-axis resolution

0.001°


Item

Approximate

Shipping length

17–19 ft

Shipping width

9–10 ft

Shipping height

10–11 ft

Machine weight

41,000 lb

Rigging/shipping weight allowance

42,000–45,000 lb

Chip Conveyor 5’ x 12’ x 7’ Tall

Chip Blaster 3’ x 6’ x 6’ Tall

Machine 10-1/2’ x 18’ x 11’

Tool Magazine 4’ x 12’ x 9’ Tall
